Getting started with FileX ¶
APIs FileX Description ¶
The FileX file system provides a range of services organized into distinct functional domains, including:
File services
Directory services
Media services
System services
Utility services
Journal services
Configuration and query services
Protection services
The following tables describe, for each domain, the various FileX services and their primary purpose.
Directory Services
|
FileX APIs Functions |
Documentation |
|---|---|
|
fx_directory_attributes_read |
|
|
fx_directory_create |
|
|
fx_directory_default_get |
|
|
fx_directory_default_set |
|
|
fx_directory_delete |
|
|
fx_directory_first_entry_find |
|
|
fx_directory_information_get |
|
|
fx_directory_local_path_clear |
|
|
fx_directory_local_path_get |
|
|
fx_directory_local_path_restore |
|
|
fx_directory_local_path_set |
|
|
fx_directory_long_name_get |
|
|
fx_directory_name_test |
|
|
fx_directory_next_entry_find |
|
|
fx_directory_next_full_entry_find |
|
|
fx_directory_rename |
|
|
fx_directory_short_name_get |
|
|
fx_directory_short_name_get_extended |
File Services
|
FileX APIs Functions |
Documentation |
|---|---|
|
fx_file_allocate |
|
|
fx_file_attributes_read |
|
|
fx_file_attributes_set |
|
|
fx_file_best_effort_allocate |
|
|
fx_file_close |
|
|
fx_file_create |
|
|
fx_file_date_time_set |
|
|
fx_file_delete |
|
|
fx_file_extended_allocate |
|
|
fx_file_extended_best_effort_allocate |
|
|
fx_file_extended_relative_seek |
|
|
fx_file_extended_seek |
|
|
fx_file_extended_truncate |
|
|
fx_file_extended_truncate_release |
|
|
fx_file_open |
|
|
fx_file_read |
|
|
fx_file_relative_seek |
|
|
fx_file_rename |
|
|
fx_file_seek |
|
|
fx_file_truncate |
|
|
fx_file_truncate_release |
|
|
fx_file_write |
|
|
fx_file_write_notify_set |
Media Services
|
FileX APIs Functions |
Documentation |
|---|---|
|
fx_fault_tolerant_enable |
|
|
fx_media_abort |
|
|
fx_media_cache_invalidate |
|
|
fx_media_check |
|
|
fx_media_close |
|
|
fx_media_close_notify_set |
|
|
fx_media_extended_space_available |
|
|
fx_media_flush |
|
|
fx_media_format |
|
|
fx_media_open |
|
|
fx_media_open_notify_set |
|
|
fx_media_read |
|
|
fx_media_space_available |
|
|
fx_media_volume_get |
|
|
fx_media_write |
System Services
|
FileX APIs Functions |
Documentation |
|---|---|
|
fx_system_date_get |
|
|
fx_system_date_set |
|
|
fx_system_initialize |
|
|
fx_system_time_get |
|
|
fx_system_time_set |
Unicode Services
|
FileX APIs Functions |
Documentation |
|---|---|
|
fx_unicode_directory_create |
|
|
fx_unicode_directory_rename |
|
|
fx_unicode_file_create |
|
|
fx_unicode_file_rename |
|
|
fx_unicode_length_get |
|
|
fx_unicode_length_get_extended |
|
|
fx_unicode_name_get |
|
|
fx_unicode_short_name_get |
|
|
fx_unicode_short_name_get_extended |
Configuration flags ¶
FileX is modular and configurable. It provides a set of configuration options that you can tune depending on application needs.
To configure these flags, you must:
Provide a file named fx_user.h at the application level that contains the configuration flags.
Pass the preprocessor definition FX_INCLUDE_USER_DEFINE_FILE at compile time.
Otherwise, all flags use default values defined in the fx_port.h file.

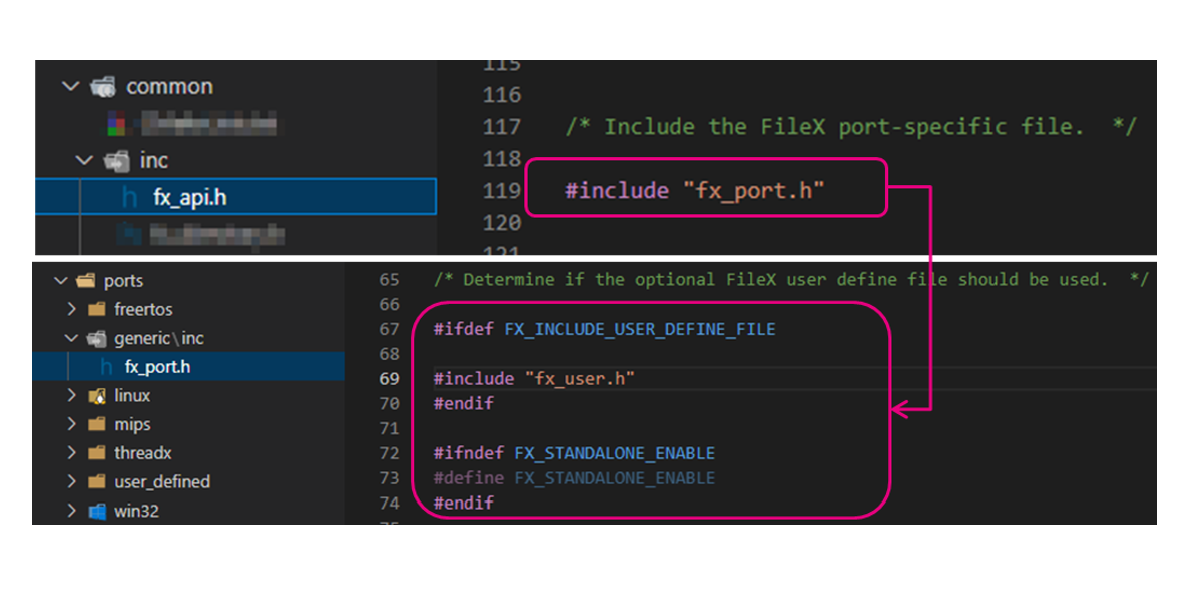

FileX configuration file usage ¶
The configuration flags are split into three categories:
Core flags: these flags apply to the FileX core.
Fault Tolerance flags: these flags relate to the fail-safe feature in FileX.
Misc flags: these flags control features such as statistics and error checking.
Below is the list of the configuration flags:
|
Flag |
Description |
Type |
Min |
Default |
Max |
|---|---|---|---|---|---|
|
FX_DISABLE_DIRECT_DATA_READ _CACHE_FILL |
Disable the direct read sector update of cache |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_ERROR_CHECKING |
Remove the basic FileX error checking API |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DONT_UPDATE_OPEN_FILES |
Do not update already opened files |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DRIVER_USE_64BIT_LBA |
Enable 64-bit sector addresses used in the I/O driver |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_ENABLE_FAULT_TOLERANT |
Enable FileX fault tolerant service |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_FAT_MAP_SIZE |
Specifies the number of sectors that can be represented in the FAT update map |
Integer |
1 |
128 |
32*1024 |
|
FX_FAULT_TOLERANT |
When defined, system sector write requests are flushed immediately to the driver |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_FAULT_TOLERANT_DATA |
When defined, data sector write requests are flushed immediately to the driver |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_MAX_FAT_CACHE |
Define the number of entries in the FAT cache |
Integer |
16 |
16 |
16*1024 |
|
FX_MAX_LAST_NAME_LEN |
Define the maximum file name length |
Integer |
13 |
256 |
256 |
|
FX_MAX_LONG_NAME_LEN |
Define the maximum size of long file names supported by FileX |
Integer |
13 |
256 |
256 |
|
FX_MAX_SECTOR_CACHE |
Define the maximum number of logical sectors that can be cached by FileX |
Integer |
2 |
256 |
16*1024 |
|
FX_SINGLE_OPEN_LEGACY |
When defined, legacy single open logic for the same file is enabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_UPDATE_RATE_IN_SECONDS |
Defines the number of seconds the time parameters are updated in FileX |
Integer |
10 |
10 |
60 |
|
FX_UPDATE_RATE_IN_TICKS |
Defines the number of RTOS ticks required to achieve the update rate |
Integer |
10000 |
10000 |
60000 |
|
FX_DISABLE_CACHE |
Determine if cache is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_FILE_CLOSE |
When defined, file close is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_RENAME_PATH_INHERIT |
When enabled, renaming inherits path information |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_NO_LOCAL_PATH |
When defined, the local path support is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_FAST_OPEN |
When defined, fast open is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_FORCE_MEMORY -OPERATION |
When defined, force memory operations are disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_BUILD_OPTIONS |
When defined, build options are disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_ONE_LINE_FUNCTION |
When defined, one line function support is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_FAT_ENTRY_REFRESH |
When defined, FAT entry refresh is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_DISABLE_CONSECUTIVE _DETECT |
When defined, consecutive sectors detection is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_STANDALONE_ENABLE |
Configure FileX in bare-metal mode |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_SINGLE_THREAD |
Eliminates RTOS protection logic from the FileX source |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_MEDIA_STATISTICS_DISABLE |
When defined, gathering of media statistics is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_MEDIA_DISABLE_SEARCH_CACHE |
When defined, the file search cache optimization is disabled |
Boolean |
Disabled |
Disabled |
Enabled |
|
FX_NO_TIMER |
When defined, FileX is built without update to the time parameters |
Boolean |
Disabled |
Disabled |
Enabled |
