HAL ADC Overview ¶
Introducing ADC ¶
- group ADC_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the ADC module and its associated files.

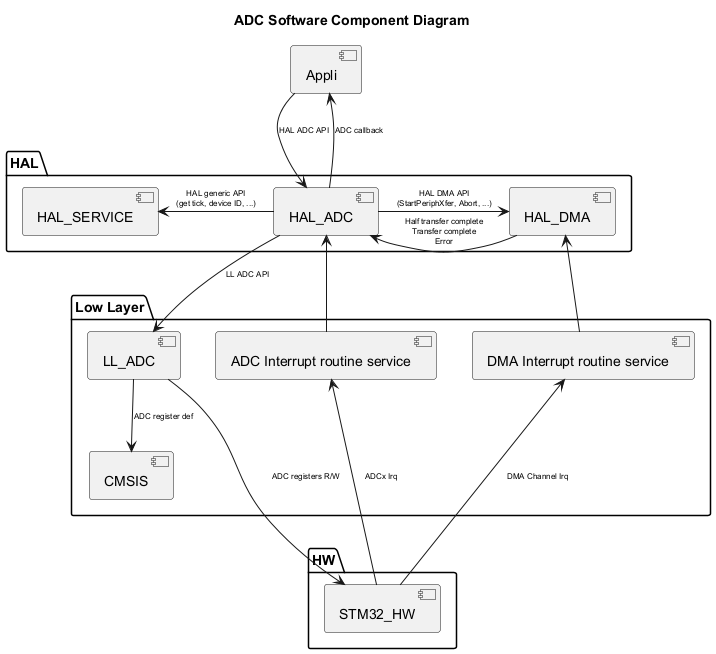

Component diagram ¶
The following diagram illustrates the software components involved in the ADC module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title ADC Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_ADC]
[HAL_DMA]
}
package "Low Layer" {
[LL_ADC]
[CMSIS]
[ADC Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_ADC] : HAL ADC API
[Appli] <-- [HAL_ADC] : ADC callback
[HAL_ADC] --> [LL_ADC] : LL ADC API
[HAL_ADC] -r-> [HAL_DMA] : HAL DMA API\n(StartPeriphXfer, Abort, ...)
[HAL_ADC] -l-> [HAL_SERVICE] : HAL generic API\n(get tick, device ID, ...)
[HAL_ADC] <-- [ADC Interrupt routine service]
[HAL_ADC] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError
[LL_ADC] --> [CMSIS]:ADC register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [ADC Interrupt routine service]: ADCx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-u-- [LL_ADC] : ADC registers R/W
@enduml](../../../../_images/plantuml-f35ed0660de61783261850748f662602b090774f.png)
Configuration table ¶
The following table lists the configuration defines for the HAL ADC module, specifying their locations, default values, and descriptions:
- group ADC_Configuration_Table
-
¶
Configuration inside the ADC driver ¶
Config defines
Description
Default value
Note
USE_HAL_ADC_MODULE
from hal_conf.h
1
When set, HAL ADC module is enabled
USE_HAL_ADC_DMA
from hal_conf.h
1
Enable DMA code inside ADC
USE_HAL_ADC_REGISTER_CALLBACKS
from hal_conf.h
0
When defined, enable the register callbacks assert
USE_HAL_ADC_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Enable gating of the peripheral clock
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Parameters (pointers or sizes) are checked in runtime
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0
When set, enable atomic access to process state check
USE_ASSERT_DBG_PARAM
from PreProcessor env
None
When defined, enable the params assert
USE_ASSERT_DBG_STATE
from PreProcessor env
None
When defined, enable the state assert
ADC_INST_IN_COMMON_COUNT
from CMSIS
None
When defined and value > 2, multiple ADC handles can be linked
ADC_MULTIMODE_SUPPORT
from CMSIS
None
When defined, multimode features available
