HAL ADF Overview ¶
Introducing ADF ¶
- group ADF_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the ADF module and its associated files.

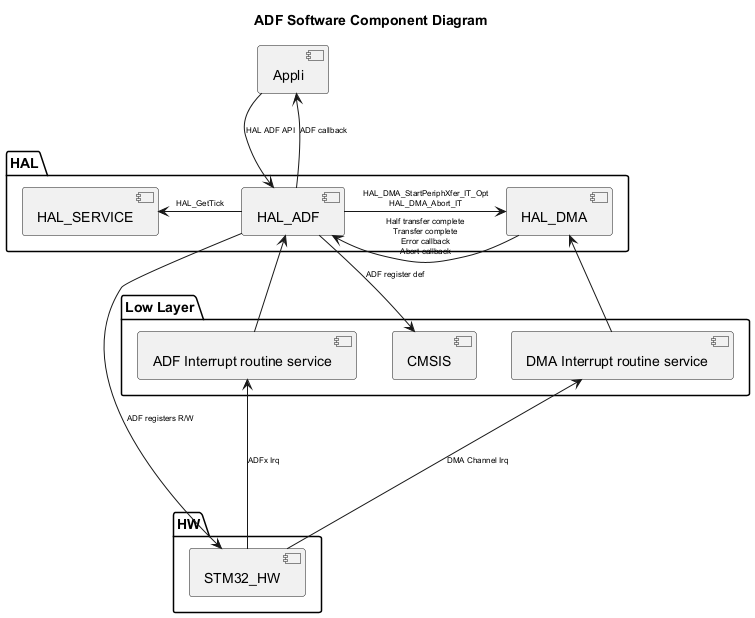

Component diagram ¶
The following diagram illustrates the software components involved in the ADF module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title ADF Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_ADF]
[HAL_DMA]
}
package "Low Layer" {
[CMSIS]
[ADF Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_ADF] : HAL ADF API
[Appli] <-- [HAL_ADF] : ADF callback
[HAL_ADF] -r-> [HAL_DMA] : HAL_DMA_StartPeriphXfer_IT_Opt\nHAL_DMA_Abort_IT
[HAL_ADF] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_ADF] <-- [ADF Interrupt routine service]
[HAL_ADF] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError callback\nAbort callback
[HAL_ADF] --> [CMSIS]:ADF register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [ADF Interrupt routine service]: ADFx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-l-- [HAL_ADF] : ADF registers R/W
@enduml](../../../../_images/plantuml-0469f66bb16b6ea4151b147a468776e4b0d0bbb9.png)
Configuration table ¶
The following table lists the configuration defines for the HAL ADF module, specifying their locations, default values, and descriptions:
- group ADF_Configuration_Table
-
Configuration inside the HAL ADF driver ¶
Config defines
Where
Default value
Note
USE_HAL_ADF_MODULE
hal_conf.h
1
Enable the HAL ADF module
USE_HAL_ADF_REGISTER_CALLBACKS
hal_conf.h
0
Allow user to define his own callback
USE_HAL_ADF_CLK_ENABLE_MODEL
hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the peripheral clock
USE_HAL_ADF_USER_DATA
hal_conf.h
0
Add an user data inside HAL ADF handle
USE_HAL_ADF_GET_LAST_ERRORS
hal_conf.h
0
Enable retrieving last processes error codes
USE_HAL_ADF_DMA
hal_conf.h
1
Enable DMA code inside HAL ADF
USE_HAL_CHECK_PARAM
hal_conf.h
0
Enable checking of vital parameters at runtime
USE_HAL_CHECK_PROCESS_STATE
hal_conf.h
0
Enable atomic access to process state check
USE_ASSERT_DBG_PARAM
PreProcessor env
NONE
Enable check parameters for HAL
USE_ASSERT_DBG_STATE
PreProcessor env
NONE
Enable check state for HAL
