HAL COMP Overview ¶
Introducing COMP ¶
- group COMP_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the COMP module and its associated files.

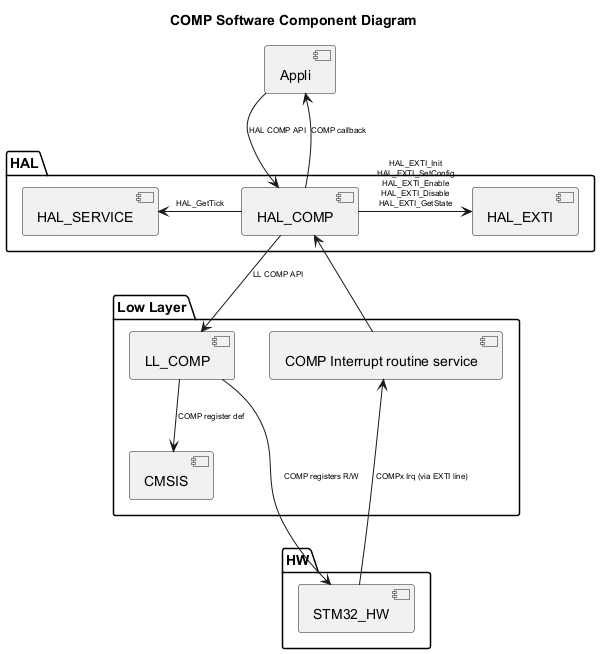

Component diagram ¶
The following diagram illustrates the software components involved in the COMP module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title COMP Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_COMP]
[HAL_EXTI]
}
package "Low Layer" {
[LL_COMP]
[CMSIS]
[COMP Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_COMP] : HAL COMP API
[Appli] <-- [HAL_COMP] : COMP callback
[HAL_COMP] --> [LL_COMP] : LL COMP API
[HAL_COMP] -r-> [HAL_EXTI] : HAL_EXTI_Init\nHAL_EXTI_SetConfig\nHAL_EXTI_Enable\nHAL_EXTI_Disable\nHAL_EXTI_GetState
[HAL_COMP] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_COMP] <-- [COMP Interrupt routine service]
[LL_COMP] --> [CMSIS]:COMP register def
[STM32_HW] -u--> [COMP Interrupt routine service]: COMPx Irq (via EXTI line)
[STM32_HW] <-u-- [LL_COMP] : COMP registers R/W
@enduml](../../../../_images/plantuml-d21f4d6192c9572271a02dc596c9f52acbac1d0d.png)
Configuration table ¶
The following table lists the configuration defines for the HAL COMP module, specifying their locations, default values, and descriptions:
- group COMP_Configuration_Table
-
¶
Configuration inside the COMP driver ¶
Config defines
Description
Default value
Note
USE_HAL_COMP_MODULE
from hal_conf.h
1
When set, HAL COMP module is enabled
USE_HAL_COMP_EXTI
from hal_conf.h
1
When set, HAL COMP can be used with EXTI
.
(needed for event and IT operation)
USE_HAL_COMP_WINDOW_MODE
from hal_conf.h
0
When set, HAL COMP common features are available (under
.
condition of feature supported: COMP_WINDOW_MODE_SUPPORT)
USE_HAL_COMP_REGISTER_CALLBACKS
from hal_conf.h
0
When defined, enable the register callbacks assert
USE_HAL_COMP_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the peripheral clock
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Parameters (pointers or sizes) are checked in runtime
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0
When set, enable atomic access to process state check
USE_ASSERT_DBG_PARAM
from PreProcessor env
NA
When defined, enable the params assert
USE_ASSERT_DBG_STATE
from PreProcessor env
NA
When defined, enable the state assert
COMP_WINDOW_MODE_SUPPORT
from CMSIS
Defined
When defined, COMP window mode features are available
