HAL CRS Use Cases ¶

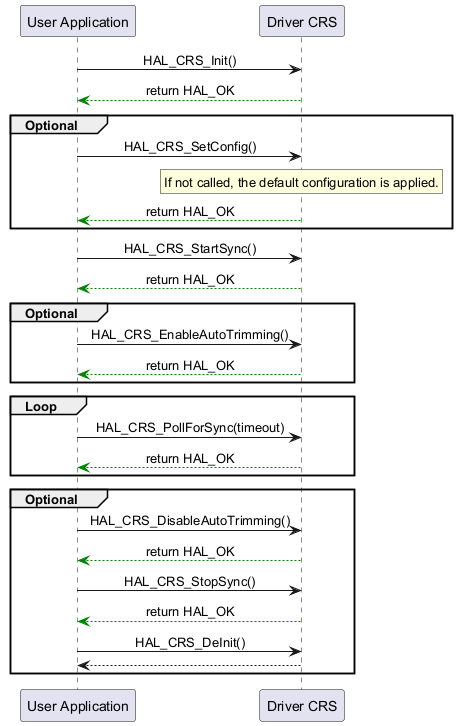

CRS in Polling mode ¶
![@startuml
skinparam sequenceMessageAlign center
"User Application"->"Driver CRS" : HAL_CRS_Init()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
group Optional
"User Application"->"Driver CRS" : HAL_CRS_SetConfig()
rnote over "Driver CRS"
If not called, the default configuration is applied.
endrnote
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
"User Application"->"Driver CRS" : HAL_CRS_StartSync()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
group Optional
"User Application"->"Driver CRS" : HAL_CRS_EnableAutoTrimming()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
group Loop
"User Application"->"Driver CRS" : HAL_CRS_PollForSync(timeout)
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
group Optional
"User Application"->"Driver CRS" : HAL_CRS_DisableAutoTrimming()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_StopSync()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_DeInit()
"Driver CRS" --> "User Application"
end
@enduml](../../../../_images/plantuml-52f974d6402a7f327db224cc54c1a0dd24d3257c.png)
Called functions:

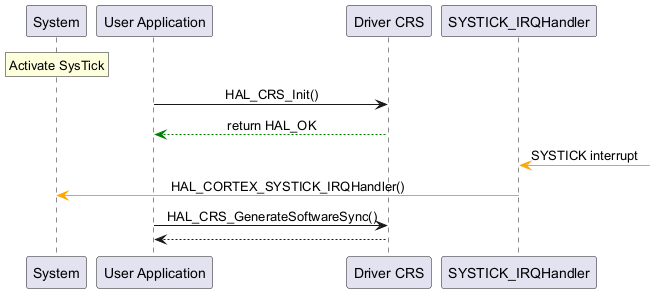

CRS Software Synchronization ¶
![@startuml
skinparam sequenceMessageAlign center
rnote over "System"
Activate SysTick
endrnote
"User Application"->"Driver CRS" : HAL_CRS_Init()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"SYSTICK_IRQHandler" <[#Orange]- : SYSTICK interrupt
"SYSTICK_IRQHandler" -[#Orange]> "System" : HAL_CORTEX_SYSTICK_IRQHandler()
"User Application"->"Driver CRS" : HAL_CRS_GenerateSoftwareSync()
"Driver CRS" --> "User Application"
@enduml](../../../../_images/plantuml-e0c4a93376a475636ced138f8e74b434fea4394b.png)
Called functions:

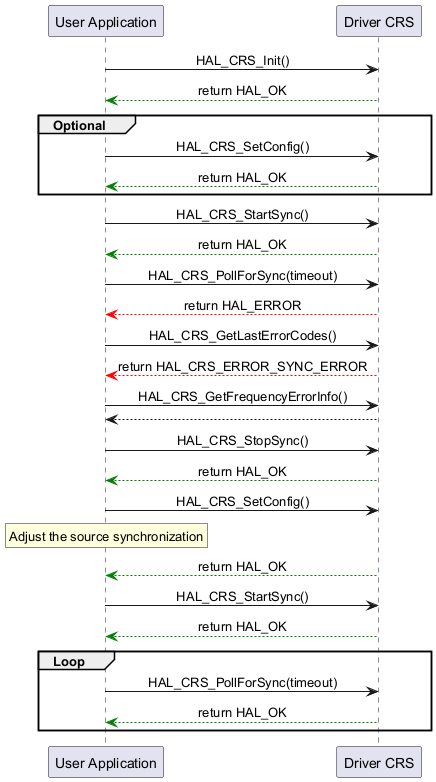

CRS in Polling mode with Synchronization Error ¶
![@startuml
skinparam sequenceMessageAlign center
"User Application"->"Driver CRS" : HAL_CRS_Init()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
group Optional
"User Application"->"Driver CRS" : HAL_CRS_SetConfig()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
"User Application"->"Driver CRS" : HAL_CRS_StartSync()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_PollForSync(timeout)
"Driver CRS" -[#Red]-> "User Application" : return HAL_ERROR
"User Application"->"Driver CRS" : HAL_CRS_GetLastErrorCodes()
"Driver CRS" -[#Red]-> "User Application" : return HAL_CRS_ERROR_SYNC_ERROR
"User Application"->"Driver CRS" : HAL_CRS_GetFrequencyErrorInfo()
"Driver CRS" --> "User Application"
"User Application"->"Driver CRS" : HAL_CRS_StopSync()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_SetConfig()
rnote over "User Application"
Adjust the source synchronization
endrnote
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_StartSync()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
group Loop
"User Application"->"Driver CRS" : HAL_CRS_PollForSync(timeout)
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
@enduml](../../../../_images/plantuml-a269f0d303253df9d2d7cb5169330bbdd3b9947c.png)
Called functions:

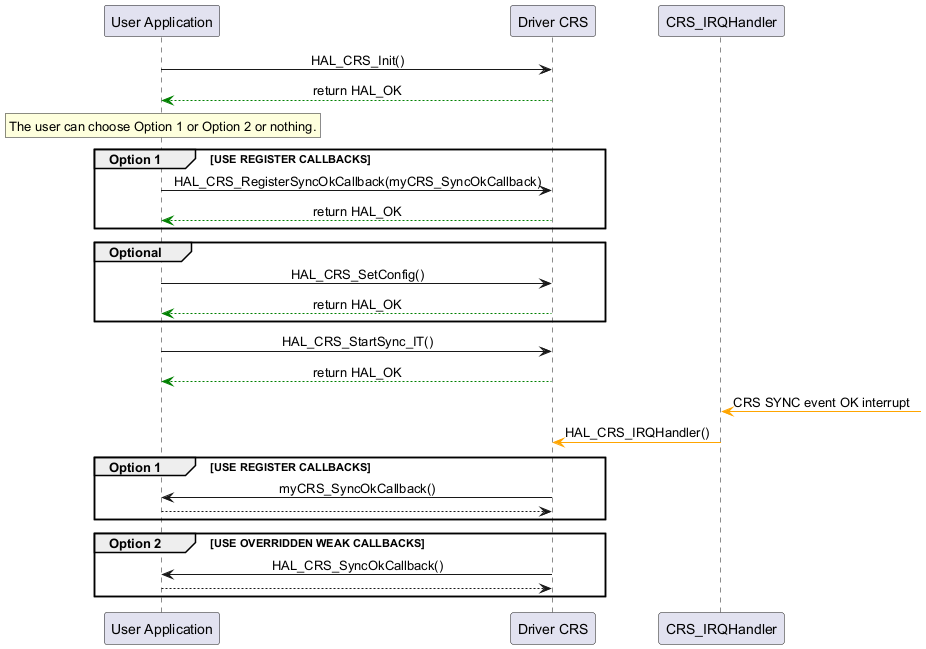

CRS in Interrupt mode with SYNC event OK interrupt ¶
![@startuml
skinparam sequenceMessageAlign center
"User Application"->"Driver CRS" : HAL_CRS_Init()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
rnote over "User Application"
The user can choose Option 1 or Option 2 or nothing.
endrnote
group Option 1 [USE REGISTER CALLBACKS]
"User Application" -> "Driver CRS" : HAL_CRS_RegisterSyncOkCallback(myCRS_SyncOkCallback)
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
group Optional
"User Application"->"Driver CRS" : HAL_CRS_SetConfig()
"Driver CRS" --[#Green]> "User Application" : return HAL_OK
end
"User Application"->"Driver CRS" : HAL_CRS_StartSync_IT()
"Driver CRS" --[#Green]> "User Application" : return HAL_OK
"CRS_IRQHandler" <[#Orange]- : CRS SYNC event OK interrupt
"CRS_IRQHandler" -[#Orange]> "Driver CRS" : HAL_CRS_IRQHandler()
group Option 1 [USE REGISTER CALLBACKS]
"Driver CRS" -> "User Application" : myCRS_SyncOkCallback()
"User Application" --> "Driver CRS"
end
group Option 2 [USE OVERRIDDEN WEAK CALLBACKS]
"Driver CRS" -> "User Application" : HAL_CRS_SyncOkCallback()
"User Application" --> "Driver CRS"
end
@enduml](../../../../_images/plantuml-11517386aa40540829bfa28ec7a70289e40fcc44.png)
Called functions:

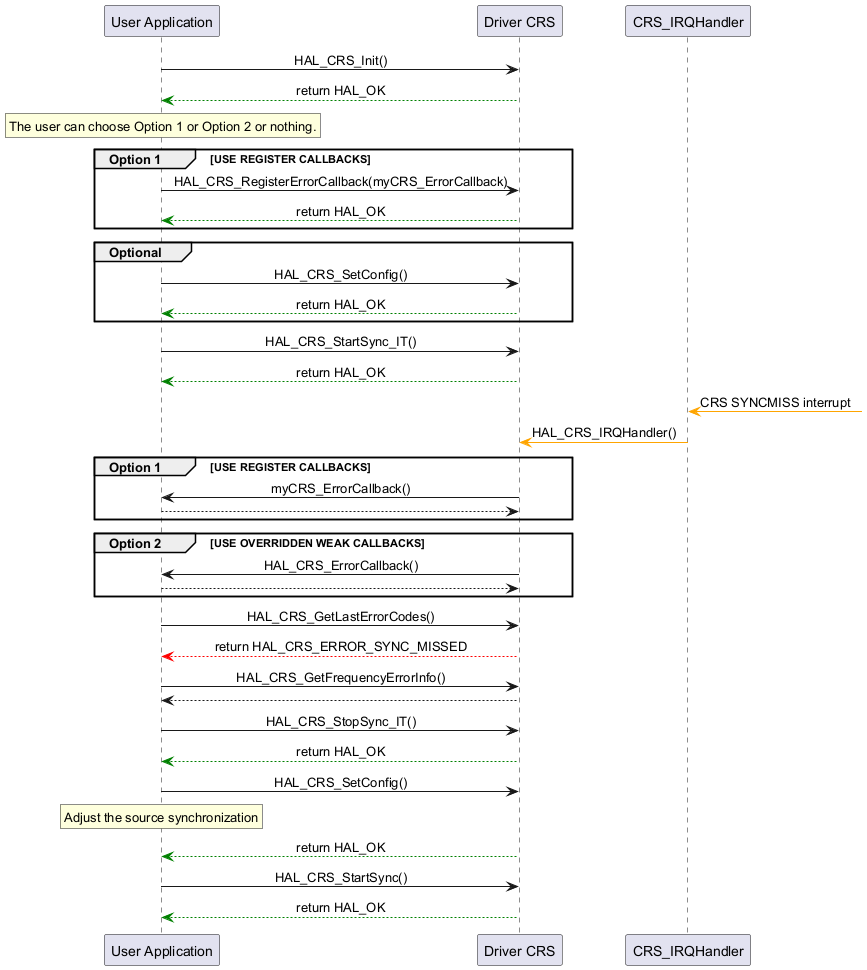

CRS in Interrupt mode with synchronization missed interrupt ¶
![@startuml
skinparam sequenceMessageAlign center
skinparam sequenceMessageAlign center
"User Application"->"Driver CRS" : HAL_CRS_Init()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
rnote over "User Application"
The user can choose Option 1 or Option 2 or nothing.
endrnote
group Option 1 [USE REGISTER CALLBACKS]
"User Application" -> "Driver CRS" : HAL_CRS_RegisterErrorCallback(myCRS_ErrorCallback)
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
end
group Optional
"User Application"->"Driver CRS" : HAL_CRS_SetConfig()
"Driver CRS" --[#Green]> "User Application" : return HAL_OK
end
"User Application"->"Driver CRS" : HAL_CRS_StartSync_IT()
"Driver CRS" --[#Green]> "User Application" : return HAL_OK
"CRS_IRQHandler" <[#Orange]- : CRS SYNCMISS interrupt
"CRS_IRQHandler" -[#Orange]> "Driver CRS" : HAL_CRS_IRQHandler()
group Option 1 [USE REGISTER CALLBACKS]
"Driver CRS" -> "User Application" : myCRS_ErrorCallback()
"User Application" --> "Driver CRS"
end
group Option 2 [USE OVERRIDDEN WEAK CALLBACKS]
"Driver CRS" -> "User Application" : HAL_CRS_ErrorCallback()
"User Application" --> "Driver CRS"
end
"User Application"->"Driver CRS" : HAL_CRS_GetLastErrorCodes()
"Driver CRS" -[#Red]-> "User Application" : return HAL_CRS_ERROR_SYNC_MISSED
"User Application"->"Driver CRS" : HAL_CRS_GetFrequencyErrorInfo()
"Driver CRS" --> "User Application"
"User Application"->"Driver CRS" : HAL_CRS_StopSync_IT()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_SetConfig()
rnote over "User Application"
Adjust the source synchronization
endrnote
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
"User Application"->"Driver CRS" : HAL_CRS_StartSync()
"Driver CRS" -[#Green]-> "User Application" : return HAL_OK
@enduml](../../../../_images/plantuml-9726dcd7614d51e9c716505db5f70daa66cd272f.png)
Called functions:
