HAL DMA Use Cases

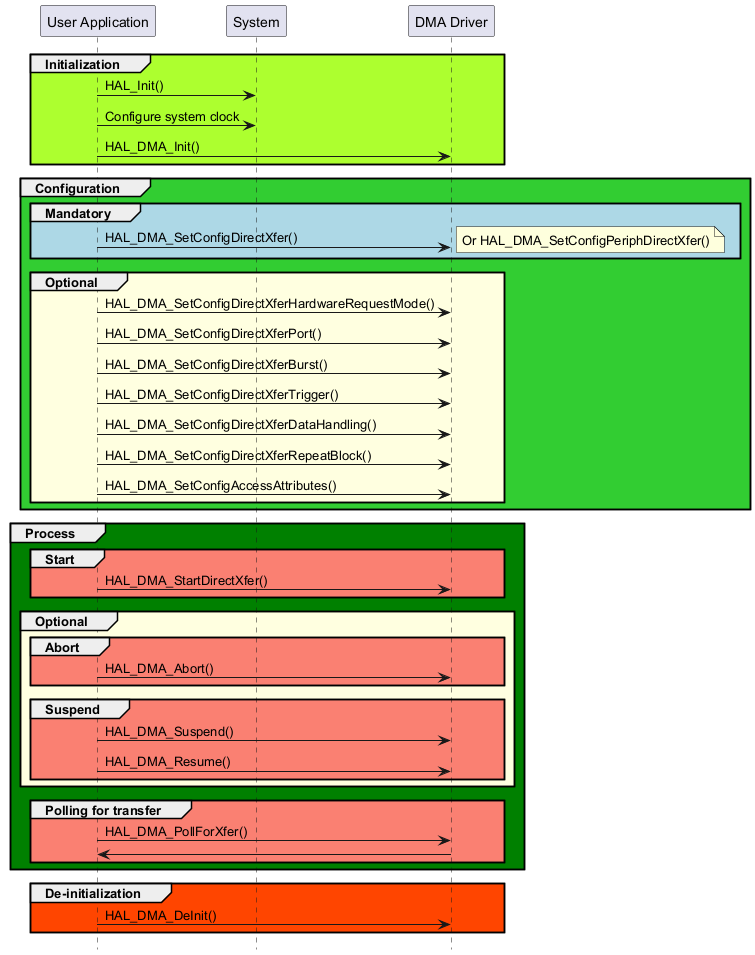

Direct Mode Transfer: Polling

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "DMA Driver" as part3 group #GreenYellow Initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part3 : HAL_DMA_Init() end group #LimeGreen Configuration group #lightblue Mandatory part1->part3 : HAL_DMA_SetConfigDirectXfer() note right : Or HAL_DMA_SetConfigPeriphDirectXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_SetConfigDirectXferHardwareRequestMode() part1->part3 : HAL_DMA_SetConfigDirectXferPort() part1->part3 : HAL_DMA_SetConfigDirectXferBurst() part1->part3 : HAL_DMA_SetConfigDirectXferTrigger() part1->part3 : HAL_DMA_SetConfigDirectXferDataHandling() part1->part3 : HAL_DMA_SetConfigDirectXferRepeatBlock() part1->part3 : HAL_DMA_SetConfigAccessAttributes() end end group #Green Process group #Salmon Start part1->part3 : HAL_DMA_StartDirectXfer() end group #LightYellow Optional group #Salmon Abort part1->part3 : HAL_DMA_Abort() end group #Salmon Suspend part1->part3 : HAL_DMA_Suspend() part1->part3 : HAL_DMA_Resume() end end group #Salmon Polling for transfer part1->part3 : HAL_DMA_PollForXfer() part3->part1: end end group #OrangeRed De-initialization part1->part3 : HAL_DMA_DeInit() end @enduml

Called functions:

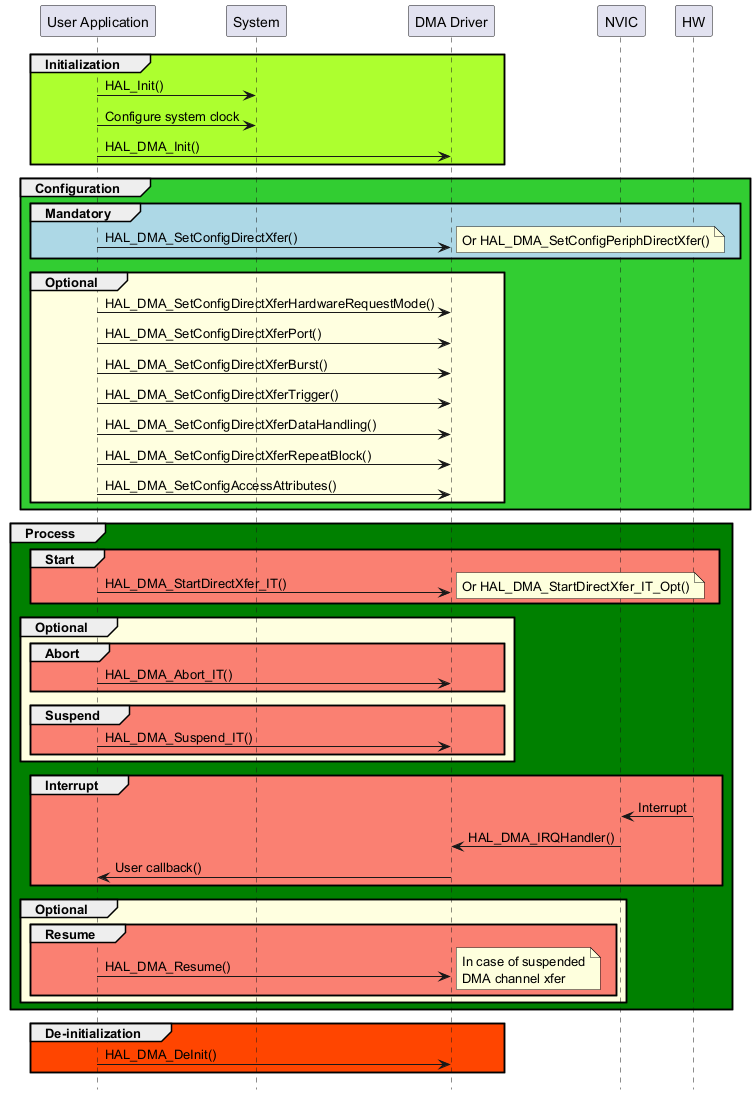

Direct Mode Transfer: Interrupt

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "DMA Driver" as part3 participant "NVIC" as part4 participant "HW" as part5 group #GreenYellow Initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part3 : HAL_DMA_Init() end group #LimeGreen Configuration group #lightblue Mandatory part1->part3 : HAL_DMA_SetConfigDirectXfer() note right : Or HAL_DMA_SetConfigPeriphDirectXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_SetConfigDirectXferHardwareRequestMode() part1->part3 : HAL_DMA_SetConfigDirectXferPort() part1->part3 : HAL_DMA_SetConfigDirectXferBurst() part1->part3 : HAL_DMA_SetConfigDirectXferTrigger() part1->part3 : HAL_DMA_SetConfigDirectXferDataHandling() part1->part3 : HAL_DMA_SetConfigDirectXferRepeatBlock() part1->part3 : HAL_DMA_SetConfigAccessAttributes() end end group #Green Process group #Salmon Start part1->part3 : HAL_DMA_StartDirectXfer_IT() note right : Or HAL_DMA_StartDirectXfer_IT_Opt() end group #LightYellow Optional group #Salmon Abort part1->part3 : HAL_DMA_Abort_IT() end group #Salmon Suspend part1->part3 : HAL_DMA_Suspend_IT() end end group #Salmon Interrupt part4<-part5 : Interrupt part4->part3 : HAL_DMA_IRQHandler() part3->part1 : User callback() end group #LightYellow Optional group #Salmon Resume part1->part3 : HAL_DMA_Resume() note right In case of suspended DMA channel xfer end note end end end group #OrangeRed De-initialization part1->part3 : HAL_DMA_DeInit() end @enduml

Called functions:

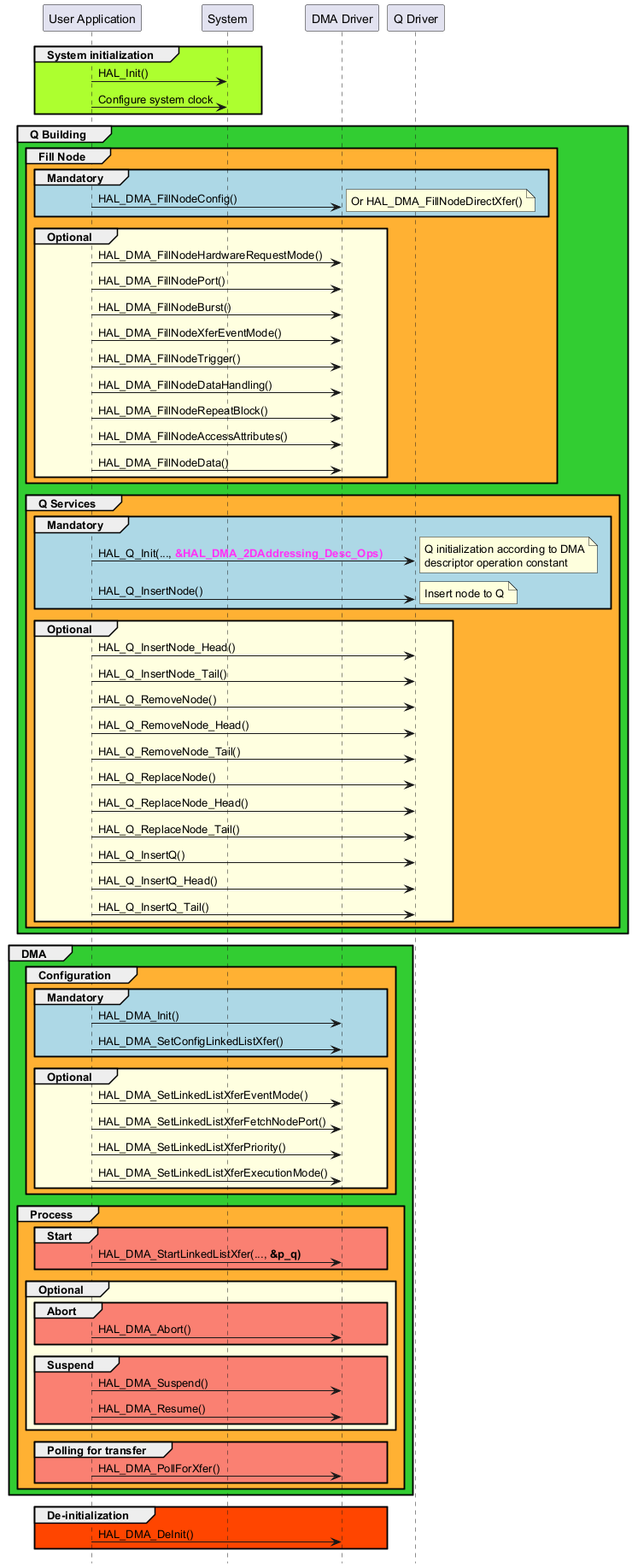

Linked List Mode Transfer: Polling

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "DMA Driver" as part3 participant "Q Driver" as part4 group #GreenYellow System initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock end group #LimeGreen Q Building group #FFB133 Fill Node group #lightblue Mandatory part1->part3 : HAL_DMA_FillNodeConfig() note right : Or HAL_DMA_FillNodeDirectXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_FillNodeHardwareRequestMode() part1->part3 : HAL_DMA_FillNodePort() part1->part3 : HAL_DMA_FillNodeBurst() part1->part3 : HAL_DMA_FillNodeXferEventMode() part1->part3 : HAL_DMA_FillNodeTrigger() part1->part3 : HAL_DMA_FillNodeDataHandling() part1->part3 : HAL_DMA_FillNodeRepeatBlock() part1->part3 : HAL_DMA_FillNodeAccessAttributes() part1->part3 : HAL_DMA_FillNodeData() end end group #FFB133 Q Services group #lightblue Mandatory part1->part4 : HAL_Q_Init(..., <color:FF33F7><b>&HAL_DMA_2DAddressing_Desc_Ops) note right Q initialization according to DMA descriptor operation constant end note part1->part4 : HAL_Q_InsertNode() note right : Insert node to Q end group #LightYellow Optional part1->part4 : HAL_Q_InsertNode_Head() part1->part4 : HAL_Q_InsertNode_Tail() part1->part4 : HAL_Q_RemoveNode() part1->part4 : HAL_Q_RemoveNode_Head() part1->part4 : HAL_Q_RemoveNode_Tail() part1->part4 : HAL_Q_ReplaceNode() part1->part4 : HAL_Q_ReplaceNode_Head() part1->part4 : HAL_Q_ReplaceNode_Tail() part1->part4 : HAL_Q_InsertQ() part1->part4 : HAL_Q_InsertQ_Head() part1->part4 : HAL_Q_InsertQ_Tail() end end end group #LimeGreen DMA group #FFB133 Configuration group #lightblue Mandatory part1->part3 : HAL_DMA_Init() part1->part3 : HAL_DMA_SetConfigLinkedListXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_SetLinkedListXferEventMode() part1->part3 : HAL_DMA_SetLinkedListXferFetchNodePort() part1->part3 : HAL_DMA_SetLinkedListXferPriority() part1->part3 : HAL_DMA_SetLinkedListXferExecutionMode() end end group #FFB133 Process group #Salmon Start part1->part3 : HAL_DMA_StartLinkedListXfer(..., <b>&p_q) end group #LightYellow Optional group #Salmon Abort part1->part3 : HAL_DMA_Abort() end group #Salmon Suspend part1->part3 : HAL_DMA_Suspend() part1->part3 : HAL_DMA_Resume() end end group #Salmon Polling for transfer part1->part3 : HAL_DMA_PollForXfer() end end end group #OrangeRed De-initialization part1->part3 : HAL_DMA_DeInit() end @enduml

Called functions:

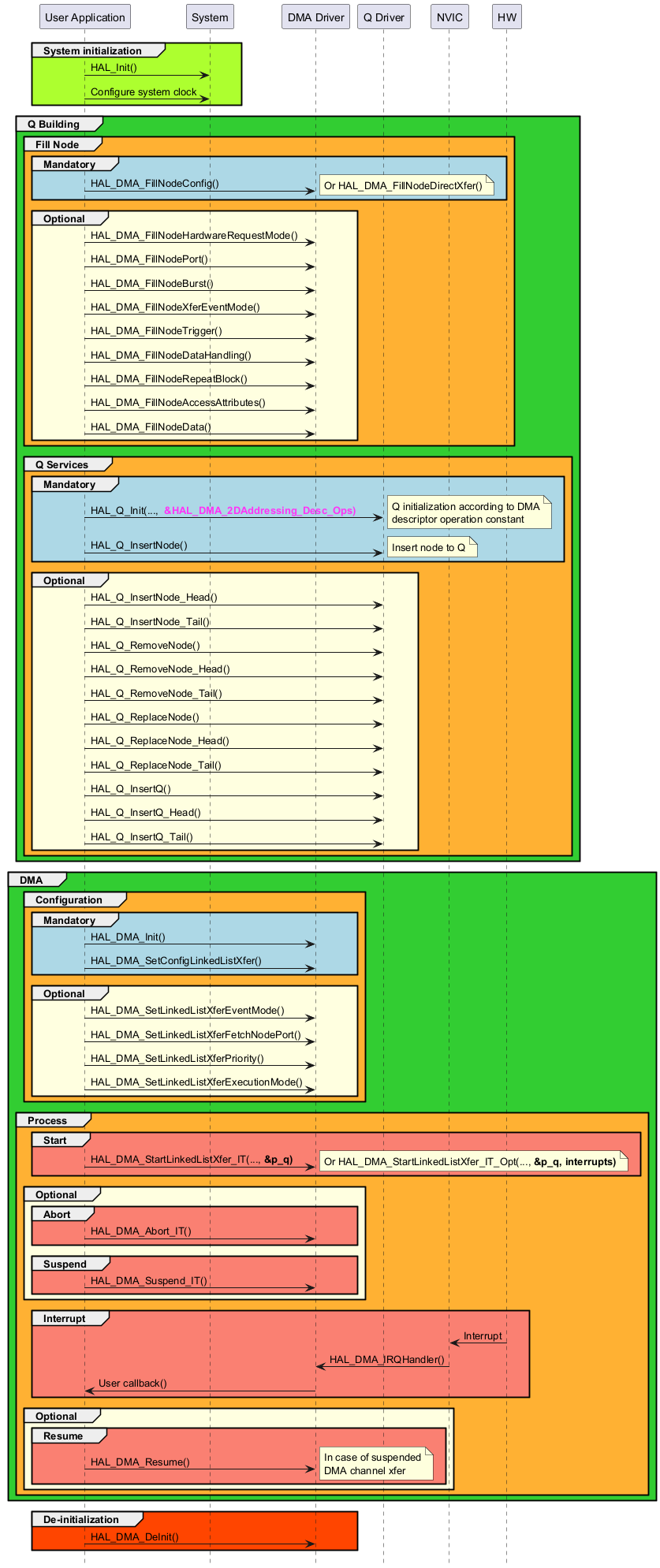

Linked List Mode Transfer: Interrupt

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "DMA Driver" as part3 participant "Q Driver" as part6 participant "NVIC" as part4 participant "HW" as part5 group #GreenYellow System initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock end group #LimeGreen Q Building group #FFB133 Fill Node group #lightblue Mandatory part1->part3 : HAL_DMA_FillNodeConfig() note right : Or HAL_DMA_FillNodeDirectXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_FillNodeHardwareRequestMode() part1->part3 : HAL_DMA_FillNodePort() part1->part3 : HAL_DMA_FillNodeBurst() part1->part3 : HAL_DMA_FillNodeXferEventMode() part1->part3 : HAL_DMA_FillNodeTrigger() part1->part3 : HAL_DMA_FillNodeDataHandling() part1->part3 : HAL_DMA_FillNodeRepeatBlock() part1->part3 : HAL_DMA_FillNodeAccessAttributes() part1->part3 : HAL_DMA_FillNodeData() end end group #FFB133 Q Services group #lightblue Mandatory part1->part6 : HAL_Q_Init(..., <color:FF33F7><b> &HAL_DMA_2DAddressing_Desc_Ops) note right Q initialization according to DMA descriptor operation constant end note part1->part6 : HAL_Q_InsertNode() note right : Insert node to Q end group #LightYellow Optional part1->part6 : HAL_Q_InsertNode_Head() part1->part6 : HAL_Q_InsertNode_Tail() part1->part6 : HAL_Q_RemoveNode() part1->part6 : HAL_Q_RemoveNode_Head() part1->part6 : HAL_Q_RemoveNode_Tail() part1->part6 : HAL_Q_ReplaceNode() part1->part6 : HAL_Q_ReplaceNode_Head() part1->part6 : HAL_Q_ReplaceNode_Tail() part1->part6 : HAL_Q_InsertQ() part1->part6 : HAL_Q_InsertQ_Head() part1->part6 : HAL_Q_InsertQ_Tail() end end end group #LimeGreen DMA group #FFB133 Configuration group #lightblue Mandatory part1->part3 : HAL_DMA_Init() part1->part3 : HAL_DMA_SetConfigLinkedListXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_SetLinkedListXferEventMode() part1->part3 : HAL_DMA_SetLinkedListXferFetchNodePort() part1->part3 : HAL_DMA_SetLinkedListXferPriority() part1->part3 : HAL_DMA_SetLinkedListXferExecutionMode() end end group #FFB133 Process group #Salmon Start part1->part3 : HAL_DMA_StartLinkedListXfer_IT(..., <b>&p_q) note right : Or HAL_DMA_StartLinkedListXfer_IT_Opt(..., <b>&p_q,<b> interrupts) end group #LightYellow Optional group #Salmon Abort part1->part3 : HAL_DMA_Abort_IT() end group #Salmon Suspend part1->part3 : HAL_DMA_Suspend_IT() end end group #Salmon Interrupt part4<-part5 : Interrupt part4->part3 : HAL_DMA_IRQHandler() part3->part1 : User callback() end group #LightYellow Optional group #Salmon Resume part1->part3 : HAL_DMA_Resume() note right In case of suspended DMA channel xfer end note end end end end group #OrangeRed De-initialization part1->part3 : HAL_DMA_DeInit() end @enduml

Called functions:

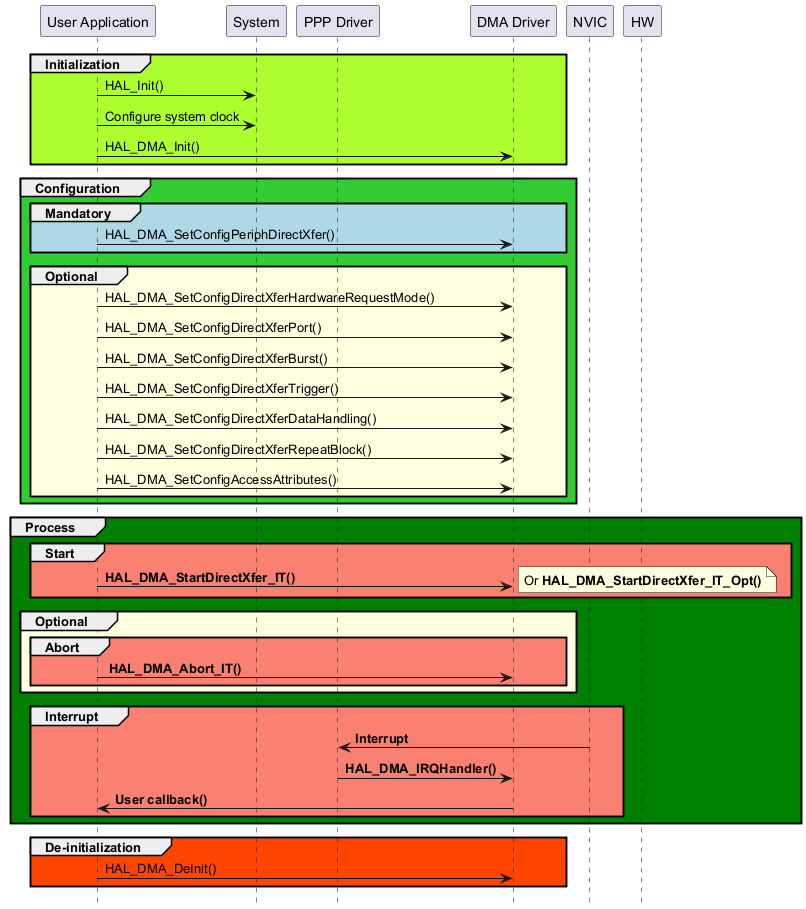

Peripheral Transfer: Linear Mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "PPP Driver" as part4 participant "DMA Driver" as part3 participant "NVIC" as part5 participant "HW" as part6 group #GreenYellow Initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part3 : HAL_DMA_Init() end group #LimeGreen Configuration group #lightblue Mandatory part1->part3 : HAL_DMA_SetConfigPeriphDirectXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_SetConfigDirectXferHardwareRequestMode() part1->part3 : HAL_DMA_SetConfigDirectXferPort() part1->part3 : HAL_DMA_SetConfigDirectXferBurst() part1->part3 : HAL_DMA_SetConfigDirectXferTrigger() part1->part3 : HAL_DMA_SetConfigDirectXferDataHandling() part1->part3 : HAL_DMA_SetConfigDirectXferRepeatBlock() part1->part3 : HAL_DMA_SetConfigAccessAttributes() end end group #Green Process group #Salmon Start part1->part3 : <b>HAL_DMA_StartDirectXfer_IT() note right : Or <b>HAL_DMA_StartDirectXfer_IT_Opt() end group #LightYellow Optional group #Salmon Abort part1->part3 :<b> HAL_DMA_Abort_IT() end end group #Salmon Interrupt part4<-part5 : <b>Interrupt part4->part3 : <b>HAL_DMA_IRQHandler() part3->part1 : <b>User callback() end end group #OrangeRed De-initialization part1->part3 : HAL_DMA_DeInit() end @enduml

Called functions:

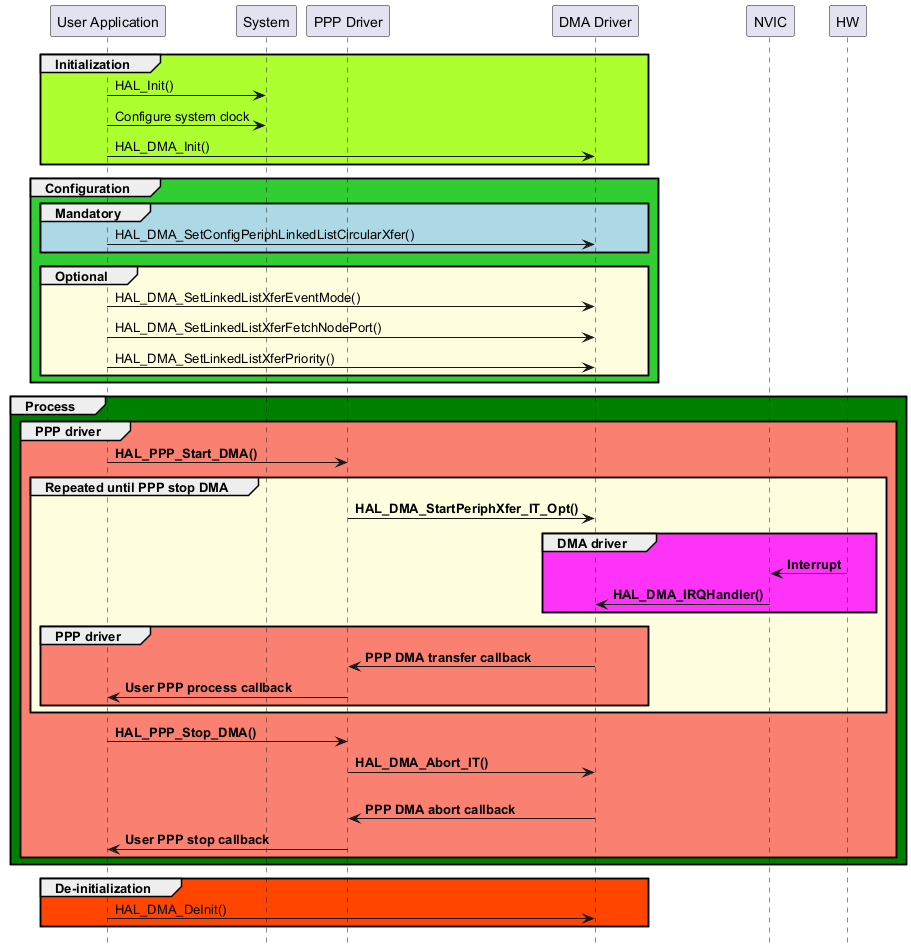

Peripheral Transfer: Circular Mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "PPP Driver" as part4 participant "DMA Driver" as part3 participant "NVIC" as part5 participant "HW" as part6 group #GreenYellow Initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part3 : HAL_DMA_Init() end group #LimeGreen Configuration group #lightblue Mandatory part1->part3 : HAL_DMA_SetConfigPeriphLinkedListCircularXfer() end group #LightYellow Optional part1->part3 : HAL_DMA_SetLinkedListXferEventMode() part1->part3 : HAL_DMA_SetLinkedListXferFetchNodePort() part1->part3 : HAL_DMA_SetLinkedListXferPriority() end end group #Green Process group #Salmon PPP driver part1->part4 : <b>HAL_PPP_Start_DMA() group #LightYellow Repeated until PPP stop DMA part4->part3 : <b>HAL_DMA_StartPeriphXfer_IT_Opt() group #FF33F7 DMA driver part5<-part6 : <b>Interrupt part5->part3 : <b>HAL_DMA_IRQHandler() end group #Salmon PPP driver part3->part4 : <b>PPP DMA transfer callback part4->part1 : <b>User PPP process callback end end part1->part4 : <b>HAL_PPP_Stop_DMA() part4->part3 : <b>HAL_DMA_Abort_IT() part3->part4 : \n<b>PPP DMA abort callback part4->part1 : <b>User PPP stop callback end end group #OrangeRed De-initialization part1->part3 : HAL_DMA_DeInit() end @enduml

Called functions:
