HAL DSI Use Cases

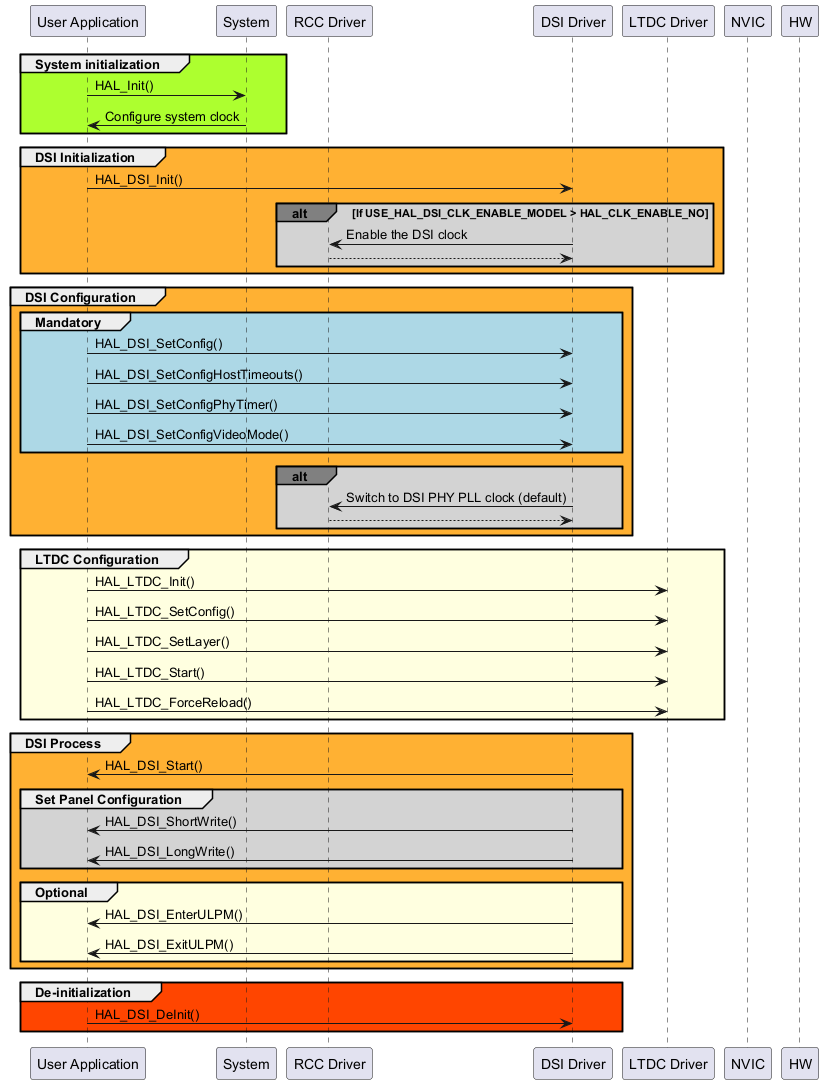

dsi_uc_video_mode

@startuml participant "User Application" as user participant "System" as sys participant "RCC Driver" as rcc participant "DSI Driver" as dsi participant "DMA2D" as dam2d participant "LTDC Driver" as ltdc participant "NVIC" as NVIC participant "HW" as HW group #GreenYellow System initialization user->sys : HAL_Init() sys->user : Configure system clock end group #FFB133 DSI Initialization user->dsi : HAL_DSI_Init() alt#grey #lightgrey If USE_HAL_DSI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO dsi->rcc : Enable the DSI clock rcc-->dsi end end box "Configuration" #CCFF99 box "Mandatory" #CCFF99 group #FFB133 DSI Configuration group #lightblue Mandatory user -> dsi: HAL_DSI_SetConfig() user -> dsi: HAL_DSI_SetConfigHostTimeouts() user -> dsi: HAL_DSI_SetConfigPhyTimer() user -> dsi: HAL_DSI_SetConfigVideoMode() end box end box "Optional" #CCFF99 ' Add optional configurations here if needed end box end box alt#grey #lightgrey dsi->rcc : Switch to DSI PHY PLL clock (default) rcc-->dsi end end group #LightYellow LTDC Configuration user -> ltdc: HAL_LTDC_Init() user -> ltdc: HAL_LTDC_SetConfig() user -> ltdc: HAL_LTDC_SetLayer() user -> ltdc: HAL_LTDC_Start() user -> ltdc: HAL_LTDC_ForceReload() end group #FFB133 DSI Process box "Process" #CCFFFF user <- dsi: HAL_DSI_Start() group #lightgrey CopyPicture user -> dam2d: HAL_DMA2D_Init() user -> dam2d: HAL_DMA2D_SetConfigMemCopy() user -> dam2d: HAL_DMA2D_Start() user -> dam2d: HAL_DMA2D_PollForTransfer() end group #lightgrey Set Panel Configuration user <- dsi: HAL_DSI_ShortWrite() user <- dsi: HAL_DSI_LongWrite() end end group #OrangeRed De-initialization user->dsi : HAL_DSI_DeInit() end @enduml

Called functions:

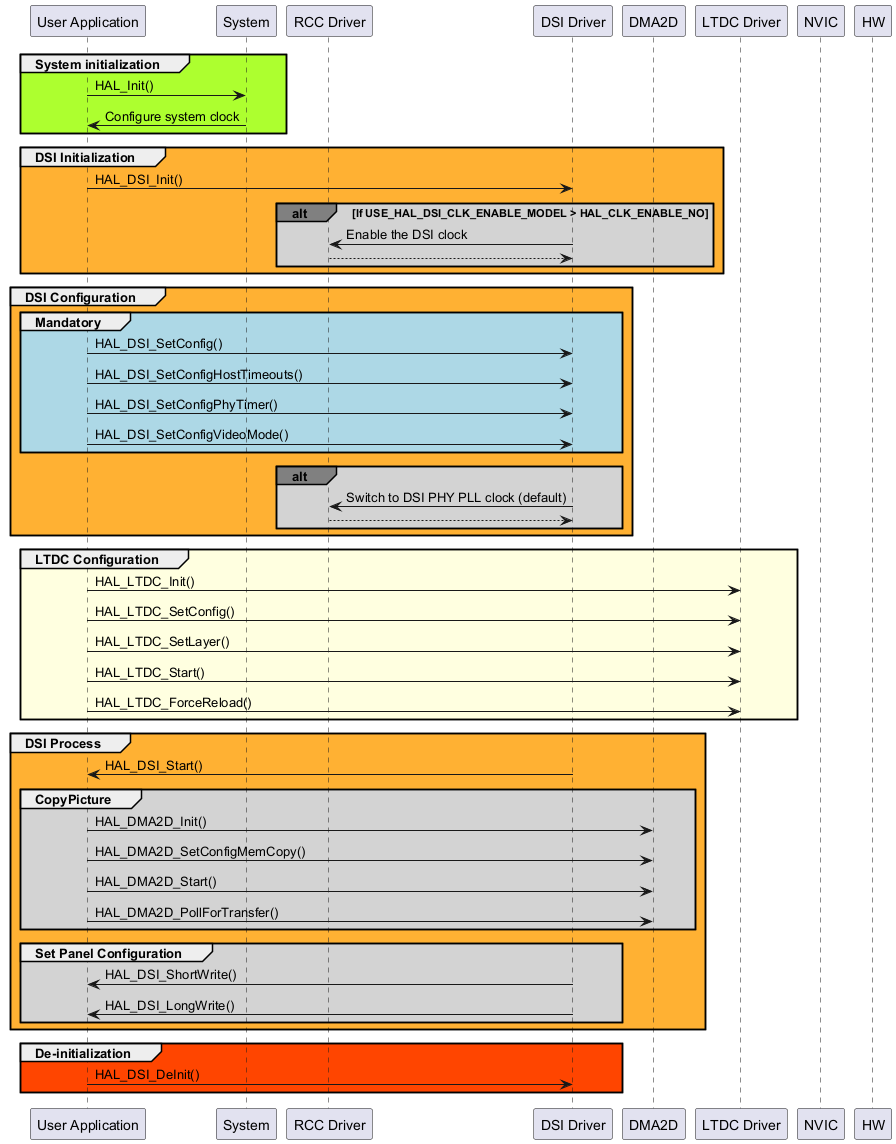

dsi_uc_cmd_mode

@startuml participant "User Application" as user participant "System" as sys participant "RCC Driver" as rcc participant "DSI Driver" as dsi participant "LTDC Driver" as ltdc participant "NVIC" as NVIC participant "HW" as HW group #GreenYellow System initialization user->sys : HAL_Init() sys->user : Configure system clock end group #FFB133 DSI Initialization user->dsi : HAL_DSI_Init() alt#grey #lightgrey If USE_HAL_DSI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO dsi->rcc : Enable the DSI clock rcc-->dsi end end box "Configuration" #CCFF99 box "Mandatory" #CCFF99 group #FFB133 DSI Configuration group #lightblue Mandatory user -> dsi: HAL_DSI_SetConfig() user -> dsi: HAL_DSI_SetConfigHostTimeouts() user -> dsi: HAL_DSI_SetConfigPhyTimer() user -> dsi: HAL_DSI_SetConfigAdaptedCommandMode() user -> dsi: HAL_DSI_SetConfigLPCommand() end box end group #lightYellow Optional user -> dsi: HAL_DSI_SetConfigTearingEffect() end box "Optional" #CCFF99 ' Add optional configurations here if needed end box end box alt#grey #lightgrey dsi->rcc : Switch to DSI PHY PLL clock (default) rcc-->dsi end end group #LightYellow LTDC Configuration user -> ltdc: HAL_LTDC_Init() user -> ltdc: HAL_LTDC_SetConfig() user -> ltdc: HAL_LTDC_SetLayer() user -> ltdc: HAL_LTDC_Start() user -> ltdc: HAL_LTDC_ForceReload() end group #FFB133 DSI Process box "Process" #CCFFFF user <- dsi: HAL_DSI_Start() group #lightgrey Set Panel Configuration user <- dsi: HAL_DSI_ShortWrite() user <- dsi: HAL_DSI_LongWrite() end group #LightYellow Optional user <- dsi: HAL_DSI_Refresh() HW<-NVIC : Interrupt NVIC->dsi : HAL_DSI_IRQHandler() dsi->user : TearingEffect User callback() end end group #OrangeRed De-initialization user->dsi : HAL_DSI_DeInit() end @enduml

Called functions:

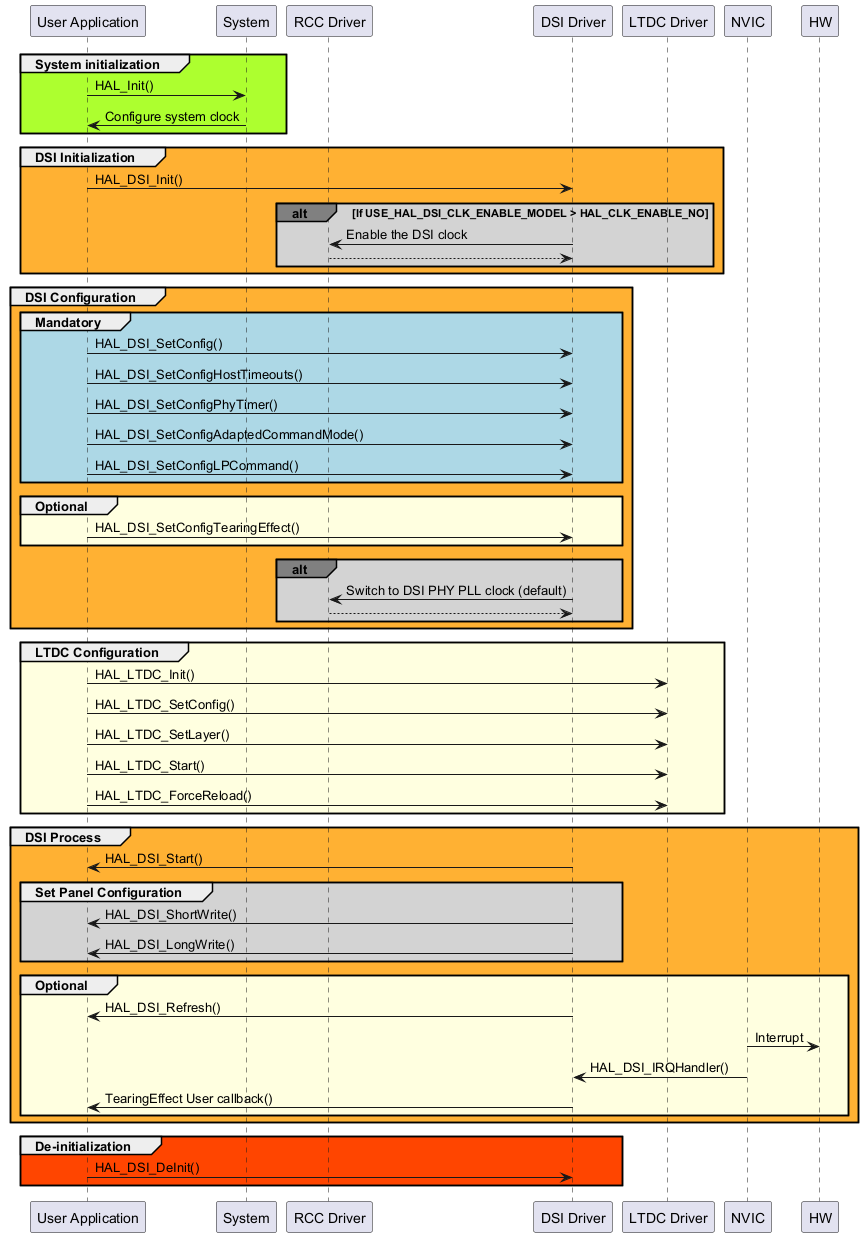

dsi_uc_ulpm

@startuml participant "User Application" as user participant "System" as sys participant "RCC Driver" as rcc participant "DSI Driver" as dsi participant "LTDC Driver" as ltdc participant "NVIC" as NVIC participant "HW" as HW group #GreenYellow System initialization user->sys : HAL_Init() sys->user : Configure system clock end group #FFB133 DSI Initialization user->dsi : HAL_DSI_Init() alt#grey #lightgrey If USE_HAL_DSI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO dsi->rcc : Enable the DSI clock rcc-->dsi end end box "Configuration" #CCFF99 box "Mandatory" #CCFF99 group #FFB133 DSI Configuration group #lightblue Mandatory user -> dsi: HAL_DSI_SetConfig() user -> dsi: HAL_DSI_SetConfigHostTimeouts() user -> dsi: HAL_DSI_SetConfigPhyTimer() user -> dsi: HAL_DSI_SetConfigVideoMode() end box end box "Optional" #CCFF99 ' Add optional configurations here if needed end box end box alt#grey #lightgrey dsi->rcc : Switch to DSI PHY PLL clock (default) rcc-->dsi end end group #LightYellow LTDC Configuration user -> ltdc: HAL_LTDC_Init() user -> ltdc: HAL_LTDC_SetConfig() user -> ltdc: HAL_LTDC_SetLayer() user -> ltdc: HAL_LTDC_Start() user -> ltdc: HAL_LTDC_ForceReload() end group #FFB133 DSI Process box "Process" #CCFFFF user <- dsi: HAL_DSI_Start() group #lightgrey Set Panel Configuration user <- dsi: HAL_DSI_ShortWrite() user <- dsi: HAL_DSI_LongWrite() end group #LightYellow Optional user <- dsi: HAL_DSI_EnterULPM() user <- dsi: HAL_DSI_ExitULPM() end end group #OrangeRed De-initialization user->dsi : HAL_DSI_DeInit() end @enduml

Called functions:

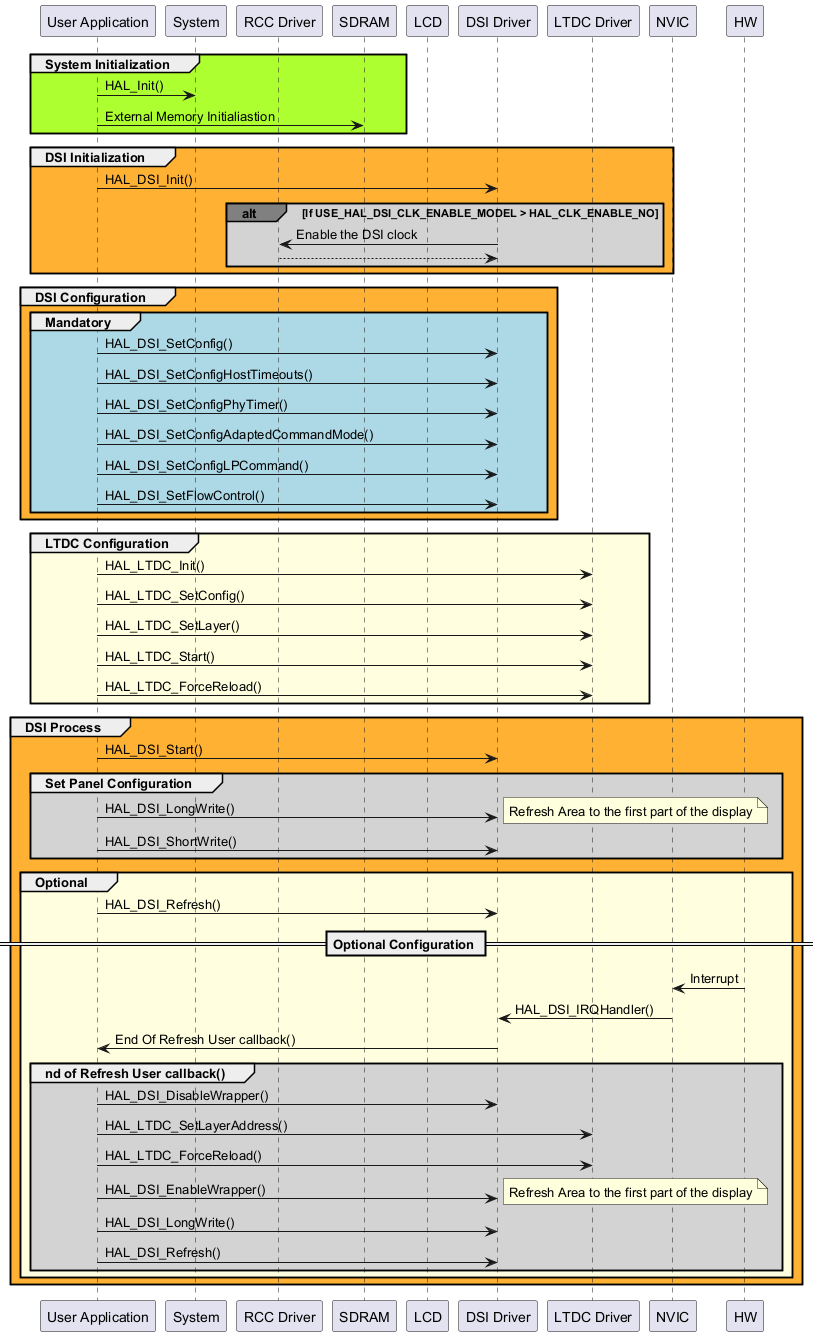

dsi_uc_pattern_gen

@startuml participant "User Application" as user participant "System" as sys participant "RCC Driver" as rcc participant "DSI Driver" as dsi participant "LTDC Driver" as ltdc participant "NVIC" as NVIC participant "HW" as HW group #GreenYellow System initialization user->sys : HAL_Init() sys->user : Configure system clock end group #FFB133 DSI Initialization user->dsi : HAL_DSI_Init() alt#grey #lightgrey If USE_HAL_DSI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO dsi->rcc : Enable the DSI clock rcc-->dsi end end box "Configuration" #CCFF99 box "Mandatory" #CCFF99 group #FFB133 DSI Configuration group #lightblue Mandatory user -> dsi: HAL_DSI_SetConfig() user -> dsi: HAL_DSI_SetConfigHostTimeouts() user -> dsi: HAL_DSI_SetConfigPhyTimer() user -> dsi: HAL_DSI_SetConfigVideoMode() end box end box "Optional" #CCFF99 ' Add optional configurations here if needed end box end box alt#grey #lightgrey dsi->rcc : Switch to DSI PHY PLL clock (default) rcc-->dsi end end group #LightYellow LTDC Configuration user -> ltdc: HAL_LTDC_Init() user -> ltdc: HAL_LTDC_SetConfig() user -> ltdc: HAL_LTDC_SetLayer() user -> ltdc: HAL_LTDC_Start() user -> ltdc: HAL_LTDC_ForceReload() end group #FFB133 DSI Process box "Process" #CCFFFF user <- dsi: HAL_DSI_Start() group #lightgrey Set Panel Configuration user <- dsi: HAL_DSI_ShortWrite() user <- dsi: HAL_DSI_LongWrite() end group #LightYellow Optional user <- dsi:HAL_DSI_SetConfigPatternGenerator() user <- dsi: HAL_DSI_EnablePatternGenerator() user <- dsi: HAL_DSI_DisablePatternGenerator() end end group #OrangeRed De-initialization user->dsi : HAL_DSI_DeInit() end @enduml

Called functions:

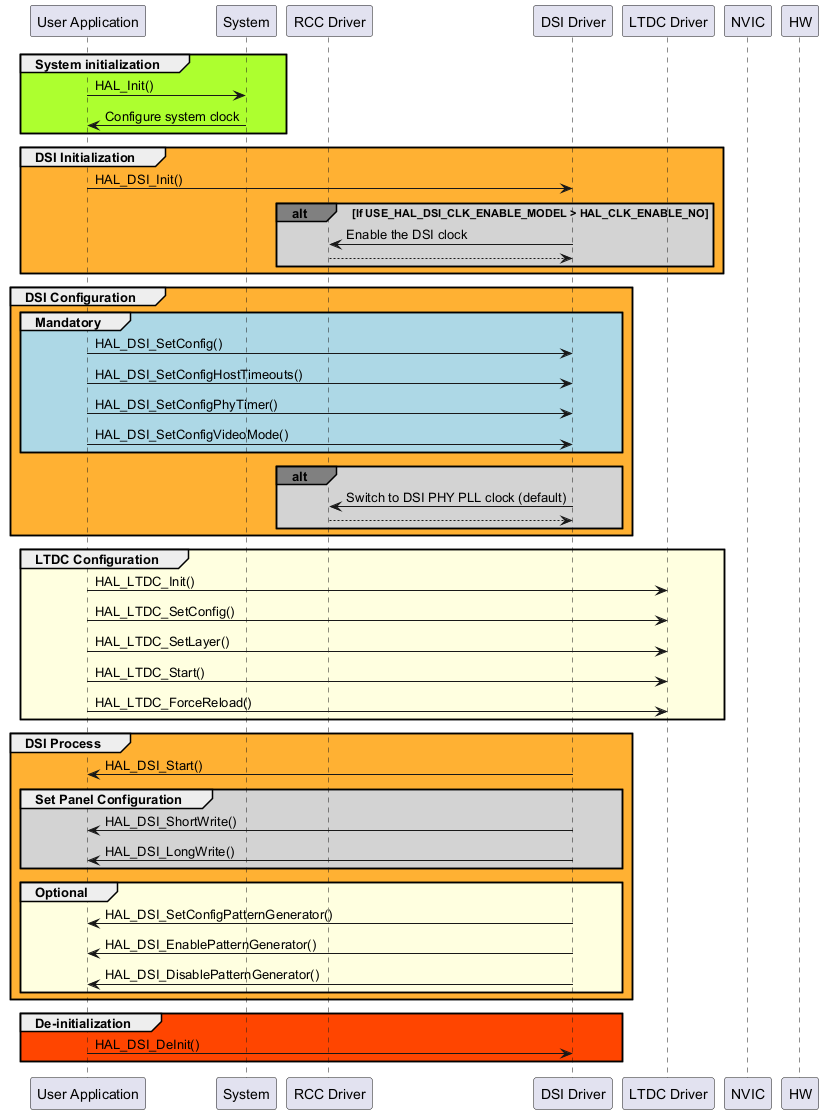

dsi_uc_partial_refresh

@startuml participant "User Application" as user participant "System" as sys participant "RCC Driver" as rcc participant "SDRAM" as sdram participant "LCD" as lcd participant "DSI Driver" as dsi participant "LTDC Driver" as ltdc participant "NVIC" as NVIC participant "HW" as HW group #GreenYellow System Initialization user->sys : HAL_Init() user->sdram : External Memory Initialiastion end group #FFB133 DSI Initialization user->dsi : HAL_DSI_Init() alt#grey #lightgrey If USE_HAL_DSI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO dsi->rcc : Enable the DSI clock rcc-->dsi end end group #FFB133 DSI Configuration group #lightblue Mandatory user -> dsi: HAL_DSI_SetConfig() user -> dsi: HAL_DSI_SetConfigHostTimeouts() user -> dsi: HAL_DSI_SetConfigPhyTimer() user -> dsi: HAL_DSI_SetConfigAdaptedCommandMode() user -> dsi: HAL_DSI_SetConfigLPCommand() user -> dsi:HAL_DSI_SetFlowControl() end end group #LightYellow LTDC Configuration user -> ltdc: HAL_LTDC_Init() user -> ltdc: HAL_LTDC_SetConfig() user -> ltdc: HAL_LTDC_SetLayer() user -> ltdc: HAL_LTDC_Start() user -> ltdc: HAL_LTDC_ForceReload() end group #FFB133 DSI Process box "Process" #CCFFFF user -> dsi: HAL_DSI_Start() group #lightgrey Set Panel Configuration user -> dsi: HAL_DSI_LongWrite() note right : Refresh Area to the first part of the display user -> dsi: HAL_DSI_ShortWrite() end group #LightYellow Optional user -> dsi: HAL_DSI_Refresh() == Optional Configuration == HW->NVIC : Interrupt NVIC->dsi : HAL_DSI_IRQHandler() dsi->user : End Of Refresh User callback() group #lightgrey nd of Refresh User callback() user -> dsi: HAL_DSI_DisableWrapper() user -> ltdc: HAL_LTDC_SetLayerAddress() user -> ltdc: HAL_LTDC_ForceReload() user -> dsi: HAL_DSI_EnableWrapper() note right : Refresh Area to the first part of the display user -> dsi: HAL_DSI_LongWrite() user -> dsi: HAL_DSI_Refresh() end end end @enduml

Called functions:
