HAL GFXTIM Use Cases ¶

Prerequisite ¶

This diagram illustrates the prerequisite steps for initializing the system

@startuml

' To add a number by line

'autonumber

' Fix order of each column

participant "User Application" as user

participant "System Driver" as system

==================================== Prerequisite ==

user->system : HAL_Init()

system --> user

user->system : Configure system clock

system --> user

@enduml

Called functions:

HAL_Init()

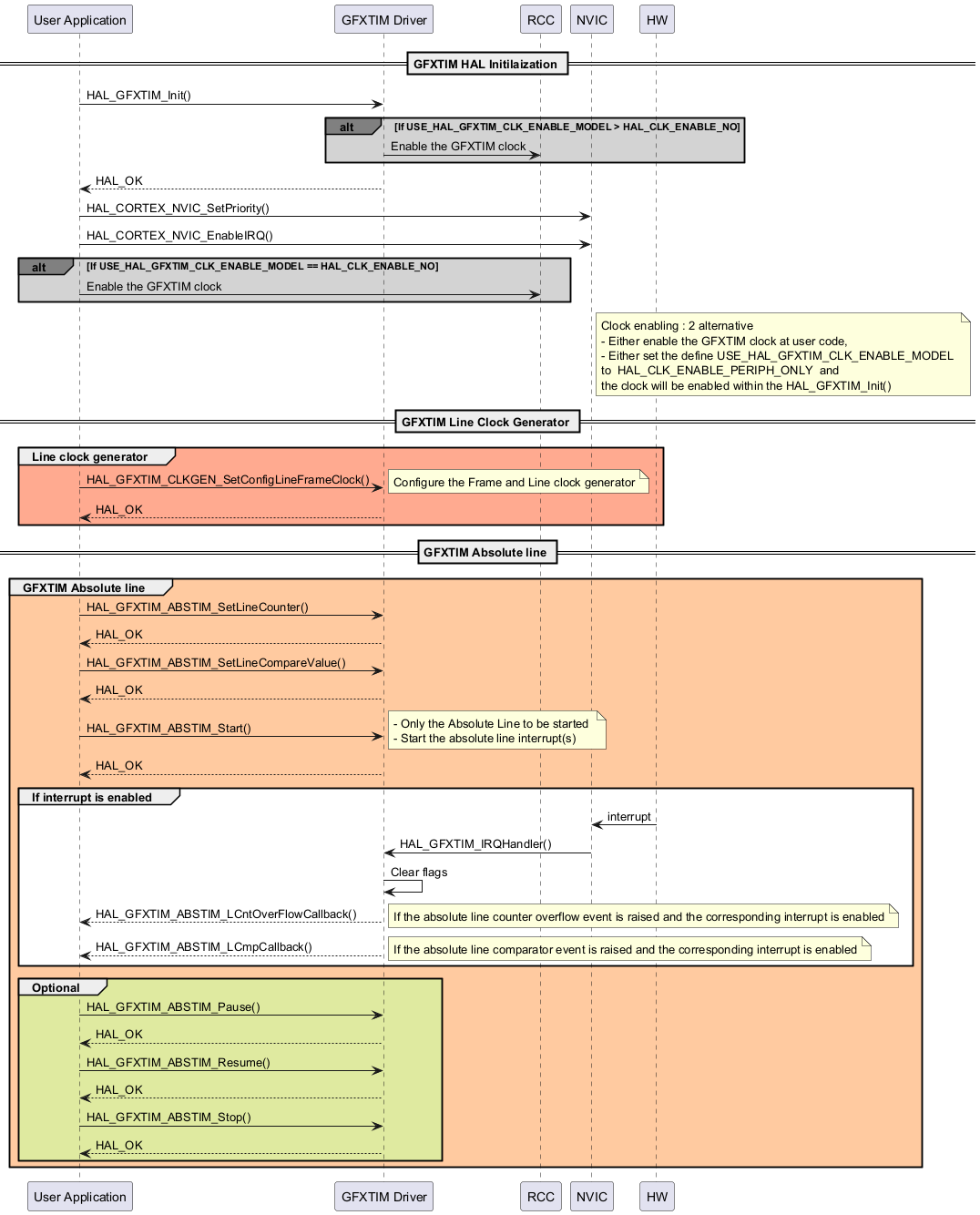

User application Absolute Line ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "GFXTIM Driver" as GFXTIM participant "RCC" as RCC participant "NVIC" as nvic participant "HW" as HW == GFXTIM HAL Initilaization == user->GFXTIM : HAL_GFXTIM_Init() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO GFXTIM->RCC : Enable the GFXTIM clock end GFXTIM --> user: HAL_OK user -> nvic : HAL_CORTEX_NVIC_SetPriority() user -> nvic : HAL_CORTEX_NVIC_EnableIRQ() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the GFXTIM clock end Note right of nvic: Clock enabling : 2 alternative \n\ - Either enable the GFXTIM clock at user code,\n\ - Either set the define USE_HAL_GFXTIM_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_GFXTIM_Init() == GFXTIM Line Clock Generator == group #FFAA90 Line clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigLineFrameClock() note right : Configure the Frame and Line clock generator user<--GFXTIM: HAL_OK end == GFXTIM Absolute line == group #FFCAA0 GFXTIM Absolute line user->GFXTIM : HAL_GFXTIM_ABSTIM_SetLineCounter() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_SetLineCompareValue() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Start() note right : - Only the Absolute Line to be started \n- Start the absolute line interrupt(s) user<--GFXTIM: HAL_OK group #FFFFFF If interrupt is enabled HW -> nvic : interrupt nvic->GFXTIM : HAL_GFXTIM_IRQHandler() GFXTIM-> GFXTIM: Clear flags user<--GFXTIM: HAL_GFXTIM_ABSTIM_LCntOverFlowCallback() note right : If the absolute line counter overflow event is raised and the corresponding interrupt is enabled user<--GFXTIM: HAL_GFXTIM_ABSTIM_LCmpCallback() note right : If the absolute line comparator event is raised and the corresponding interrupt is enabled end group #DFEAA0 Optional user->GFXTIM : HAL_GFXTIM_ABSTIM_Pause() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Resume() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Stop() user<--GFXTIM: HAL_OK end end @enduml$

Called functions:

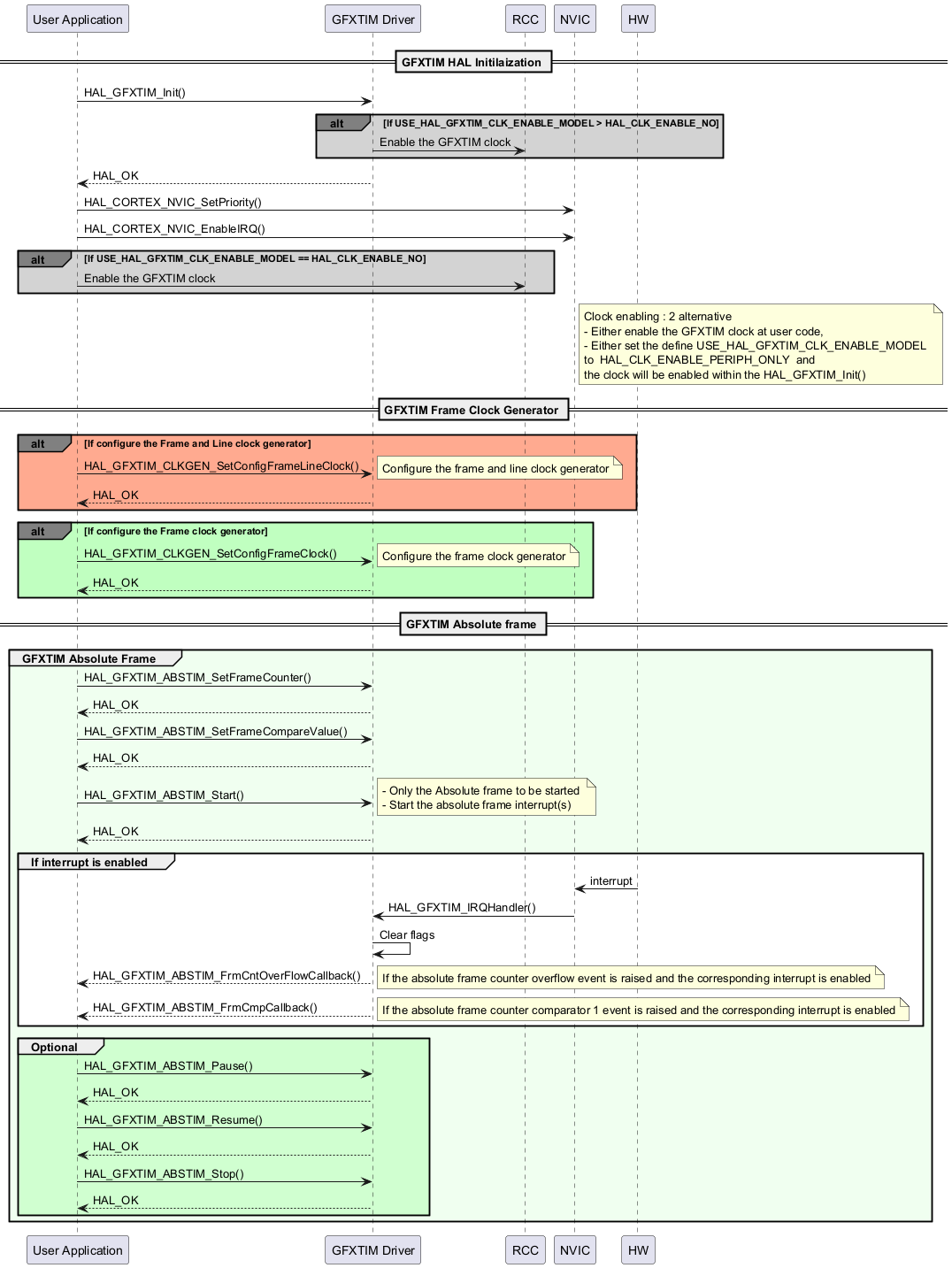

User application Absolute Frame ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "GFXTIM Driver" as GFXTIM participant "RCC" as RCC participant "NVIC" as nvic participant "HW" as HW == GFXTIM HAL Initilaization == user->GFXTIM : HAL_GFXTIM_Init() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO GFXTIM->RCC : Enable the GFXTIM clock end GFXTIM --> user: HAL_OK user -> nvic : HAL_CORTEX_NVIC_SetPriority() user -> nvic : HAL_CORTEX_NVIC_EnableIRQ() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the GFXTIM clock end Note right of nvic: Clock enabling : 2 alternative \n\ - Either enable the GFXTIM clock at user code,\n\ - Either set the define USE_HAL_GFXTIM_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_GFXTIM_Init() == GFXTIM Frame Clock Generator == alt#grey #FFAA90 If configure the Frame and Line clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigFrameLineClock() note right : Configure the frame and line clock generator user<--GFXTIM: HAL_OK end alt#grey #C0FFC0 If configure the Frame clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigFrameClock() note right : Configure the frame clock generator user<--GFXTIM: HAL_OK end == GFXTIM Absolute frame == group #F0FFF0 GFXTIM Absolute Frame user->GFXTIM : HAL_GFXTIM_ABSTIM_SetFrameCounter() user<--GFXTIM : HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_SetFrameCompareValue() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Start() note right : - Only the Absolute frame to be started \n- Start the absolute frame interrupt(s) user<--GFXTIM: HAL_OK group #FFFFFF If interrupt is enabled HW -> nvic : interrupt nvic->GFXTIM : HAL_GFXTIM_IRQHandler() GFXTIM-> GFXTIM: Clear flags user<--GFXTIM: HAL_GFXTIM_ABSTIM_FrmCntOverFlowCallback() note right : If the absolute frame counter overflow event is raised and the corresponding interrupt is enabled user<--GFXTIM: HAL_GFXTIM_ABSTIM_FrmCmpCallback() note right : If the absolute frame counter comparator 1 event is raised and the corresponding interrupt is enabled end group #D0FFD0 Optional user->GFXTIM : HAL_GFXTIM_ABSTIM_Pause() user<--GFXTIM : HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Resume() user<--GFXTIM : HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Stop() user<--GFXTIM: HAL_OK end end @enduml$

Called functions:

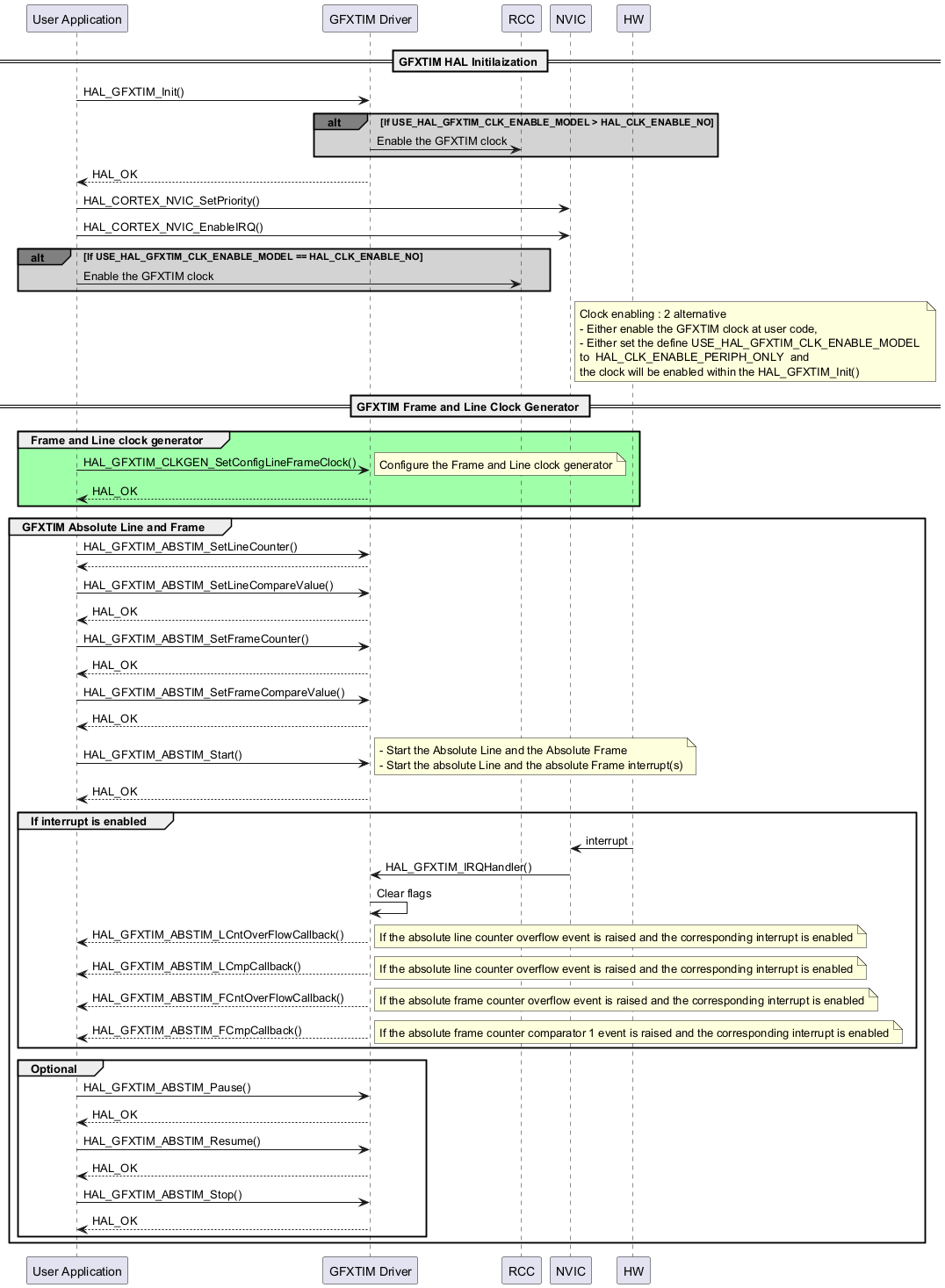

User application Absolute Line and Frame ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "GFXTIM Driver" as GFXTIM participant "RCC" as RCC participant "NVIC" as nvic participant "HW" as HW == GFXTIM HAL Initilaization == user->GFXTIM : HAL_GFXTIM_Init() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO GFXTIM->RCC : Enable the GFXTIM clock end GFXTIM --> user: HAL_OK user -> nvic : HAL_CORTEX_NVIC_SetPriority() user -> nvic : HAL_CORTEX_NVIC_EnableIRQ() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the GFXTIM clock end Note right of nvic: Clock enabling : 2 alternative \n\ - Either enable the GFXTIM clock at user code,\n\ - Either set the define USE_HAL_GFXTIM_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_GFXTIM_Init() == GFXTIM Frame and Line Clock Generator == group #A0FFA9 Frame and Line clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigLineFrameClock() note right : Configure the Frame and Line clock generator user<--GFXTIM: HAL_OK end group #FFFFFF GFXTIM Absolute Line and Frame user->GFXTIM : HAL_GFXTIM_ABSTIM_SetLineCounter() user<--GFXTIM user->GFXTIM : HAL_GFXTIM_ABSTIM_SetLineCompareValue() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_SetFrameCounter() user<--GFXTIM : HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_SetFrameCompareValue() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Start() note right : - Start the Absolute Line and the Absolute Frame\n- Start the absolute Line and the absolute Frame interrupt(s) user<--GFXTIM: HAL_OK group #FFFFFF If interrupt is enabled HW -> nvic : interrupt nvic->GFXTIM : HAL_GFXTIM_IRQHandler() GFXTIM-> GFXTIM: Clear flags user<--GFXTIM: HAL_GFXTIM_ABSTIM_LCntOverFlowCallback() note right : If the absolute line counter overflow event is raised and the corresponding interrupt is enabled user<--GFXTIM: HAL_GFXTIM_ABSTIM_LCmpCallback() note right : If the absolute line counter overflow event is raised and the corresponding interrupt is enabled user<--GFXTIM: HAL_GFXTIM_ABSTIM_FCntOverFlowCallback() note right : If the absolute frame counter overflow event is raised and the corresponding interrupt is enabled user<--GFXTIM: HAL_GFXTIM_ABSTIM_FCmpCallback() note right : If the absolute frame counter comparator 1 event is raised and the corresponding interrupt is enabled end group #FFFFFF Optional user->GFXTIM : HAL_GFXTIM_ABSTIM_Pause() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Resume() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_ABSTIM_Stop() user<--GFXTIM: HAL_OK end end @enduml$

Called functions:

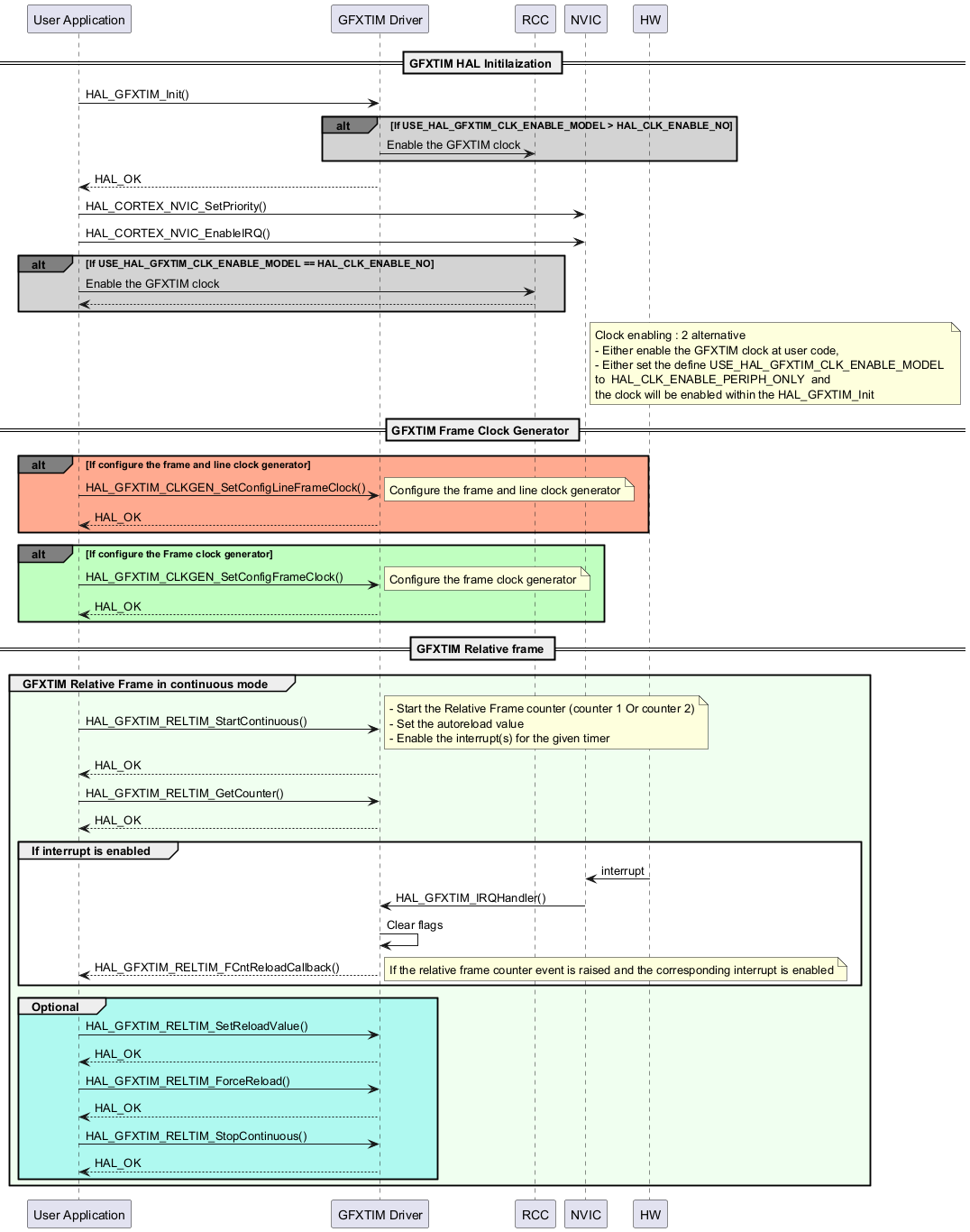

User application Relative Frame in continuous mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "GFXTIM Driver" as GFXTIM participant "RCC" as RCC participant "NVIC" as nvic participant "HW" as HW == GFXTIM HAL Initilaization == user->GFXTIM : HAL_GFXTIM_Init() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO GFXTIM->RCC : Enable the GFXTIM clock end GFXTIM --> user: HAL_OK user -> nvic : HAL_CORTEX_NVIC_SetPriority() user -> nvic : HAL_CORTEX_NVIC_EnableIRQ() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the GFXTIM clock RCC --> user end Note right of nvic: Clock enabling : 2 alternative \n\ - Either enable the GFXTIM clock at user code,\n\ - Either set the define USE_HAL_GFXTIM_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_GFXTIM_Init == GFXTIM Frame Clock Generator == alt#grey #FFAA90 If configure the frame and line clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigLineFrameClock() note right : Configure the frame and line clock generator user<--GFXTIM: HAL_OK end alt#grey #C0FFC0 If configure the Frame clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigFrameClock() note right : Configure the frame clock generator user<--GFXTIM: HAL_OK end == GFXTIM Relative frame == group #F0FFF0 GFXTIM Relative Frame in continuous mode user->GFXTIM : HAL_GFXTIM_RELTIM_StartContinuous() note right : - Start the Relative Frame counter (counter 1 Or counter 2)\n- Set the autoreload value\n- Enable the interrupt(s) for the given timer user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_RELTIM_GetCounter() user<--GFXTIM: HAL_OK group #FFFFFF If interrupt is enabled HW -> nvic : interrupt nvic->GFXTIM : HAL_GFXTIM_IRQHandler() GFXTIM-> GFXTIM: Clear flags user<--GFXTIM: HAL_GFXTIM_RELTIM_FCntReloadCallback() note right : If the relative frame counter event is raised and the corresponding interrupt is enabled end group #AFF9F0 Optional user->GFXTIM : HAL_GFXTIM_RELTIM_SetReloadValue() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_RELTIM_ForceReload() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_RELTIM_StopContinuous() user<--GFXTIM: HAL_OK end end @enduml$

Called functions:

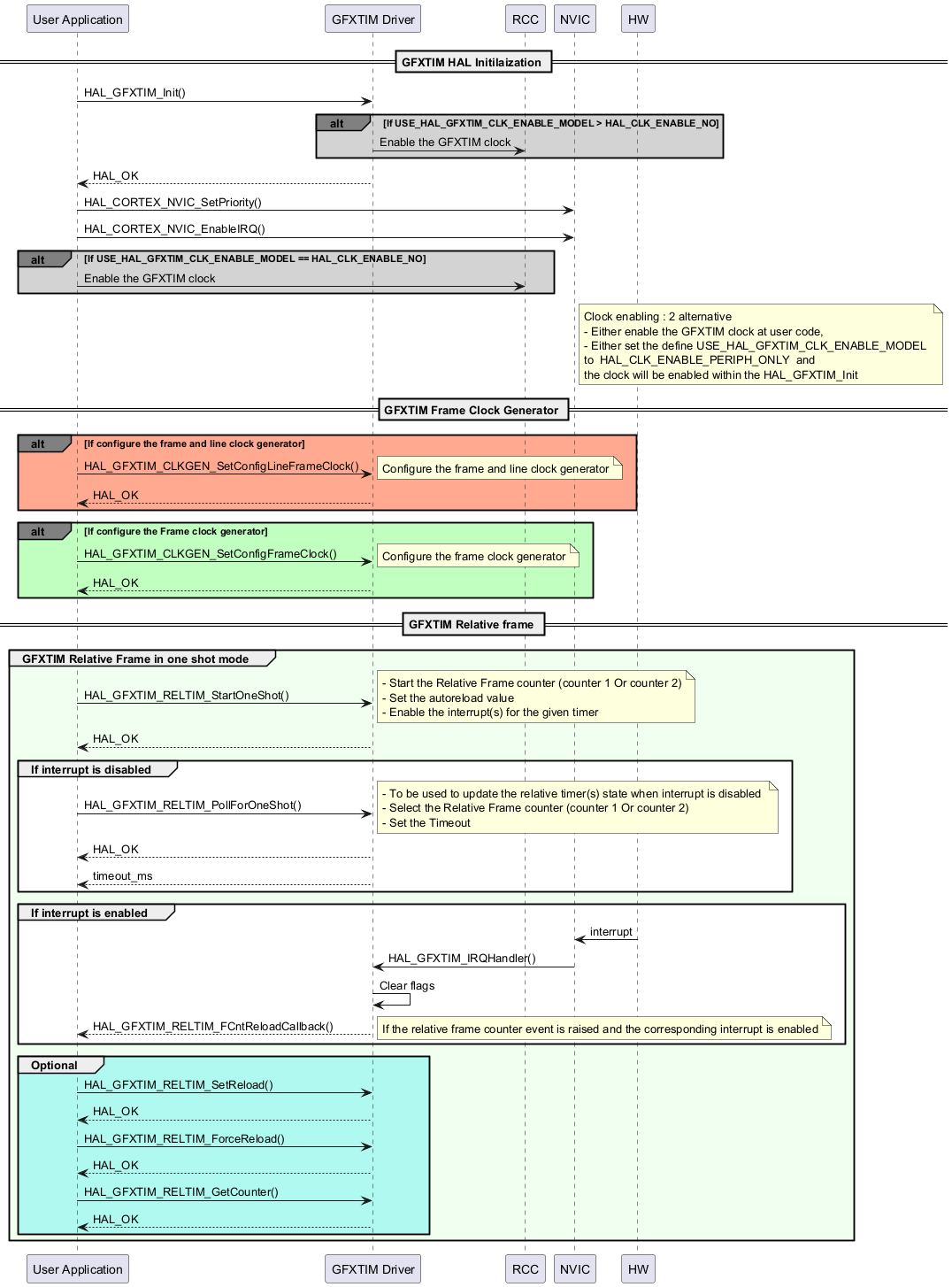

User application Relative Frame in one shot mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "GFXTIM Driver" as GFXTIM participant "RCC" as RCC participant "NVIC" as nvic participant "HW" as HW == GFXTIM HAL Initilaization == user->GFXTIM : HAL_GFXTIM_Init() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO GFXTIM->RCC : Enable the GFXTIM clock end GFXTIM --> user: HAL_OK user -> nvic : HAL_CORTEX_NVIC_SetPriority() user -> nvic : HAL_CORTEX_NVIC_EnableIRQ() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the GFXTIM clock end Note right of nvic: Clock enabling : 2 alternative \n\ - Either enable the GFXTIM clock at user code,\n\ - Either set the define USE_HAL_GFXTIM_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_GFXTIM_Init == GFXTIM Frame Clock Generator == alt#grey #FFAA90 If configure the frame and line clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigLineFrameClock() note right : Configure the frame and line clock generator user<--GFXTIM: HAL_OK end alt#grey #C0FFC0 If configure the Frame clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigFrameClock() note right : Configure the frame clock generator user<--GFXTIM: HAL_OK end == GFXTIM Relative frame == group #F0FFF0 GFXTIM Relative Frame in one shot mode user->GFXTIM : HAL_GFXTIM_RELTIM_StartOneShot() note right : - Start the Relative Frame counter (counter 1 Or counter 2)\n- Set the autoreload value\n- Enable the interrupt(s) for the given timer user<--GFXTIM: HAL_OK group #FFFFFF If interrupt is disabled user->GFXTIM : HAL_GFXTIM_RELTIM_PollForOneShot() note right : - To be used to update the relative timer(s) state when interrupt is disabled \n- Select the Relative Frame counter (counter 1 Or counter 2)\n- Set the Timeout user<--GFXTIM: HAL_OK user<--GFXTIM: timeout_ms end group #FFFFFF If interrupt is enabled HW -> nvic : interrupt nvic->GFXTIM : HAL_GFXTIM_IRQHandler() GFXTIM-> GFXTIM: Clear flags user<--GFXTIM: HAL_GFXTIM_RELTIM_FCntReloadCallback() note right : If the relative frame counter event is raised and the corresponding interrupt is enabled end group #AFF9F0 Optional user->GFXTIM : HAL_GFXTIM_RELTIM_SetReload() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_RELTIM_ForceReload() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_RELTIM_GetCounter() user<--GFXTIM: HAL_OK end end @enduml$

Called functions:

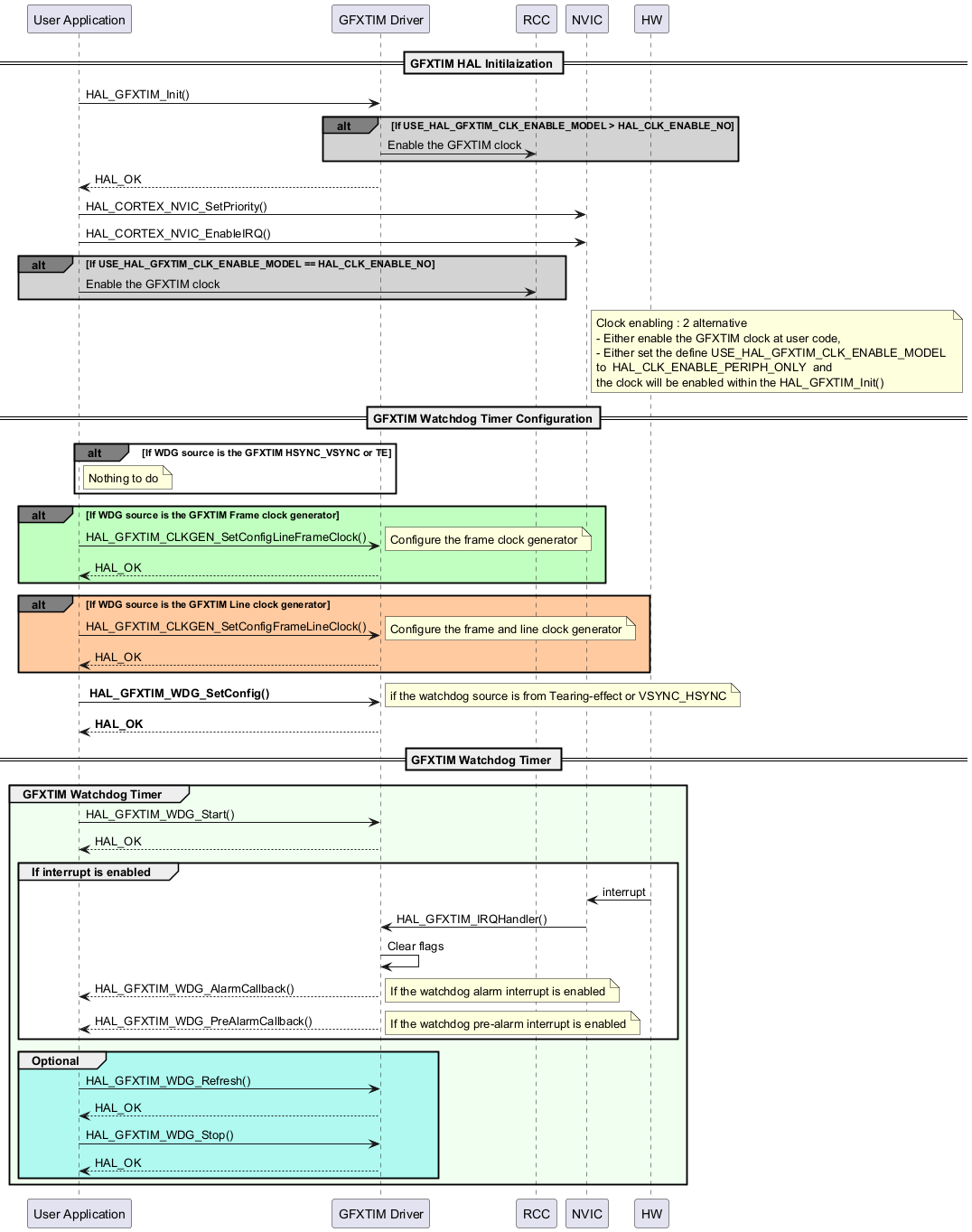

User application Watchdog Timer ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "GFXTIM Driver" as GFXTIM participant "RCC" as RCC participant "NVIC" as nvic participant "HW" as HW == GFXTIM HAL Initilaization == user->GFXTIM : HAL_GFXTIM_Init() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO GFXTIM->RCC : Enable the GFXTIM clock end GFXTIM --> user: HAL_OK user -> nvic : HAL_CORTEX_NVIC_SetPriority() user -> nvic : HAL_CORTEX_NVIC_EnableIRQ() alt#grey #lightgrey If USE_HAL_GFXTIM_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the GFXTIM clock end Note right of nvic: Clock enabling : 2 alternative \n\ - Either enable the GFXTIM clock at user code,\n\ - Either set the define USE_HAL_GFXTIM_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_GFXTIM_Init() == GFXTIM Watchdog Timer Configuration== alt#grey If WDG source is the GFXTIM HSYNC_VSYNC or TE note right of user: Nothing to do end alt#grey #C0FFC0 If WDG source is the GFXTIM Frame clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigLineFrameClock() note right : Configure the frame clock generator user<--GFXTIM: HAL_OK end alt#grey #FFCAA0 If WDG source is the GFXTIM Line clock generator user->GFXTIM : HAL_GFXTIM_CLKGEN_SetConfigFrameLineClock() note right : Configure the frame and line clock generator user<--GFXTIM: HAL_OK end user->GFXTIM :<b> HAL_GFXTIM_WDG_SetConfig() note right : if the watchdog source is from Tearing-effect or VSYNC_HSYNC user<--GFXTIM: <b>HAL_OK == GFXTIM Watchdog Timer == group #F0FFF0 GFXTIM Watchdog Timer user->GFXTIM : HAL_GFXTIM_WDG_Start() user<--GFXTIM: HAL_OK group #FFFFFF If interrupt is enabled HW -> nvic : interrupt nvic->GFXTIM : HAL_GFXTIM_IRQHandler() GFXTIM-> GFXTIM: Clear flags user<--GFXTIM: HAL_GFXTIM_WDG_AlarmCallback() note right : If the watchdog alarm interrupt is enabled user<--GFXTIM: HAL_GFXTIM_WDG_PreAlarmCallback() note right : If the watchdog pre-alarm interrupt is enabled end group #AFF9F0 Optional user->GFXTIM : HAL_GFXTIM_WDG_Refresh() user<--GFXTIM: HAL_OK user->GFXTIM : HAL_GFXTIM_WDG_Stop() user<--GFXTIM: HAL_OK end end @enduml$
