HAL GPIO Overview ¶
Introducing GPIO ¶
- group GPIO_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the GPIO module and its associated files.
Component diagram ¶

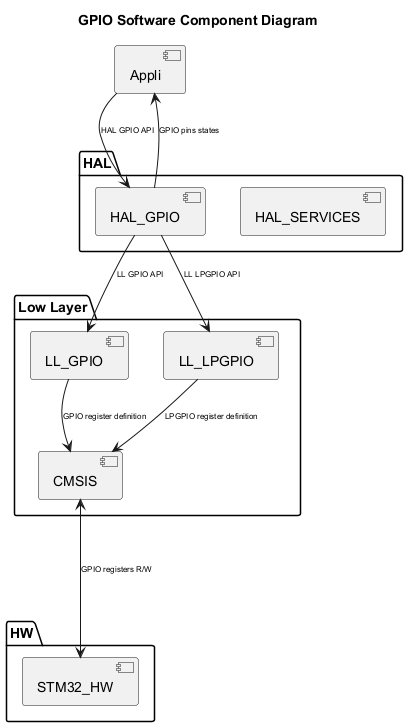

The following diagram illustrates the software components involved in the GPIO module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title GPIO Software Component Diagram
package "HAL" {
[HAL_SERVICES]
[HAL_GPIO]
}
package "Low Layer" {
[LL_GPIO]
[LL_LPGPIO]
[CMSIS]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_GPIO] : HAL GPIO API
[Appli] <-- [HAL_GPIO] : GPIO pins states
[HAL_GPIO] --> [LL_GPIO] : LL GPIO API
[HAL_GPIO] --> [LL_LPGPIO] : LL LPGPIO API
[LL_GPIO] --> [CMSIS]:GPIO register definition
[LL_LPGPIO] --> [CMSIS]:LPGPIO register definition
[STM32_HW] <-u--> [CMSIS] : GPIO registers R/W
@enduml](../../../../_images/plantuml-43f5eb20680c1d979b208941e114b9f340480aca.png)
Configuration table ¶
The following table lists the configuration defines for the HAL GPIO module, specifying their locations, default values, and descriptions:
- group GPIO_Configuration_Table
-
Configuration inside the GPIO driver ¶
Config defines
Description
Default value
Note
USE_HAL_GPIO_MODULE
hal_conf.h
1
When set, HAL GPIO module is enabled
USE_HAL_CHECK_PARAM
hal_conf.h
0
When set, parameters are checked in runtime
USE_ASSERT_DBG_PARAM
PreProcessor env
NA
When defined, enable the params assert
USE_HAL_GPIO_CLK_ENABLE_MODEL
hal_conf.h
HAL_CLK_ENABLE_NO
Enable GPIO port clock in HAL_GPIO_Init
USE_HAL_GPIO_HSLV
hal_conf.h
0
Enable GPIO High Speed Low Voltage feature
