HAL GPU2D Overview ¶
Introducing GPU2D ¶
- group GPU2D_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the GPU2D module and its associated files.
Component diagram ¶

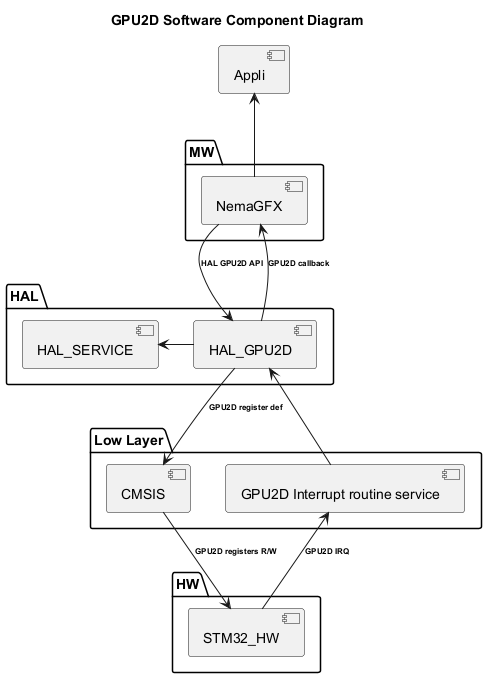

The following diagram illustrates the software components involved in the GPU2D module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title GPU2D Software Component Diagram
package "MW" {
[NemaGFX]
}
package "HAL" {
[HAL_SERVICE]
[HAL_GPU2D]
}
package "Low Layer" {
[CMSIS]
[GPU2D Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] <-d- [NemaGFX]
[NemaGFX] --> [HAL_GPU2D] : <b>HAL GPU2D API
[NemaGFX] <-- [HAL_GPU2D] : <b>GPU2D callback
[HAL_GPU2D] -l-> [HAL_SERVICE]
[HAL_GPU2D] <-- [GPU2D Interrupt routine service]
[HAL_GPU2D] -d-> [CMSIS]: <b>GPU2D register def
[STM32_HW] -u-> [GPU2D Interrupt routine service] : <b>GPU2D IRQ
[STM32_HW] <-l- [CMSIS] : <b>GPU2D registers R/W
@enduml](../../../../_images/plantuml-0c78486647ac33770652916544458565d0426ced.png)
Configuration table ¶
The following table lists the configuration defines for the HAL GPU2D module, specifying their locations, default values, and descriptions:
- group GPU2D_Configuration_Table
-
¶
Configuration inside the GPU2D driver ¶
Config defines
Description
Default value
Note
PRODUCT
from PreProcessor env
NA
The selected device (ex STM32U599xx)
USE_ASSERT_DBG_PARAM
from PreProcessor env
None
Allows to use the assert check parameters
USE_ASSERT_DBG_STATE
from PreProcessor env
None
Allows to use the assert check states
USE_HAL_GPU2D_MODULE
from hal_conf.h
1
Allows to use HAL GPU2D module
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows to use the run-time checks parameters
USE_HAL_GPU2D_REGISTER_CALLBACKS
from hal_conf.h
0
Allows to use the load and store exclusive
USE_HAL_GPU2D_USER_DATA
from hal_conf.h
0
Allows to use user data inside GPU2D
USE_HAL_GPU2D_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows to use the clock interface management for GPU2D
