HAL HASH Overview ¶
Introducing HASH ¶
- group HASH_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the HASH module and its associated files.
Component diagram ¶

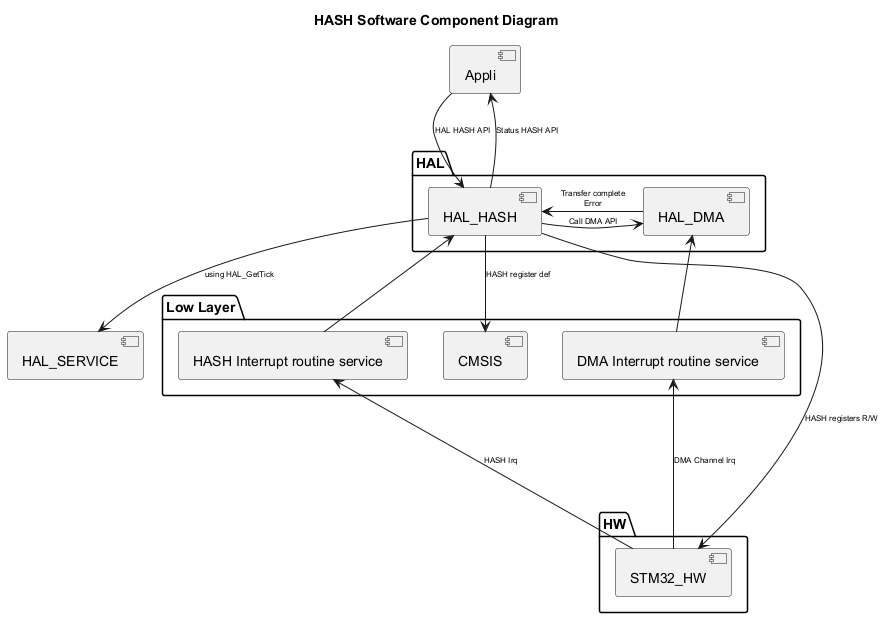

The following diagram illustrates the software components involved in the HASH module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title HASH Software Component Diagram
package "HAL" {
[HAL_HASH]
[HAL_DMA]
}
package "Low Layer" {
[CMSIS]
[HASH Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_HASH] : HAL HASH API
[Appli] <-- [HAL_HASH] : Status HASH API
[HAL_HASH] -r-> [HAL_DMA] : Call DMA API
[HAL_HASH] <-r- [HAL_DMA]:Transfer complete\nError
[HAL_HASH] --> [CMSIS]:HASH register def
[HAL_HASH] --> [HAL_SERVICE]: using HAL_GetTick
[STM32_HW] <-u-- [HAL_HASH] : HASH registers R/W
[HAL_HASH] <-- [HASH Interrupt routine service]
[STM32_HW] -u--> [HASH Interrupt routine service]: HASH Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[HAL_DMA] <-d- [DMA Interrupt routine service]
@enduml](../../../../_images/plantuml-762d8ce083fe5592153a4aa6a6e3aa6421263d7a.png)
Configuration table ¶
The following table lists the configuration defines for the HAL HASH module, specifying their locations, default values, and descriptions:
- group HASH_Configuration_Table
-
¶
Configuration inside the HASH driver ¶
Config defines
Description
Default value
Note
PRODUCT
from IDE
NA
STM32U5XX
USE_ASSERT_DBG_PARAM
from the IDE
NONE
Allows to use the assert checks parameters.
USE_ASSERT_DBG_STATE
from the IDE
NONE
Allows to use the assert checks states.
USE_HAL_HASH_MODULE
from hal_conf.h
1
Enable the HAL HASH module
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows to use the runtime checks parameters.
USE_HAL_HASH_REGISTER_CALLBACKS
from hal_conf.h
0
Allows to provide specific callback functions.
USE_HAL_HASH_GET_LAST_ERRORS
from hal_conf.h
0
Allows to get last errors codes.
USE_HAL_HASH_USER_DATA
from hal_conf.h
0
Allows to enable/disable user data.
USE_HAL_HASH_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows to enable the clock model for the HASH.
USE_HAL_HASH_DMA
from hal_conf.h
1
Allows to enable the HASH DMA module service.
USE_HAL_SECURE_CHECK_PARAM
from hal_conf.h
0
Allows to use the runtime check for sensitive APIs.
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0
Allows to use the load and store exclusive
