HAL HCD Use Cases ¶

Prerequisite ¶

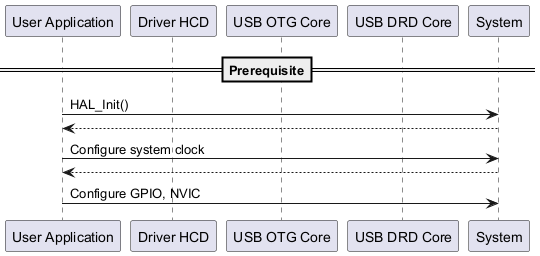

This diagram illustrates the prerequisite steps for initializing the system

@startuml ==Prerequisite== ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as part1 participant "Driver HCD" as part2 Participant "USB OTG Core" as part4 Participant "USB DRD Core" as part5 participant "System" as part3 part1->part3 : HAL_Init() part3 --> part1 part1->part3 : Configure system clock part3 --> part1 part1->part3 : Configure GPIO, NVIC @enduml

Called functions:

  • HAL_HCD_Init()

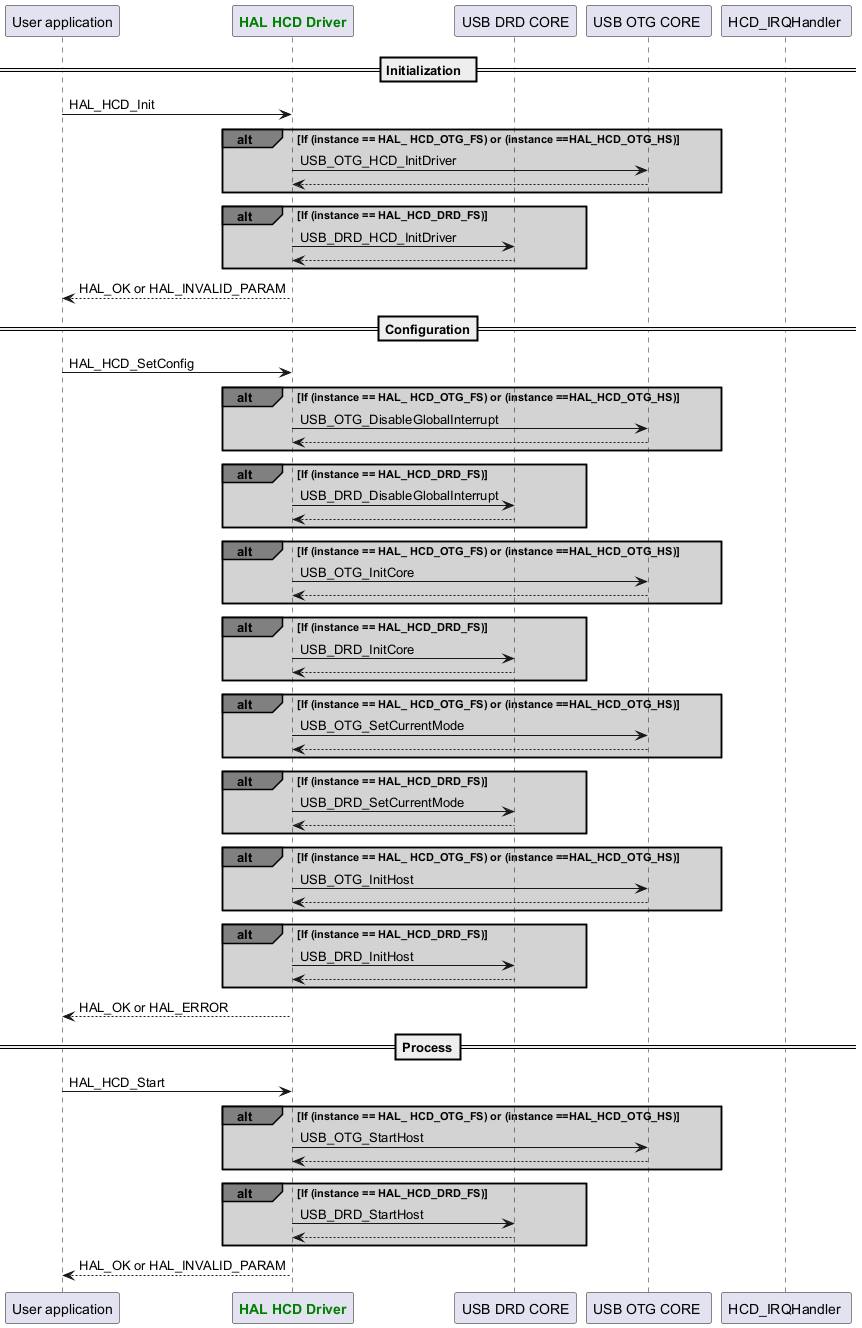

initialization sequence ¶

@startuml participant App as "User application" participant "<font color=green><b>HAL HCD Driver</b></font>" as HCD participant "USB DRD CORE" as DRD participant "USB OTG CORE " as OTG participant "HCD_IRQHandler " as IRQ == Initialization == App -> HCD : HAL_HCD_Init alt#grey #lightgrey If (instance == HAL_ HCD_OTG_FS) or (instance ==HAL_HCD_OTG_HS) HCD->OTG : USB_OTG_HCD_InitDriver OTG-->HCD end alt#grey #lightgrey If (instance == HAL_HCD_DRD_FS) HCD->DRD : USB_DRD_HCD_InitDriver DRD-->HCD end App <-- HCD : HAL_OK or HAL_INVALID_PARAM == Configuration== App -> HCD : HAL_HCD_SetConfig alt#grey #lightgrey If (instance == HAL_ HCD_OTG_FS) or (instance ==HAL_HCD_OTG_HS) HCD->OTG : USB_OTG_DisableGlobalInterrupt OTG-->HCD end alt#grey #lightgrey If (instance == HAL_HCD_DRD_FS) HCD->DRD : USB_DRD_DisableGlobalInterrupt DRD-->HCD end alt#grey #lightgrey If (instance == HAL_ HCD_OTG_FS) or (instance ==HAL_HCD_OTG_HS) HCD->OTG : USB_OTG_InitCore OTG-->HCD end alt#grey #lightgrey If (instance == HAL_HCD_DRD_FS) HCD->DRD : USB_DRD_InitCore DRD-->HCD end alt#grey #lightgrey If (instance == HAL_ HCD_OTG_FS) or (instance ==HAL_HCD_OTG_HS) HCD->OTG : USB_OTG_SetCurrentMode OTG-->HCD end alt#grey #lightgrey If (instance == HAL_HCD_DRD_FS) HCD->DRD : USB_DRD_SetCurrentMode DRD-->HCD end alt#grey #lightgrey If (instance == HAL_ HCD_OTG_FS) or (instance ==HAL_HCD_OTG_HS) HCD->OTG : USB_OTG_InitHost OTG-->HCD end alt#grey #lightgrey If (instance == HAL_HCD_DRD_FS) HCD->DRD : USB_DRD_InitHost DRD-->HCD end App <-- HCD :HAL_OK or HAL_ERROR == Process== App -> HCD : HAL_HCD_Start alt#grey #lightgrey If (instance == HAL_ HCD_OTG_FS) or (instance ==HAL_HCD_OTG_HS) HCD->OTG : USB_OTG_StartHost OTG-->HCD end alt#grey #lightgrey If (instance == HAL_HCD_DRD_FS) HCD->DRD : USB_DRD_StartHost DRD-->HCD end HCD -->App : HAL_OK or HAL_INVALID_PARAM @enduml

Called functions:

  • HAL_HCD_Init()

  • HAL_HCD_SetConfig()

  • HAL_HCD_Start()
