HAL I2C Overview ¶
Introducing I2C ¶
- group I2C_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the I2C module and its associated files.
Component diagram ¶

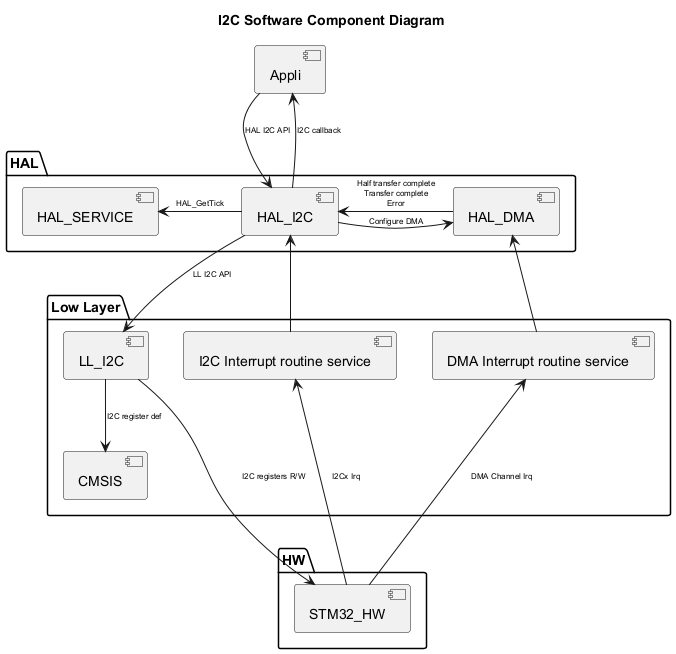

The following diagram illustrates the software components involved in the I2C module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![#if !defined(GENERATOR_SYSCFG_CLOCK_ENABLE_REQUIRED)
@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title I2C Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_I2C]
[HAL_DMA]
}
package "Low Layer" {
[LL_I2C]
[CMSIS]
[I2C Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_I2C] : HAL I2C API
[Appli] <-- [HAL_I2C] : I2C callback
[HAL_I2C] --> [LL_I2C] : LL I2C API
[HAL_I2C] -r-> [HAL_DMA] : Configure DMA
[HAL_I2C] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_I2C] <-- [I2C Interrupt routine service]
[HAL_I2C] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError
[LL_I2C] --> [CMSIS]:I2C register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [I2C Interrupt routine service]: I2Cx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-u-- [LL_I2C] : I2C registers R/W
@enduml
#else
@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title I2C Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_I2C]
[HAL_DMA]
}
package "Low Layer" {
[LL_I2C]
[LL_SYSTEM_SYSCFG]
[CMSIS]
[I2C Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_I2C] : HAL I2C API
[Appli] <-- [HAL_I2C] : I2C callback
[HAL_I2C] --> [LL_I2C] : LL I2C API
[HAL_I2C] --> [LL_SYSTEM_SYSCFG] : LL SYSCFG API
[HAL_I2C] -r-> [HAL_DMA] : Configure DMA
[HAL_I2C] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_I2C] <-- [I2C Interrupt routine service]
[HAL_I2C] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError
[LL_I2C] --> [CMSIS]:I2C register def
[LL_SYSTEM_SYSCFG] --> [CMSIS]: SYSCFG register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [I2C Interrupt routine service]: I2Cx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-u-- [LL_I2C] : I2C registers R/W
[STM32_HW] <-u-- [LL_SYSTEM_SYSCFG] : SYSCFG registers R/W
@enduml
#endif](../../../../_images/plantuml-dbe404ab445cd84b3be22d4a658ae0855bdeb08c.png)
Configuration table ¶
The following table lists the configuration defines for the HAL I2C module, specifying their locations, default values, and descriptions:
- group I2C_Configuration_Table
-
-
Configuration inside the I2C driver
Config defines
Description
Default value
Note
USE_HAL_I2C_CLK_ENABLE_MODEL
stm32u5xx_hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the periph clk
USE_HAL_I2C_MODULE
stm32u5xx_hal_conf.h
1
When set, HAL I2C module is enabled
USE_HAL_I2C_DMA
stm32u5xx_hal_conf.h
1
Enable DMA code inside I2C
USE_HAL_I2C_GET_LAST_ERRORS
stm32u5xx_hal_conf.h
0
Enable the get last process error
USE_HAL_I2C_USER_DATA
stm32u5xx_hal_conf.h
0
Enable the set/get user data
USE_HAL_I2C_REGISTER_CALLBACKS
stm32u5xx_hal_conf.h
0
Enable the register callbacks assert
USE_HAL_CHECK_PARAM
stm32u5xx_hal_conf.h
0
Parameters (pointers or sizes) are checked in runtime
USE_HAL_CHECK_PROCESS_STATE
stm32u5xx_hal_conf.h
0
Enable atomic access to process state check
USE_HAL_CHECK_PROCESS_STATE
stm32u5xx_hal_conf.h
0
Check the HAL I2C state transition in run time
USE_HAL_MUTEX
stm32u5xx_hal_conf.h
0
Enable the acquire/release bus services
USE_ASSERT_DBG_PARAM
from PreProcessor env
NA
Enable the params assert
USE_ASSERT_DBG_STATE
from PreProcessor env
NA
Enable the state assert
-
