HAL LTDC use cases ¶

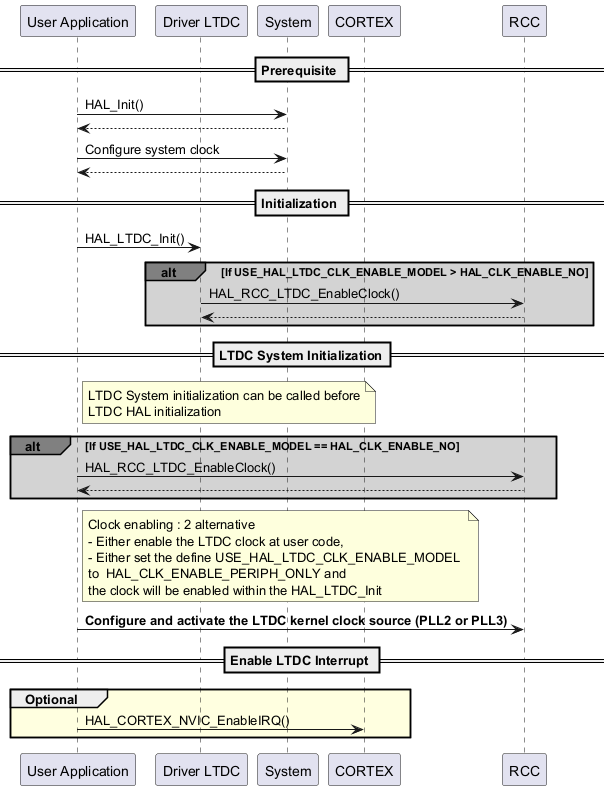

User Application LTDC Initialisation ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "Driver LTDC" as ltdc participant "System" as system participant "CORTEX" as cortex participant "RCC" as rcc == Prerequisite == user->system : HAL_Init() system --> user user->system : Configure system clock system --> user == Initialization == user->ltdc : HAL_LTDC_Init() alt#grey #lightgrey If USE_HAL_LTDC_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO ltdc->rcc : HAL_RCC_LTDC_EnableClock() rcc --> ltdc end ==LTDC System Initialization== Note right user : LTDC System initialization can be called before\nLTDC HAL initialization alt#grey #lightgrey If USE_HAL_LTDC_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->rcc : HAL_RCC_LTDC_EnableClock() rcc --> user end Note right user : Clock enabling : 2 alternative \n\ - Either enable the LTDC clock at user code,\n\ - Either set the define USE_HAL_LTDC_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_LTDC_Init user->rcc : **Configure and activate the LTDC kernel clock source (PLL2 or PLL3)** == Enable LTDC Interrupt == group #LightYellow Optional user->cortex : HAL_CORTEX_NVIC_EnableIRQ() end @enduml$

Called functions:

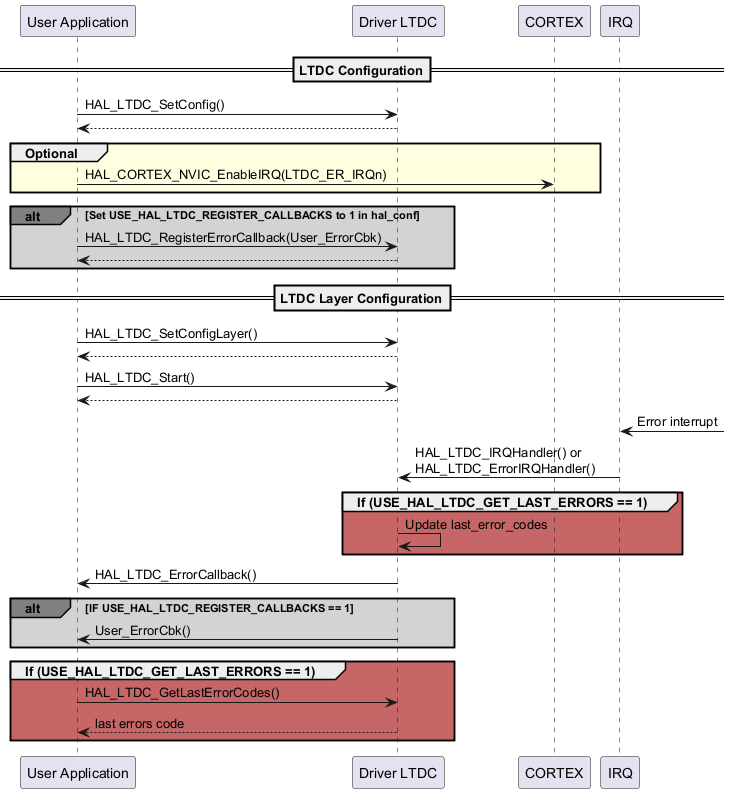

User Application LTDC Starting a Driver ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "Driver LTDC" as ltdc participant "CORTEX" as cortex participant "IRQ" as irq ==LTDC Configuration== user->ltdc : HAL_LTDC_SetConfig() ltdc --> user group #LightYellow Optional user->cortex : HAL_CORTEX_NVIC_EnableIRQ(LTDC_ER_IRQn) end alt#grey #lightgrey Set USE_HAL_LTDC_REGISTER_CALLBACKS to 1 in hal_conf user->ltdc : HAL_LTDC_RegisterErrorCallback(User_ErrorCbk) ltdc --> user end ==LTDC Layer Configuration== user->ltdc : HAL_LTDC_SetConfigLayer() ltdc --> user user->ltdc : HAL_LTDC_Start() ltdc --> user irq<- : Error interrupt irq->ltdc : HAL_LTDC_IRQHandler() or\n\ HAL_LTDC_ErrorIRQHandler() group #A0000099 If (USE_HAL_LTDC_GET_LAST_ERRORS == 1) ltdc->ltdc : Update last_error_codes end ltdc->user : HAL_LTDC_ErrorCallback() alt#grey #lightgrey IF USE_HAL_LTDC_REGISTER_CALLBACKS == 1 ltdc->user : User_ErrorCbk() end group #A0000099 If (USE_HAL_LTDC_GET_LAST_ERRORS == 1) user->ltdc : HAL_LTDC_GetLastErrorCodes() ltdc --> user :last errors code end @enduml$

Called functions:

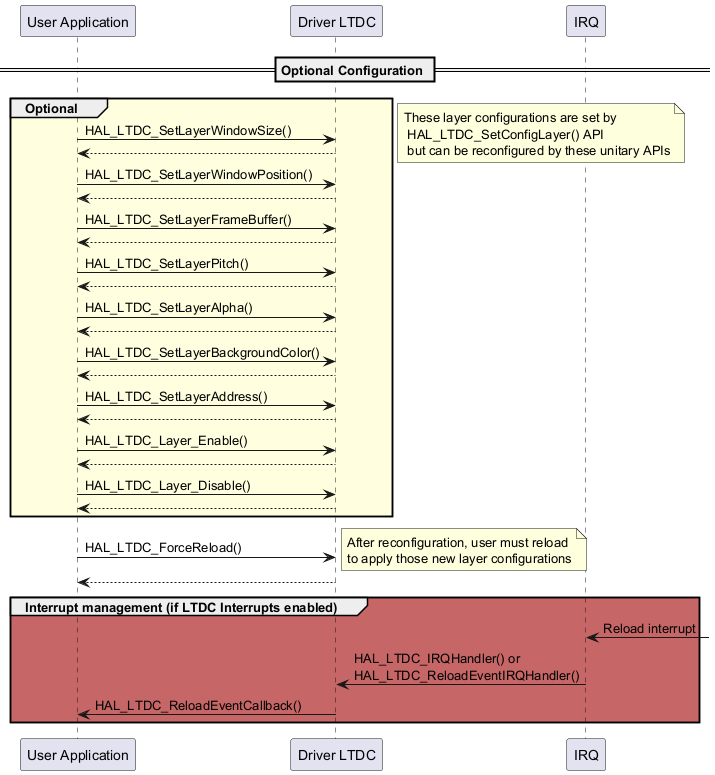

User Application LTDC Optional Layer Configurations ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "Driver LTDC" as ltdc participant "IRQ" as irq == Optional Configuration == group #LightYellow Optional user->ltdc : HAL_LTDC_SetLayerWindowSize() ltdc --> user user->ltdc : HAL_LTDC_SetLayerWindowPosition() ltdc --> user user->ltdc : HAL_LTDC_SetLayerFrameBuffer() ltdc --> user user->ltdc :HAL_LTDC_SetLayerPitch() ltdc --> user user->ltdc : HAL_LTDC_SetLayerAlpha() ltdc --> user user->ltdc : HAL_LTDC_SetLayerBackgroundColor() ltdc --> user user->ltdc : HAL_LTDC_SetLayerAddress() ltdc --> user user->ltdc : HAL_LTDC_Layer_Enable() ltdc --> user user->ltdc : HAL_LTDC_Layer_Disable() ltdc --> user end note right : These layer configurations are set by \n HAL_LTDC_SetConfigLayer() API \n but can be reconfigured by these unitary APIs user->ltdc : HAL_LTDC_ForceReload() note right : After reconfiguration, user must reload \n\ to apply those new layer configurations ltdc --> user group #A0000099 Interrupt management (if LTDC Interrupts enabled) irq<- : Reload interrupt irq->ltdc : HAL_LTDC_IRQHandler() or\n\ HAL_LTDC_ReloadEventIRQHandler() ltdc->user : HAL_LTDC_ReloadEventCallback() end @enduml$

Called functions:

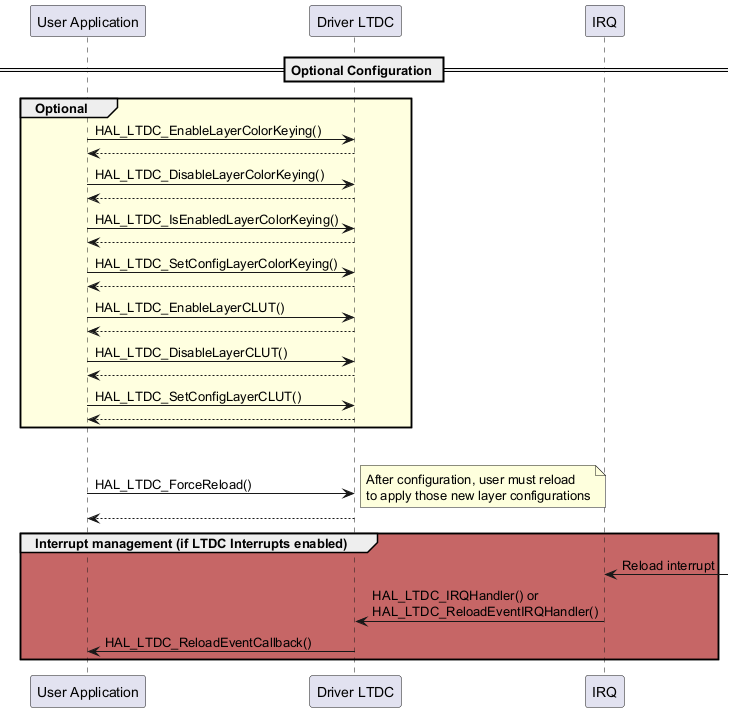

User Application LTDC Optional Layer Features ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "Driver LTDC" as ltdc participant "IRQ" as irq == Optional Configuration == group #LightYellow Optional user->ltdc :HAL_LTDC_EnableLayerColorKeying() ltdc --> user user->ltdc :HAL_LTDC_DisableLayerColorKeying() ltdc --> user user->ltdc :HAL_LTDC_IsEnabledLayerColorKeying() ltdc --> user user->ltdc :HAL_LTDC_SetConfigLayerColorKeying() ltdc --> user user->ltdc :HAL_LTDC_EnableLayerCLUT() ltdc --> user user->ltdc :HAL_LTDC_DisableLayerCLUT() ltdc --> user user->ltdc :HAL_LTDC_SetConfigLayerCLUT() ltdc --> user end alt#grey #lightgrey user->ltdc : HAL_LTDC_ForceReload() note right : After configuration, user must reload \n\ to apply those new layer configurations ltdc --> user group #A0000099 Interrupt management (if LTDC Interrupts enabled) irq<- : Reload interrupt irq->ltdc : HAL_LTDC_IRQHandler() or\n\ HAL_LTDC_ReloadEventIRQHandler() ltdc->user : HAL_LTDC_ReloadEventCallback() end @enduml$

Called functions:

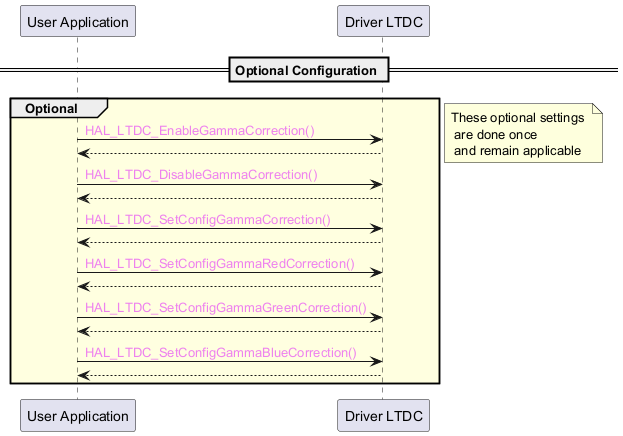

User Application LTDC Optional Configuration ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "Driver LTDC" as ltdc == Optional Configuration == group #LightYellow Optional user->ltdc :<color:violet>HAL_LTDC_EnableGammaCorrection() ltdc --> user user->ltdc :<color:violet>HAL_LTDC_DisableGammaCorrection() ltdc --> user user->ltdc :<color:violet>HAL_LTDC_SetConfigGammaCorrection() ltdc --> user user->ltdc :<color:violet>HAL_LTDC_SetConfigGammaRedCorrection() ltdc --> user user->ltdc :<color:violet>HAL_LTDC_SetConfigGammaGreenCorrection() ltdc --> user user->ltdc :<color:violet>HAL_LTDC_SetConfigGammaBlueCorrection() ltdc --> user end note right : These optional settings \n are done once \n and remain applicable @enduml$

Called functions:

HAL_LTDC_SetBackgroundColor()
HAL_LTDC_EnableLineDetection()
HAL_LTDC_DisableLineDetection()
HAL_LTDC_EnableDither()
HAL_LTDC_DisableDither()
HAL_LTDC_SetFifoErrorThreshold()
HAL_LTDC_EnableCRCErrorDetection()
HAL_LTDC_DisableCRCErrorDetection()
HAL_LTDC_SetExpectedCRC()
HAL_LTDC_GetComputedCRC()

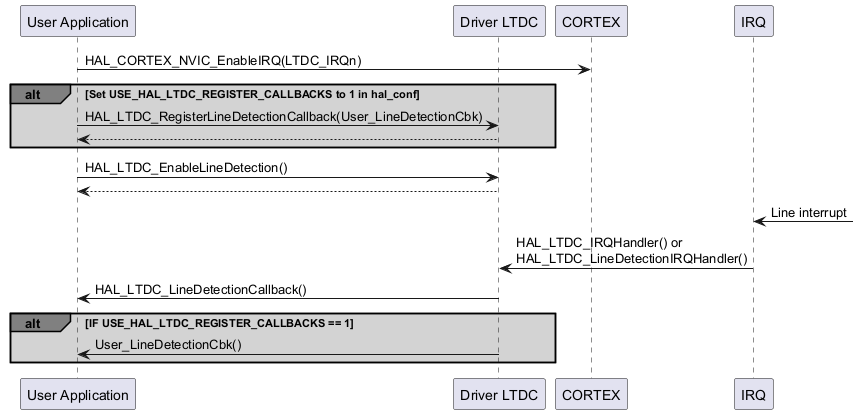

User Application LTDC Line Interrupt ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "Driver LTDC" as ltdc participant "CORTEX" as cortex participant "IRQ" as irq user->cortex : HAL_CORTEX_NVIC_EnableIRQ(LTDC_IRQn) alt#grey #lightgrey Set USE_HAL_LTDC_REGISTER_CALLBACKS to 1 in hal_conf user->ltdc : HAL_LTDC_RegisterLineDetectionCallback(User_LineDetectionCbk) ltdc-->user end user->ltdc : HAL_LTDC_EnableLineDetection() ltdc --> user irq<- : Line interrupt irq->ltdc : HAL_LTDC_IRQHandler() or\n\ HAL_LTDC_LineDetectionIRQHandler() ltdc->user : HAL_LTDC_LineDetectionCallback() alt#grey #lightgrey IF USE_HAL_LTDC_REGISTER_CALLBACKS == 1 ltdc->user : User_LineDetectionCbk() end @enduml$

Called functions:
