HAL MMC Use Cases ¶

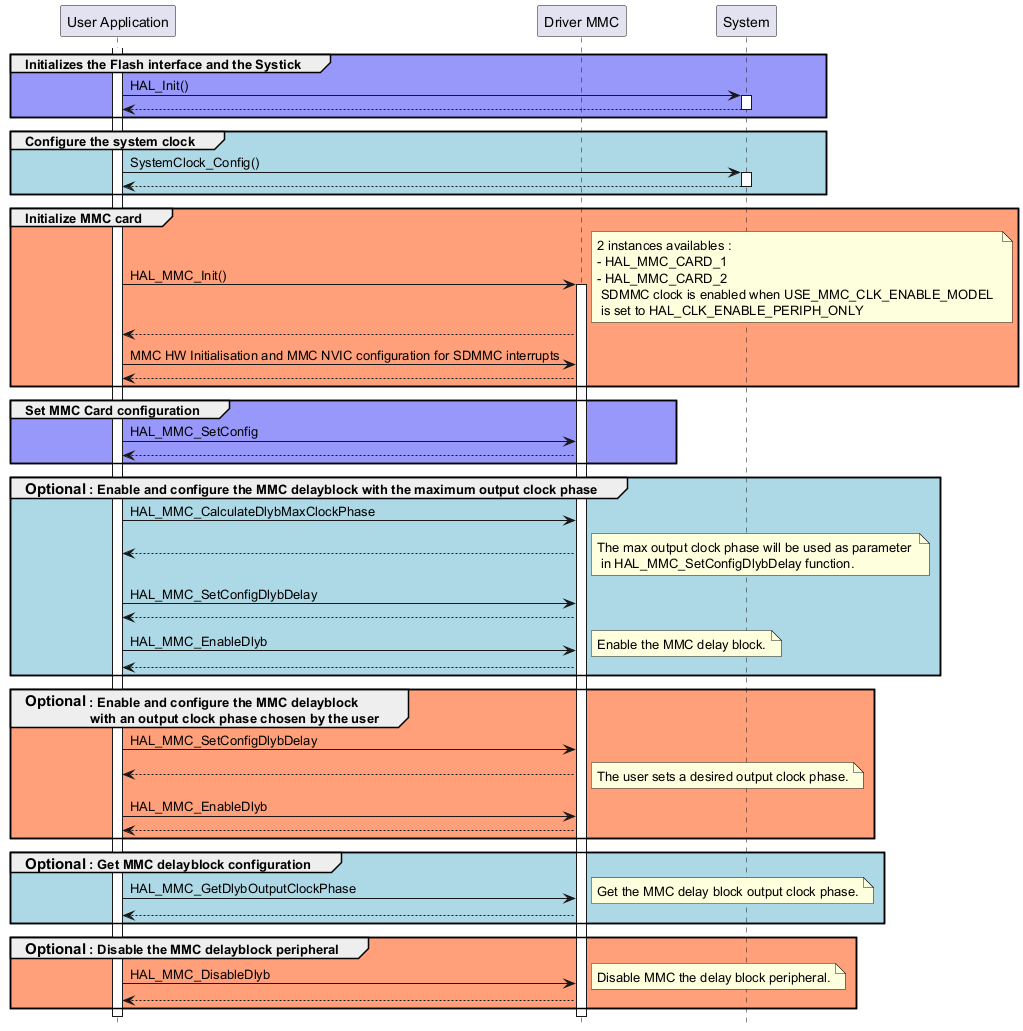

User application starting a driver ¶

$@startuml hide footbox ' To add a number by line 'autonumber ' Fix order of each column skinparam ParticipantPadding 40 participant "User Application" as part1 participant "Driver MMC" as part2 participant "System" as part3 activate part1 group #9898fb Initializes the Flash interface and the Systick part1->part3 : HAL_Init() activate part3 part3 --> part1 deactivate part3 end group #lightblue Configure the system clock part1->part3 : SystemClock_Config() activate part3 part3 --> part1 deactivate part3 end group #lightsalmon Initialize MMC card part1->part2 ++ : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 \n SDMMC clock is enabled when USE_MMC_CLK_ENABLE_MODEL \n is set to HAL_CLK_ENABLE_PERIPH_ONLY part2 --> part1 part1->part2 : MMC HW Initialisation and MMC NVIC configuration for SDMMC interrupts part2 --> part1 end group #9898fb Set MMC Card configuration part1->part2 : HAL_MMC_SetConfig part2 --> part1 end group #lightblue <size:15>Optional</size> : Enable and configure the MMC delayblock with the maximum output clock phase part1->part2 : HAL_MMC_CalculateDlybMaxClockPhase part2 --> part1 note right: The max output clock phase will be used as parameter \n in HAL_MMC_SetConfigDlybDelay function. part1->part2 : HAL_MMC_SetConfigDlybDelay part2 --> part1 part1->part2 : HAL_MMC_EnableDlyb note right: Enable the MMC delay block. part2 --> part1 end group #lightsalmon <size:15>Optional</size> : Enable and configure the MMC delayblock \n with an output clock phase chosen by the user part1->part2 : HAL_MMC_SetConfigDlybDelay part2 --> part1 note right: The user sets a desired output clock phase. part1->part2 : HAL_MMC_EnableDlyb part2 --> part1 end group #lightblue <size:15>Optional</size> : Get MMC delayblock configuration part1->part2 : HAL_MMC_GetDlybOutputClockPhase note right: Get the MMC delay block output clock phase. part2 --> part1 end group #lightsalmon <size:15>Optional</size> : Disable the MMC delayblock peripheral part1->part2 : HAL_MMC_DisableDlyb note right: Disable MMC the delay block peripheral. part2 --> part1 end @enduml$

Called functions:

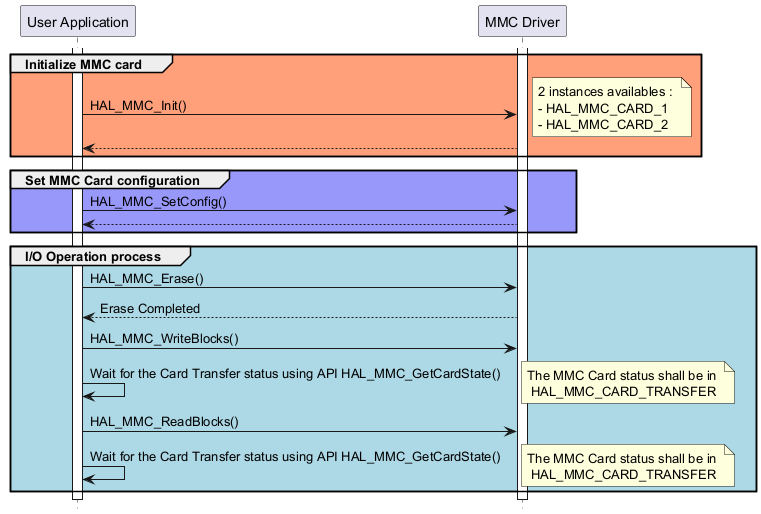

User application starting a Polling transfer mode ¶

$@startuml hide footbox participant "User Application" as part1 participant "MMC Driver" as part2 activate part1 activate part2 group #lightsalmon Initialize MMC card part1->part2 : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 part2 --> "part1" end group #9898fb Set MMC Card configuration "part1"->part2 : HAL_MMC_SetConfig() part2 --> "part1" end group #lightblue I/O Operation process part1->part2 : HAL_MMC_Erase() part2 --> "part1" : Erase Completed part1->part2 : HAL_MMC_WriteBlocks() part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in \n HAL_MMC_CARD_TRANSFER part1->part2 : HAL_MMC_ReadBlocks() part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in \n HAL_MMC_CARD_TRANSFER end @enduml$

Called functions:

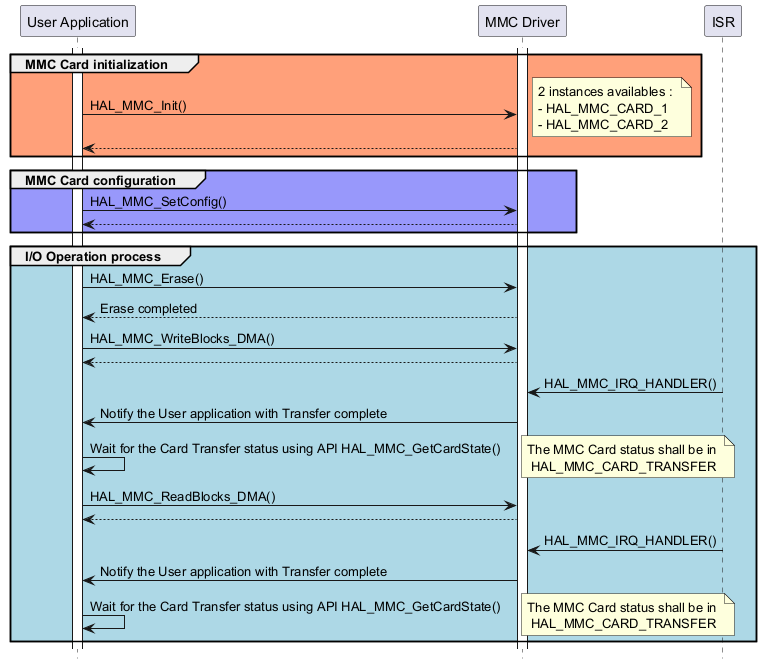

User application starting a DMA transfer mode ¶

$@startuml hide footbox participant "User Application" as part1 participant "MMC Driver" as part2 participant "ISR" as part3 activate part1 activate part2 group #lightsalmon MMC Card initialization part1->part2 : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 part2 --> part1 end group #9898fb MMC Card configuration part1->part2 : HAL_MMC_SetConfig() part2 --> part1 end group #lightblue I/O Operation process part1->part2 : HAL_MMC_Erase() part2 --> part1: Erase completed part1->part2 : HAL_MMC_WriteBlocks_DMA() part2 --> part1 part3 -> part2 : HAL_MMC_IRQ_HANDLER() part2 -> part1 : Notify the User application with Transfer complete part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in \n HAL_MMC_CARD_TRANSFER part1->part2 : HAL_MMC_ReadBlocks_DMA() part2--> part1 part3 -> part2 : HAL_MMC_IRQ_HANDLER() part2 -> part1 : Notify the User application with Transfer complete part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in \n HAL_MMC_CARD_TRANSFER end @enduml$

Called functions:

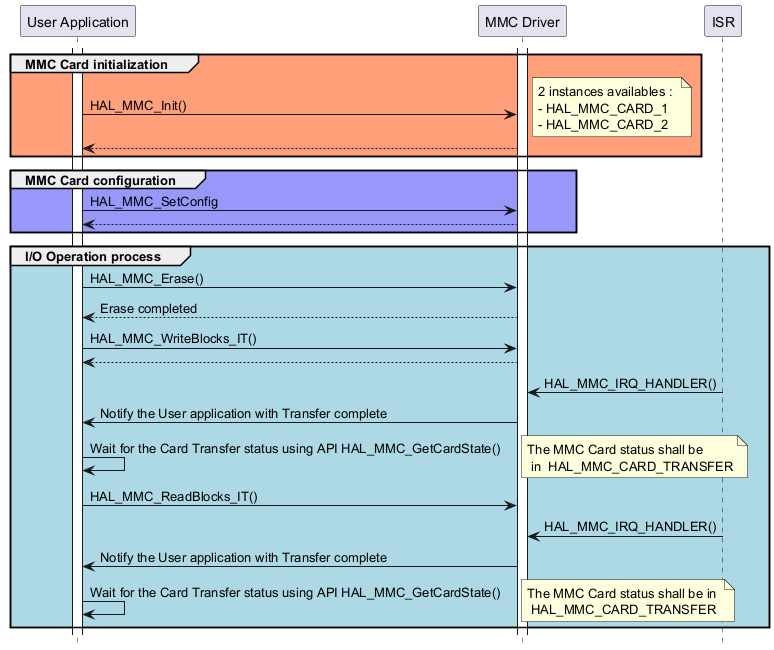

User application starting a IT transfer mode ¶

$@startuml hide footbox participant "User Application" as part1 participant "MMC Driver" as part2 participant "ISR" as part3 activate part1 activate part2 group #lightsalmon MMC Card initialization part1->part2 : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 part2 --> part1 end group #9898fb MMC Card configuration part1->part2 : HAL_MMC_SetConfig part2 --> part1 end group #lightblue I/O Operation process part1->part2 : HAL_MMC_Erase() part2 --> part1: Erase completed part1->part2 : HAL_MMC_WriteBlocks_IT() part2-->part1 part3 -> part2 : HAL_MMC_IRQ_HANDLER() part2 -> part1 : Notify the User application with Transfer complete part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be \n in HAL_MMC_CARD_TRANSFER part1->part2 : HAL_MMC_ReadBlocks_IT() part3 -> part2 : HAL_MMC_IRQ_HANDLER() part2 -> part1 : Notify the User application with Transfer complete part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in \n HAL_MMC_CARD_TRANSFER end @enduml$

Called functions:

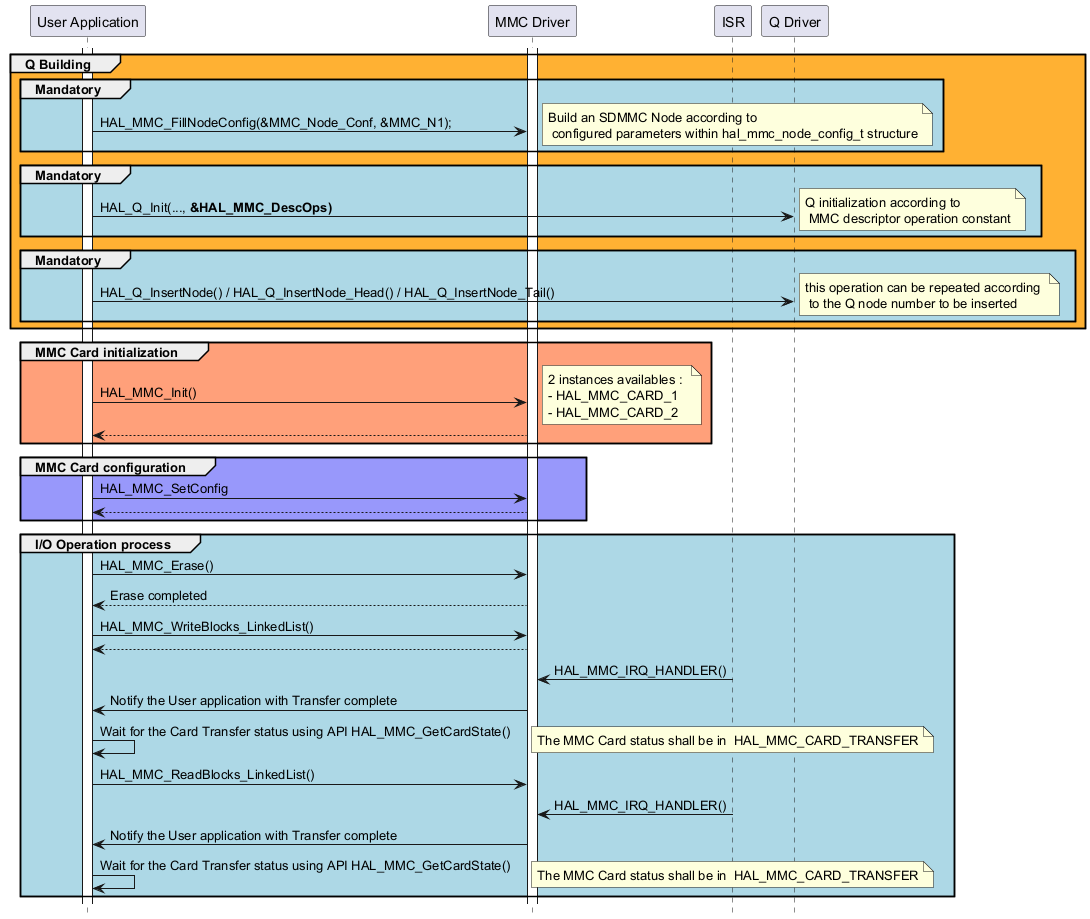

User application starting a LINKED-LIST transfer mode ¶

$@startuml hide footbox participant "User Application" as part1 participant "MMC Driver" as part2 participant "ISR" as part3 participant "Q Driver" as part4 activate part1 activate part2 group #FFB133 Q Building group #lightblue Mandatory part1->part2 : HAL_MMC_FillNodeConfig(&MMC_Node_Conf, &MMC_N1); note right : Build an SDMMC Node according to \n configured parameters within hal_mmc_node_config_t structure end group #lightblue Mandatory part1->part4 : HAL_Q_Init(..., <b>&HAL_MMC_DescOps) note right : Q initialization according to \n MMC descriptor operation constant end group #lightblue Mandatory part1->part4 : HAL_Q_InsertNode() / HAL_Q_InsertNode_Head() / HAL_Q_InsertNode_Tail() note right : this operation can be repeated according \n to the Q node number to be inserted end end group #lightsalmon MMC Card initialization part1->part2 : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 part2 --> part1 end group #9898fb MMC Card configuration part1->part2 : HAL_MMC_SetConfig part2 --> part1 end group #lightblue I/O Operation process part1->part2 : HAL_MMC_Erase() part2 --> part1: Erase completed part1->part2 : HAL_MMC_WriteBlocks_LinkedList() part2-->part1 part3 -> part2 : HAL_MMC_IRQ_HANDLER() part2 -> part1 : Notify the User application with Transfer complete part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in HAL_MMC_CARD_TRANSFER part1->part2 : HAL_MMC_ReadBlocks_LinkedList() part3 -> part2 : HAL_MMC_IRQ_HANDLER() part2 -> part1 : Notify the User application with Transfer complete part1->part1 : Wait for the Card Transfer status using API HAL_MMC_GetCardState() note right: The MMC Card status shall be in HAL_MMC_CARD_TRANSFER end @enduml$

Called functions:

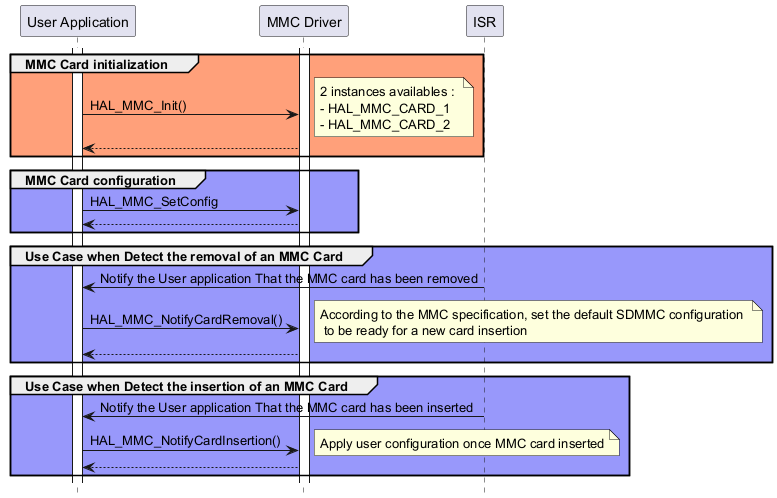

MMC Card Insertion/Removal Use case ¶

$@startuml hide footbox participant "User Application" as part1 participant "MMC Driver" as part2 participant "ISR" as part3 activate part1 activate part2 group #lightsalmon MMC Card initialization part1->part2 : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 part2 --> part1 end group #9898fb MMC Card configuration part1->part2 : HAL_MMC_SetConfig part2 --> part1 end group #9898fb Use Case when Detect the removal of an MMC Card part3 -> part1 : Notify the User application That the MMC card has been removed part1->part2 : HAL_MMC_NotifyCardRemoval() note right: According to the MMC specification, set the default SDMMC configuration \n to be ready for a new card insertion part2 --> part1 end group #9898fb Use Case when Detect the insertion of an MMC Card part3 -> part1 : Notify the User application That the MMC card has been inserted part1->part2 : HAL_MMC_NotifyCardInsertion() note right: Apply user configuration once MMC card inserted part2 --> part1 end @enduml$

Called functions:

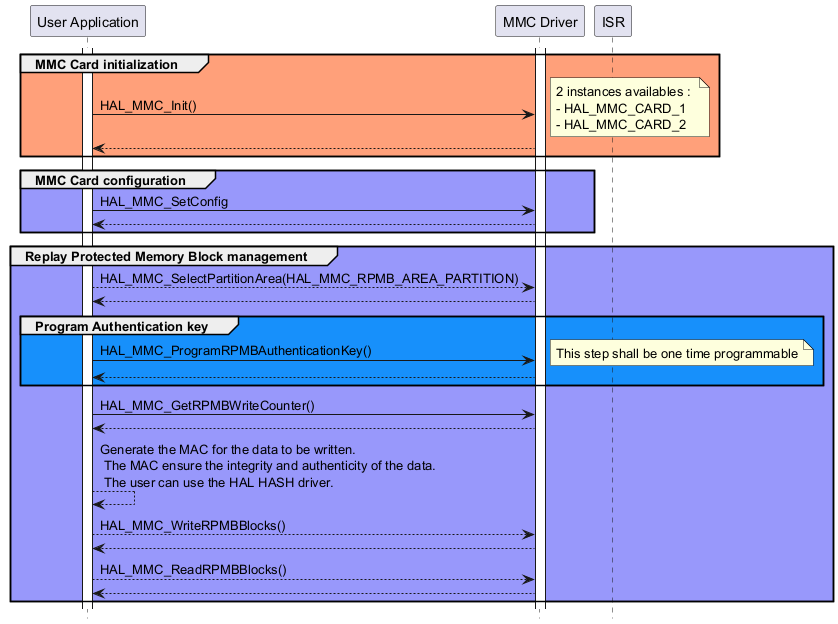

MMC Card Replay Protected Memory Block management ¶

$@startuml hide footbox participant "User Application" as part1 participant "MMC Driver" as part2 participant "ISR" as part3 activate part1 activate part2 group #lightsalmon MMC Card initialization part1->part2 : HAL_MMC_Init() note right: 2 instances availables : \n- HAL_MMC_CARD_1 \n- HAL_MMC_CARD_2 part2 --> part1 end group #9898fb MMC Card configuration part1->part2 : HAL_MMC_SetConfig part2 --> part1 end group #9898fb Replay Protected Memory Block management part1 --> part2 : HAL_MMC_SelectPartitionArea(HAL_MMC_RPMB_AREA_PARTITION) part2 --> part1 group #1790fb Program Authentication key part1->part2 : HAL_MMC_ProgramRPMBAuthenticationKey() note right: This step shall be one time programmable part2 --> part1 end part1->part2 : HAL_MMC_GetRPMBWriteCounter() part2 --> part1 part1 --> part1: Generate the MAC for the data to be written. \n The MAC ensure the integrity and authenticity of the data. \n The user can use the HAL HASH driver. part1 --> part2 : HAL_MMC_WriteRPMBBlocks() part2 --> part1 part1 --> part2 : HAL_MMC_ReadRPMBBlocks() part2 --> part1 end @enduml$

Called functions:
