HAL PKA use cases

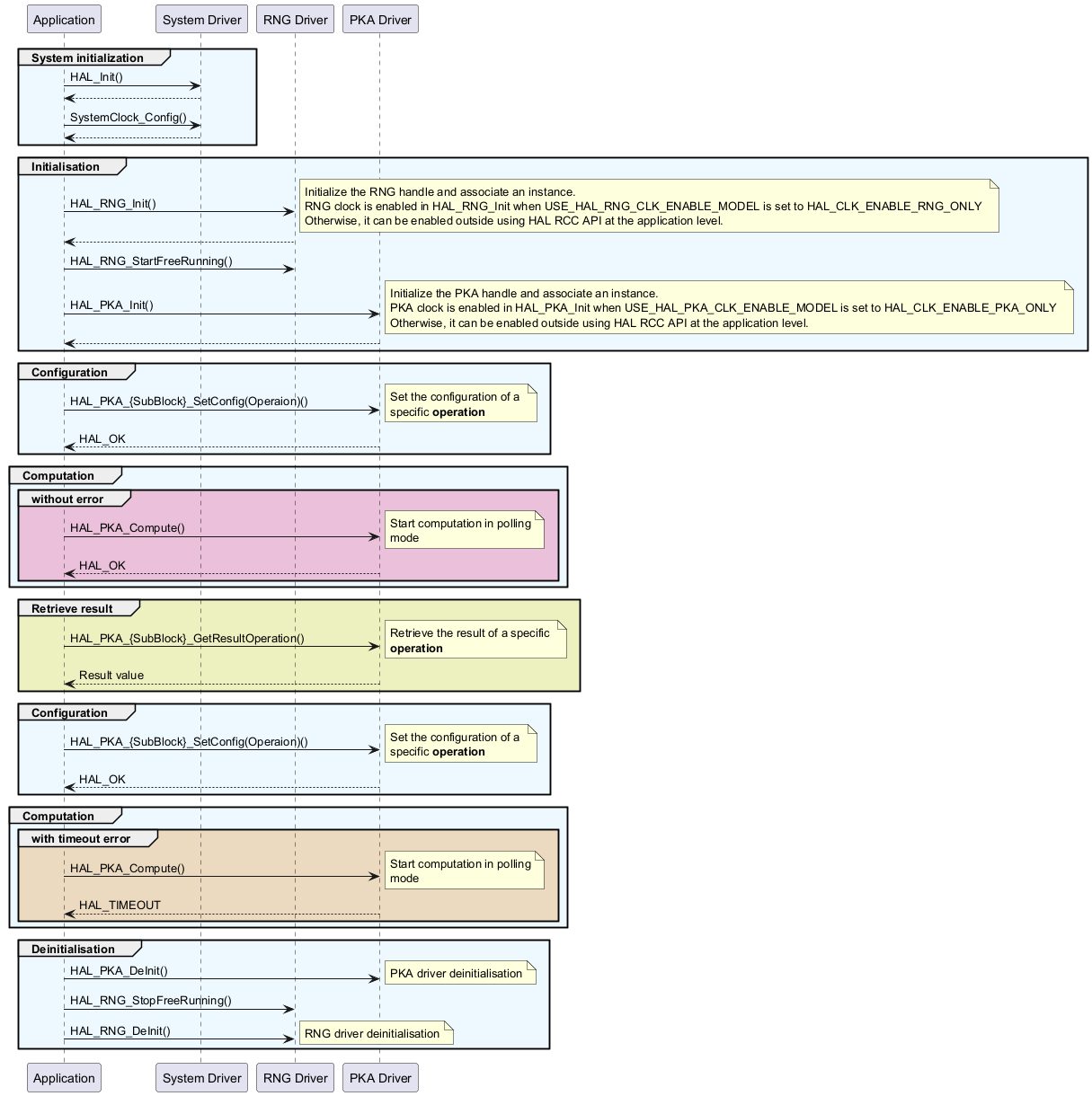

User application Polling mode, nominal case (no error), timeout case

@startuml group #edf9ff System initialization Application->"System Driver" : HAL_Init() "System Driver"-->Application : Application->"System Driver" : SystemClock_Config() "System Driver"-->Application end group #edf9ff Initialisation Application->"RNG Driver" : HAL_RNG_Init() note right: Initialize the RNG handle and associate an instance.\nRNG clock is enabled in HAL_RNG_Init when USE_HAL_RNG_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_RNG_ONLY \nOtherwise, it can be enabled outside using HAL RCC API at the application level. "RNG Driver"-->Application Application->"RNG Driver" : HAL_RNG_StartFreeRunning() Application->"PKA Driver" : HAL_PKA_Init() note right: Initialize the PKA handle and associate an instance.\nPKA clock is enabled in HAL_PKA_Init when USE_HAL_PKA_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PKA_ONLY \nOtherwise, it can be enabled outside using HAL RCC API at the application level. "PKA Driver"-->Application end group #edf9ff Configuration Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig(Operaion)() note right: Set the configuration of a \nspecific <b>operation "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebc0da without error Application->"PKA Driver" : HAL_PKA_Compute() note right: Start computation in polling\nmode "PKA Driver"-->Application: HAL_OK end end group #edf0bf Retrieve result Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResultOperation() note right: Retrieve the result of a specific \n<b>operation "PKA Driver"-->Application: Result value end group #edf9ff Configuration Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig(Operaion)() note right: Set the configuration of a \nspecific <b>operation "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebdac0 with timeout error Application->"PKA Driver" : HAL_PKA_Compute() note right: Start computation in polling\nmode "PKA Driver"-->Application: HAL_TIMEOUT end end group #edf9ff Deinitialisation Application->"PKA Driver" : HAL_PKA_DeInit() note right: PKA driver deinitialisation Application->"RNG Driver" : HAL_RNG_StopFreeRunning() Application->"RNG Driver" : HAL_RNG_DeInit() note right: RNG driver deinitialisation end @enduml

Called functions:

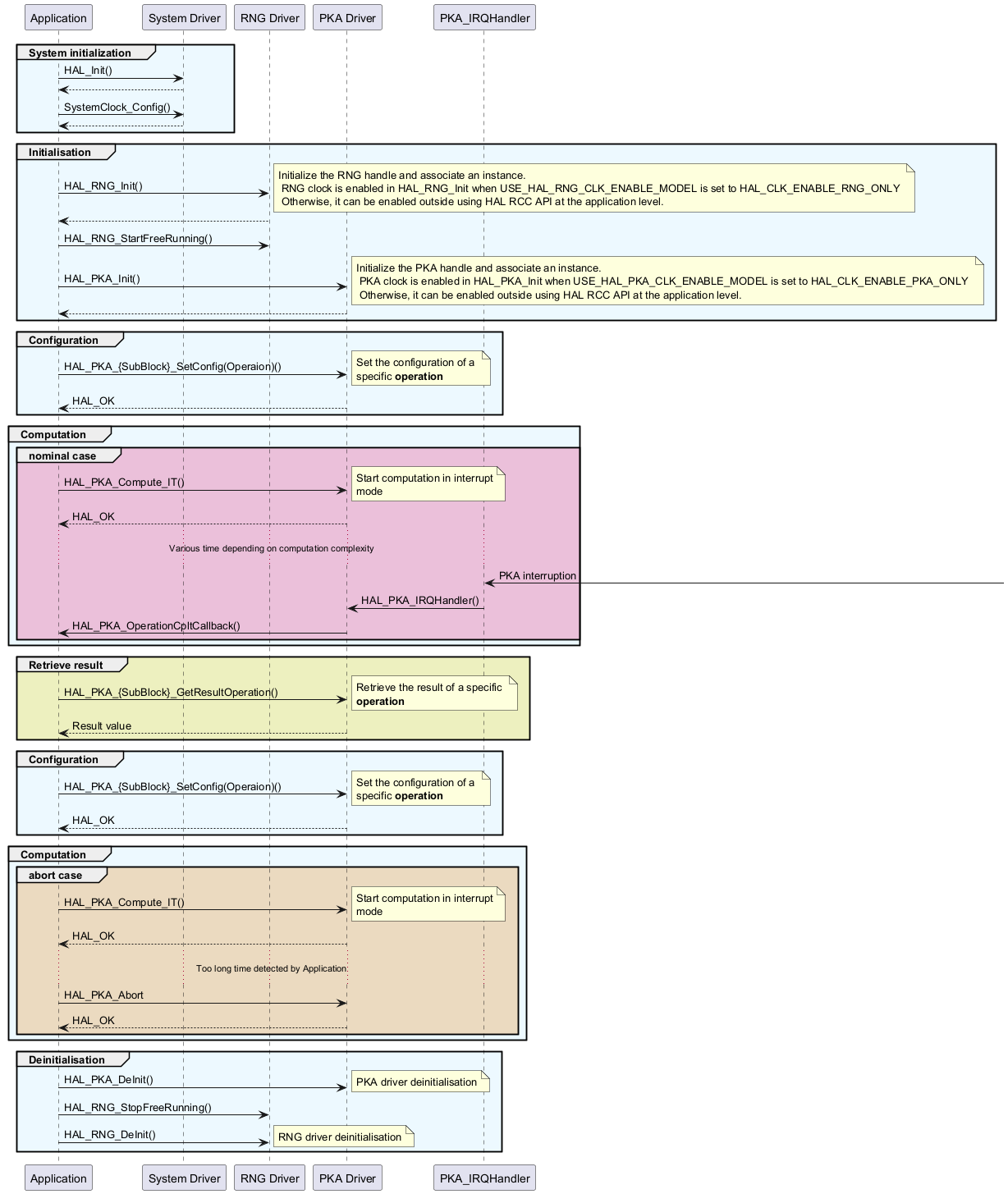

User application Interrupt mode, nominal case (no error), abort case

@startuml group #edf9ff System initialization Application->"System Driver" : HAL_Init() "System Driver"-->Application : Application->"System Driver" : SystemClock_Config() "System Driver"-->Application end group #edf9ff Initialisation Application->"RNG Driver" : HAL_RNG_Init() note right: Initialize the RNG handle and associate an instance.\n RNG clock is enabled in HAL_RNG_Init when USE_HAL_RNG_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_RNG_ONLY \n Otherwise, it can be enabled outside using HAL RCC API at the application level. "RNG Driver"-->Application Application->"RNG Driver" : HAL_RNG_StartFreeRunning() Application->"PKA Driver" : HAL_PKA_Init() note right: Initialize the PKA handle and associate an instance.\n PKA clock is enabled in HAL_PKA_Init when USE_HAL_PKA_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PKA_ONLY \n Otherwise, it can be enabled outside using HAL RCC API at the application level. "PKA Driver"-->Application end group #edf9ff Configuration Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig(Operaion)() note right: Set the configuration of a \nspecific <b>operation "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebc0da nominal case Application->"PKA Driver" : HAL_PKA_Compute_IT() note right: Start computation in interrupt\nmode "PKA Driver"-->Application: HAL_OK ... Various time depending on computation complexity ... "PKA_IRQHandler"<-] : PKA interruption "PKA_IRQHandler"->"PKA Driver" : HAL_PKA_IRQHandler() "PKA Driver"->Application : HAL_PKA_OperationCpltCallback() end end group #edf0bf Retrieve result Application->"PKA Driver" : HAL_PKA_{SubBlock}_GetResultOperation() note right: Retrieve the result of a specific \n<b>operation "PKA Driver"-->Application: Result value end group #edf9ff Configuration Application->"PKA Driver" : HAL_PKA_{SubBlock}_SetConfig(Operaion)() note right: Set the configuration of a \nspecific <b>operation "PKA Driver"-->Application: HAL_OK end group #edf9ff Computation group #ebdac0 abort case Application->"PKA Driver" : HAL_PKA_Compute_IT() note right: Start computation in interrupt\nmode "PKA Driver"-->Application: HAL_OK ... Too long time detected by Application ... Application->"PKA Driver" : HAL_PKA_Abort "PKA Driver"-->Application: HAL_OK end end group #edf9ff Deinitialisation Application->"PKA Driver" : HAL_PKA_DeInit() note right: PKA driver deinitialisation Application->"RNG Driver" : HAL_RNG_StopFreeRunning() Application->"RNG Driver" : HAL_RNG_DeInit() note right: RNG driver deinitialisation end @enduml

Called functions:
