HAL RCC use cases ¶

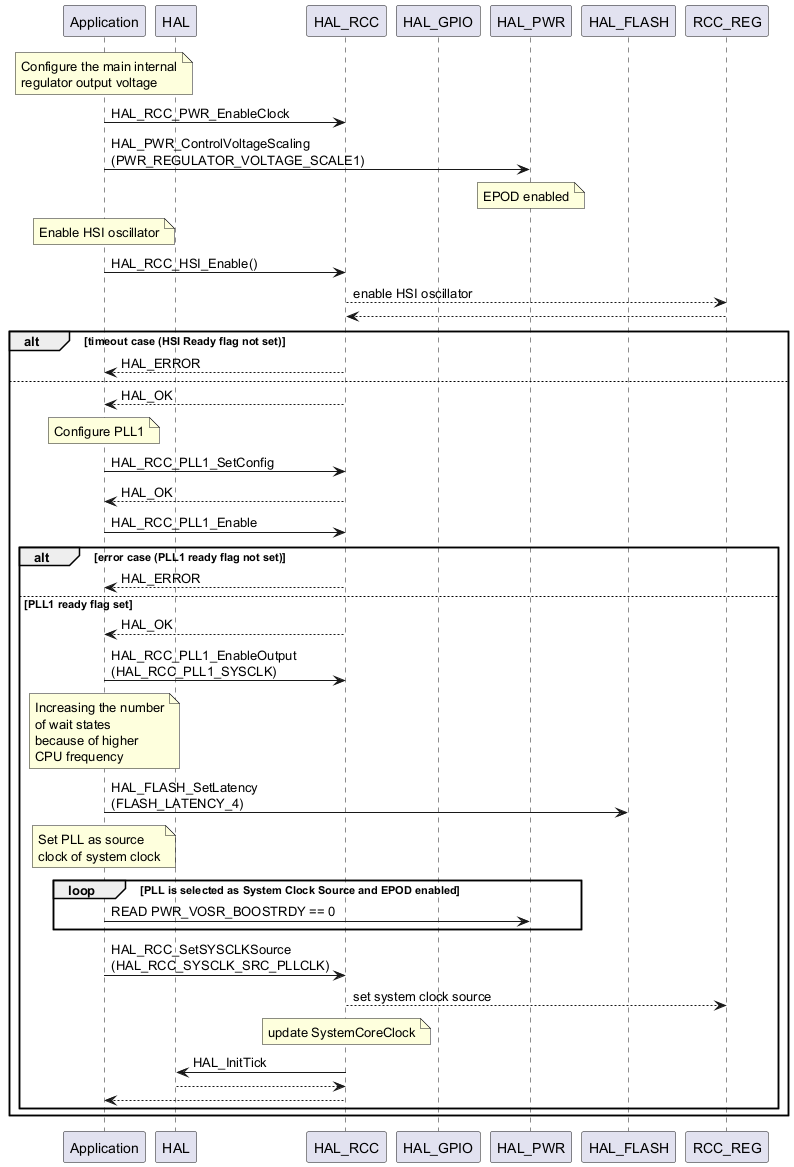

rcc_uc_u5_set_system_max_frequency ¶

$@startuml participant Application participant HAL participant HAL_RCC participant HAL_GPIO participant HAL_PWR participant HAL_FLASH participant RCC_REG note over Application : Configure the main internal\nregulator output voltage Application -> HAL_RCC :HAL_RCC_PWR_EnableClock Application -> HAL_PWR :HAL_PWR_ControlVoltageScaling\n(PWR_REGULATOR_VOLTAGE_SCALE1) note over HAL_PWR : EPOD enabled note over Application : Enable HSI oscillator Application -> HAL_RCC : HAL_RCC_HSI_Enable() HAL_RCC --> RCC_REG : enable HSI oscillator HAL_RCC <-- RCC_REG alt timeout case (HSI Ready flag not set) HAL_RCC --> Application : HAL_ERROR else HAL_RCC --> Application : HAL_OK note over Application : Configure PLL1 Application -> HAL_RCC : HAL_RCC_PLL1_SetConfig HAL_RCC --> Application : HAL_OK Application -> HAL_RCC : HAL_RCC_PLL1_Enable alt error case (PLL1 ready flag not set) HAL_RCC --> Application : HAL_ERROR else PLL1 ready flag set HAL_RCC --> Application : HAL_OK Application -> HAL_RCC : HAL_RCC_PLL1_EnableOutput\n(HAL_RCC_PLL1_SYSCLK) note over Application: Increasing the number\nof wait states\nbecause of higher\nCPU frequency Application -> HAL_FLASH : HAL_FLASH_SetLatency\n(FLASH_LATENCY_4) note over Application : Set PLL as source\nclock of system clock loop PLL is selected as System Clock Source and EPOD enabled Application -> HAL_PWR : READ PWR_VOSR_BOOSTRDY == 0 end Application -> HAL_RCC : HAL_RCC_SetSYSCLKSource\n(HAL_RCC_SYSCLK_SRC_PLLCLK) HAL_RCC --> RCC_REG : set system clock source note over HAL_RCC : update SystemCoreClock HAL_RCC -> HAL : HAL_InitTick HAL_RCC <-- HAL Application <-- HAL_RCC end end @enduml$

Called functions:

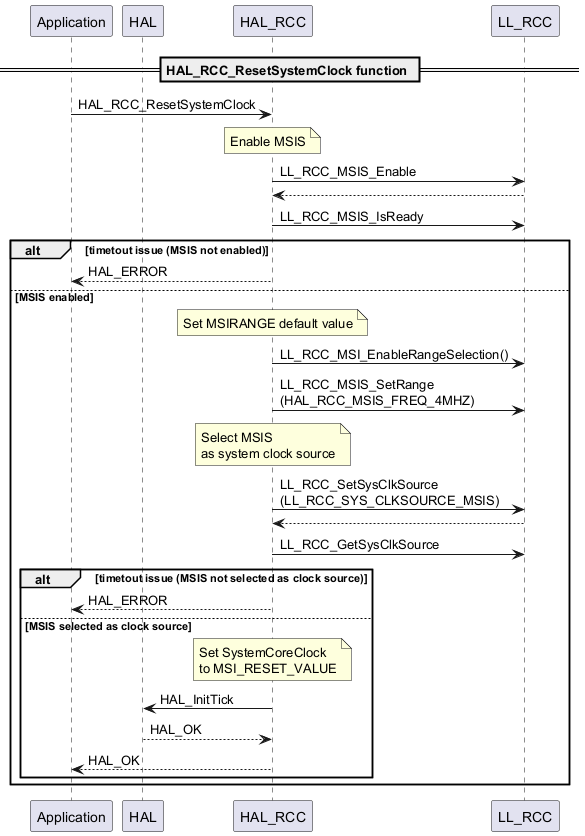

rcc_uc_u5_reset_system_clock ¶

$@startuml participant Application participant HAL participant HAL_RCC participant LL_RCC == HAL_RCC_ResetSystemClock function == Application -> HAL_RCC : HAL_RCC_ResetSystemClock note over HAL_RCC : Enable MSIS HAL_RCC -> LL_RCC : LL_RCC_MSIS_Enable HAL_RCC <-- LL_RCC HAL_RCC -> LL_RCC : LL_RCC_MSIS_IsReady alt timetout issue (MSIS not enabled) HAL_RCC --> Application : HAL_ERROR else MSIS enabled note over HAL_RCC : Set MSIRANGE default value HAL_RCC -> LL_RCC : LL_RCC_MSI_EnableRangeSelection() HAL_RCC -> LL_RCC : LL_RCC_MSIS_SetRange\n(HAL_RCC_MSIS_FREQ_4MHZ) note over HAL_RCC : Select MSIS\nas system clock source HAL_RCC -> LL_RCC : LL_RCC_SetSysClkSource\n(LL_RCC_SYS_CLKSOURCE_MSIS) HAL_RCC <-- LL_RCC HAL_RCC -> LL_RCC : LL_RCC_GetSysClkSource alt timetout issue (MSIS not selected as clock source) HAL_RCC --> Application : HAL_ERROR else MSIS selected as clock source note over HAL_RCC : Set SystemCoreClock\nto MSI_RESET_VALUE HAL_RCC -> HAL: HAL_InitTick HAL --> HAL_RCC: HAL_OK HAL_RCC --> Application: HAL_OK end end @enduml$

Called functions:

HAL_RCC_ResetSystemClock()
LL_RCC_MSIS_Enable()
LL_RCC_MSIS_IsReady()
LL_RCC_SetSysClkSource()
HAL_InitTick()

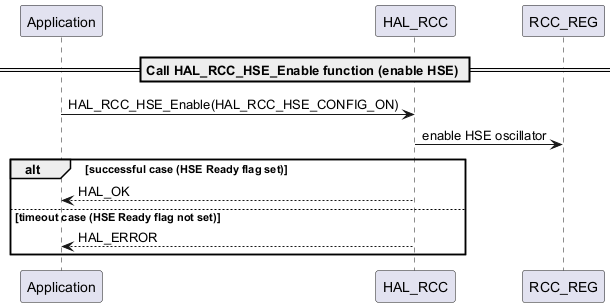

rcc_uc_u5_enable_hse_unitary_function ¶

@startuml

== Call HAL_RCC_HSE_Enable function (enable HSE) ==

Application -> HAL_RCC : HAL_RCC_HSE_Enable(HAL_RCC_HSE_CONFIG_ON)

HAL_RCC -> RCC_REG : enable HSE oscillator

alt successful case (HSE Ready flag set)

HAL_RCC --> Application : HAL_OK

else timeout case (HSE Ready flag not set)

HAL_RCC --> Application : HAL_ERROR

end

@enduml

Called functions:

HAL_RCC_HSE_Enable()

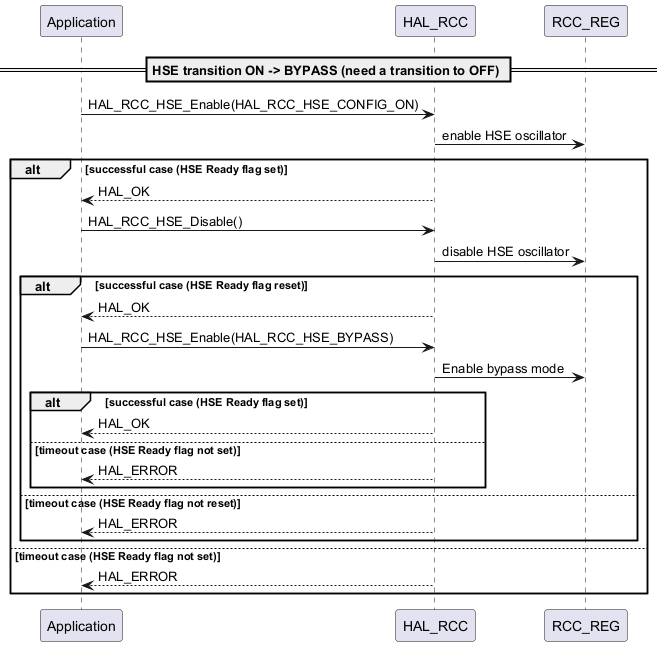

rcc_uc_u5_hse_transition_on_to_bypass ¶

Called functions:

HAL_RCC_HSE_Enable()
HAL_RCC_HSE_Disable()

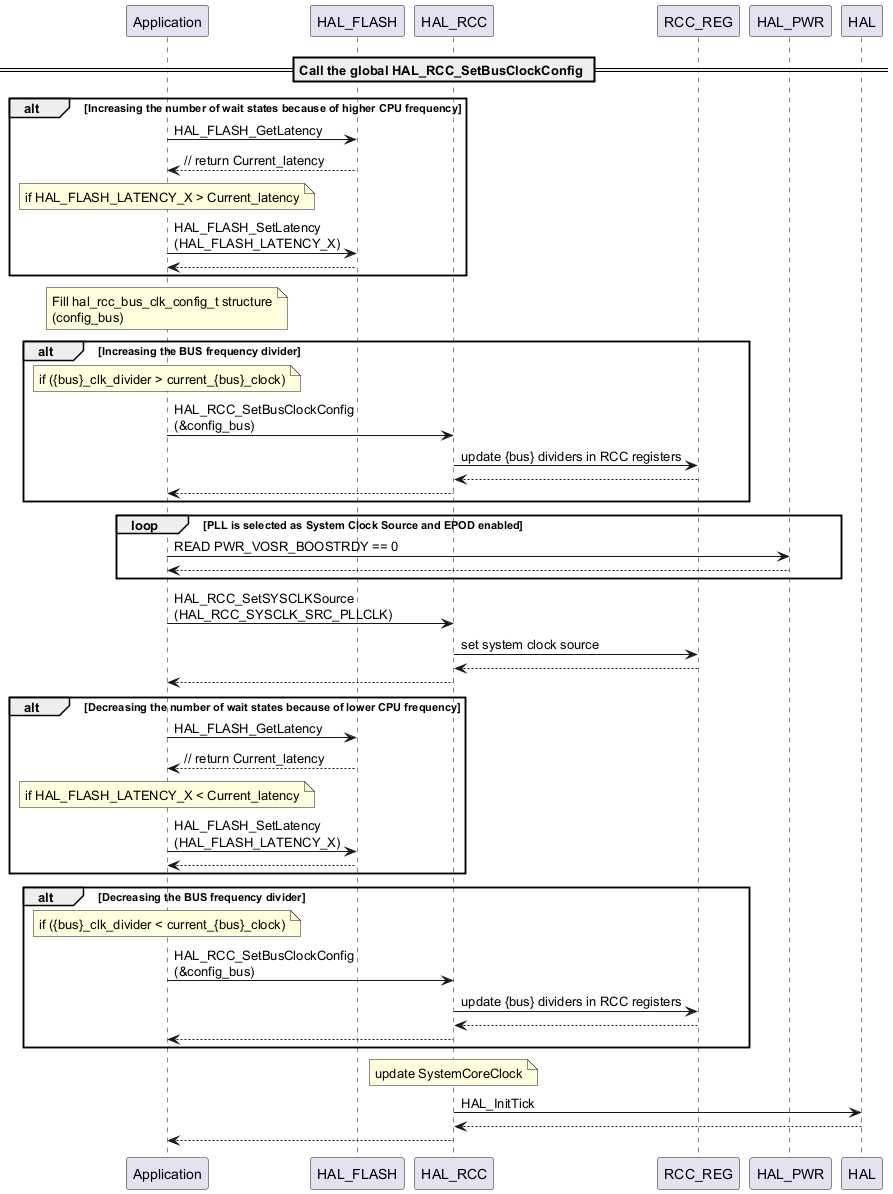

rcc_uc_u5_bus_prescalers_configuration ¶

$@startuml == Call the global HAL_RCC_SetBusClockConfig == alt Increasing the number of wait states because of higher CPU frequency Application -> HAL_FLASH : HAL_FLASH_GetLatency HAL_FLASH --> Application : // return Current_latency note over Application : if HAL_FLASH_LATENCY_X > Current_latency Application -> HAL_FLASH : HAL_FLASH_SetLatency\n(HAL_FLASH_LATENCY_X) Application <-- HAL_FLASH end note over Application : Fill hal_rcc_bus_clk_config_t structure\n(config_bus) alt Increasing the BUS frequency divider note over Application : if ({bus}_clk_divider > current_{bus}_clock) Application -> HAL_RCC : HAL_RCC_SetBusClockConfig\n(&config_bus) HAL_RCC -> RCC_REG : update {bus} dividers in RCC registers HAL_RCC <-- RCC_REG Application <-- HAL_RCC end loop PLL is selected as System Clock Source and EPOD enabled Application -> HAL_PWR : READ PWR_VOSR_BOOSTRDY == 0 Application <-- HAL_PWR end Application -> HAL_RCC : HAL_RCC_SetSYSCLKSource\n(HAL_RCC_SYSCLK_SRC_PLLCLK) HAL_RCC -> RCC_REG : set system clock source HAL_RCC <-- RCC_REG Application <-- HAL_RCC alt Decreasing the number of wait states because of lower CPU frequency Application -> HAL_FLASH : HAL_FLASH_GetLatency HAL_FLASH --> Application : // return Current_latency note over Application : if HAL_FLASH_LATENCY_X < Current_latency Application -> HAL_FLASH : HAL_FLASH_SetLatency\n(HAL_FLASH_LATENCY_X) Application <-- HAL_FLASH end alt Decreasing the BUS frequency divider note over Application : if ({bus}_clk_divider < current_{bus}_clock) Application -> HAL_RCC : HAL_RCC_SetBusClockConfig\n(&config_bus) HAL_RCC -> RCC_REG : update {bus} dividers in RCC registers HAL_RCC <-- RCC_REG Application <-- HAL_RCC end note over HAL_RCC : update SystemCoreClock HAL_RCC -> HAL : HAL_InitTick HAL --> HAL_RCC Application <-- HAL_RCC @enduml$

Called functions:

HAL_FLASH_GetLatency()
HAL_FLASH_SetLatency()
HAL_RCC_SetBusClockConfig()
HAL_RCC_SetSYSCLKSource()
HAL_InitTick()

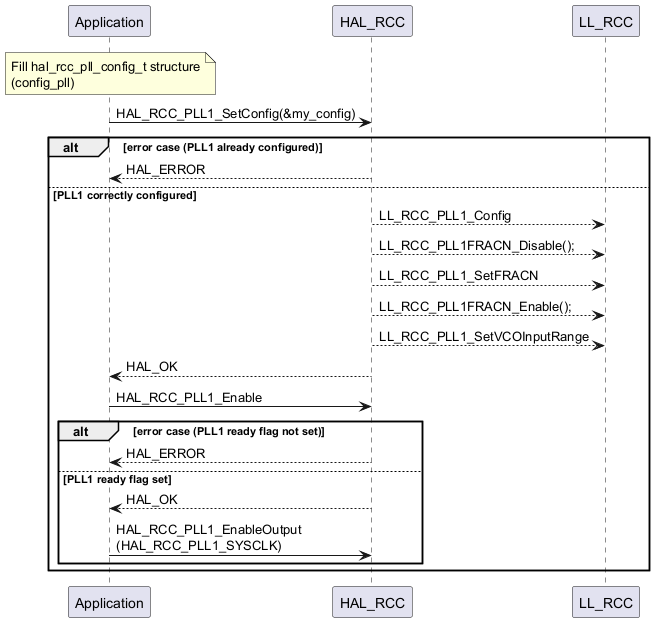

rcc_uc_u5_configure_pll1 ¶

$@startuml participant Application participant HAL_RCC participant LL_RCC note over Application : Fill hal_rcc_pll_config_t structure\n(config_pll) Application -> HAL_RCC : HAL_RCC_PLL1_SetConfig(&my_config) alt error case (PLL1 already configured) HAL_RCC --> Application : HAL_ERROR else PLL1 correctly configured HAL_RCC --> LL_RCC : LL_RCC_PLL1_Config HAL_RCC --> LL_RCC : LL_RCC_PLL1FRACN_Disable(); HAL_RCC --> LL_RCC : LL_RCC_PLL1_SetFRACN HAL_RCC --> LL_RCC : LL_RCC_PLL1FRACN_Enable(); HAL_RCC --> LL_RCC : LL_RCC_PLL1_SetVCOInputRange HAL_RCC --> Application : HAL_OK Application -> HAL_RCC : HAL_RCC_PLL1_Enable alt error case (PLL1 ready flag not set) HAL_RCC --> Application : HAL_ERROR else PLL1 ready flag set HAL_RCC --> Application : HAL_OK Application -> HAL_RCC : HAL_RCC_PLL1_EnableOutput\n(HAL_RCC_PLL1_SYSCLK) end end @enduml$

Called functions:

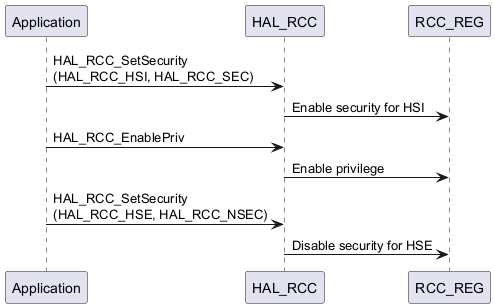

rcc_uc_u5_configure_secure_and_privilege_attributes ¶

$@startuml Application -> HAL_RCC : HAL_RCC_SetSecurity\n(HAL_RCC_HSI, HAL_RCC_SEC) HAL_RCC -> RCC_REG : Enable security for HSI Application -> HAL_RCC : HAL_RCC_EnablePriv HAL_RCC -> RCC_REG : Enable privilege Application -> HAL_RCC : HAL_RCC_SetSecurity\n(HAL_RCC_HSE, HAL_RCC_NSEC) HAL_RCC -> RCC_REG : Disable security for HSE @enduml$

Called functions:

HAL_RCC_SetSecurity()
HAL_RCC_EnablePriv()

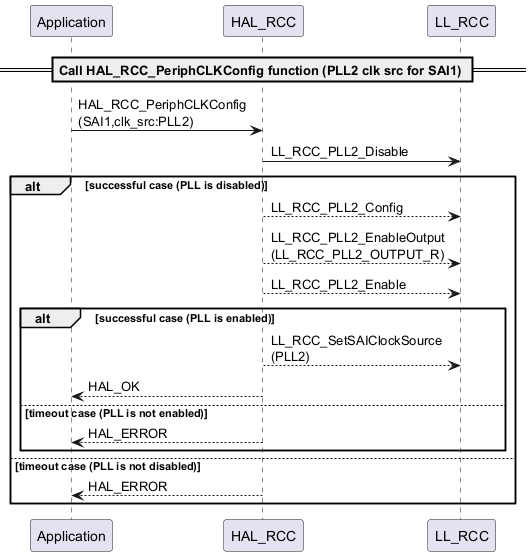

rcc_uc_u5_periph_clk_config_pll2_sai1 ¶

$@startuml == Call HAL_RCC_PeriphCLKConfig function (PLL2 clk src for SAI1) == Application -> HAL_RCC : HAL_RCC_PeriphCLKConfig\n(SAI1,clk_src:PLL2) HAL_RCC -> LL_RCC : LL_RCC_PLL2_Disable alt successful case (PLL is disabled) HAL_RCC --> LL_RCC : LL_RCC_PLL2_Config HAL_RCC --> LL_RCC : LL_RCC_PLL2_EnableOutput\n(LL_RCC_PLL2_OUTPUT_R) HAL_RCC --> LL_RCC : LL_RCC_PLL2_Enable alt successful case (PLL is enabled) HAL_RCC --> LL_RCC : LL_RCC_SetSAIClockSource\n(PLL2) HAL_RCC --> Application : HAL_OK else timeout case (PLL is not enabled) HAL_RCC --> Application : HAL_ERROR end else timeout case (PLL is not disabled) HAL_RCC --> Application : HAL_ERROR end @enduml$

Called functions:

HAL_RCC_PeriphCLKConfig()
LL_RCC_PLL2_Disable()
LL_RCC_PLL2_Config()
LL_RCC_PLL2_EnableOutput()
LL_RCC_PLL2_Enable()

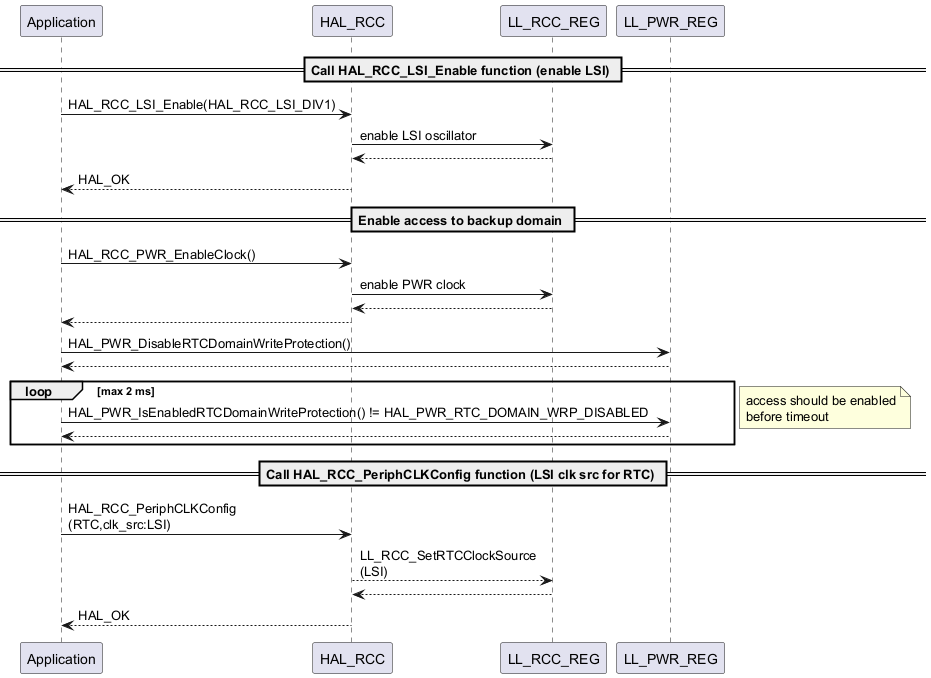

rcc_uc_u5_periph_clk_config_rtc_lsi ¶

$@startuml participant Application participant HAL_RCC participant LL_RCC_REG participant LL_PWR_REG == Call HAL_RCC_LSI_Enable function (enable LSI) == Application -> HAL_RCC : HAL_RCC_LSI_Enable(HAL_RCC_LSI_DIV1) HAL_RCC -> LL_RCC_REG : enable LSI oscillator HAL_RCC <-- LL_RCC_REG HAL_RCC --> Application : HAL_OK == Enable access to backup domain == Application -> HAL_RCC : HAL_RCC_PWR_EnableClock() HAL_RCC -> LL_RCC_REG : enable PWR clock HAL_RCC <-- LL_RCC_REG HAL_RCC --> Application Application -> LL_PWR_REG : HAL_PWR_DisableRTCDomainWriteProtection() LL_PWR_REG --> Application loop max 2 ms Application -> LL_PWR_REG : HAL_PWR_IsEnabledRTCDomainWriteProtection() != HAL_PWR_RTC_DOMAIN_WRP_DISABLED LL_PWR_REG --> Application end note left: access should be enabled\nbefore timeout == Call HAL_RCC_PeriphCLKConfig function (LSI clk src for RTC) == Application -> HAL_RCC : HAL_RCC_PeriphCLKConfig\n(RTC,clk_src:LSI) HAL_RCC --> LL_RCC_REG : LL_RCC_SetRTCClockSource\n(LSI) HAL_RCC <-- LL_RCC_REG HAL_RCC --> Application : HAL_OK @enduml$

Called functions:

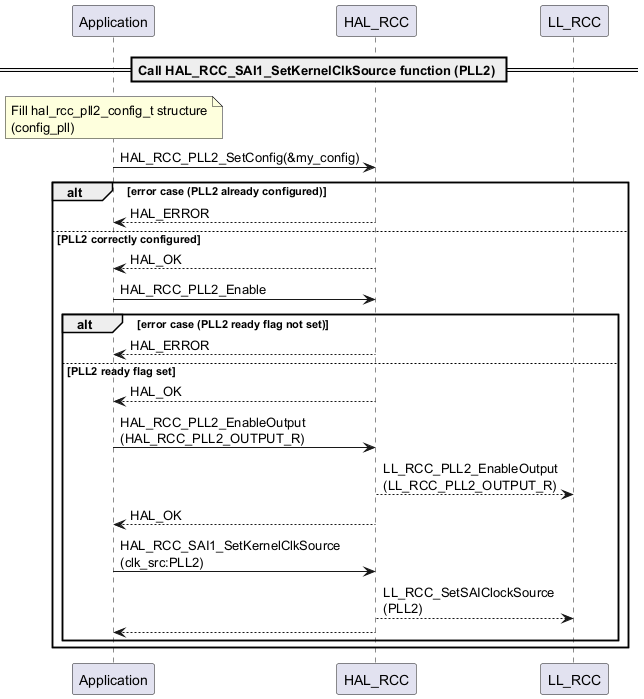

rcc_uc_u5_set_kernel_clk_source_sai1 ¶

$@startuml == Call HAL_RCC_SAI1_SetKernelClkSource function (PLL2) == note over Application : Fill hal_rcc_pll2_config_t structure\n(config_pll) Application -> HAL_RCC : HAL_RCC_PLL2_SetConfig(&my_config) alt error case (PLL2 already configured) HAL_RCC --> Application : HAL_ERROR else PLL2 correctly configured HAL_RCC --> Application : HAL_OK Application -> HAL_RCC : HAL_RCC_PLL2_Enable alt error case (PLL2 ready flag not set) HAL_RCC --> Application : HAL_ERROR else PLL2 ready flag set HAL_RCC --> Application : HAL_OK Application -> HAL_RCC : HAL_RCC_PLL2_EnableOutput\n(HAL_RCC_PLL2_OUTPUT_R) HAL_RCC --> LL_RCC : LL_RCC_PLL2_EnableOutput\n(LL_RCC_PLL2_OUTPUT_R) HAL_RCC --> Application: HAL_OK Application -> HAL_RCC : HAL_RCC_SAI1_SetKernelClkSource\n(clk_src:PLL2) HAL_RCC --> LL_RCC : LL_RCC_SetSAIClockSource\n(PLL2) HAL_RCC --> Application end end @enduml$

Called functions:

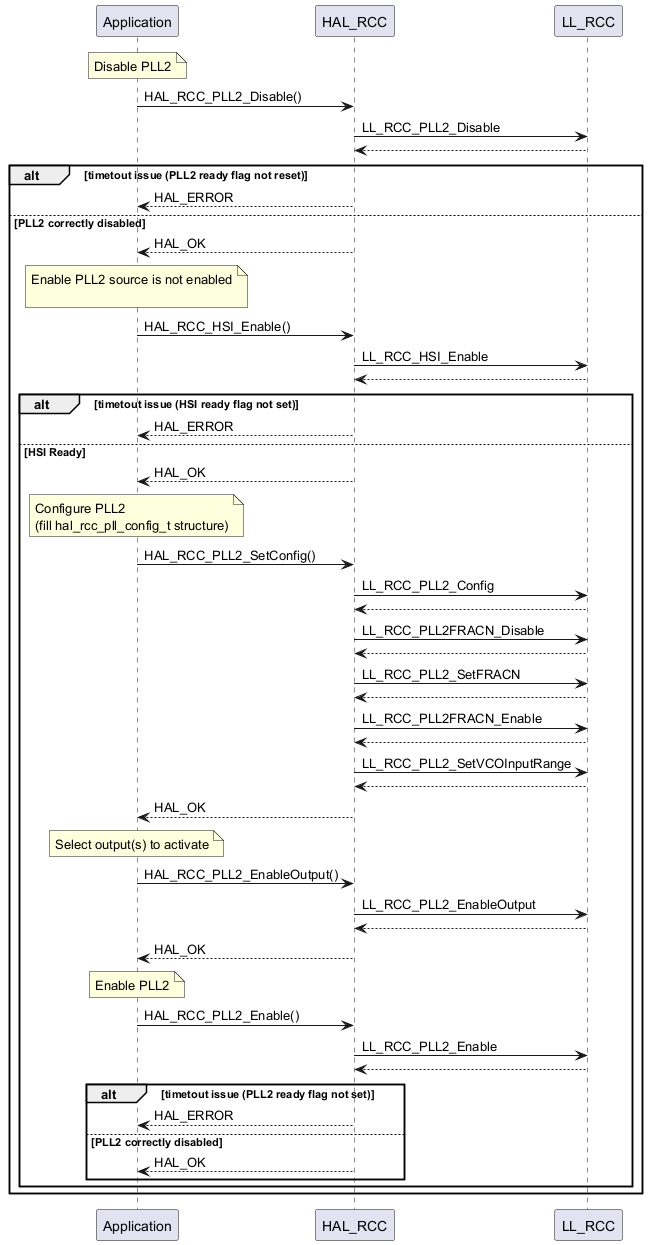

rcc_uc_u5_configure_and_enable_pll2 ¶

$@startuml note over Application : Disable PLL2 Application -> HAL_RCC : HAL_RCC_PLL2_Disable() HAL_RCC -> LL_RCC : LL_RCC_PLL2_Disable HAL_RCC <-- LL_RCC alt timetout issue (PLL2 ready flag not reset) HAL_RCC --> Application : HAL_ERROR else PLL2 correctly disabled HAL_RCC --> Application : HAL_OK note over Application : Enable PLL2 source is not enabled\n Application -> HAL_RCC : HAL_RCC_HSI_Enable() HAL_RCC -> LL_RCC : LL_RCC_HSI_Enable HAL_RCC <-- LL_RCC alt timetout issue (HSI ready flag not set) HAL_RCC --> Application : HAL_ERROR else HSI Ready HAL_RCC --> Application : HAL_OK note over Application : Configure PLL2\n(fill hal_rcc_pll_config_t structure) Application -> HAL_RCC : HAL_RCC_PLL2_SetConfig() HAL_RCC -> LL_RCC : LL_RCC_PLL2_Config HAL_RCC <-- LL_RCC HAL_RCC -> LL_RCC : LL_RCC_PLL2FRACN_Disable HAL_RCC <-- LL_RCC HAL_RCC -> LL_RCC : LL_RCC_PLL2_SetFRACN HAL_RCC <-- LL_RCC HAL_RCC -> LL_RCC : LL_RCC_PLL2FRACN_Enable HAL_RCC <-- LL_RCC HAL_RCC -> LL_RCC : LL_RCC_PLL2_SetVCOInputRange HAL_RCC <-- LL_RCC HAL_RCC --> Application : HAL_OK note over Application : Select output(s) to activate Application -> HAL_RCC : HAL_RCC_PLL2_EnableOutput() HAL_RCC -> LL_RCC : LL_RCC_PLL2_EnableOutput HAL_RCC <-- LL_RCC HAL_RCC --> Application : HAL_OK note over Application : Enable PLL2 Application -> HAL_RCC : HAL_RCC_PLL2_Enable() HAL_RCC -> LL_RCC : LL_RCC_PLL2_Enable HAL_RCC <-- LL_RCC alt timetout issue (PLL2 ready flag not set) HAL_RCC --> Application : HAL_ERROR else PLL2 correctly disabled HAL_RCC --> Application : HAL_OK end end end @enduml$

Called functions:

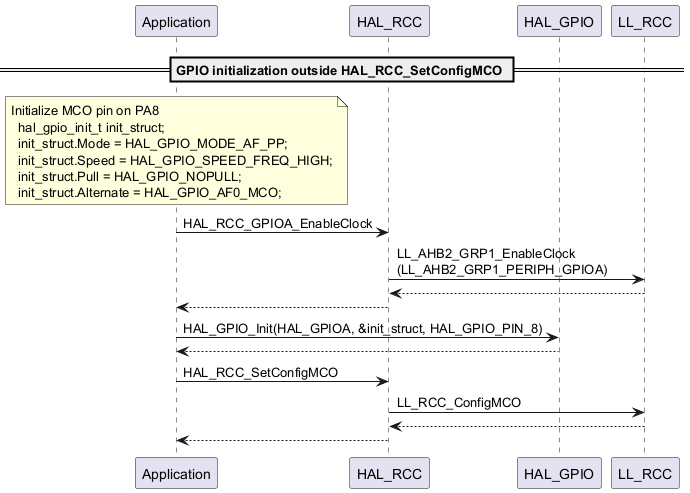

rcc_uc_u5_set_config_mco ¶

$@startuml participant Application participant HAL_RCC participant HAL_GPIO participant LL_RCC == GPIO initialization outside HAL_RCC_SetConfigMCO == note over Application : Initialize MCO pin on PA8\n hal_gpio_init_t init_struct;\n init_struct.Mode = HAL_GPIO_MODE_AF_PP;\n init_struct.Speed = HAL_GPIO_SPEED_FREQ_HIGH;\n init_struct.Pull = HAL_GPIO_NOPULL;\n init_struct.Alternate = HAL_GPIO_AF0_MCO; Application -> HAL_RCC : HAL_RCC_GPIOA_EnableClock HAL_RCC -> LL_RCC : LL_AHB2_GRP1_EnableClock\n(LL_AHB2_GRP1_PERIPH_GPIOA) HAL_RCC <-- LL_RCC Application <-- HAL_RCC Application -> HAL_GPIO : HAL_GPIO_Init(HAL_GPIOA, &init_struct, HAL_GPIO_PIN_8) Application <-- HAL_GPIO Application -> HAL_RCC : HAL_RCC_SetConfigMCO HAL_RCC -> LL_RCC : LL_RCC_ConfigMCO HAL_RCC <-- LL_RCC Application <-- HAL_RCC @enduml$

Called functions:

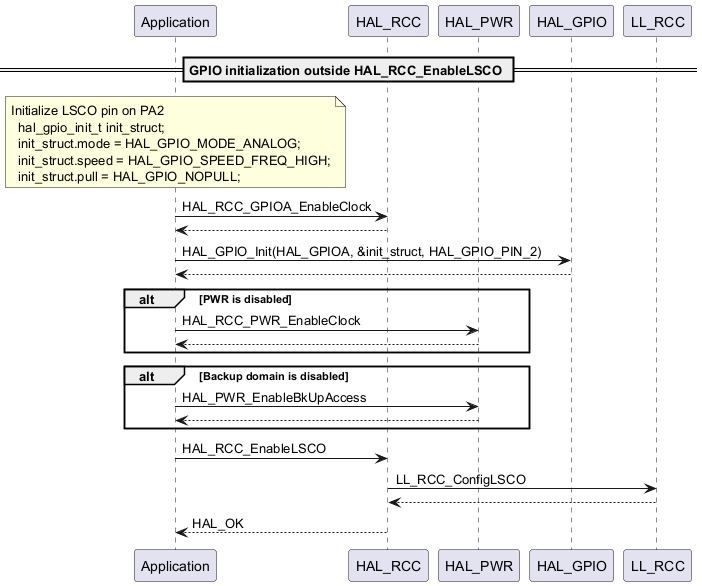

rcc_uc_u5_enable_lsco ¶

$@startuml participant Application participant HAL_RCC participant HAL_PWR participant HAL_GPIO participant LL_RCC == GPIO initialization outside HAL_RCC_EnableLSCO == note over Application : Initialize LSCO pin on PA2\n hal_gpio_init_t init_struct;\n init_struct.mode = HAL_GPIO_MODE_ANALOG;\n init_struct.speed = HAL_GPIO_SPEED_FREQ_HIGH;\n init_struct.pull = HAL_GPIO_NOPULL; Application -> HAL_RCC : HAL_RCC_GPIOA_EnableClock HAL_RCC --> Application Application -> HAL_GPIO : HAL_GPIO_Init(HAL_GPIOA, &init_struct, HAL_GPIO_PIN_2) HAL_GPIO --> Application alt PWR is disabled Application -> HAL_PWR : HAL_RCC_PWR_EnableClock HAL_PWR --> Application end alt Backup domain is disabled Application -> HAL_PWR : HAL_PWR_EnableBkUpAccess HAL_PWR --> Application end Application -> HAL_RCC : HAL_RCC_EnableLSCO HAL_RCC -> LL_RCC : LL_RCC_ConfigLSCO HAL_RCC <-- LL_RCC HAL_RCC --> Application : HAL_OK @enduml$

Called functions:
