HAL RNG Use Cases

rng_uc_user_application_starting_driver

@startuml hide footbox ' To add a number by line 'autonumber ' Fix order of each column skinparam ParticipantPadding 40 participant "User Application" as part1 participant "Driver RNG" as part2 participant "System" as part3 activate part1 group #9898fb Initializes the Flash interface and the Systick part1->part3 : HAL_Init() activate part3 part3 --> part1 deactivate part3 end group #lightsalmon Configure the system clock part1->part3 : SystemClock_Config() activate part3 part3 --> part1 deactivate part3 end group #lightblue Initialize RNG peripheral part1->part2 ++ : HAL_RNG_Init() note right: One instance available : \n- HAL_RNG \n enabled when USE_RNG_CLK_ENABLE_MODEL \n is set to HAL_CLK_ENABLE_PERIPH_ONLY part2 --> part1 part1->part2 : - RNG HW Initialization\n- NVIC configuration for RNG interrupts part2 --> part1 end @enduml

Called functions:

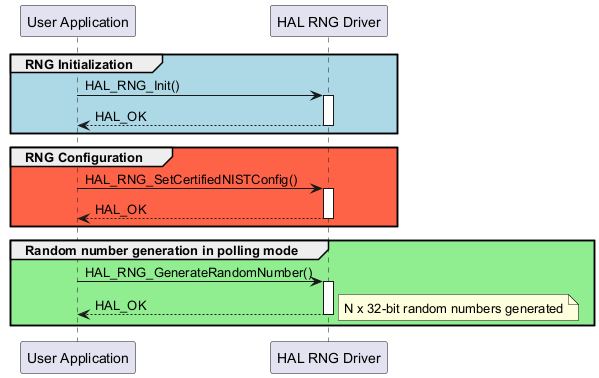

rng_uc_generate_nist_compliant_random_numbers_polling

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCertifiedNISTConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right : N x 32-bit random numbers generated deactivate "HAL RNG Driver" end @enduml

Called functions:

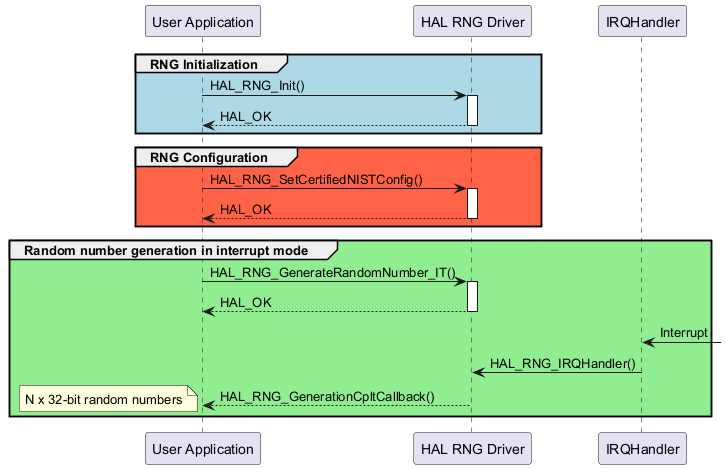

rng_uc_generate_nist_compliant_random_numbers_interrupt

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCertifiedNISTConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() note left: N x 32-bit random numbers end @enduml

Called functions:

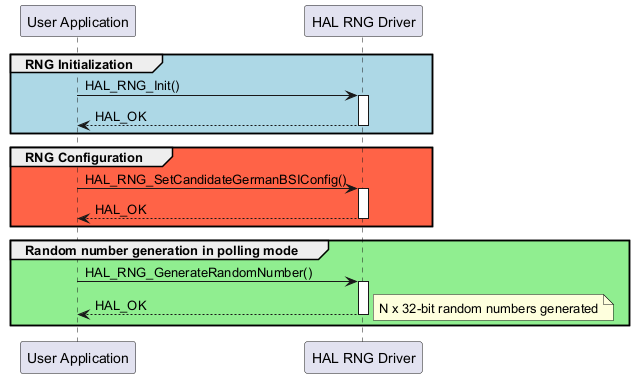

rng_uc_generate_germanbsi_candidate_random_numbers_polling

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCandidateGermanBSIConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right : N x 32-bit random numbers generated deactivate "HAL RNG Driver" end @enduml

Called functions:

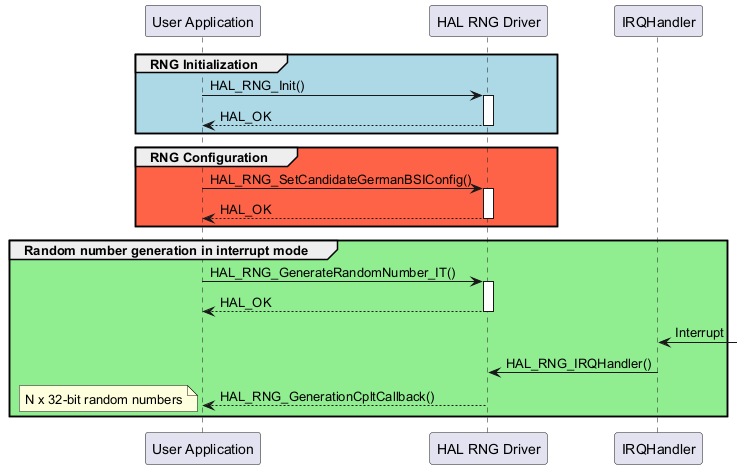

rng_uc_generate_germanbsi_candidate_random_numbers_interrupt

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetCandidateGermanBSIConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() note left: N x 32-bit random numbers end @enduml

Called functions:

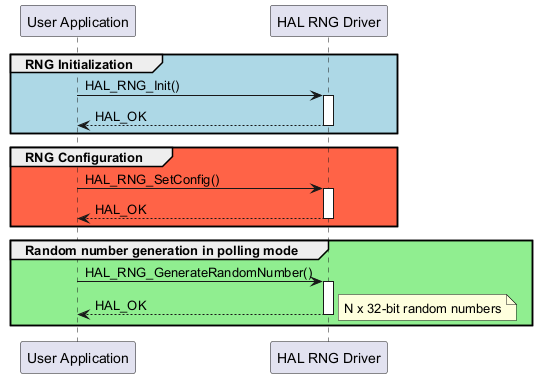

rng_uc_generate_random_numbers_customized_config_polling

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right: N x 32-bit random numbers deactivate "HAL RNG Driver" end @enduml

Called functions:

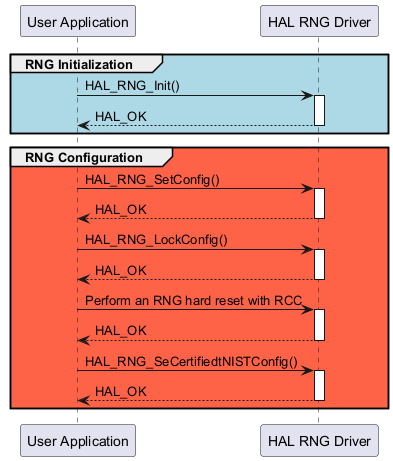

rng_uc_set_nist_configuration_after_lock

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "User Application"->"HAL RNG Driver" : HAL_RNG_LockConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "User Application"->"HAL RNG Driver" : Perform an RNG hard reset with RCC activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "User Application"->"HAL RNG Driver" : HAL_RNG_SeCertifiedtNISTConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end @enduml

Called functions:

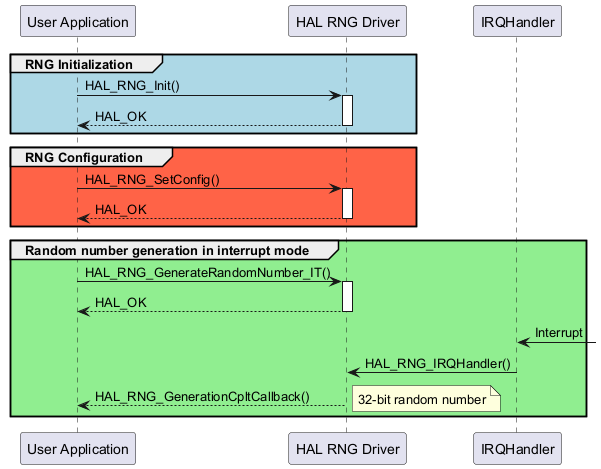

rng_uc_generate_random_numbers_customized_config_interrupt

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() note right : 32-bit random number end @enduml

Called functions:

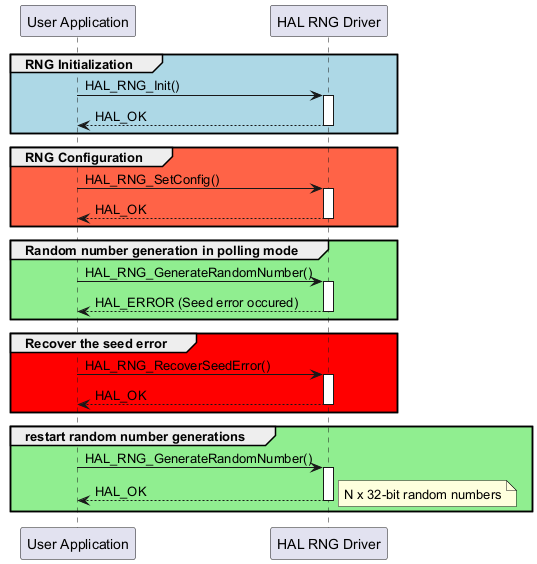

rng_uc_recover_seed_error_polling

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in polling mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_ERROR (Seed error occured) deactivate "HAL RNG Driver" end group #red Recover the seed error "User Application"->"HAL RNG Driver" : HAL_RNG_RecoverSeedError() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen restart random number generations "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK note right : N x 32-bit random numbers deactivate "HAL RNG Driver" end @enduml

Called functions:

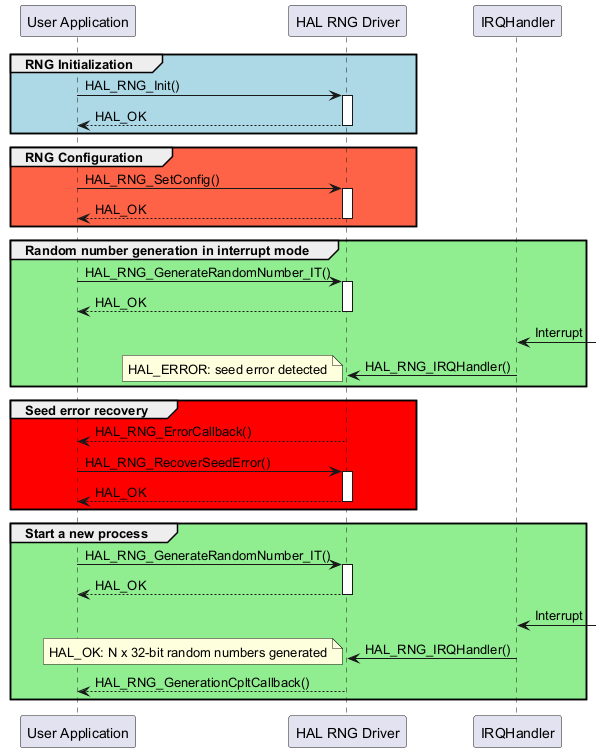

rng_uc_setting_additional_health_tests_interrupt

@startuml group #lightblue RNG Initialization "User Application"->"HAL RNG Driver" : HAL_RNG_Init() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #tomato RNG Configuration "User Application"->"HAL RNG Driver" : HAL_RNG_SetConfig() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Random number generation in interrupt mode "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"->"HAL RNG Driver": HAL_RNG_IRQHandler() note left : HAL_ERROR: seed error detected end group #red Seed error recovery "HAL RNG Driver" --> "User Application" : HAL_RNG_ErrorCallback() "User Application"->"HAL RNG Driver" : HAL_RNG_RecoverSeedError() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" end group #lightgreen Start a new process "User Application"->"HAL RNG Driver" : HAL_RNG_GenerateRandomNumber_IT() activate "HAL RNG Driver" "HAL RNG Driver"-->"User Application" : HAL_OK deactivate "HAL RNG Driver" "IRQHandler" <-: Interrupt "IRQHandler"-> "HAL RNG Driver" : HAL_RNG_IRQHandler() note left : HAL_OK: N x 32-bit random numbers generated "HAL RNG Driver" --> "User Application" : HAL_RNG_GenerationCpltCallback() end @enduml

Called functions:
