HAL SD Overview ¶
Introducing SD ¶
- group SD_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the SD module and its associated files.
Component diagram ¶

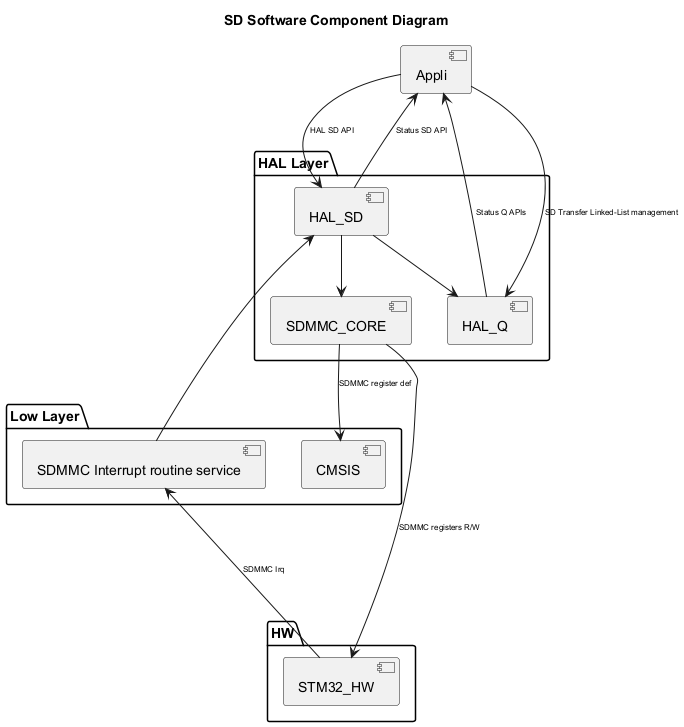

The following diagram illustrates the software components involved in the SD module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title SD Software Component Diagram
package "HAL Layer" {
[HAL_SD]
[HAL_Q]
[SDMMC_CORE]
}
package "Low Layer" {
[CMSIS]
[SDMMC Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] -d-> [HAL_SD] : HAL SD API
[Appli] <-- [HAL_SD] : Status SD API
[Appli] <-- [HAL_Q] : Status Q APIs
[Appli] --> [HAL_Q] : SD Transfer Linked-List management
[HAL_SD] --> [SDMMC_CORE]
[HAL_SD] --> [HAL_Q]
[SDMMC_CORE] -d-> [CMSIS]:SDMMC register def
[STM32_HW] <-u-- [SDMMC_CORE] : SDMMC registers R/W
[HAL_SD] <-- [SDMMC Interrupt routine service]
[STM32_HW] -u--> [SDMMC Interrupt routine service]: SDMMC Irq
@enduml](../../../../_images/plantuml-cc91d5939eba20dff8b7229f63ce6de58d4e526c.png)
Configuration table ¶
The following table lists the configuration defines for the HAL SD module, specifying their locations, default values, and descriptions:
- group SD_Configuration_Table
-
¶
Configuration inside the SD driver ¶
Config defines
Description
Default value
Note
USE_ASSERT_DBG_PARAM
from the IDE
NONE
Allows to use the assert checks parameters.
USE_ASSERT_DBG_STATE
from the IDE
NONE
Allows to use the assert checks states.
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows to use the run-time checks parameters.
USE_HAL_SD_AUTO_DETECTION_FREQUENCY
from hal_conf.h
0
Allows to Enable/Disable SD Custom Frequency.
USE_HAL_SD_REGISTER_CALLBACKS
from hal_conf.h
0
Allows to provide specific callback functions.
USE_HAL_SD_LINKEDLIST
from hal_conf.h
1
Allows to use the SD in linked-list mode.
USE_HAL_SD_GET_CID
from hal_conf.h
1
Allows to get card identification information.
USE_HAL_SD_GET_LAST_ERRORS
from hal_conf.h
1
Allows to get last errors codes.
USE_HAL_SD_USER_DATA
from hal_conf.h
0
Allows to Enable/Disable user data.
USE_HAL_SD_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows to enable the clock model for the SD.
USE_HAL_SD_GET_SPEC_VERSION
from hal_conf.h
1
Allows to get the SD Card version.
