HAL SDIO Overview ¶
Introducing SDIO ¶
- group SDIO_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the SDIO module and its associated files.
Component diagram ¶

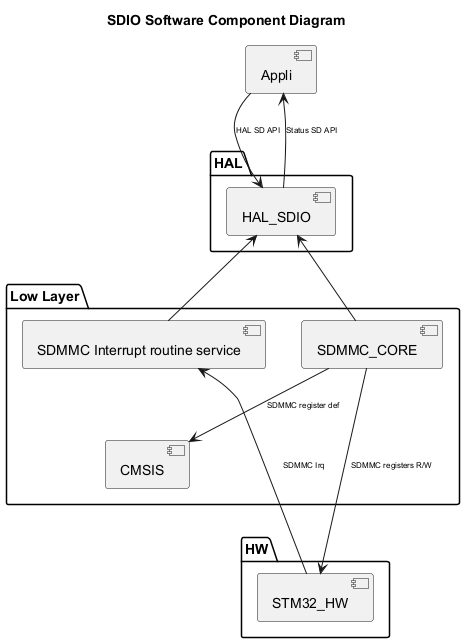

The following diagram illustrates the software components involved in the SDIO module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title SDIO Software Component Diagram
package "HAL" {
[HAL_SDIO]
}
package "Low Layer" {
[SDMMC_CORE]
[CMSIS]
[SDMMC Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_SDIO] : HAL SD API
[Appli] <-- [HAL_SDIO] : Status SD API
[HAL_SDIO] <-- [SDMMC_CORE]
[SDMMC_CORE] --> [CMSIS]:SDMMC register def
[STM32_HW] <-u-- [SDMMC_CORE] : SDMMC registers R/W
[HAL_SDIO] <-- [SDMMC Interrupt routine service]
[STM32_HW] -u--> [SDMMC Interrupt routine service]: SDMMC Irq
@enduml](../../../../_images/plantuml-01ac0fee7562a69bd8a8e6c9114d13dc8c968277.png)
Configuration table ¶
The following table lists the configuration defines for the HAL SDIO module, specifying their locations, default values, and descriptions:
- group SDIO_Configuration_Table
-
¶
Configuration inside the SDIO driver ¶
Config defines
Description
Default value
Note
USE_ASSERT_DBG_PARAM
from the IDE
NONE
Allows to use the assert checks parameters.
USE_ASSERT_DBG_STATE
from the IDE
NONE
Allows to use the assert checks states.
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows to use the run-time checks parameters.
USE_HAL_SDIO_REGISTER_CALLBACKS
from hal_conf.h
0
Allows to provide specific callback functions.
USE_HAL_SDIO_GET_LAST_ERRORS
from hal_conf.h
0
Allows to get last errors codes.
USE_HAL_SDIO_USER_DATA
from hal_conf.h
0
Allows to enable/disable user data.
USE_HAL_SDIO_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows to enable the clock model for the SDIO.
