HAL SMBUS Use Cases ¶

Prerequisite ¶

@startuml

==Prerequisite==

participant App as "User application"

participant "HAL GENERIC" as GENERIC

participant "HAL RCC" as RCC

App -> GENERIC : HAL_Init

GENERIC --> App

App -> RCC : Configure system clock

RCC --> App

@enduml

Full SMBUS Initialization Sequence ¶

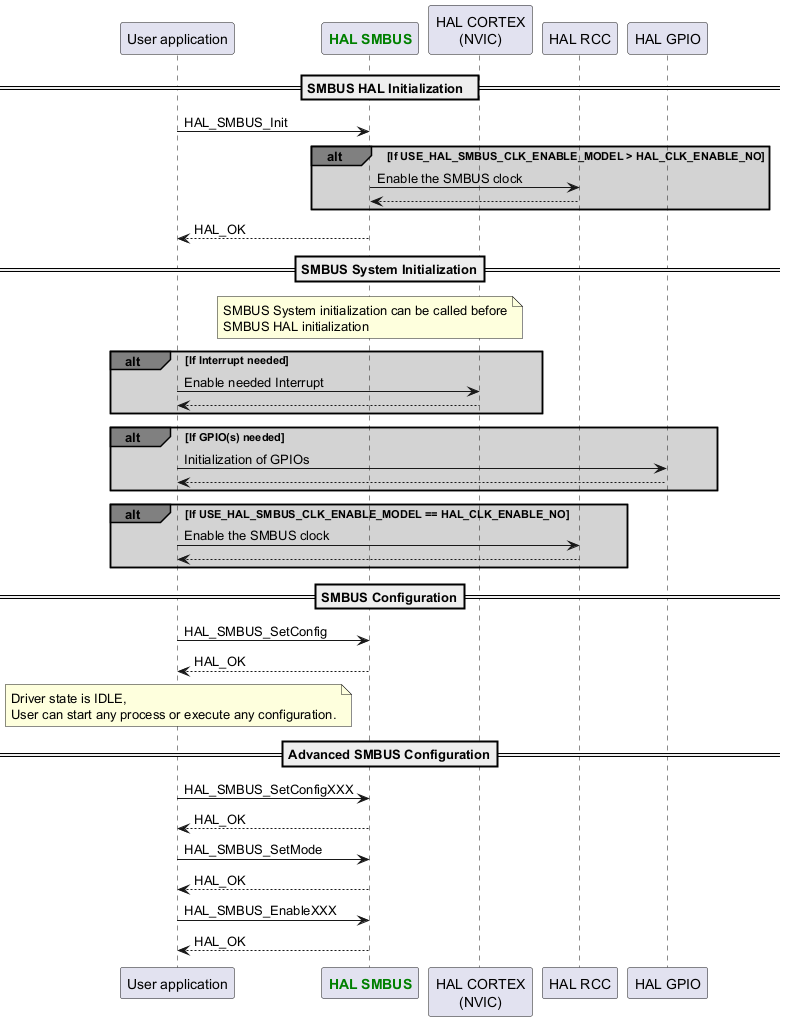

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS participant "HAL CORTEX\n(NVIC)" as CORTEX participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO ==SMBUS HAL Initialization == App -> SMBUS : HAL_SMBUS_Init alt#grey #lightgrey If USE_HAL_SMBUS_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO SMBUS->RCC : Enable the SMBUS clock RCC-->SMBUS end App <-- SMBUS : HAL_OK ==SMBUS System Initialization== Note over SMBUS : SMBUS System initialization can be called before\nSMBUS HAL initialization alt#grey #lightgrey If Interrupt needed App->CORTEX : Enable needed Interrupt CORTEX-->App end alt#grey #lightgrey If GPIO(s) needed App->GPIO : Initialization of GPIOs GPIO-->App end alt#grey #lightgrey If USE_HAL_SMBUS_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO App->RCC : Enable the SMBUS clock RCC --> App end ==SMBUS Configuration== App -> SMBUS : HAL_SMBUS_SetConfig App <-- SMBUS :HAL_OK note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. ==Advanced SMBUS Configuration== App -> SMBUS : HAL_SMBUS_SetConfigXXX App <-- SMBUS :HAL_OK App -> SMBUS : HAL_SMBUS_SetMode App <-- SMBUS :HAL_OK App -> SMBUS : HAL_SMBUS_EnableXXX App <-- SMBUS :HAL_OK @enduml$

Called functions:

Full SMBUS Deinitialization Sequence ¶

Called functions:

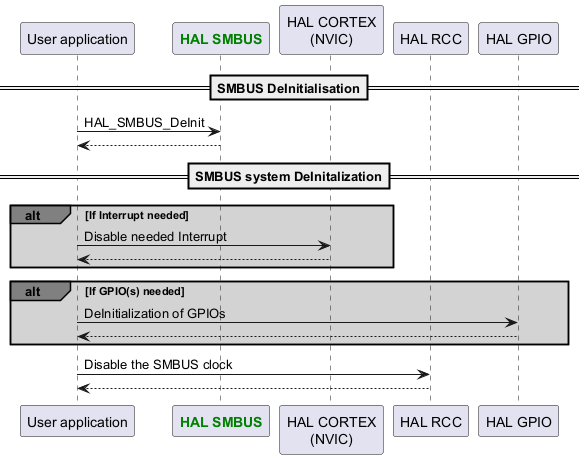

HAL_SMBUS_DeInit()

Process Polling ¶

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Master Transmit Polling== App -> SMBUS : HAL_SMBUS_MASTER_IsSlaveReady(...,uint32_t timeout_ms) alt successful case App <-- SMBUS : HAL_OK else invalid param App <-- SMBUS : HAL_INVALID_PARAM else busy App <-- SMBUS : HAL_BUSY note over App : Another Process is running...\nPlease wait and retry. else error case note over App : Process can timeout or run out of trials waiting Slave acknowledgement App <-- SMBUS : HAL_TIMEOUT App -> SMBUS : \ alt#grey #lightgrey If USE_HAL_SMBUS_GET_LAST_ERRORS == 1 App->SMBUS : HAL_SMBUS_GetLastErrors() App <-- SMBUS : \ (HAL_SMBUS_ERROR_XXX | HAL_SMBUS_ERROR_YYY) end end note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

HAL_SMBUS_MASTER_IsSlaveReady()
HAL_SMBUS_GetLastErrors()

Master Mode IT: First then Last Frame ¶

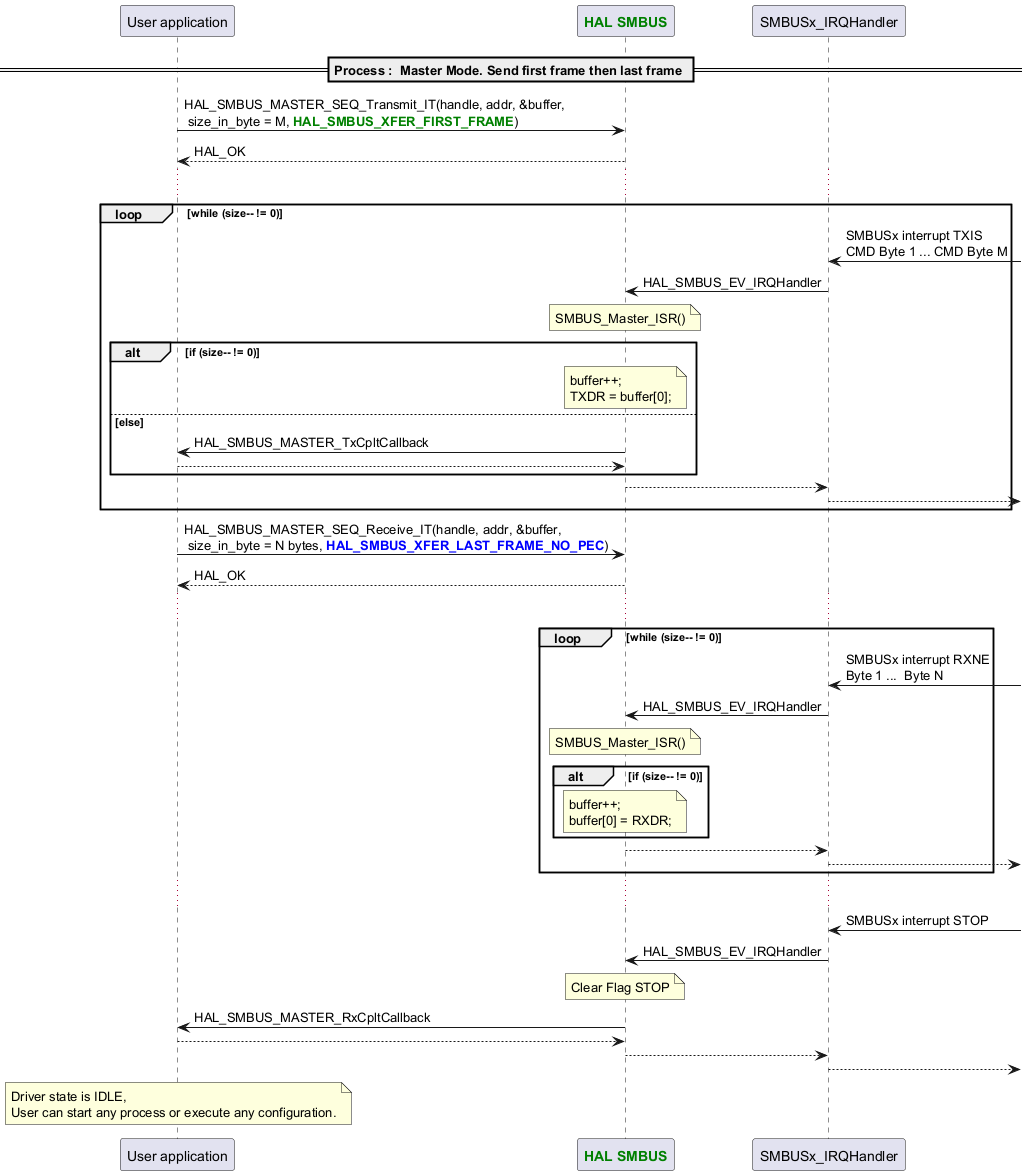

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Master Mode. Send first frame then last frame == App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_FRAME) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else else App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Receive_IT(handle, addr, &buffer,\n size_in_byte = N bytes, HAL_SMBUS_XFER_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt RXNE\nByte 1 ... Byte N SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nbuffer[0] = RXDR; end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end ... "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_RxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Master Mode IT: First and Last Frame ¶

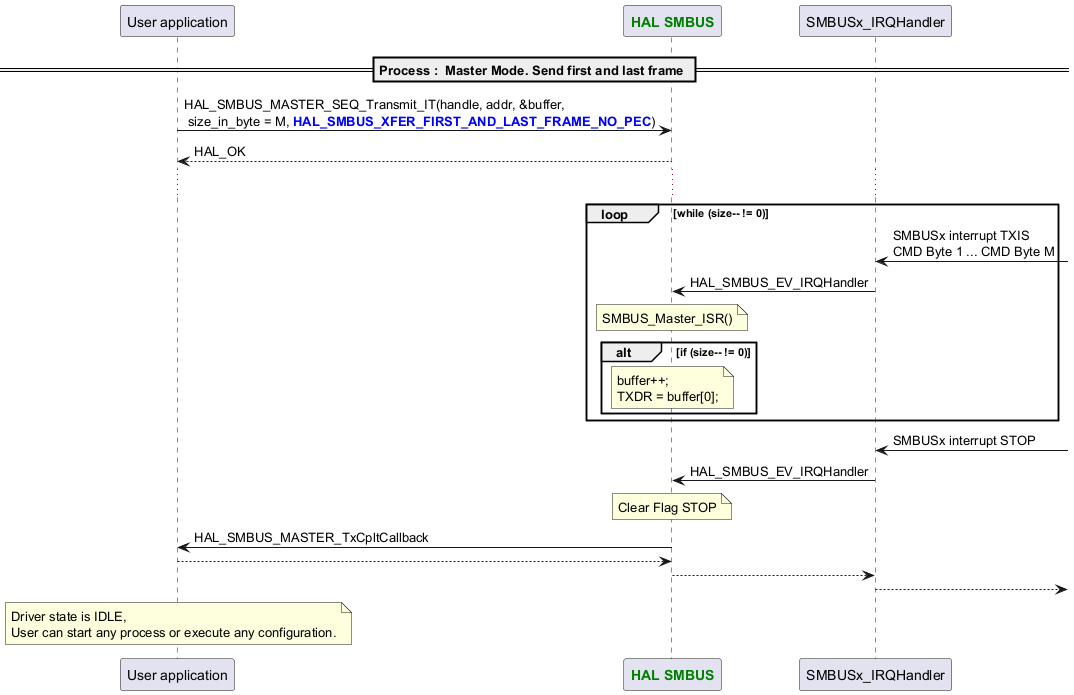

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Master Mode. Send first and last frame == App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_AND_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; end end "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Master Mode IT: First then Other and Last Frame ¶

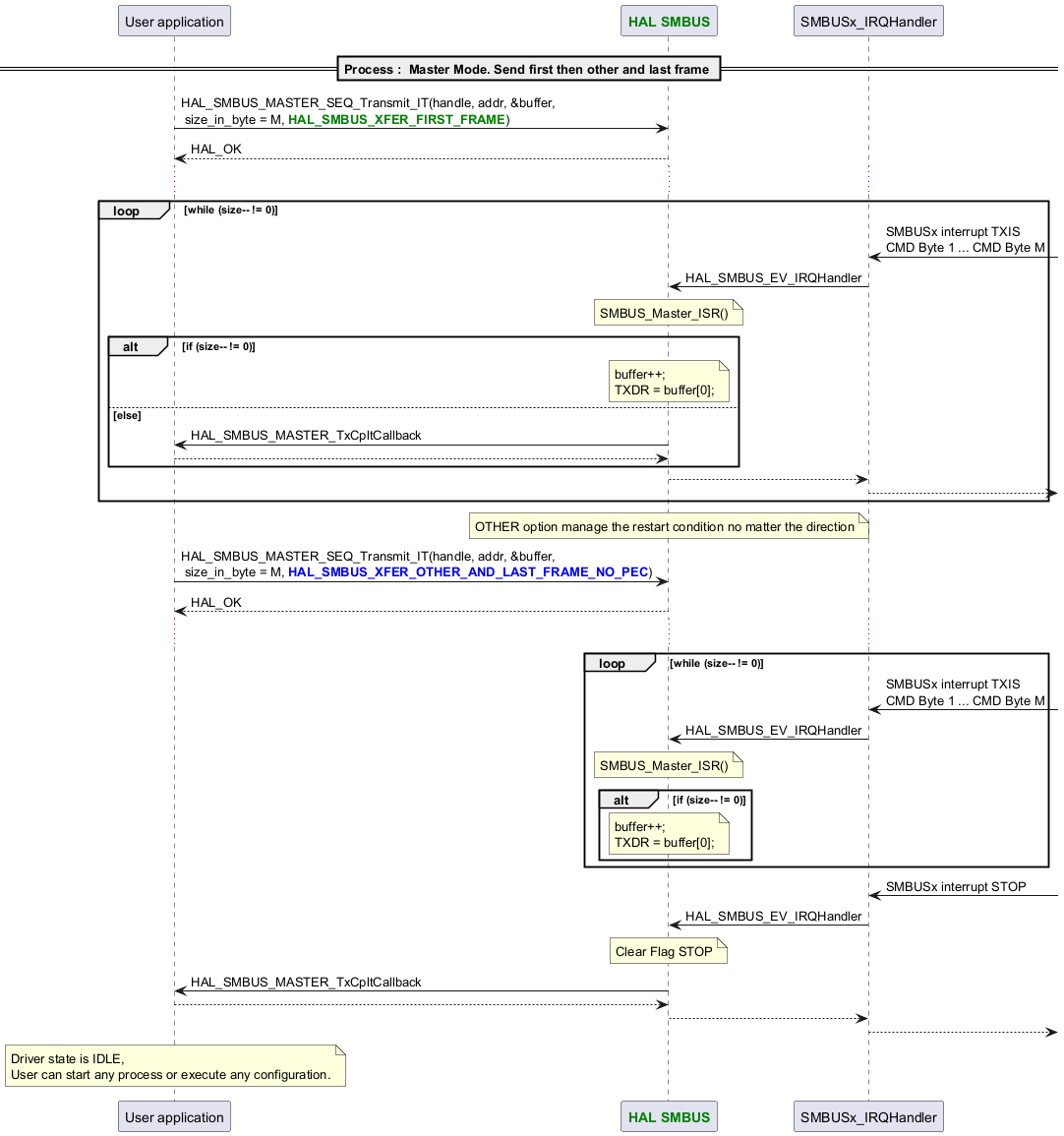

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Master Mode. Send first then other and last frame == App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_FRAME) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else else App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end note over SMBUS : OTHER option manage the restart condition no matter the direction App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_OTHER_AND_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; end end "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Master Mode IT: First, Next, Last Frame ¶

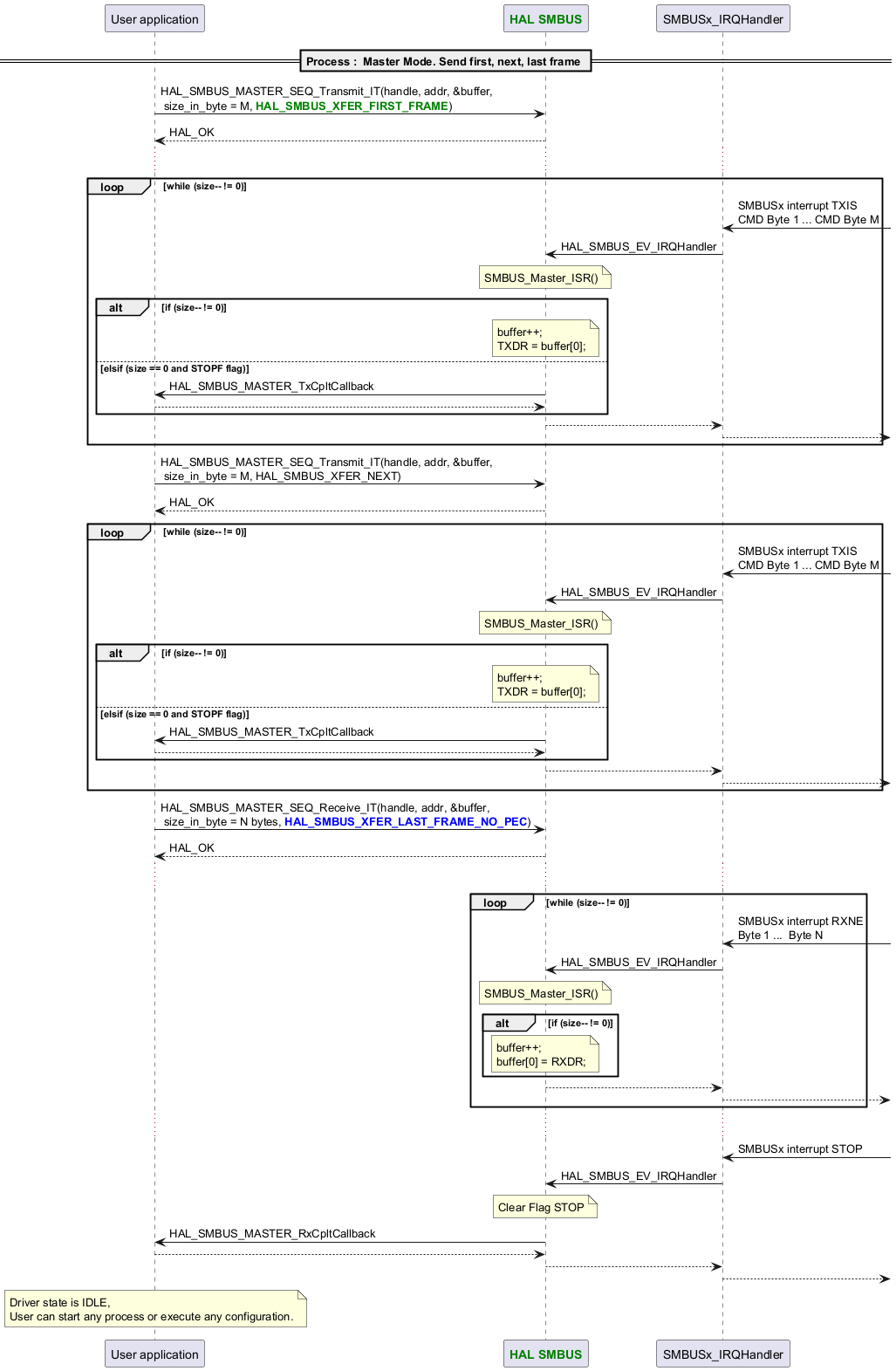

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Master Mode. Send first, next, last frame == App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_FRAME) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else elsif (size == 0 and STOPF flag) App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_NEXT) App <-- SMBUS : HAL_OK loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else elsif (size == 0 and STOPF flag) App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Receive_IT(handle, addr, &buffer,\n size_in_byte = N bytes, HAL_SMBUS_XFER_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt RXNE\nByte 1 ... Byte N SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nbuffer[0] = RXDR; end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end ... "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_RxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Master Mode IT: Send CMD M bytes + Receive N bytes ¶

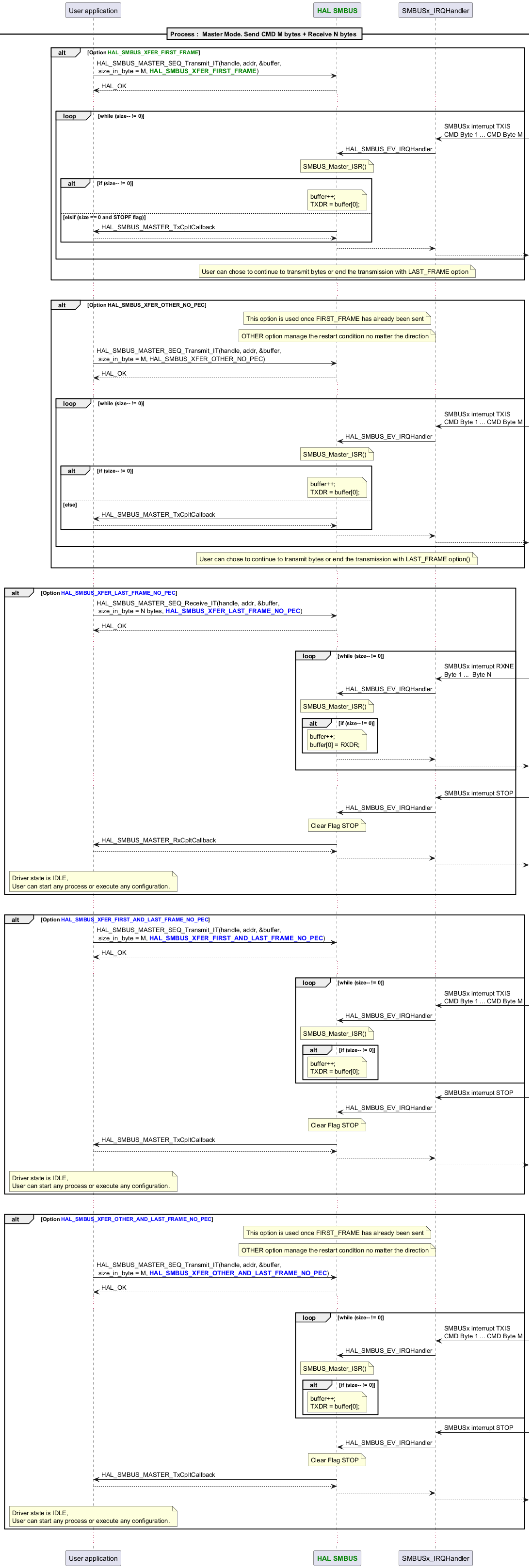

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Master Mode. Send CMD M bytes + Receive N bytes == alt Option HAL_SMBUS_XFER_FIRST_FRAME App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_FRAME) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else elsif (size == 0 and STOPF flag) App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end note over SMBUS : User can chose to continue to transmit bytes or end the transmission with LAST_FRAME option end ... alt Option HAL_SMBUS_XFER_OTHER_NO_PEC note over SMBUS : This option is used once FIRST_FRAME has already been sent note over SMBUS : OTHER option manage the restart condition no matter the direction App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_OTHER_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else else App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end note over SMBUS : User can chose to continue to transmit bytes or end the transmission with LAST_FRAME option() end ... alt Option HAL_SMBUS_XFER_LAST_FRAME_NO_PEC App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Receive_IT(handle, addr, &buffer,\n size_in_byte = N bytes, HAL_SMBUS_XFER_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt RXNE\nByte 1 ... Byte N SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nbuffer[0] = RXDR; end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end ... "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_RxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. end ... alt Option HAL_SMBUS_XFER_FIRST_AND_LAST_FRAME_NO_PEC App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_AND_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; end end "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. end ... alt Option HAL_SMBUS_XFER_OTHER_AND_LAST_FRAME_NO_PEC note over SMBUS : This option is used once FIRST_FRAME has already been sent note over SMBUS : OTHER option manage the restart condition no matter the direction App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_OTHER_AND_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS\nCMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Master_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; end end "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_MASTER_TxCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. end ... @enduml$

Called functions:

Slave Mode IT: Receive CMD M bytes + Send N bytes ¶

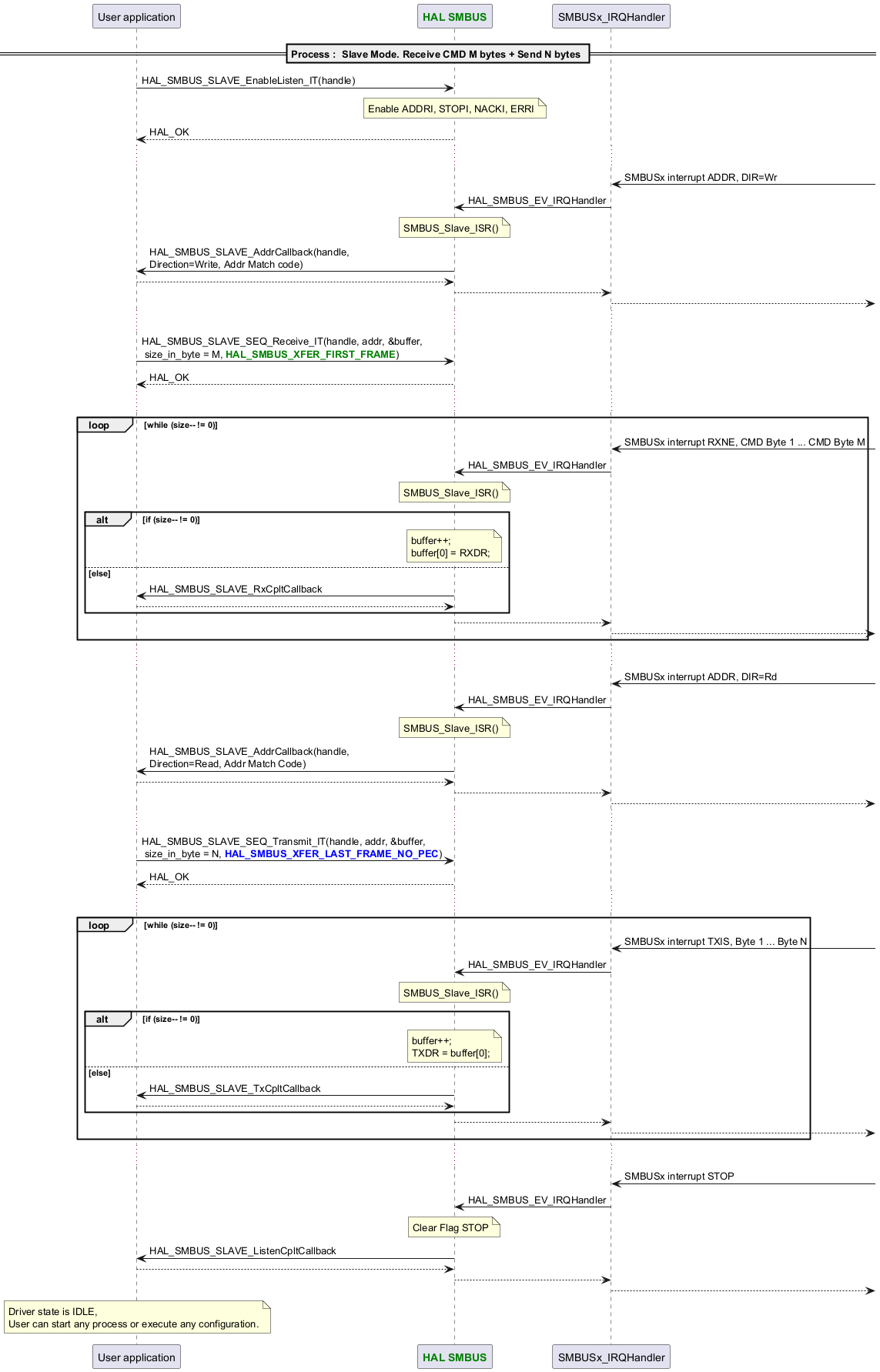

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process : Slave Mode. Receive CMD M bytes + Send N bytes == App -> SMBUS : HAL_SMBUS_SLAVE_EnableListen_IT(handle) note over SMBUS : Enable ADDRI, STOPI, NACKI, ERRI App <-- SMBUS : HAL_OK ... "SMBUSx_IRQHandler" <- : SMBUSx interrupt ADDR, DIR=Wr "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Slave_ISR() App <- SMBUS : HAL_SMBUS_SLAVE_AddrCallback(handle,\nDirection=Write, Addr Match code) App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> ... App -> SMBUS : HAL_SMBUS_SLAVE_SEQ_Receive_IT(handle, addr, &buffer,\n size_in_byte = M, HAL_SMBUS_XFER_FIRST_FRAME) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt RXNE, CMD Byte 1 ... CMD Byte M SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Slave_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nbuffer[0] = RXDR; else else App <- SMBUS : HAL_SMBUS_SLAVE_RxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end ... "SMBUSx_IRQHandler" <- : SMBUSx interrupt ADDR, DIR=Rd "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Slave_ISR() App <- SMBUS : HAL_SMBUS_SLAVE_AddrCallback(handle,\nDirection=Read, Addr Match Code) App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> ... App -> SMBUS : HAL_SMBUS_SLAVE_SEQ_Transmit_IT(handle, addr, &buffer,\n size_in_byte = N, HAL_SMBUS_XFER_LAST_FRAME_NO_PEC) App <-- SMBUS : HAL_OK ... loop while (size-- != 0) "SMBUSx_IRQHandler" <- : SMBUSx interrupt TXIS, Byte 1 ... Byte N SMBUS <- "SMBUSx_IRQHandler" : HAL_SMBUS_EV_IRQHandler note over SMBUS : SMBUS_Slave_ISR() alt if (size-- != 0) note over SMBUS : buffer++;\nTXDR = buffer[0]; else else App <- SMBUS : HAL_SMBUS_SLAVE_TxCpltCallback App --> SMBUS end SMBUS --> "SMBUSx_IRQHandler" "SMBUSx_IRQHandler" --> end ... "SMBUSx_IRQHandler" <- : SMBUSx interrupt STOP "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler note over SMBUS : Clear Flag STOP App <- SMBUS : HAL_SMBUS_SLAVE_ListenCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Process Master Abort IT ¶

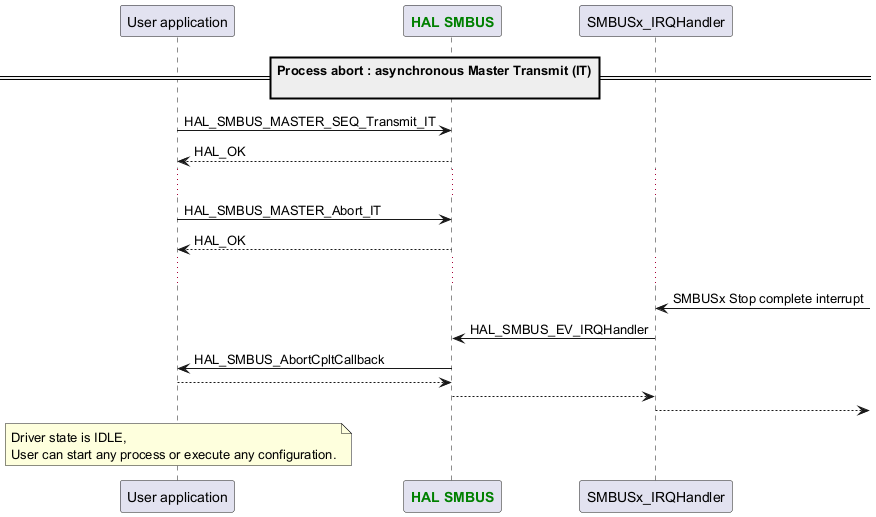

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process abort : asynchronous Master Transmit (IT)\n== App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT App <-- SMBUS : HAL_OK ... App -> SMBUS : HAL_SMBUS_MASTER_Abort_IT App <-- SMBUS : HAL_OK ... "SMBUSx_IRQHandler" <- : SMBUSx Stop complete interrupt "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler App <- SMBUS : HAL_SMBUS_AbortCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Process Slave Abort IT ¶

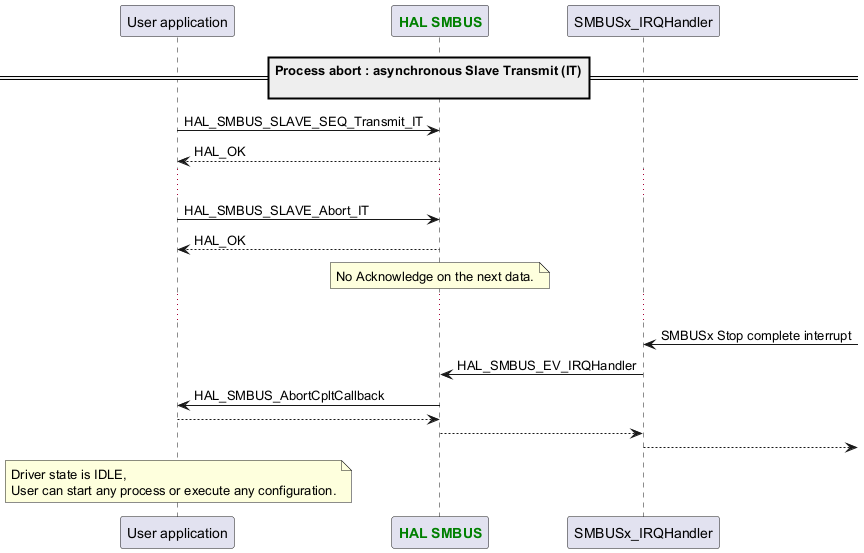

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process abort : asynchronous Slave Transmit (IT)\n== App -> SMBUS : HAL_SMBUS_SLAVE_SEQ_Transmit_IT App <-- SMBUS : HAL_OK ... App -> SMBUS : HAL_SMBUS_SLAVE_Abort_IT App <-- SMBUS : HAL_OK note over SMBUS : No Acknowledge on the next data. ... "SMBUSx_IRQHandler" <- : SMBUSx Stop complete interrupt "SMBUSx_IRQHandler" -> SMBUS : HAL_SMBUS_EV_IRQHandler App <- SMBUS : HAL_SMBUS_AbortCpltCallback App --> SMBUS "SMBUSx_IRQHandler" <-- SMBUS "SMBUSx_IRQHandler" --> note over App : Driver state is IDLE,\nUser can start any process or execute any configuration. @enduml$

Called functions:

Recoverable Blocking Error ¶

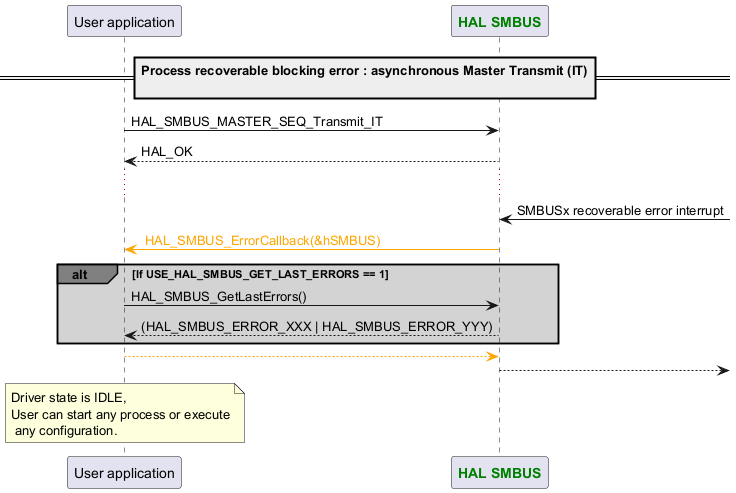

$@startuml participant App as "User application" participant "HAL SMBUS" as SMBUS ==Process recoverable blocking error : asynchronous Master Transmit (IT)\n == App -> SMBUS : HAL_SMBUS_MASTER_SEQ_Transmit_IT App <-- SMBUS : HAL_OK ... SMBUS <- : SMBUSx recoverable error interrupt App <-[#Orange] SMBUS :\ <color #Orange> HAL_SMBUS_ErrorCallback(&hSMBUS) </color> alt#grey #lightgrey If USE_HAL_SMBUS_GET_LAST_ERRORS == 1 App->SMBUS : HAL_SMBUS_GetLastErrors() App <-- SMBUS : \ (HAL_SMBUS_ERROR_XXX | HAL_SMBUS_ERROR_YYY) end App [#Orange]--> SMBUS SMBUS --> note over App : Driver state is IDLE,\nUser can start any process or execute\n any configuration. @enduml$

Called functions: - HAL_SMBUS_MASTER_SEQ_Transmit_IT() - HAL_SMBUS_ErrorCallback() - HAL_SMBUS_GetLastErrors()

Acquire/Release ¶

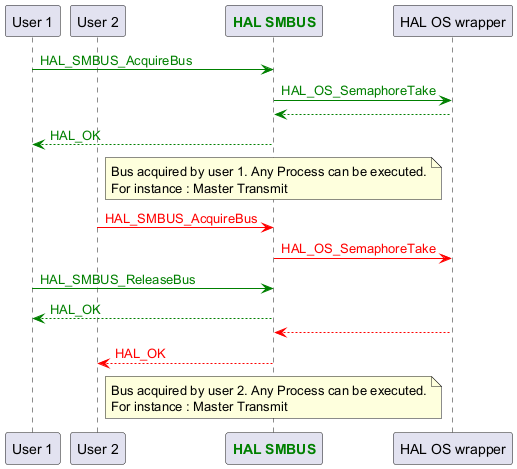

$@startuml participant "User 1" participant "User 2" participant "HAL SMBUS" as SMBUS participant "HAL OS wrapper" "User 1"-[#green]>SMBUS : <color #green>HAL_SMBUS_AcquireBus</color> SMBUS-[#green]>"HAL OS wrapper" :<color #green>HAL_OS_SemaphoreTake</color> SMBUS <-[#green]- "HAL OS wrapper" "User 1" <-[#green]- SMBUS : <color #green>HAL_OK</color> note over SMBUS : Bus acquired by user 1. Any Process can be executed.\nFor instance : Master Transmit "User 2"-[#red]>SMBUS : <color #red>HAL_SMBUS_AcquireBus</color> SMBUS-[#red]>"HAL OS wrapper" :<color #red>HAL_OS_SemaphoreTake</color> "User 1"-[#green]>SMBUS : <color #green>HAL_SMBUS_ReleaseBus</color> "User 1" <-[#green]- SMBUS : <color #green>HAL_OK</color> SMBUS <-[#red]- "HAL OS wrapper" "User 2" <-[#red]- SMBUS : <color #red>HAL_OK</color> note over SMBUS : Bus acquired by user 2. Any Process can be executed.\nFor instance : Master Transmit @enduml$

Called functions:
