HAL TIM Overview ¶
Introducing TIM ¶
- group TIM_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the TIM module and its associated files.
Component diagram ¶

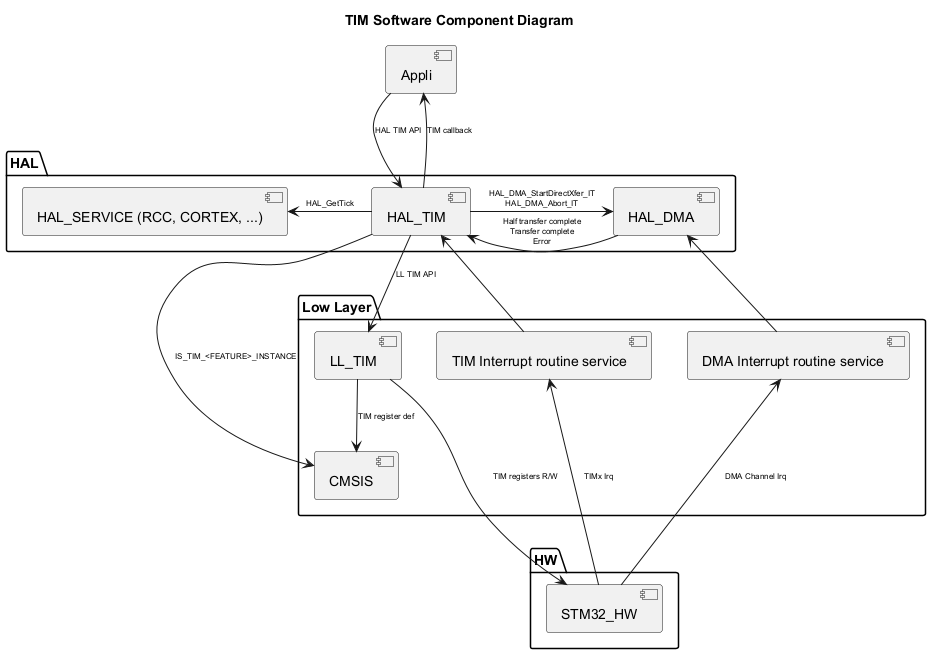

The following diagram illustrates the software components involved in the TIM module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title TIM Software Component Diagram
package "HAL" {
[HAL_SERVICE (RCC, CORTEX, ...)]
[HAL_TIM]
[HAL_DMA]
}
package "Low Layer" {
[LL_TIM]
[CMSIS]
[TIM Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_TIM] : HAL TIM API
[Appli] <-- [HAL_TIM] : TIM callback
[HAL_TIM] --> [LL_TIM] : LL TIM API
[HAL_TIM] -l-> [CMSIS] : IS_TIM_<FEATURE>_INSTANCE
[HAL_TIM] -r-> [HAL_DMA] : HAL_DMA_StartDirectXfer_IT\nHAL_DMA_Abort_IT
[HAL_TIM] -l-> [HAL_SERVICE (RCC, CORTEX, ...)] : HAL_GetTick
[HAL_TIM] <-- [TIM Interrupt routine service]
[HAL_TIM] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError
[LL_TIM] --> [CMSIS]:TIM register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [TIM Interrupt routine service]: TIMx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-- [LL_TIM] : TIM registers R/W
@enduml](../../../../_images/plantuml-de808ff909e2817604b57cfb066334770d0a2043.png)
Configuration table ¶
The following table lists the configuration defines for the HAL TIM module, specifying their locations, default values, and descriptions:
- group TIM_Configuration_Table
-
Configuration inside the TIM driver ¶
Config defines
Where
Default value
Note
USE_HAL_TIM_MODULE
hal_conf.h
1
HAL TIM module is enabled
USE_HAL_TIM_DMA
hal_conf.h
1
Enable the DMA code inside TIM
USE_HAL_TIM_REGISTER_CALLBACKS
hal_conf.h
0
Enable register callback feature
USE_HAL_TIM_CLK_ENABLE_MODEL
hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the peripheral clock
USE_HAL_CHECK_PARAM
hal_conf.h
0
Enable run time parameter check
USE_HAL_CHECK_PROCESS_STATE
hal_conf.h
0
Enable atomic access to process state check
USE_ASSERT_DBG_PARAM
PreProcessor env
NA
Enable the params assert
USE_ASSERT_DBG_STATE
PreProcessor env
NA
Enable the state assert
USE_HAL_TIM_GET_LAST_ERRORS
hal_conf.h
0
Enable retrieving the error codes
USE_HAL_TIM_USER_DATA
hal_conf.h
0
Add pointer for user data in HAL TIM handle
