Overview

Purpose

The EEPROM Emulation module provides an abstraction layer to emulate EEPROM functionality on STM32 Flash memory. It lets applications store and retrieve data persistently without requiring dedicated EEPROM hardware.

Key Features

The main features of EEPROM Emulation are:

  • Configurable emulation capacity: Number of variables and write cycles.

  • Algorithm selection: FLITF or NVM aligned with device constraints and performance.

  • Power-failure recovery: Restores a consistent state after reset, even if power is lost during a write.

  • Data integrity options: CRC for corruption detection and BCH-based ECC for bit error correction.

  • Pluggable interfaces: Ready-to-use and template drivers for Flash, CRC, and ECC.

  • Typed variable access: Persistent variables with fixed sizes (for example 8-bit, 16-bit, 32-bit).

  • Maintenance modes: Cleanup and wear-leveling can run in polling or interrupt-driven workflows.

Architecture

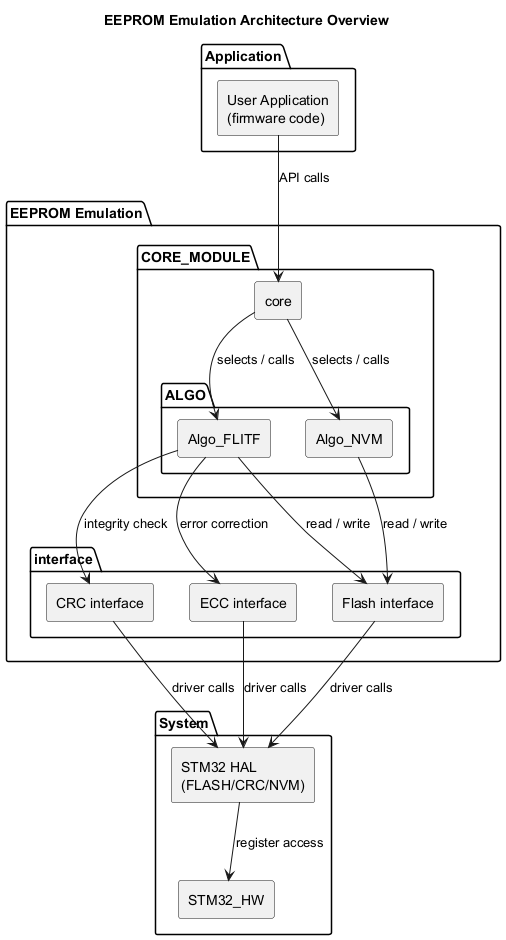

The following diagram illustrates the software components of the EEPROM Emulation utility and their interactions across the application, core, algorithms (FLITF/NVM), interfaces (Flash/CRC/ECC), STM32 HAL libraries, and hardware.

@startuml skinparam componentStyle rectangle title EEPROM Emulation Architecture Overview ' ========================= ' Application ' ========================= package "Application" { component APP as "User Application\n(firmware code)" } ' ========================= ' EEPROM Emulation ' ========================= package "EEPROM Emulation" { ' ------------------------- ' CORE MODULE ' ------------------------- package "CORE_MODULE" { component CORE as "core" package "ALGO" { component ALGO_FLITF as "Algo_FLITF" component ALGO_NVM as "Algo_NVM" } CORE --> ALGO_FLITF : selects / calls CORE --> ALGO_NVM : selects / calls } ' ------------------------- ' INTERFACES (Flash / CRC / ECC only) ' ------------------------- package "interface" { component ITF_FLASH as "Flash interface" component ITF_CRC as "CRC interface" component ITF_ECC as "ECC interface" } ' Liaisons ALGO -> interface ALGO_FLITF --> ITF_FLASH : read / write ALGO_NVM --> ITF_FLASH : read / write ALGO_FLITF --> ITF_CRC : integrity check ALGO_FLITF --> ITF_ECC : error correction } ' ========================= ' System (HAL + HW) ' ========================= package "System" { component HAL as "STM32 HAL\n(FLASH/CRC/NVM)" component HW as "STM32_HW" HAL --> HW : register access } ' ========================= ' Connections ' ========================= APP --> CORE : API calls ITF_FLASH --> HAL : driver calls ITF_CRC --> HAL : driver calls ITF_ECC --> HAL : driver calls @enduml

Component Structure

Core ( eeprom_emul_core.c / eeprom_emul_core.h): Provides the main APIs for initialization, variable read/write, and maintenance. It manages the overall state and coordinates interactions between algorithms and interfaces.

Algorithms ( eeprom_algo_flitf.c / eeprom_algo_nvm.c): Implement the EEPROM Emulation algorithms, handling initialization, data read/write, and memory cleanup according to the selected method (FLITF or NVM).

User configuration ( eeprom_emul_conf.h): Defines the main parameters for EEPROM Emulation, including Flash layout, number and size of variables, endurance options (number of write cycles), and enabled features (algorithms, CRC, ECC, maintenance mode).

Interfaces : Provide both ready-to-use implementations and customizable templates for Flash access, CRC calculation, and ECC encoding/decoding. The appropriate implementation can be selected or adapted to the target hardware and application needs.

Modules and Files

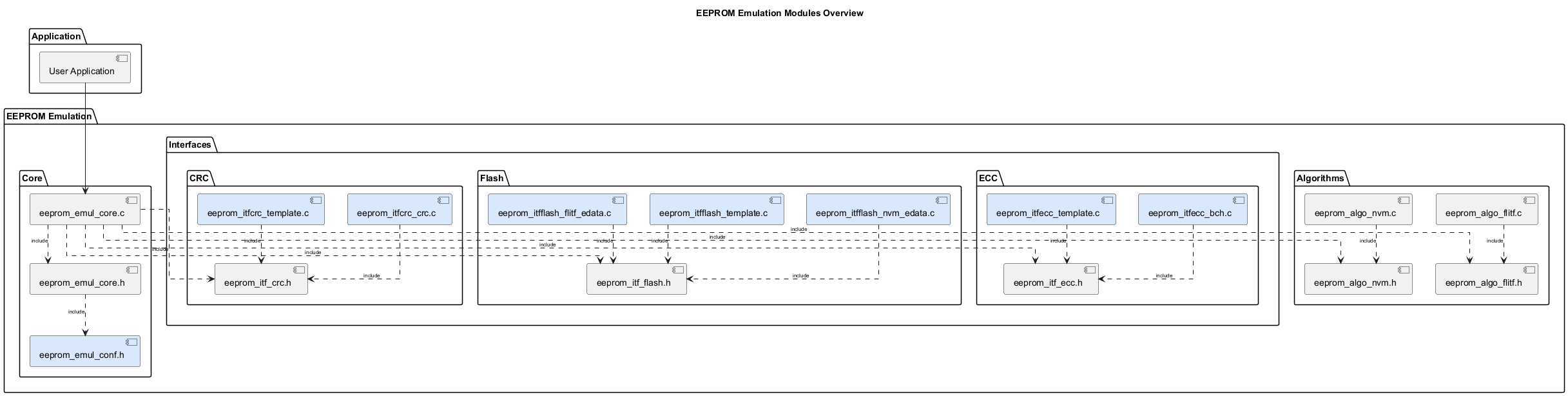

The following diagram illustrates the EEPROM Emulation module and its associated files.

@startuml top to bottom direction skinparam linetype ortho <style> componentDiagram { arrow { FontSize 8 } } </style> title EEPROM Emulation Modules Overview package "Application" { component APP as "User Application" } package "EEPROM Emulation" { package "Interfaces" as ITF_P { together { package "Flash" { component ITF_FLASH_H as "eeprom_itf_flash.h" component ITF_FLITF_EDATA as "eeprom_itfflash_flitf_edata.c" #DAE8FC component ITF_NVM_EDATA as "eeprom_itfflash_nvm_edata.c" #DAE8FC component ITF_FLASH_TPL as "eeprom_itfflash_template.c" #DAE8FC } package "CRC" { component ITF_CRC_H as "eeprom_itf_crc.h" component ITF_CRC as "eeprom_itfcrc_crc.c" #DAE8FC component ITF_CRC_TPL as "eeprom_itfcrc_template.c" #DAE8FC } package "ECC" { component ITF_ECC_H as "eeprom_itf_ecc.h" component ITF_ECC as "eeprom_itfecc_bch.c" #DAE8FC component ITF_ECC_TPL as "eeprom_itfecc_template.c" #DAE8FC } } } package "Algorithms" as ALGO_P { component ALGO_FLITF_C as "eeprom_algo_flitf.c" component ALGO_FLITF_H as "eeprom_algo_flitf.h" component ALGO_NVM_C as "eeprom_algo_nvm.c" component ALGO_NVM_H as "eeprom_algo_nvm.h" } package "Core" as CORE_P { component CORE_C as "eeprom_emul_core.c" component CORE_H as "eeprom_emul_core.h" component CORE_CONF as "eeprom_emul_conf.h" #DAE8FC } } APP --> CORE_C CORE_C ..> CORE_H : include CORE_H ..> CORE_CONF : include ALGO_FLITF_C ..> ALGO_FLITF_H : include ALGO_NVM_C ..> ALGO_NVM_H : include ITF_FLITF_EDATA ..> ITF_FLASH_H : include ITF_NVM_EDATA ..> ITF_FLASH_H : include ITF_FLASH_TPL ..> ITF_FLASH_H : include ITF_CRC ..> ITF_CRC_H : include ITF_CRC_TPL ..> ITF_CRC_H : include ITF_ECC ..> ITF_ECC_H : include ITF_ECC_TPL ..> ITF_ECC_H : include CORE_C ..> ALGO_FLITF_H : include CORE_C ..> ALGO_NVM_H : include CORE_C ..> ITF_FLASH_H : include CORE_C ..> ITF_CRC_H : include CORE_C ..> ITF_ECC_H : include @enduml
