HAL DCMI Overview ¶
Introducing DCMI ¶
- group DCMI_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the DCMI module and its associated files.

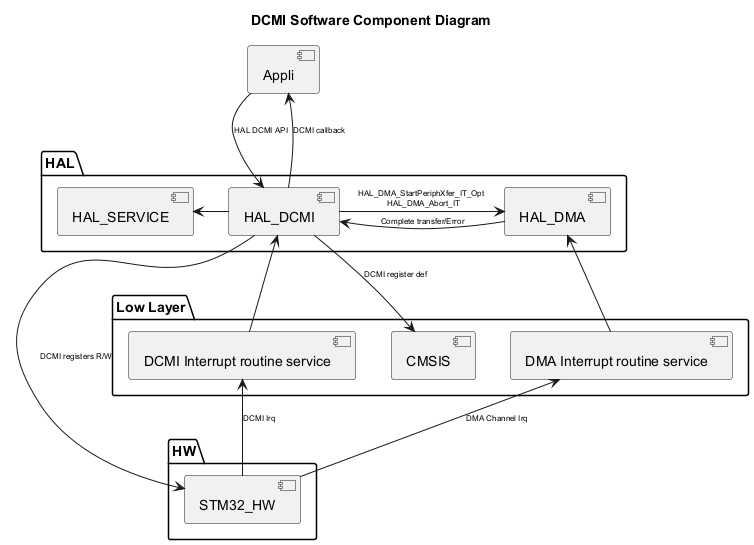

Component diagram ¶
The following diagram illustrates the software components involved in the DCMI module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title DCMI Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_DCMI]
[HAL_DMA]
}
package "Low Layer" {
[CMSIS]
[DCMI Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_DCMI] : HAL DCMI API
[Appli] <-- [HAL_DCMI] : DCMI callback
[HAL_DCMI] <-r- [HAL_DMA]:Complete transfer/Error
[HAL_DCMI] -r-> [HAL_DMA] : HAL_DMA_StartPeriphXfer_IT_Opt \n HAL_DMA_Abort_IT
[HAL_DCMI] -l-> [HAL_SERVICE]
[HAL_DCMI] <-- [DCMI Interrupt routine service]
[HAL_DCMI] -d-> [CMSIS]:DCMI register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u-> [DCMI Interrupt routine service] : DCMI Irq
[STM32_HW] -u-> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-l- [HAL_DCMI] : DCMI registers R/W
@enduml](../../../../_images/plantuml-9c513611229f214dbdc1b39527b25031c848f13f.png)
Configuration table ¶
The following table lists the configuration defines for the HAL DCMI module, specifying their locations, default values, and descriptions:
- group DCMI_Configuration_Table
-
¶
Configuration inside the DCMI driver ¶
Config defines
Description
Default value
Note
PRODUCT
from PreProcessor env
NA
The selected device (ex STM32XXXXxx)
USE_ASSERT_DBG_PARAM
from PreProcessor env
None
Allows to use the assert check parameters.
USE_ASSERT_DBG_STATE
from PreProcessor env
None
Allows to use the assert check states.
USE_HAL_DCMI_MODULE
from hal_conf.h
1
Allows to use HAL DCMI module.
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows to use the run-time checks parameters.
USE_HAL_DCMI_REGISTER_CALLBACKS
from hal_conf.h
0
Allows to use the load and store exclusive.
USE_HAL_DCMI_GET_LAST_ERRORS
from hal_conf.h
0
Allows to use error code mechanism.
USE_HAL_DCMI_USER_DATA
from hal_conf.h
0
Allows to use user data inside DCMI.
USE_HAL_DCMI_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows to use the clock interface management for DCMI.
