HAL DCMI Use Cases

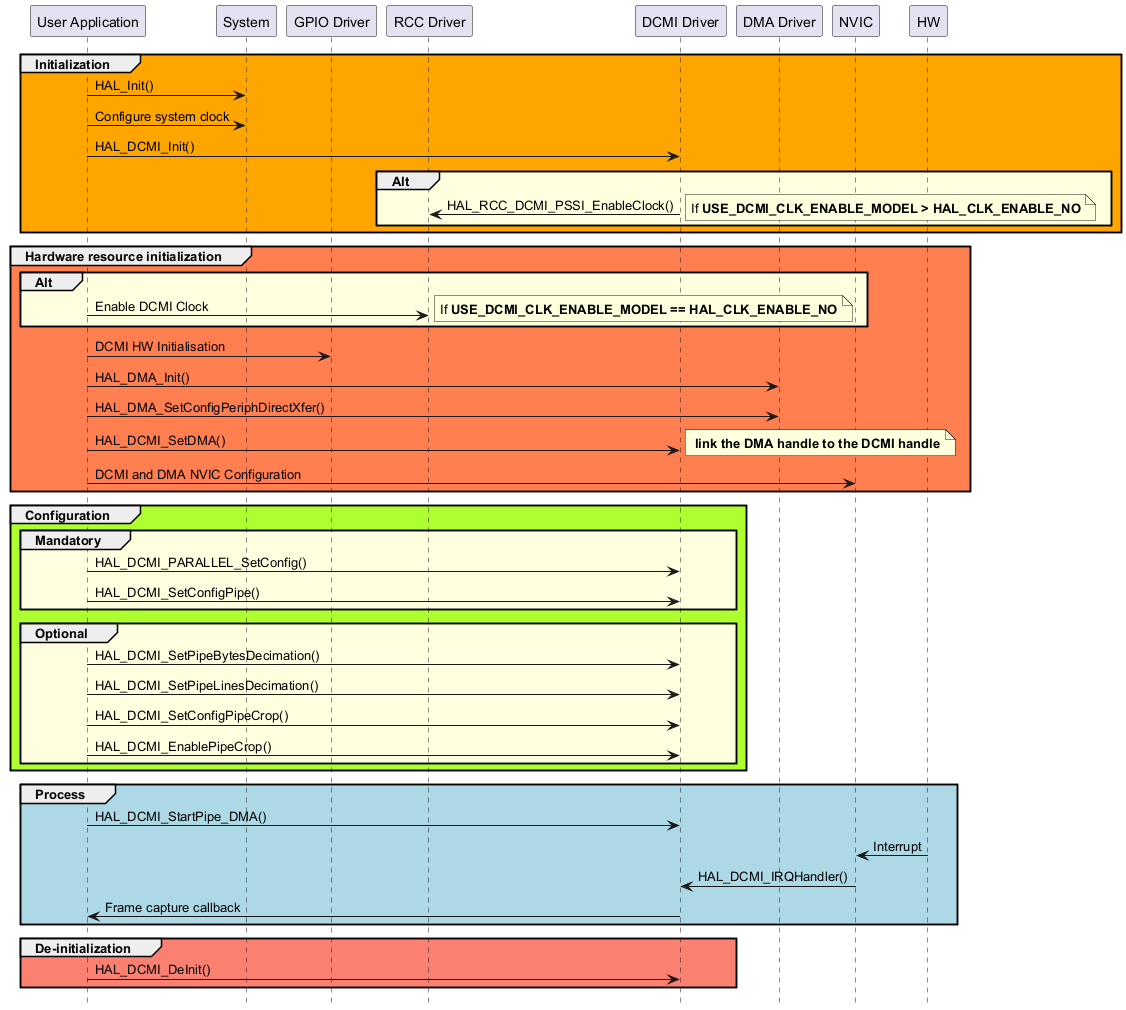

DCMI Snapshot Mode and Buffer size < 0xFFFF

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "GPIO Driver" as part3 participant "RCC Driver" as part4 participant "DCMI Driver" as part5 participant "DMA Driver" as part6 participant "NVIC" as part7 participant "HW" as part8 group #orange Initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part5 : HAL_DCMI_Init() group #LightYellow Alt part5->part4 : HAL_RCC_DCMI_PSSI_EnableClock() note right: If <b>USE_DCMI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end end group #coral Hardware resource initialization group #LightYellow Alt part1->part4 : Enable DCMI Clock note right: If <b>USE_DCMI_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO end part1->part3 : DCMI HW Initialisation part1->part6 : HAL_DMA_Init() part1->part6 : HAL_DMA_SetConfigPeriphDirectXfer() part1->part5 : HAL_DCMI_SetDMA() note right: <b> link the DMA handle to the DCMI handle part1->part7 : DCMI and DMA NVIC Configuration end group #greenyellow Configuration group #LightYellow Mandatory part1->part5 : HAL_DCMI_PARALLEL_SetConfig() part1->part5 : HAL_DCMI_SetConfigPipe() end group #LightYellow Optional part1->part5 : HAL_DCMI_SetPipeBytesDecimation() part1->part5 : HAL_DCMI_SetPipeLinesDecimation() part1->part5 : HAL_DCMI_SetConfigPipeCrop() part1->part5 : HAL_DCMI_EnablePipeCrop() end end group #lightblue Process part1->part5 : HAL_DCMI_StartPipe_DMA() part8->part7 : Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part1 : Frame capture callback end group #salmon De-initialization part1->part5 : HAL_DCMI_DeInit() end @enduml

Called functions:

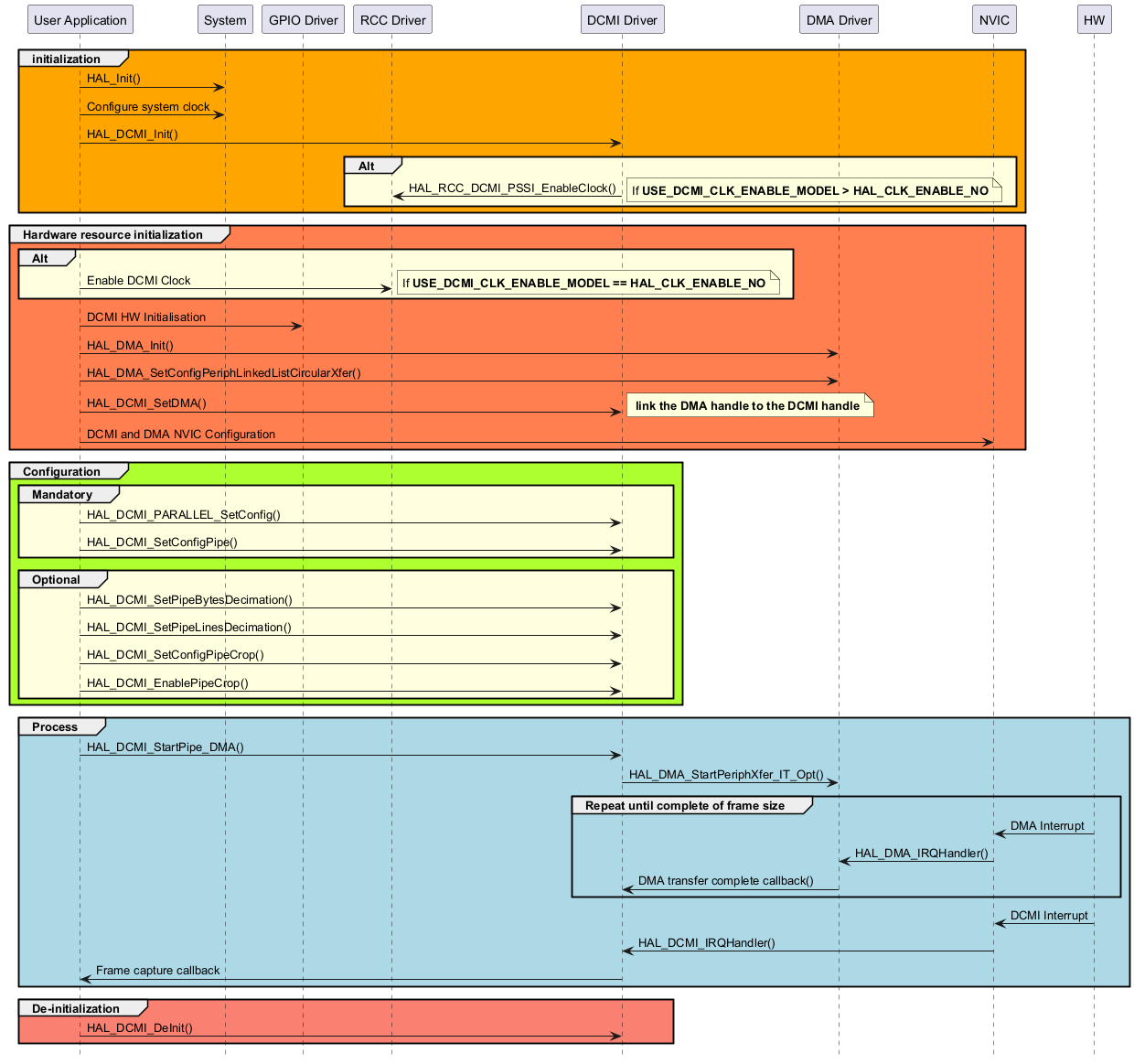

DCMI Snapshot Mode and Buffer size > 0xFFFF

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "GPIO Driver" as part3 participant "RCC Driver" as part4 participant "DCMI Driver" as part5 participant "DMA Driver" as part6 participant "NVIC" as part7 participant "HW" as part8 group #orange initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part5 : HAL_DCMI_Init() group #LightYellow Alt part5->part4 : HAL_RCC_DCMI_PSSI_EnableClock() note right: If <b>USE_DCMI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end end group #coral Hardware resource initialization group #LightYellow Alt part1->part4 : Enable DCMI Clock note right: If <b>USE_DCMI_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO end part1->part3 : DCMI HW Initialisation part1->part6 : HAL_DMA_Init() part1->part6 : HAL_DMA_SetConfigPeriphLinkedListCircularXfer() part1->part5 : HAL_DCMI_SetDMA() note right: <b> link the DMA handle to the DCMI handle part1->part7 : DCMI and DMA NVIC Configuration end group #greenyellow Configuration group #LightYellow Mandatory part1->part5 : HAL_DCMI_PARALLEL_SetConfig() part1->part5 : HAL_DCMI_SetConfigPipe() end group #LightYellow Optional part1->part5 : HAL_DCMI_SetPipeBytesDecimation() part1->part5 : HAL_DCMI_SetPipeLinesDecimation() part1->part5 : HAL_DCMI_SetConfigPipeCrop() part1->part5 : HAL_DCMI_EnablePipeCrop() end end group #lightblue Process part1->part5 : HAL_DCMI_StartPipe_DMA() part5->part6 : HAL_DMA_StartPeriphXfer_IT_Opt() group #lightblue Repeat until complete of frame size part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA transfer complete callback() end part8->part7 : DCMI Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part1 : Frame capture callback end group #salmon De-initialization part1->part5 : HAL_DCMI_DeInit() end @enduml

Called functions:

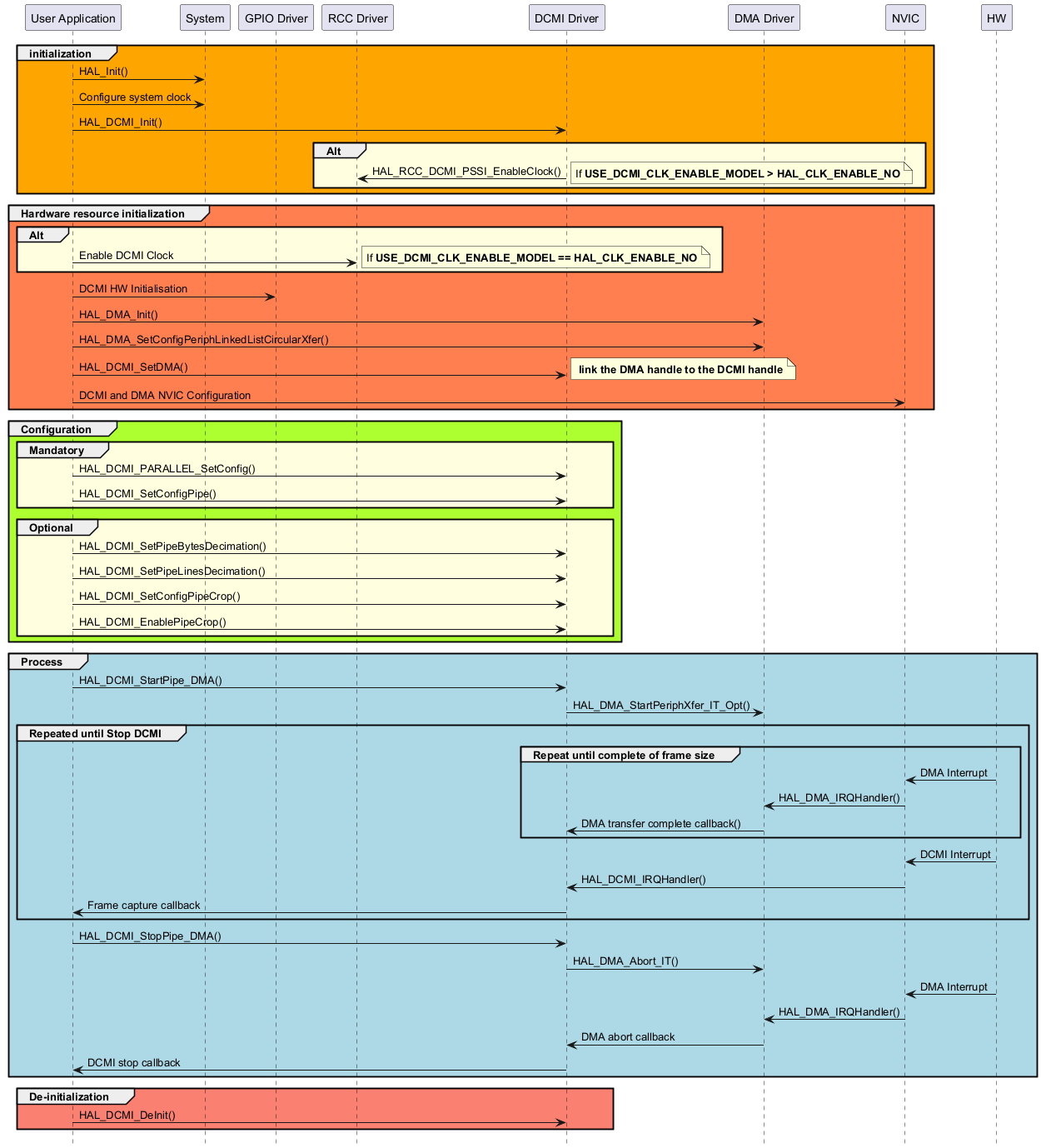

DCMI Continuous Mode Process

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "GPIO Driver" as part3 participant "RCC Driver" as part4 participant "DCMI Driver" as part5 participant "DMA Driver" as part6 participant "NVIC" as part7 participant "HW" as part8 group #orange initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part5 : HAL_DCMI_Init() group #LightYellow Alt part5->part4 : HAL_RCC_DCMI_PSSI_EnableClock() note right: If <b>USE_DCMI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end end group #coral Hardware resource initialization group #LightYellow Alt part1->part4 : Enable DCMI Clock note right: If <b>USE_DCMI_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO end part1->part3 : DCMI HW Initialisation part1->part6 : HAL_DMA_Init() part1->part6 : HAL_DMA_SetConfigPeriphLinkedListCircularXfer() part1->part5 : HAL_DCMI_SetDMA() note right: <b> link the DMA handle to the DCMI handle part1->part7 : DCMI and DMA NVIC Configuration end group #greenyellow Configuration group #LightYellow Mandatory part1->part5 : HAL_DCMI_PARALLEL_SetConfig() part1->part5 : HAL_DCMI_SetConfigPipe() end group #LightYellow Optional part1->part5 : HAL_DCMI_SetPipeBytesDecimation() part1->part5 : HAL_DCMI_SetPipeLinesDecimation() part1->part5 : HAL_DCMI_SetConfigPipeCrop() part1->part5 : HAL_DCMI_EnablePipeCrop() end end group #lightblue Process part1->part5 : HAL_DCMI_StartPipe_DMA() part5->part6 : HAL_DMA_StartPeriphXfer_IT_Opt() group #lightblue Repeated until Stop DCMI group #lightblue Repeat until complete of frame size part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA transfer complete callback() end part8->part7 : DCMI Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part1 : Frame capture callback end part1->part5 : HAL_DCMI_StopPipe_DMA() part5->part6 : HAL_DMA_Abort_IT() part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA abort callback part5->part1 : DCMI stop callback end group #salmon De-initialization part1->part5 : HAL_DCMI_DeInit() end @enduml

Called functions:

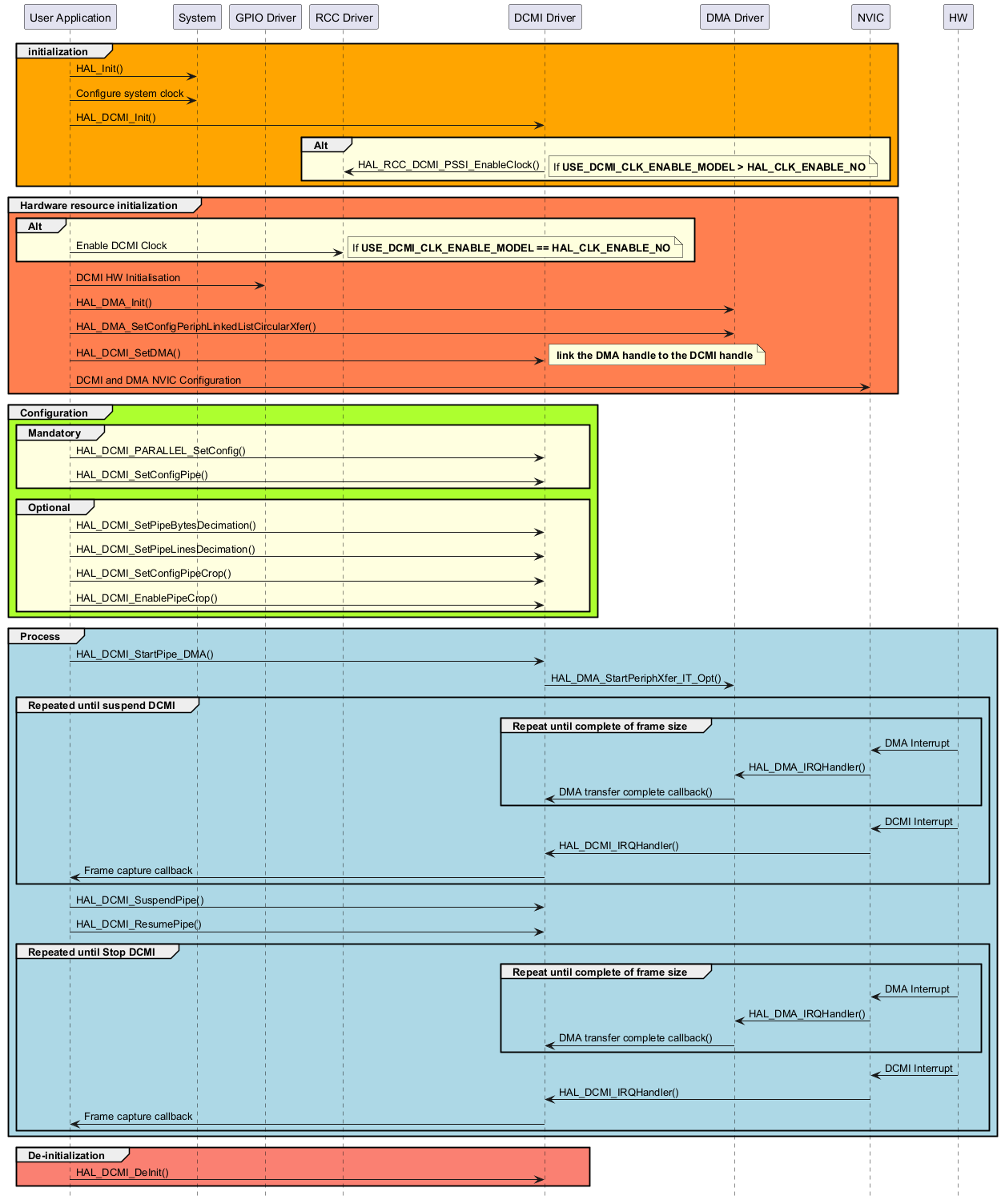

DCMI Continuous Mode with Suspend and Resume

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "GPIO Driver" as part3 participant "RCC Driver" as part4 participant "DCMI Driver" as part5 participant "DMA Driver" as part6 participant "NVIC" as part7 participant "HW" as part8 group #orange initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part5 : HAL_DCMI_Init() group #LightYellow Alt part5->part4 : HAL_RCC_DCMI_PSSI_EnableClock() note right: If <b>USE_DCMI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end end group #coral Hardware resource initialization group #LightYellow Alt part1->part4 : Enable DCMI Clock note right: If <b>USE_DCMI_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO end part1->part3 : DCMI HW Initialisation part1->part6 : HAL_DMA_Init() part1->part6 : HAL_DMA_SetConfigPeriphLinkedListCircularXfer() part1->part5 : HAL_DCMI_SetDMA() note right: <b> link the DMA handle to the DCMI handle part1->part7 : DCMI and DMA NVIC Configuration end group #greenyellow Configuration group #LightYellow Mandatory part1->part5 : HAL_DCMI_PARALLEL_SetConfig() part1->part5 : HAL_DCMI_SetConfigPipe() end group #LightYellow Optional part1->part5 : HAL_DCMI_SetPipeBytesDecimation() part1->part5 : HAL_DCMI_SetPipeLinesDecimation() part1->part5 : HAL_DCMI_SetConfigPipeCrop() part1->part5 : HAL_DCMI_EnablePipeCrop() end end group #lightblue Process part1->part5 : HAL_DCMI_StartPipe_DMA() part5->part6 : HAL_DMA_StartPeriphXfer_IT_Opt() group #lightblue Repeated until suspend DCMI group #lightblue Repeat until complete of frame size part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA transfer complete callback() end part8->part7 : DCMI Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part1 : Frame capture callback end part1->part5 : HAL_DCMI_SuspendPipe() part1->part5 : HAL_DCMI_ResumePipe() group #lightblue Repeated until Stop DCMI group #lightblue Repeat until complete of frame size part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA transfer complete callback() end part8->part7 : DCMI Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part1 : Frame capture callback end end group #salmon De-initialization part1->part5 : HAL_DCMI_DeInit() end @enduml

Called functions:

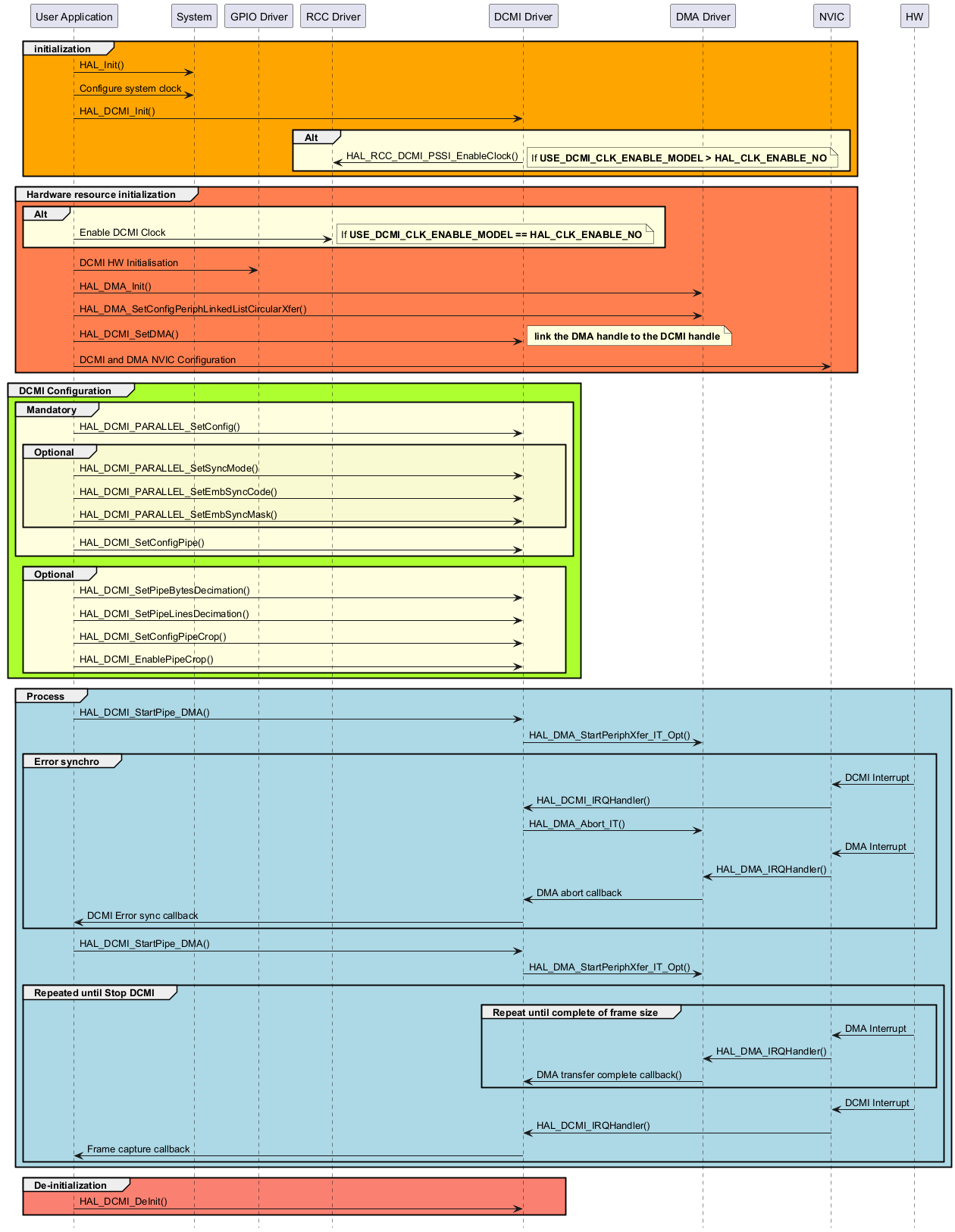

DCMI Continuous Mode with Embedded Synchro Mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "GPIO Driver" as part3 participant "RCC Driver" as part4 participant "DCMI Driver" as part5 participant "DMA Driver" as part6 participant "NVIC" as part7 participant "HW" as part8 group #orange initialization part1->part2 : HAL_Init() part1->part2 : Configure system clock part1->part5 : HAL_DCMI_Init() group #LightYellow Alt part5->part4 : HAL_RCC_DCMI_PSSI_EnableClock() note right: If <b>USE_DCMI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end end group #coral Hardware resource initialization group #LightYellow Alt part1->part4 : Enable DCMI Clock note right: If <b>USE_DCMI_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO end part1->part3 : DCMI HW Initialisation part1->part6 : HAL_DMA_Init() part1->part6 : HAL_DMA_SetConfigPeriphLinkedListCircularXfer() part1->part5 : HAL_DCMI_SetDMA() note right: <b> link the DMA handle to the DCMI handle part1->part7 : DCMI and DMA NVIC Configuration end group #greenyellow DCMI Configuration group #LightYellow Mandatory part1->part5 : HAL_DCMI_PARALLEL_SetConfig() group #lightgoldenrodyellow Optional part1->part5 : HAL_DCMI_PARALLEL_SetSyncMode() part1->part5 : HAL_DCMI_PARALLEL_SetEmbSyncCode() part1->part5 : HAL_DCMI_PARALLEL_SetEmbSyncMask() end part1->part5 : HAL_DCMI_SetConfigPipe() end group #LightYellow Optional part1->part5 : HAL_DCMI_SetPipeBytesDecimation() part1->part5 : HAL_DCMI_SetPipeLinesDecimation() part1->part5 : HAL_DCMI_SetConfigPipeCrop() part1->part5 : HAL_DCMI_EnablePipeCrop() end end group #lightblue Process part1->part5 : HAL_DCMI_StartPipe_DMA() part5->part6 : HAL_DMA_StartPeriphXfer_IT_Opt() group #lightblue Error synchro part8->part7 : DCMI Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part6 : HAL_DMA_Abort_IT() part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA abort callback part5->part1 : DCMI Error sync callback end part1->part5 : HAL_DCMI_StartPipe_DMA() part5->part6 : HAL_DMA_StartPeriphXfer_IT_Opt() group #lightblue Repeated until Stop DCMI group #lightblue Repeat until complete of frame size part8->part7 : DMA Interrupt part7->part6 : HAL_DMA_IRQHandler() part6->part5 : DMA transfer complete callback() end part8->part7 : DCMI Interrupt part7->part5 : HAL_DCMI_IRQHandler() part5->part1 : Frame capture callback end end group #salmon De-initialization part1->part5 : HAL_DCMI_DeInit() end @enduml

Called functions:
