HAL DMA2D Overview ¶
Introducing DMA2D ¶
- group DMA2D_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the DMA2D module and its associated files.
Component diagram ¶

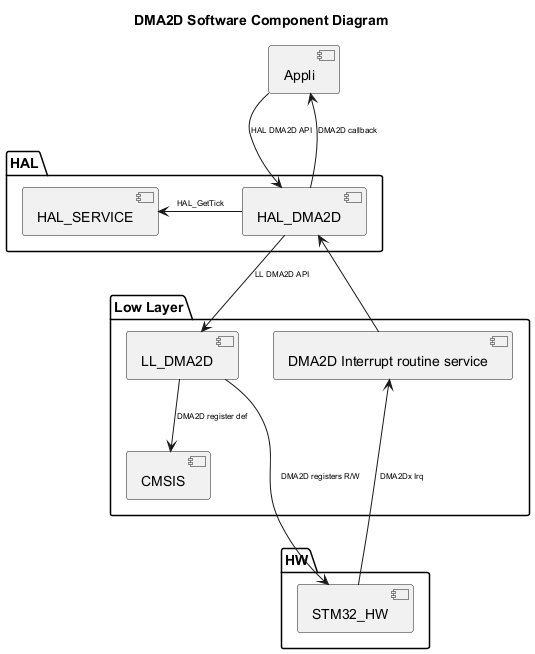

The following diagram illustrates the software components involved in the DMA2D module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title DMA2D Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_DMA2D]
}
package "Low Layer" {
[LL_DMA2D]
[CMSIS]
[DMA2D Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_DMA2D] : HAL DMA2D API
[Appli] <-- [HAL_DMA2D] : DMA2D callback
[HAL_DMA2D] --> [LL_DMA2D] : LL DMA2D API
[HAL_DMA2D] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_DMA2D] <-- [DMA2D Interrupt routine service]
[LL_DMA2D] --> [CMSIS]:DMA2D register def
[STM32_HW] -u--> [DMA2D Interrupt routine service]: DMA2Dx Irq
[STM32_HW] <-u-- [LL_DMA2D] : DMA2D registers R/W
@enduml](../../../../_images/plantuml-4362b589ff75d307556446b8c708d9153978bebf.png)
Configuration table ¶
The following table lists the configuration defines for the HAL DMA2D module, specifying their locations, default values, and descriptions:
- group DMA2D_Configuration_Table
-
¶
Configuration inside the DMA2D driver ¶
Config defines
Description
Default value
Note
USE_HAL_DMA2D_MODULE
from hal_conf.h
1
When set, HAL DMA2D module is enabled
USE_HAL_DMA2D_REGISTER_CALLBACKS
from hal_conf.h
0
When set, enable the register callbacks
USE_HAL_DMA2D_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the peripheral clock
USE_HAL_CHECK_PARAM
from hal_conf.h
0
When set, the vital parameters (pointers or sizes) are checked in runtime
USE_ASSERT_DBG_PARAM
from PreProcessor env
None
When defined, enable the params assert
USE_ASSERT_DBG_STATE
from PreProcessor env
None
When defined, enable the state assert
USE_HAL_DMA2D_USER_DATA
from hal_conf.h
0
When set, user data is defined in handle
USE_HAL_DMA2D_GET_LAST_ERRORS
from hal_conf.h
0
When set, user can get the last error code
USE_HAL_DMA2D_CLUT_IRQ
from hal_conf.h
0
When set, enable HAL_DMA2D_IRQHandler() handle CLUT interrupt
