HAL DMA2D Use Cases ¶

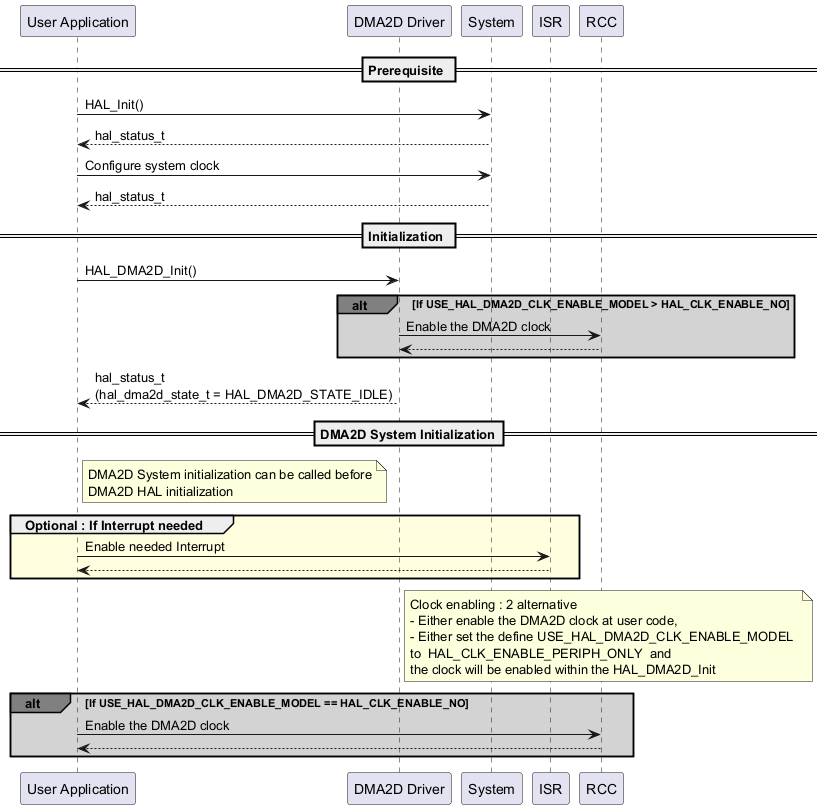

Initialization ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "DMA2D Driver" as dma2d participant "System" as system participant "ISR" as isr == Prerequisite == user->system : HAL_Init() system --> user :hal_status_t user->system : Configure system clock system --> user :hal_status_t == Initialization == user->dma2d : HAL_DMA2D_Init() alt#grey #lightgrey If USE_HAL_DMA2D_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO dma2d->RCC : Enable the DMA2D clock RCC-->dma2d end dma2d --> user :hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_IDLE) ==DMA2D System Initialization== Note right user : DMA2D System initialization can be called before\nDMA2D HAL initialization group #LightYellow Optional : If Interrupt needed user->isr : Enable needed Interrupt isr-->user end Note right dma2d : Clock enabling : 2 alternative \n\ - Either enable the DMA2D clock at user code,\n\ - Either set the define USE_HAL_DMA2D_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_DMA2D_Init alt#grey #lightgrey If USE_HAL_DMA2D_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the DMA2D clock RCC --> user end @enduml$

Called functions:

HAL_DMA2D_Init()

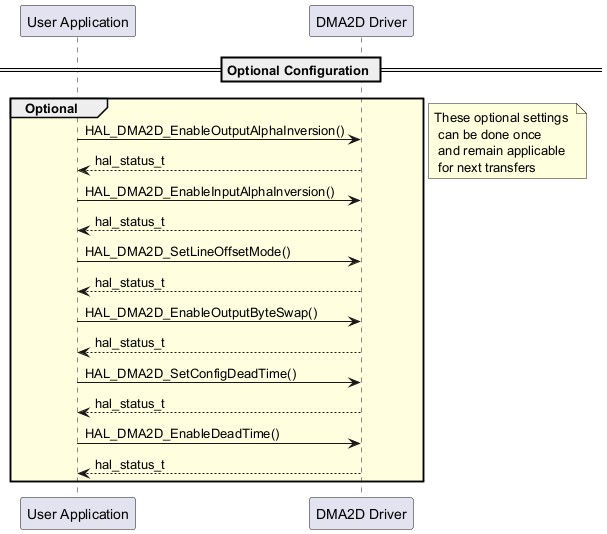

Optional Transfer Configuration ¶

$@startuml participant "User Application" as user participant "DMA2D Driver" as dma2d == Optional Configuration == group #LightYellow Optional user->dma2d : HAL_DMA2D_EnableOutputAlphaInversion() user<--dma2d : hal_status_t user->dma2d : HAL_DMA2D_EnableInputAlphaInversion() user<--dma2d : hal_status_t user->dma2d : HAL_DMA2D_SetLineOffsetMode() user<--dma2d : hal_status_t user->dma2d : HAL_DMA2D_EnableOutputByteSwap() user<--dma2d : hal_status_t user->dma2d : HAL_DMA2D_SetConfigDeadTime() user<--dma2d : hal_status_t user->dma2d : HAL_DMA2D_EnableDeadTime() user<--dma2d : hal_status_t end note right : These optional settings \n can be done once \n and remain applicable \n for next transfers @enduml$

Called functions:

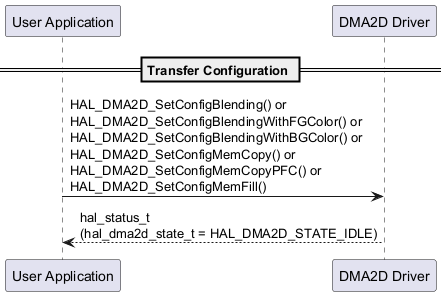

Transfer Configuration ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "DMA2D Driver" as dma2d == Transfer Configuration == user->dma2d : HAL_DMA2D_SetConfigBlending() or \nHAL_DMA2D_SetConfigBlendingWithFGColor() or \nHAL_DMA2D_SetConfigBlendingWithBGColor() or \nHAL_DMA2D_SetConfigMemCopy() or \nHAL_DMA2D_SetConfigMemCopyPFC() or \nHAL_DMA2D_SetConfigMemFill() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_IDLE) @enduml$

Called functions:

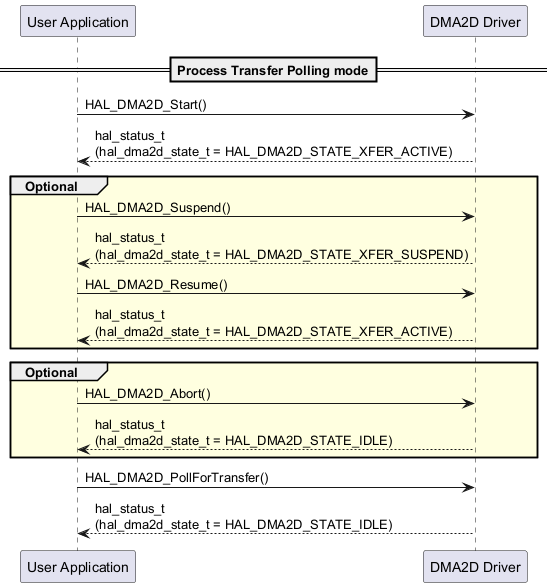

Transfer Polling Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "DMA2D Driver" as dma2d == Process Transfer Polling mode== user->dma2d : HAL_DMA2D_Start() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_XFER_ACTIVE) group #LightYellow Optional user->dma2d : HAL_DMA2D_Suspend() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_XFER_SUSPEND) user->dma2d : HAL_DMA2D_Resume() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_XFER_ACTIVE) end group #LightYellow Optional user->dma2d : HAL_DMA2D_Abort() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_IDLE) end user->dma2d : HAL_DMA2D_PollForTransfer() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_IDLE) @enduml$

Called functions:

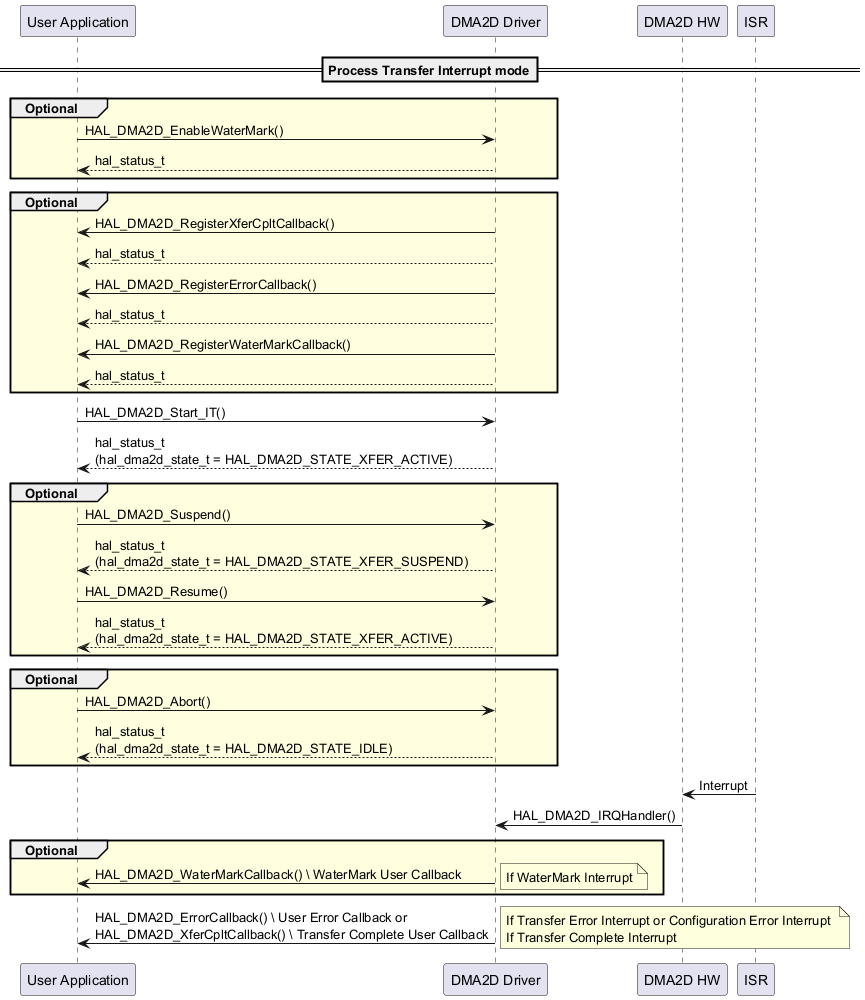

Transfer Interrupt Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "DMA2D Driver" as dma2d participant "DMA2D HW" as hw participant "ISR" as isr == Process Transfer Interrupt mode== group #LightYellow Optional user->dma2d : HAL_DMA2D_EnableWaterMark() user<--dma2d : hal_status_t end group #LightYellow Optional user<-dma2d : HAL_DMA2D_RegisterXferCpltCallback() user<--dma2d : hal_status_t user<-dma2d : HAL_DMA2D_RegisterErrorCallback() user<--dma2d : hal_status_t user<-dma2d : HAL_DMA2D_RegisterWaterMarkCallback() user<--dma2d : hal_status_t end user->dma2d : HAL_DMA2D_Start_IT() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_XFER_ACTIVE) group #LightYellow Optional user->dma2d : HAL_DMA2D_Suspend() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_XFER_SUSPEND) user->dma2d : HAL_DMA2D_Resume() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_XFER_ACTIVE) end group #LightYellow Optional user->dma2d : HAL_DMA2D_Abort() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_IDLE) end isr->hw : Interrupt hw->dma2d : HAL_DMA2D_IRQHandler() group #LightYellow Optional user<-dma2d : HAL_DMA2D_WaterMarkCallback() \ WaterMark User Callback note right : If WaterMark Interrupt end user<-dma2d : HAL_DMA2D_ErrorCallback() \ User Error Callback or \nHAL_DMA2D_XferCpltCallback() \ Transfer Complete User Callback note right : If Transfer Error Interrupt or Configuration Error Interrupt \nIf Transfer Complete Interrupt @enduml$

Called functions:

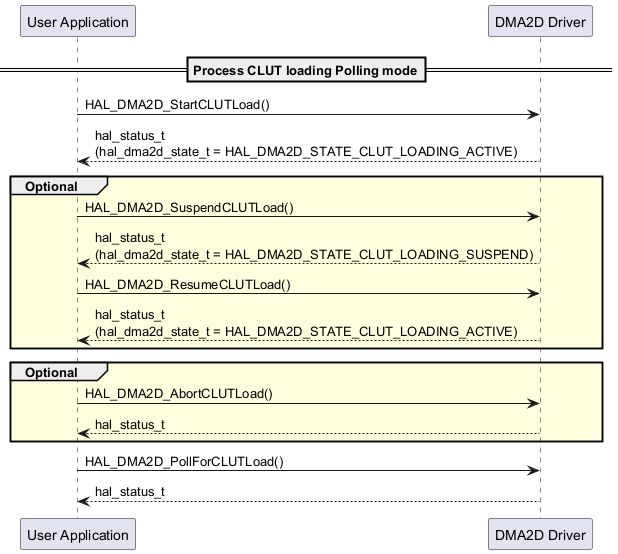

CLUT Loading Polling Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "DMA2D Driver" as dma2d == Process CLUT loading Polling mode== user->dma2d : HAL_DMA2D_StartCLUTLoad() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_CLUT_LOADING_ACTIVE) group #LightYellow Optional user->dma2d : HAL_DMA2D_SuspendCLUTLoad() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_CLUT_LOADING_SUSPEND) user->dma2d : HAL_DMA2D_ResumeCLUTLoad() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_CLUT_LOADING_ACTIVE) end group #LightYellow Optional user->dma2d : HAL_DMA2D_AbortCLUTLoad() user<--dma2d : hal_status_t end user->dma2d : HAL_DMA2D_PollForCLUTLoad() user<--dma2d : hal_status_t @enduml$

Called functions:

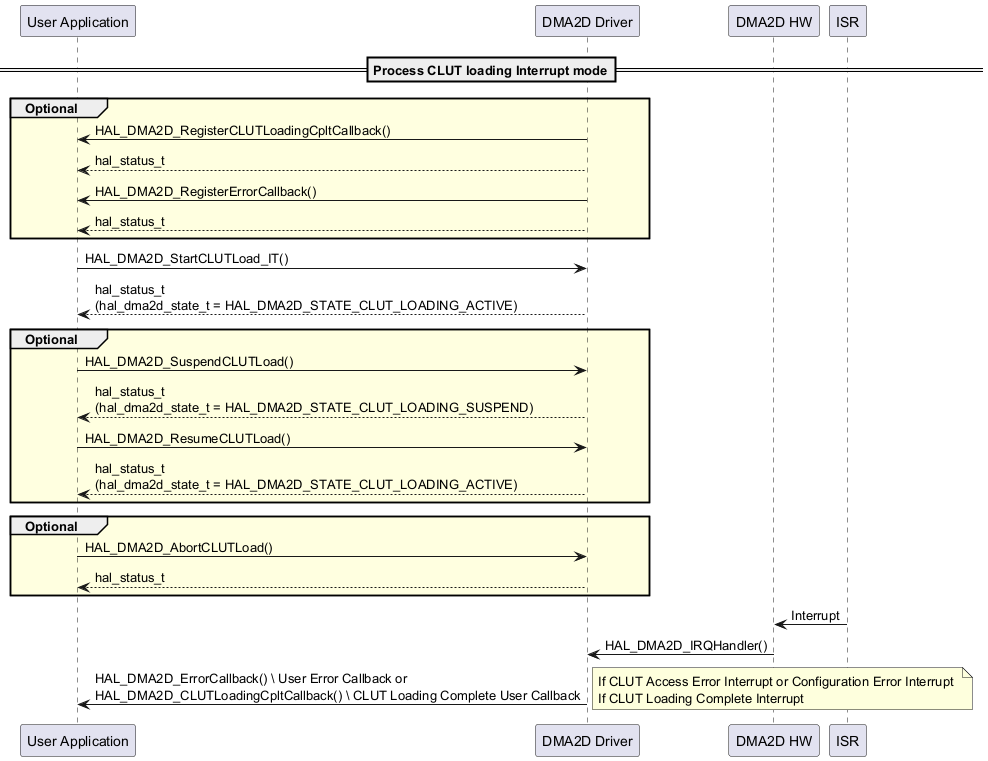

CLUT Loading Interrupt Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "DMA2D Driver" as dma2d participant "DMA2D HW" as hw participant "ISR" as isr == Process CLUT loading Interrupt mode== group #LightYellow Optional user<-dma2d : HAL_DMA2D_RegisterCLUTLoadingCpltCallback() user<--dma2d : hal_status_t user<-dma2d : HAL_DMA2D_RegisterErrorCallback() user<--dma2d : hal_status_t end user->dma2d : HAL_DMA2D_StartCLUTLoad_IT() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_CLUT_LOADING_ACTIVE) group #LightYellow Optional user->dma2d : HAL_DMA2D_SuspendCLUTLoad() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_CLUT_LOADING_SUSPEND) user->dma2d : HAL_DMA2D_ResumeCLUTLoad() user<--dma2d : hal_status_t \n(hal_dma2d_state_t = HAL_DMA2D_STATE_CLUT_LOADING_ACTIVE) end group #LightYellow Optional user->dma2d : HAL_DMA2D_AbortCLUTLoad() user<--dma2d : hal_status_t end isr->hw : Interrupt hw->dma2d : HAL_DMA2D_IRQHandler() user<-dma2d : HAL_DMA2D_ErrorCallback() \ User Error Callback or \nHAL_DMA2D_CLUTLoadingCpltCallback() \ CLUT Loading Complete User Callback note right : If CLUT Access Error Interrupt or Configuration Error Interrupt \nIf CLUT Loading Complete Interrupt @enduml$

Called functions:

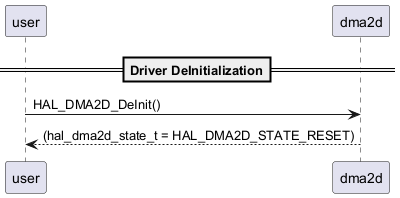

DeInitialization ¶

@startuml

== Driver DeInitialization==

user->dma2d : HAL_DMA2D_DeInit()

user<--dma2d : (hal_dma2d_state_t = HAL_DMA2D_STATE_RESET)

@enduml

Called functions:

HAL_DMA2D_DeInit()
