HAL FDCAN Overview ¶
Introducing FDCAN ¶
- group FDCAN_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the FDCAN module and its associated files.

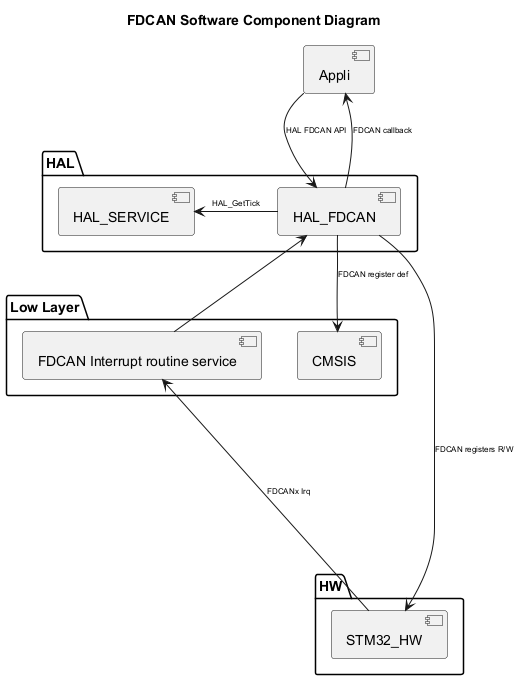

Component diagram ¶
The following diagram illustrates the software components involved in the FDCAN module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title FDCAN Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_FDCAN]
}
package "Low Layer" {
[CMSIS]
[FDCAN Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_FDCAN] : HAL FDCAN API
[Appli] <-- [HAL_FDCAN] : FDCAN callback
[HAL_FDCAN] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_FDCAN] <-- [FDCAN Interrupt routine service]
[HAL_FDCAN] --> [CMSIS]:FDCAN register def
[STM32_HW] -u--> [FDCAN Interrupt routine service]: FDCANx Irq
[STM32_HW] <--u--- [HAL_FDCAN] : FDCAN registers R/W
@enduml](../../../../_images/plantuml-9dce54bc672f6f53b72bb06ca886630ec882b664.png)
Configuration table ¶
The following table lists the configuration defines for the HAL FDCAN module, specifying their locations, default values, and descriptions:
- group FDCAN_Configuration_Table
-
10.Configuration inside the FDCAN driver
Config defines
Description
Default value
Note
USE_HAL_FDCAN_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the peripheral clock
USE_HAL_FDCAN_MODULE
from hal_conf.h
1
When set, HAL FDCAN module is enabled
USE_HAL_FDCAN_GET_LAST_ERRORS
from hal_conf.h
0
Enable the get last process error
USE_HAL_FDCAN_USER_DATA
from hal_conf.h
0
Enable the set/get user data
USE_HAL_FDCAN_REGISTER_CALLBACKS
from hal_conf.h
0
Enable the register callbacks assert
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Parameters (pointers or sizes) are checked in runtime
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0
Allows to check the HAL FDCAN state transition in run time
USE_HAL_MUTEX
from hal_conf.h
0
Enable the acquire/release bus services
USE_ASSERT_DBG_PARAM
from PreProcessor env
NA
Enable the params assert
USE_ASSERT_DBG_STATE
from PreProcessor env
NA
Enable the state assert
