HAL FLASH Overview ¶
Introducing FLASH ¶
- group FLASH_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the FLASH module and its associated files.
Component diagram ¶

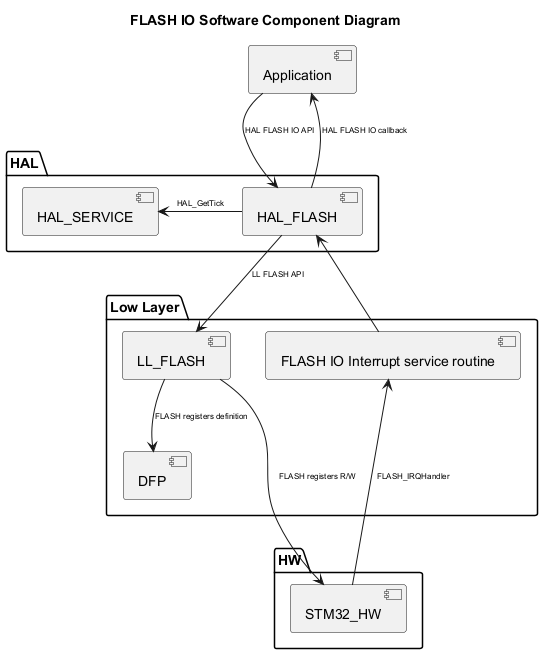

The following diagram illustrates the software components involved in the FLASH module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title FLASH IO Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_FLASH]
}
package "Low Layer" {
[LL_FLASH]
[DFP]
[FLASH IO Interrupt service routine]
}
package "HW" {
[STM32_HW]
}
[Application] --> [HAL_FLASH] : HAL FLASH IO API
[Application] <-- [HAL_FLASH] : HAL FLASH IO callback
[HAL_FLASH] --> [LL_FLASH] : LL FLASH API
[HAL_FLASH] <-- [FLASH IO Interrupt service routine]
[HAL_FLASH] -l-> [HAL_SERVICE] : HAL_GetTick
[LL_FLASH] --> [DFP]: FLASH registers definition
[STM32_HW] -u--> [FLASH IO Interrupt service routine] : FLASH_IRQHandler
[STM32_HW] <-u- [LL_FLASH] : FLASH registers R/W
@enduml](../../../../_images/plantuml-90d20425fa7865fd4d2dddead1fe574d0923809b.png)
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title FLASH Interface Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_FLASH_ITF]
}
package "Low Layer" {
[LL_SYSTEM]
[LL_FLASH]
[DFP]
[FLASH ITF Interrupt service routine]
}
package "HW" {
[STM32_HW]
}
[Application] --> [HAL_FLASH_ITF] : HAL FLASH ITF API
[Application] <-- [HAL_FLASH_ITF] : HAL FLASH ITF callback
[HAL_FLASH_ITF] --> [LL_FLASH] : LL FLASH API
[HAL_FLASH_ITF] --> [LL_SYSTEM] : LL SBS API
[HAL_FLASH_ITF] <-- [FLASH ITF Interrupt service routine]
[HAL_FLASH_ITF] -l-> [HAL_SERVICE] : HAL_GetTick
[LL_FLASH] --> [DFP]: FLASH registers definition
[STM32_HW] <-u- [LL_FLASH] : FLASH registers R/W
[LL_SYSTEM] -l-> [DFP]: SBS registers definition
[STM32_HW] <-u- [LL_SYSTEM] : SBS registers R/W
[STM32_HW] -u--> [FLASH ITF Interrupt service routine] : FLASH_ITF_IRQHandler
@enduml](../../../../_images/plantuml-4aab55c3f1cb8c99417c257c12d19e9e5165e308.png)
Configuration table ¶
The following table lists the configuration defines for the HAL FLASH module, specifying their locations, default values, and descriptions:
- group FLASH_Configuration_Table
-
¶
Configuration inside the Flash IO driver ¶
Configuration defines
Description
Default value
Note
PRODUCT
from IDE
NA
The selected device (e.g., STM32U575xx)
USE_HAL_FLASH_MODULE
from hal_conf.h
1
Allows usage of HAL Flash module
USE_ASSERT_DBG_PARAM
from IDE
None
Allows usage of parameter assertions
USE_ASSERT_DBG_STATE
from IDE
None
Allows usage of state assertions
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows usage of run-time parameter checks
USE_HAL_CHECK_PROCESS_STATE
from hal_conf.h
0
Allows usage of load/store exclusive checks
USE_HAL_FLASH_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows enabling the clock model for Flash
USE_HAL_FLASH_REGISTER_CALLBACKS
from hal_conf.h
0
Allows enabling callbacks register for Flash
USE_HAL_FLASH_GET_LAST_ERRORS
from hal_conf.h
0
Allows usage of error code mechanism
USE_HAL_FLASH_USER_DATA
from hal_conf.h
0
Allows usage of User data
USE_HAL_FLASH_PROGRAM_BY_ADDR
from hal_conf.h
1
Allows usage of program by address feature
USE_HAL_FLASH_ERASE_BY_ADDR
from hal_conf.h
1
Allows usage of erase by address feature
USE_HAL_FLASH_ERASE_PAGE
from hal_conf.h
1
Allows usage of erase by page feature
USE_HAL_FLASH_ERASE_BANK
from hal_conf.h
1
Allows usage of erase by bank feature
USE_HAL_FLASH_MASS_ERASE
from hal_conf.h
1
Allows usage of mass erase feature
USE_HAL_FLASH_ECC
from hal_conf.h
1
Allows usage of ECC error handling feature
__ARM_FEATURE_CMSE
from IDE
3
Allows Secure access for current context
- group FLASH_ITF_Configuration_Table
-
Configuration inside the Flash ITF driver ¶
Configuration defines
Description
Default value
Note
PRODUCT
from IDE
NA
The selected device (e.g., STM32U575xx)
USE_HAL_FLASH_ITF_MODULE
from hal_conf.h
1
Allows usage of Flash interface HAL module
USE_HAL_FLASH_ITF_ECC
from hal_conf.h
1
Allows enabling ECC mechanism interrupt
USE_ASSERT_DBG_PARAM
from IDE
None
Allows usage of parameter assertions
USE_HAL_CHECK_PARAM
from hal_conf.h
0
Allows usage of run-time parameter checks
__ARM_FEATURE_CMSE
from IDE
3
Allows usage of secure access for current context
