HAL FLASH Use Cases

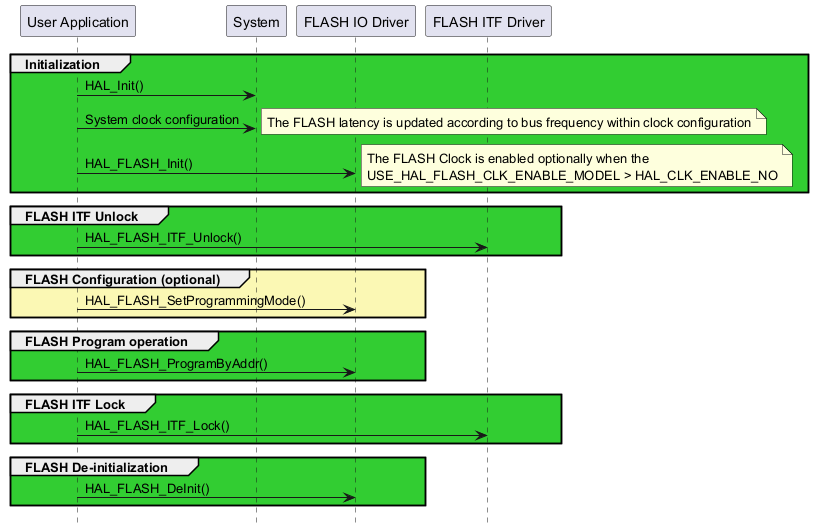

User application program in polling mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "FLASH IO Driver" as part3 participant "FLASH ITF Driver" as part4 group #LimeGreen Initialization part1->part2 : HAL_Init() part1->part2 : System clock configuration note right: The FLASH latency is updated according to bus frequency within clock configuration part1->part3 : HAL_FLASH_Init() note right: The FLASH Clock is enabled optionally when the\nUSE_HAL_FLASH_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end group #LimeGreen FLASH ITF Unlock part1->part4 : HAL_FLASH_ITF_Unlock() end group #FBF8B4 FLASH Configuration (optional) part1->part3 : HAL_FLASH_SetProgrammingMode() end group #LimeGreen FLASH Program operation part1->part3 : HAL_FLASH_ProgramByAddr() end group #LimeGreen FLASH ITF Lock part1->part4 : HAL_FLASH_ITF_Lock() end group #LimeGreen FLASH De-initialization part1->part3 : HAL_FLASH_DeInit() end @enduml

Called functions:

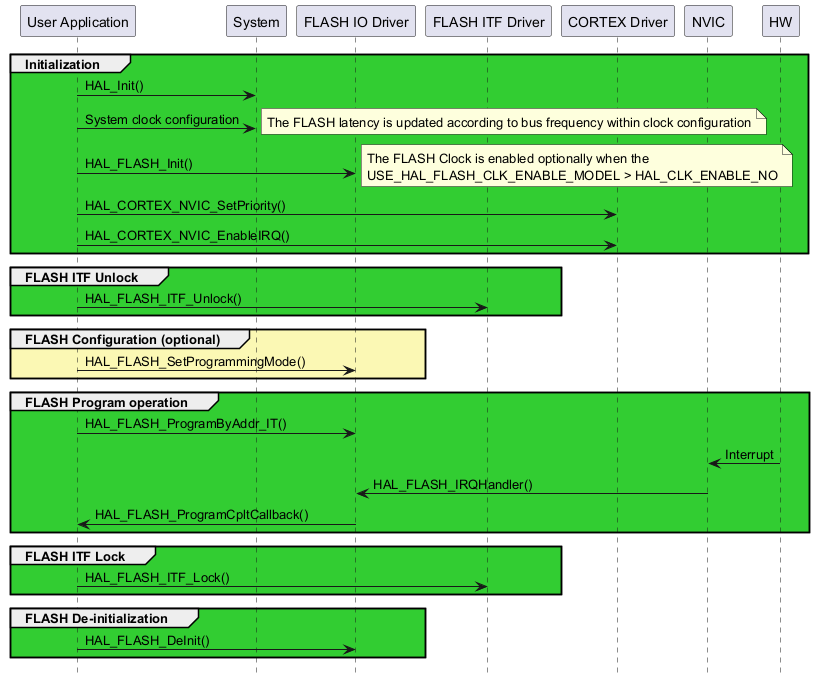

User application program in interrupt mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "FLASH IO Driver" as part3 participant "FLASH ITF Driver" as part4 participant "CORTEX Driver" as part5 participant "NVIC" as part6 participant "HW" as part7 group #LimeGreen Initialization part1->part2 : HAL_Init() part1->part2 : System clock configuration note right: The FLASH latency is updated according to bus frequency within clock configuration part1->part3 : HAL_FLASH_Init() note right: The FLASH Clock is enabled optionally when the\nUSE_HAL_FLASH_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO part1->part5 : HAL_CORTEX_NVIC_SetPriority() part1->part5 : HAL_CORTEX_NVIC_EnableIRQ() end group #LimeGreen FLASH ITF Unlock part1->part4 : HAL_FLASH_ITF_Unlock() end group #FBF8B4 FLASH Configuration (optional) part1->part3 : HAL_FLASH_SetProgrammingMode() end group #LimeGreen FLASH Program operation part1->part3 : HAL_FLASH_ProgramByAddr_IT() part7->part6 : Interrupt part6->part3 : HAL_FLASH_IRQHandler() part3->part1 : HAL_FLASH_ProgramCpltCallback() end group #LimeGreen FLASH ITF Lock part1->part4 : HAL_FLASH_ITF_Lock() end group #LimeGreen FLASH De-initialization part1->part3 : HAL_FLASH_DeInit() end @enduml

Called functions:

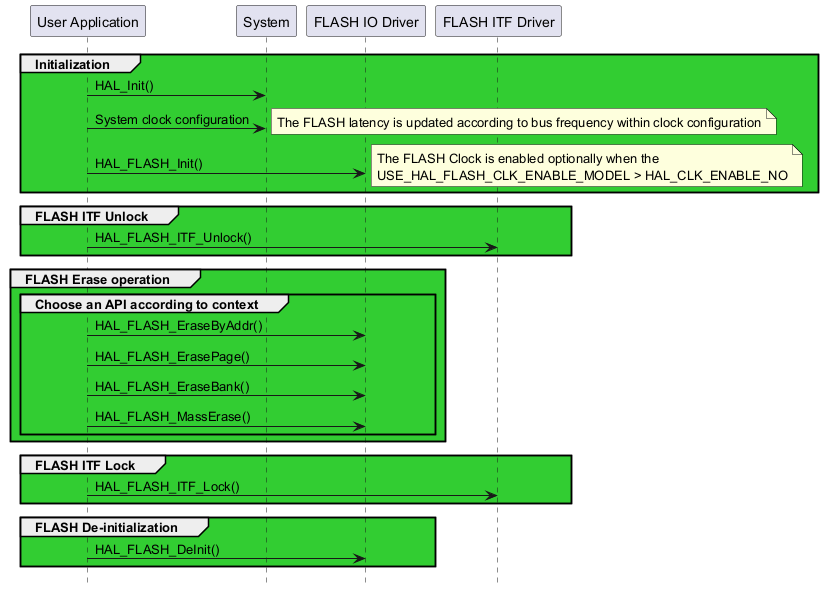

User application erase in polling mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "FLASH IO Driver" as part3 participant "FLASH ITF Driver" as part4 group #LimeGreen Initialization part1->part2 : HAL_Init() part1->part2 : System clock configuration note right: The FLASH latency is updated according to bus frequency within clock configuration part1->part3 : HAL_FLASH_Init() note right: The FLASH Clock is enabled optionally when the\nUSE_HAL_FLASH_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO end group #LimeGreen FLASH ITF Unlock part1->part4 : HAL_FLASH_ITF_Unlock() end group #LimeGreen FLASH Erase operation group Choose an API according to context part1->part3 : HAL_FLASH_EraseByAddr() part1->part3 : HAL_FLASH_ErasePage() part1->part3 : HAL_FLASH_EraseBank() part1->part3 : HAL_FLASH_MassErase() end end group #LimeGreen FLASH ITF Lock part1->part4 : HAL_FLASH_ITF_Lock() end group #LimeGreen FLASH De-initialization part1->part3 : HAL_FLASH_DeInit() end @enduml

Called functions:

User application erase in interrupt mode

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "FLASH IO Driver" as part3 participant "FLASH ITF Driver" as part4 participant "CORTEX Driver" as part5 participant "NVIC" as part6 participant "HW" as part7 group #LimeGreen Initialization part1->part2 : HAL_Init() part1->part2 : System clock configuration note right: The FLASH latency is updated according to bus frequency within clock configuration part1->part3 : HAL_FLASH_Init() note right: The FLASH Clock is enabled optionally when the\nUSE_HAL_FLASH_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO part1->part5 : HAL_CORTEX_NVIC_SetPriority() part1->part5 : HAL_CORTEX_NVIC_EnableIRQ() end group #LimeGreen FLASH ITF Unlock part1->part4 : HAL_FLASH_ITF_Unlock() end group #LimeGreen FLASH Erase operation group #LimeGreen Choose an API according to context part1->part3 : HAL_FLASH_EraseByAddr_IT() part1->part3 : HAL_FLASH_ErasePage_IT() part1->part3 : HAL_FLASH_EraseBank_IT() part1->part3 : HAL_FLASH_MassErase_IT() end part7->part6 : Interrupt part6->part3 : HAL_FLASH_IRQHandler() group #LimeGreen Choose a Callback API according to context part3->part1 : HAL_FLASH_EraseByAddrCpltCallback() part3->part1 : HAL_FLASH_ErasePageCpltCallback() part3->part1 : HAL_FLASH_EraseBankCpltCallback() part3->part1 : HAL_FLASH_MassEraseCpltCallback() end end group #LimeGreen FLASH ITF Lock part1->part4 : HAL_FLASH_ITF_Lock() end group #LimeGreen FLASH De-initialization part1->part3 : HAL_FLASH_DeInit() end @enduml

Called functions:

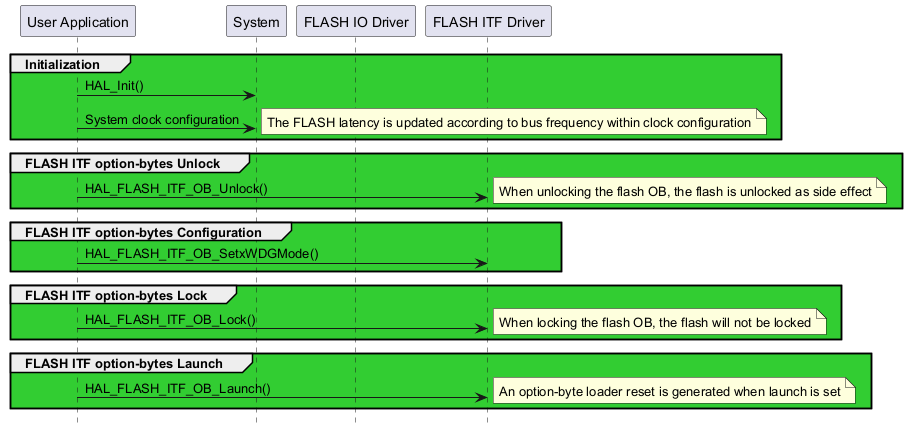

User application option-bytes configuration

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "FLASH IO Driver" as part3 participant "FLASH ITF Driver" as part4 group #LimeGreen Initialization part1->part2 : HAL_Init() part1->part2 : System clock configuration note right: The FLASH latency is updated according to bus frequency within clock configuration end group #LimeGreen FLASH ITF option-bytes Unlock part1->part4 : HAL_FLASH_ITF_OB_Unlock() note right: When unlocking the flash OB, the flash is unlocked as side effect end group #LimeGreen FLASH ITF option-bytes Configuration part1->part4 : HAL_FLASH_ITF_OB_SetxWDGMode() end group #LimeGreen FLASH ITF option-bytes Lock part1->part4 : HAL_FLASH_ITF_OB_Lock() note right: When locking the flash OB, the flash will not be locked end group #LimeGreen FLASH ITF option-bytes Launch part1->part4 : HAL_FLASH_ITF_OB_Launch() note right: An option-byte loader reset is generated when launch is set end @enduml

Called functions:

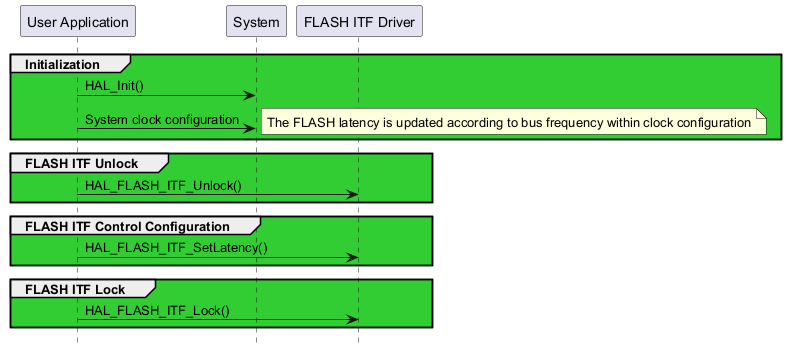

User application interface control configuration

@startuml hide footbox participant "User Application" as part1 participant "System" as part2 participant "FLASH ITF Driver" as part4 group #LimeGreen Initialization part1->part2 : HAL_Init() part1->part2 : System clock configuration note right: The FLASH latency is updated according to bus frequency within clock configuration end group #LimeGreen FLASH ITF Unlock part1->part4 : HAL_FLASH_ITF_Unlock() end group #LimeGreen FLASH ITF Control Configuration part1->part4 : HAL_FLASH_ITF_SetLatency() end group #LimeGreen FLASH ITF Lock part1->part4 : HAL_FLASH_ITF_Lock() end @enduml

Called functions:
