HAL GTZC Overview ¶
Introducing GTZC ¶
- group GTZC_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the GTZC module and its associated files.
Component diagram ¶

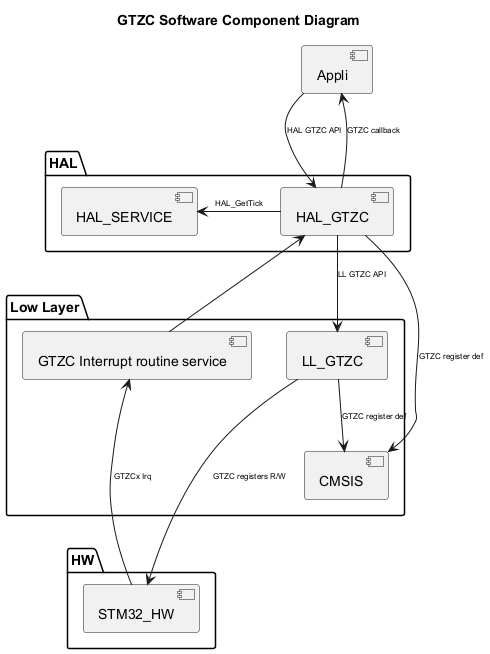

The following diagram illustrates the software components involved in the GTZC module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title GTZC Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_GTZC]
}
package "Low Layer" {
[LL_GTZC]
[CMSIS]
[GTZC Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_GTZC] : HAL GTZC API
[Appli] <-- [HAL_GTZC] : GTZC callback
[HAL_GTZC] --> [LL_GTZC] : LL GTZC API
[HAL_GTZC] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_GTZC] <-- [GTZC Interrupt routine service]
[HAL_GTZC] --> [CMSIS]:GTZC register def
[LL_GTZC] --> [CMSIS]:GTZC register def
[STM32_HW] -u--> [GTZC Interrupt routine service]: GTZCx Irq
[STM32_HW] <--- [LL_GTZC] : GTZC registers R/W
@enduml](../../../../_images/plantuml-55f9983488cd7ef4f1a0473a6a87c29f5dda3ac1.png)
Configuration table ¶
The following table lists the configuration defines for the HAL GTZC module, specifying their locations, default values, and descriptions:
- group GTZC_Configuration_Table
-
¶
Configuration inside the GTZC driver ¶
Config defines
Description
Default value
Note
PRODUCT
from IDE
NA
The selected product (ex STM32U585xx)
USE_HAL_GTZC_MODULE
from hal_conf.h
1
When set, HAL GTZC module is enabled
USE_ASSERT_DBG_PARAM
from IDE
NA
When defined, enable the params assert
USE_HAL_CHECK_PARAM
from hal_conf.h
0
When set, parameters are checked in runtime
__ARM_FEATURE_CMSE
from IDE
NA
When TrustZone active and the application in secure mode
