HAL GTZC Use Cases

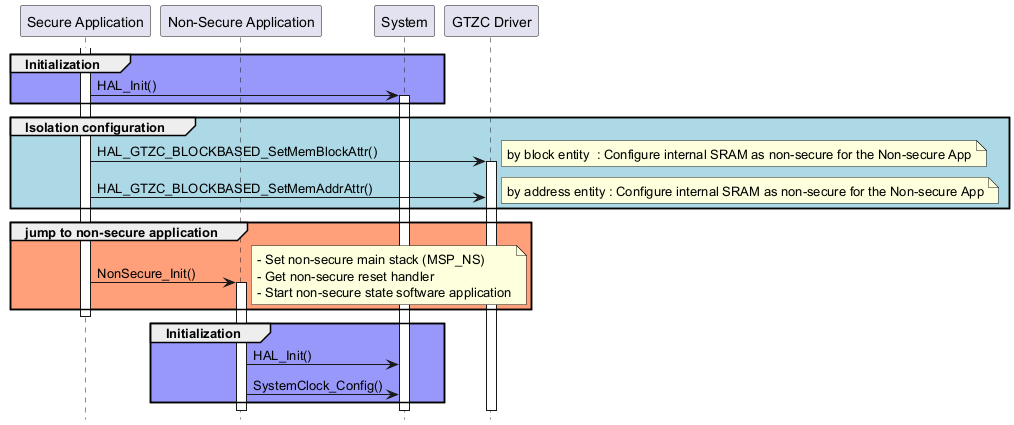

Switch from secure application to non-secure application for TZEN=1

@startuml hide footbox participant "Secure Application" participant "Non-Secure Application" participant "System" participant "GTZC Driver" activate "Secure Application" group #9898fb Initialization "Secure Application"->"System" ++ : HAL_Init() end group #lightblue Isolation configuration "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_BLOCKBASED_SetMemBlockAttr() note right: by block entity : Configure internal SRAM as non-secure for the Non-secure App "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right: by address entity : Configure internal SRAM as non-secure for the Non-secure App end group #lightsalmon jump to non-secure application "Secure Application"->"Non-Secure Application" ++ : NonSecure_Init() note right: - Set non-secure main stack (MSP_NS) \n- Get non-secure reset handler \n- Start non-secure state software application end deactivate "Secure Application" group #9898fb Initialization "Non-Secure Application"->"System" : HAL_Init() "Non-Secure Application"->"System" : SystemClock_Config() end @enduml

Called functions:

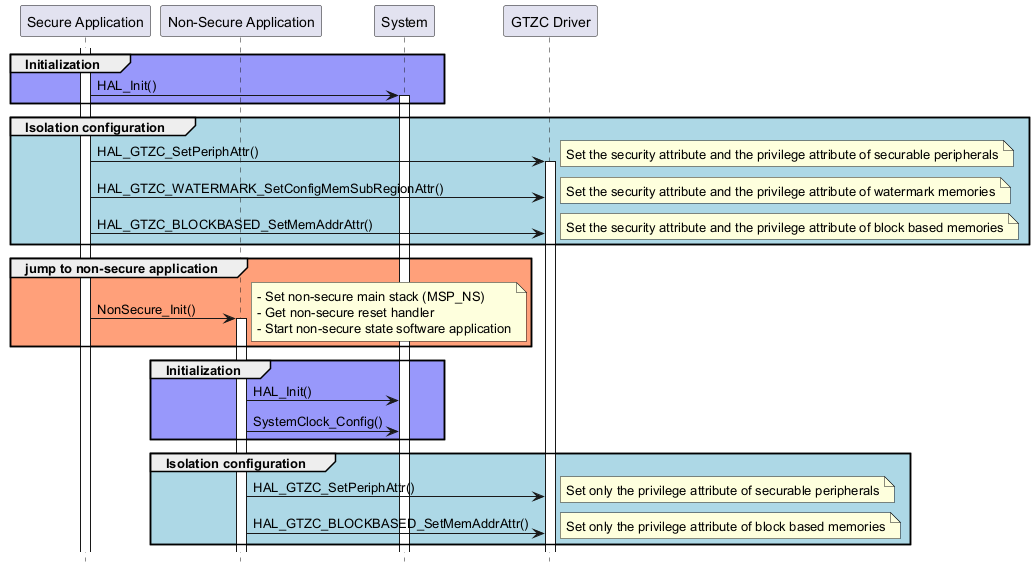

Isolation configuration for TZEN=1

@startuml hide footbox participant "Secure Application" participant "Non-Secure Application" participant "System" participant "GTZC Driver" activate "Secure Application" group #9898fb Initialization "Secure Application" ->"System" ++ : HAL_Init() end group #lightblue Isolation configuration "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_SetPeriphAttr() note right : Set the security attribute and the privilege attribute of securable peripherals "Secure Application"->"GTZC Driver" : HAL_GTZC_WATERMARK_SetConfigMemSubRegionAttr() note right : Set the security attribute and the privilege attribute of watermark memories "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right : Set the security attribute and the privilege attribute of block based memories end group #lightsalmon jump to non-secure application "Secure Application"->"Non-Secure Application" ++ : NonSecure_Init() note right: - Set non-secure main stack (MSP_NS) \n- Get non-secure reset handler \n- Start non-secure state software application end group #9898fb Initialization "Non-Secure Application"->"System" : HAL_Init() "Non-Secure Application"->"System" : SystemClock_Config() end group #lightblue Isolation configuration "Non-Secure Application"->"GTZC Driver": HAL_GTZC_SetPeriphAttr() note right : Set only the privilege attribute of securable peripherals "Non-Secure Application"->"GTZC Driver": HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right : Set only the privilege attribute of block based memories end @enduml

Called functions:

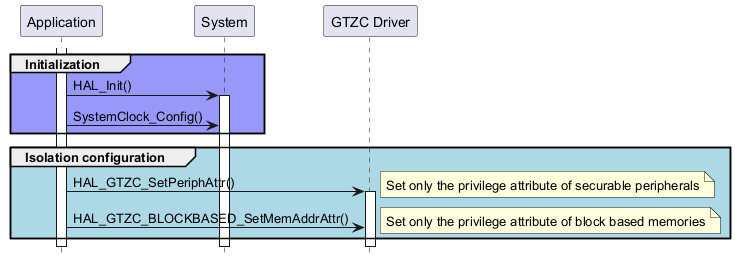

Isolation configuration for TZEN=0

@startuml hide footbox participant "Application" participant "System" participant "GTZC Driver" activate "Application" group #9898fb Initialization "Application" ->"System" ++ : HAL_Init() "Application"->"System" : SystemClock_Config() end group #lightblue Isolation configuration "Application"->"GTZC Driver" ++ : HAL_GTZC_SetPeriphAttr() note right : Set only the privilege attribute of securable peripherals "Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right : Set only the privilege attribute of block based memories end @enduml

Called functions:

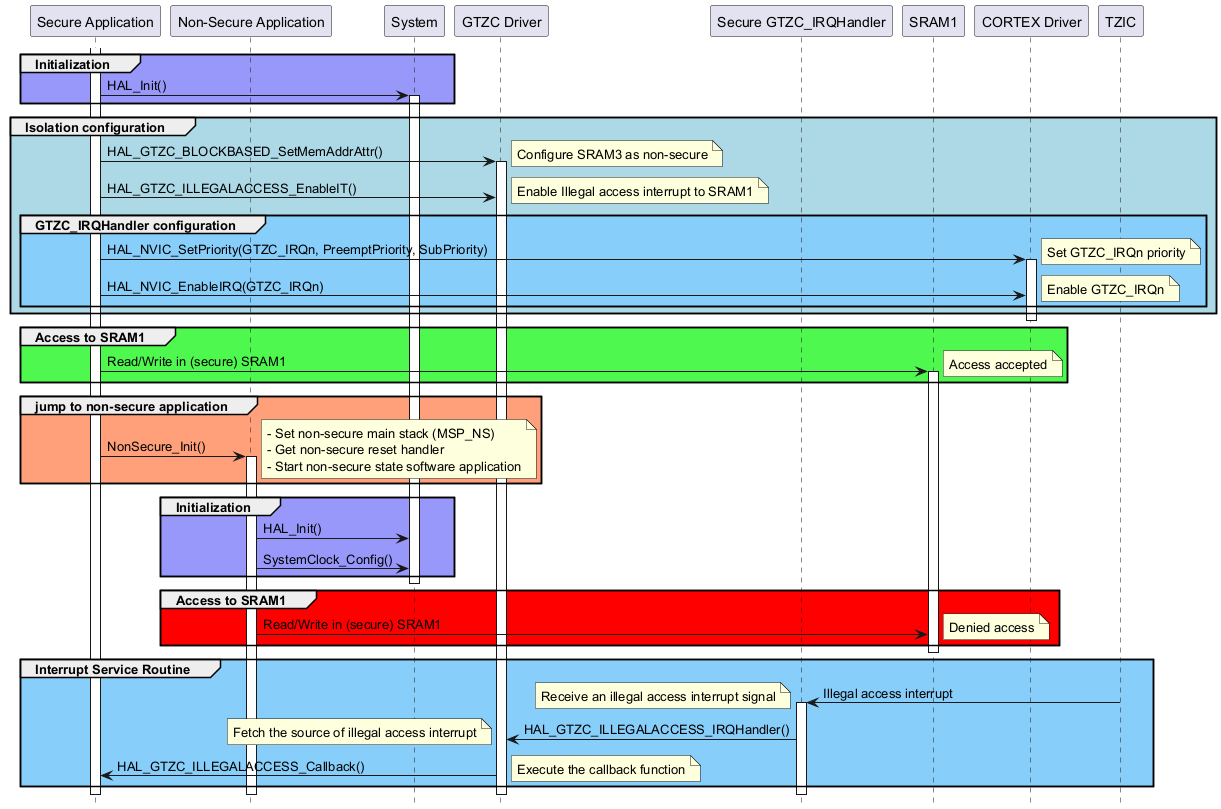

Illegal access interrupt for TZEN=1

@startuml hide footbox participant "Secure Application" participant "Non-Secure Application" participant "System" participant "GTZC Driver" participant "Secure GTZC_IRQHandler" participant "SRAM1" participant "CORTEX Driver" participant "TZIC" activate "Secure Application" group #9898fb Initialization "Secure Application"->"System" ++ : HAL_Init() end group #lightblue Isolation configuration "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right: Configure SRAM3 as non-secure "Secure Application"->"GTZC Driver" : HAL_GTZC_ILLEGALACCESS_EnableIT() note right: Enable Illegal access interrupt to SRAM1 group #LightSkyBlue GTZC_IRQHandler configuration "Secure Application"->"CORTEX Driver" ++ : HAL_NVIC_SetPriority(GTZC_IRQn, PreemptPriority, SubPriority) note right: Set GTZC_IRQn priority "Secure Application"->"CORTEX Driver" : HAL_NVIC_EnableIRQ(GTZC_IRQn) note right: Enable GTZC_IRQn end end deactivate "CORTEX Driver" group #4ef84e Access to SRAM1 "Secure Application"->"SRAM1" ++ : Read/Write in (secure) SRAM1 note right : Access accepted end group #lightsalmon jump to non-secure application "Secure Application"->"Non-Secure Application" ++ : NonSecure_Init() note right: - Set non-secure main stack (MSP_NS) \n- Get non-secure reset handler \n- Start non-secure state software application end group #9898fb Initialization "Non-Secure Application"->"System" : HAL_Init() "Non-Secure Application"->"System" : SystemClock_Config() end deactivate "System" group #Red Access to SRAM1 "Non-Secure Application"->"SRAM1" : Read/Write in (secure) SRAM1 note right : Denied access end deactivate "SRAM1" group #LightSkyBlue Interrupt Service Routine "TZIC" -> "Secure GTZC_IRQHandler" ++ : Illegal access interrupt note left: Receive an illegal access interrupt signal "GTZC Driver" <- "Secure GTZC_IRQHandler" : HAL_GTZC_ILLEGALACCESS_IRQHandler() note left: Fetch the source of illegal access interrupt "GTZC Driver" -> "Secure Application" : HAL_GTZC_ILLEGALACCESS_Callback() note right: Execute the callback function end @enduml

Called functions:

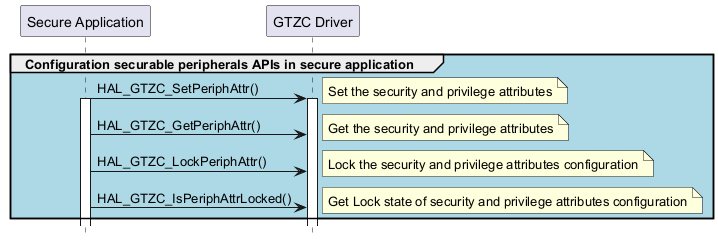

Securable peripherals configuration APIs in secure application

@startuml hide footbox participant "Secure Application" participant "GTZC Driver" group #lightblue Configuration securable peripherals APIs in secure application "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_SetPeriphAttr() note right : Set the security and privilege attributes activate "Secure Application" "Secure Application"->"GTZC Driver" : HAL_GTZC_GetPeriphAttr() note right : Get the security and privilege attributes "Secure Application"->"GTZC Driver" : HAL_GTZC_LockPeriphAttr() note right : Lock the security and privilege attributes configuration "Secure Application"->"GTZC Driver" : HAL_GTZC_IsPeriphAttrLocked() note right : Get Lock state of security and privilege attributes configuration end @enduml

Called functions:

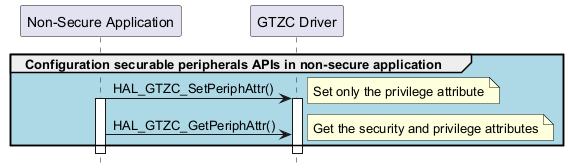

Securable peripherals configuration APIs in non-secure application

@startuml hide footbox participant "Non-Secure Application" participant "GTZC Driver" group #lightblue Configuration securable peripherals APIs in non-secure application "Non-Secure Application" ->"GTZC Driver" ++ : HAL_GTZC_SetPeriphAttr() note right : Set only the privilege attribute activate "Non-Secure Application" "Non-Secure Application" ->"GTZC Driver" : HAL_GTZC_GetPeriphAttr() note right : Get the security and privilege attributes end @enduml

Called functions:

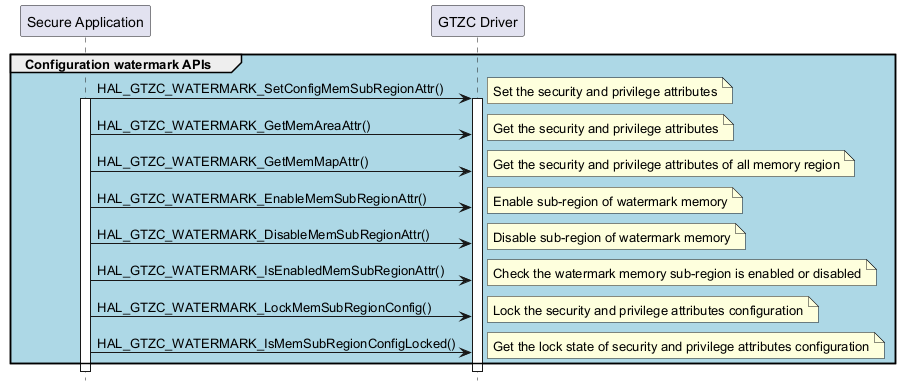

Watermark configuration APIs in secure application

@startuml hide footbox participant "Secure Application" participant "GTZC Driver" group #lightblue Configuration watermark APIs "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_WATERMARK_SetConfigMemSubRegionAttr() note right : Set the security and privilege attributes activate "Secure Application" "Secure Application"->"GTZC Driver" : HAL_GTZC_WATERMARK_GetMemAreaAttr() note right : Get the security and privilege attributes "Secure Application"->"GTZC Driver" : HAL_GTZC_WATERMARK_GetMemMapAttr() note right : Get the security and privilege attributes of all memory region "Secure Application" ->"GTZC Driver" : HAL_GTZC_WATERMARK_EnableMemSubRegionAttr() note right : Enable sub-region of watermark memory "Secure Application" ->"GTZC Driver" : HAL_GTZC_WATERMARK_DisableMemSubRegionAttr() note right : Disable sub-region of watermark memory "Secure Application" ->"GTZC Driver" : HAL_GTZC_WATERMARK_IsEnabledMemSubRegionAttr() note right : Check the watermark memory sub-region is enabled or disabled "Secure Application" ->"GTZC Driver" : HAL_GTZC_WATERMARK_LockMemSubRegionConfig() note right : Lock the security and privilege attributes configuration "Secure Application" ->"GTZC Driver" : HAL_GTZC_WATERMARK_IsMemSubRegionConfigLocked() note right : Get the lock state of security and privilege attributes configuration end @enduml

Called functions:

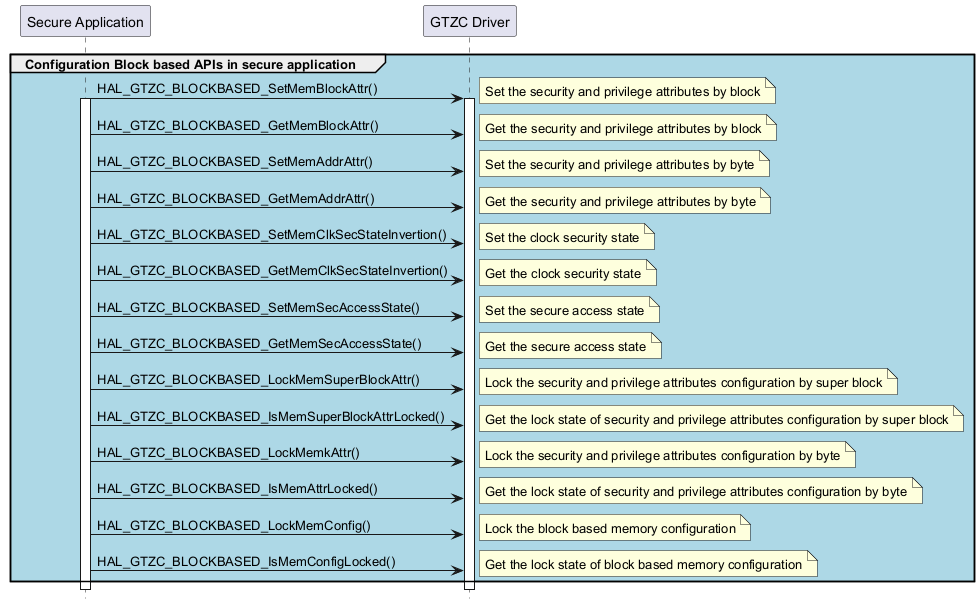

Block based configuration APIs in secure application

@startuml hide footbox participant "Secure Application" participant "GTZC Driver" group #lightblue Configuration Block based APIs in secure application "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_BLOCKBASED_SetMemBlockAttr() note right : Set the security and privilege attributes by block activate "Secure Application" "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_GetMemBlockAttr() note right : Get the security and privilege attributes by block "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right : Set the security and privilege attributes by byte "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_GetMemAddrAttr() note right : Get the security and privilege attributes by byte "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemClkSecStateInvertion() note right : Set the clock security state "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_GetMemClkSecStateInvertion() note right : Get the clock security state "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemSecAccessState() note right : Set the secure access state "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_GetMemSecAccessState() note right : Get the secure access state "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_LockMemSuperBlockAttr() note right : Lock the security and privilege attributes configuration by super block "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_IsMemSuperBlockAttrLocked() note right : Get the lock state of security and privilege attributes configuration by super block "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_LockMemkAttr() note right : Lock the security and privilege attributes configuration by byte "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_IsMemAttrLocked() note right : Get the lock state of security and privilege attributes configuration by byte "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_LockMemConfig() note right : Lock the block based memory configuration "Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_IsMemConfigLocked() note right : Get the lock state of block based memory configuration end @enduml

Called functions:

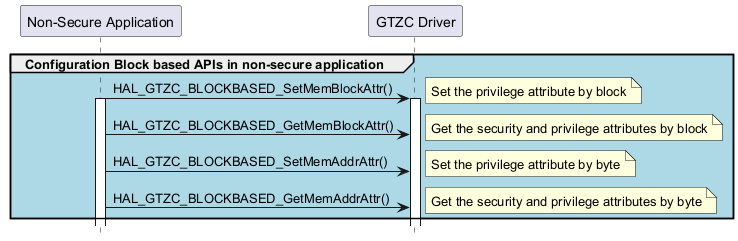

Block based configuration APIs in non-secure application

@startuml hide footbox participant "Non-Secure Application" participant "GTZC Driver" group #lightblue Configuration Block based APIs in non-secure application "Non-Secure Application"->"GTZC Driver" ++ : HAL_GTZC_BLOCKBASED_SetMemBlockAttr() note right : Set the privilege attribute by block activate "Non-Secure Application" "Non-Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_GetMemBlockAttr() note right : Get the security and privilege attributes by block "Non-Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_SetMemAddrAttr() note right : Set the privilege attribute by byte "Non-Secure Application"->"GTZC Driver" : HAL_GTZC_BLOCKBASED_GetMemAddrAttr() note right : Get the security and privilege attributes by byte end @enduml

Called functions:

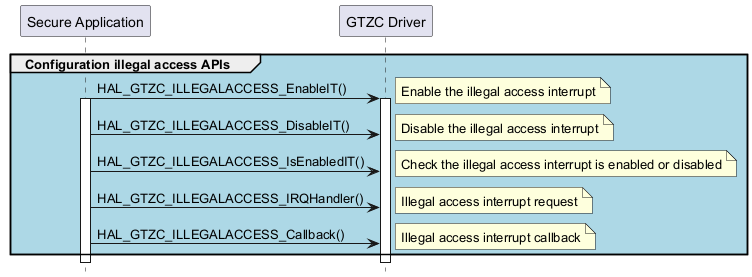

Illegal access configuration APIs in secure application

@startuml hide footbox participant "Secure Application" participant "GTZC Driver" group #lightblue Configuration illegal access APIs "Secure Application"->"GTZC Driver" ++ : HAL_GTZC_ILLEGALACCESS_EnableIT() note right : Enable the illegal access interrupt activate "Secure Application" "Secure Application"->"GTZC Driver" : HAL_GTZC_ILLEGALACCESS_DisableIT() note right : Disable the illegal access interrupt "Secure Application"->"GTZC Driver" : HAL_GTZC_ILLEGALACCESS_IsEnabledIT() note right : Check the illegal access interrupt is enabled or disabled "Secure Application"->"GTZC Driver" : HAL_GTZC_ILLEGALACCESS_IRQHandler() note right : Illegal access interrupt request "Secure Application"->"GTZC Driver" : HAL_GTZC_ILLEGALACCESS_Callback() note right : Illegal access interrupt callback end @enduml

Called functions:
