HAL JPEG Use Cases ¶

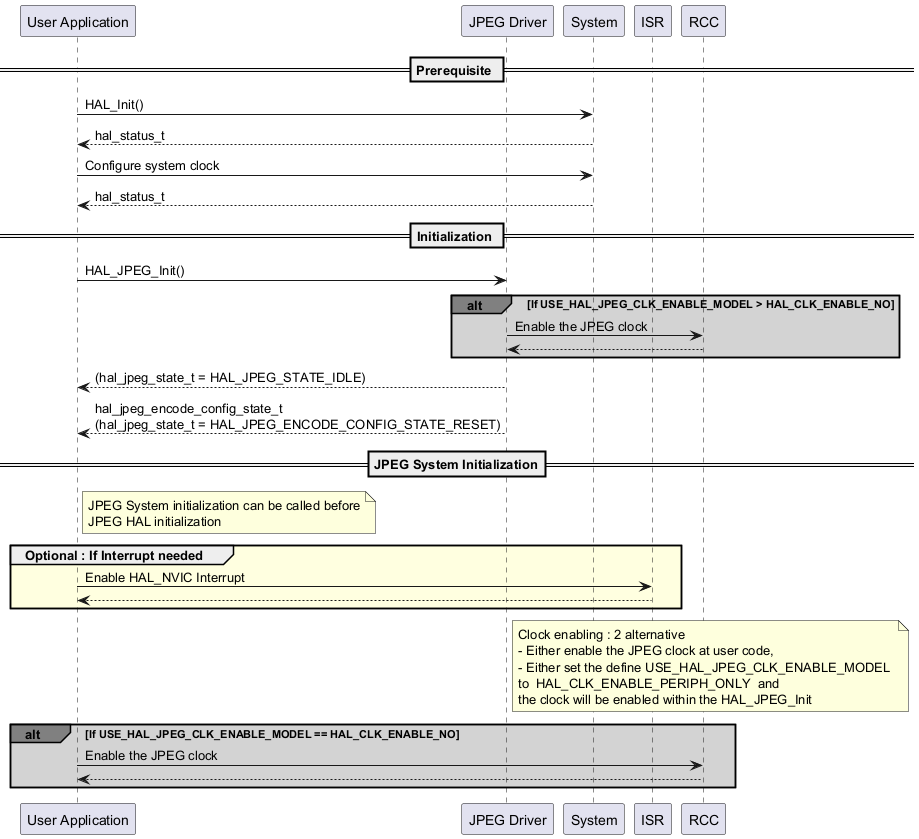

JPEG Initialization ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG participant "System" as system participant "ISR" as isr == Prerequisite == user->system : HAL_Init() system --> user :hal_status_t user->system : Configure system clock system --> user :hal_status_t == Initialization == user->JPEG : HAL_JPEG_Init() alt#grey #lightgrey If USE_HAL_JPEG_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO JPEG->RCC : Enable the JPEG clock RCC-->JPEG end JPEG --> user : (hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) JPEG --> user :hal_jpeg_encode_config_state_t \n(hal_jpeg_state_t = HAL_JPEG_ENCODE_CONFIG_STATE_RESET) ==JPEG System Initialization== Note right user : JPEG System initialization can be called before\nJPEG HAL initialization group #LightYellow Optional : If Interrupt needed user->isr : Enable HAL_NVIC Interrupt isr-->user end Note right JPEG : Clock enabling : 2 alternative \n\ - Either enable the JPEG clock at user code,\n\ - Either set the define USE_HAL_JPEG_CLK_ENABLE_MODEL \n\ to HAL_CLK_ENABLE_PERIPH_ONLY and \n\ the clock will be enabled within the HAL_JPEG_Init alt#grey #lightgrey If USE_HAL_JPEG_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO user->RCC : Enable the JPEG clock RCC --> user end @enduml$

Called functions:

HAL_JPEG_Init()

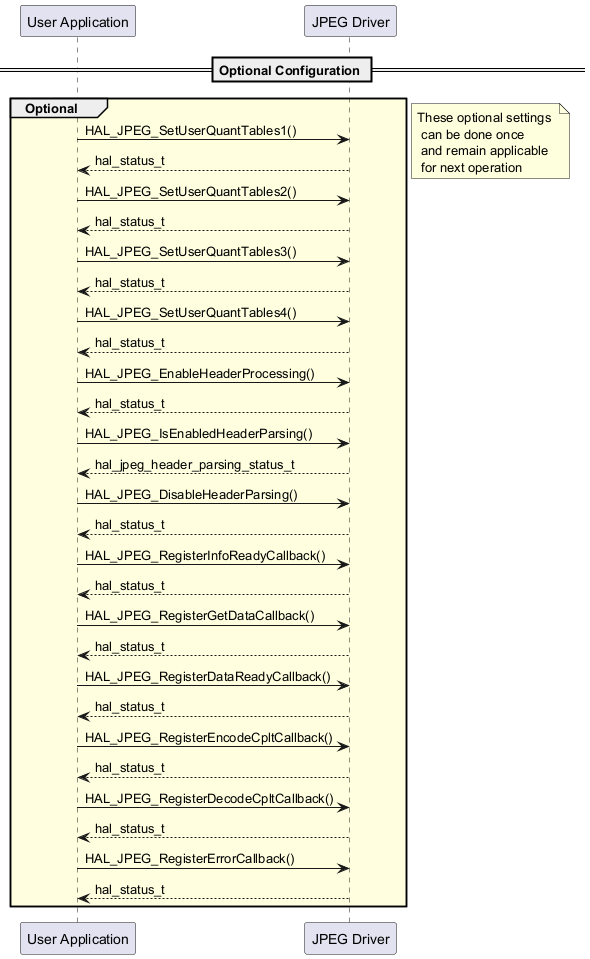

JPEG Optional Configuration ¶

$@startuml participant "User Application" as user participant "JPEG Driver" as JPEG == Optional Configuration == group #LightYellow Optional user->JPEG : HAL_JPEG_SetUserQuantTables1() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_SetUserQuantTables2() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_SetUserQuantTables3() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_SetUserQuantTables4() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_EnableHeaderProcessing() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_IsEnabledHeaderParsing() user<--JPEG : hal_jpeg_header_parsing_status_t user->JPEG : HAL_JPEG_DisableHeaderParsing() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_RegisterInfoReadyCallback() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_RegisterGetDataCallback() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_RegisterDataReadyCallback() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_RegisterEncodeCpltCallback() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_RegisterDecodeCpltCallback() user<--JPEG : hal_status_t user->JPEG : HAL_JPEG_RegisterErrorCallback() user<--JPEG : hal_status_t end note right : These optional settings \n can be done once \n and remain applicable \n for next operation @enduml$

Called functions:

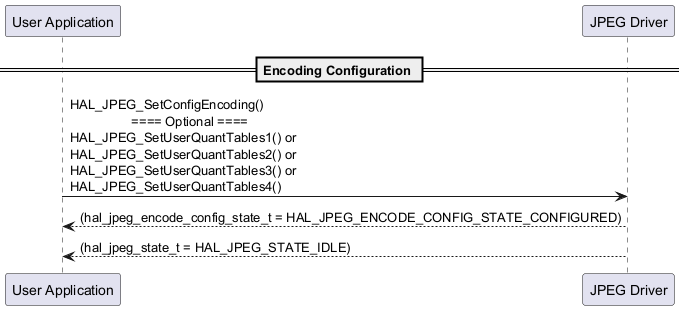

JPEG Encoding Configuration ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG == Encoding Configuration == user->JPEG : HAL_JPEG_SetConfigEncoding() \n\t\t ==== Optional ==== \nHAL_JPEG_SetUserQuantTables1() or \nHAL_JPEG_SetUserQuantTables2() or \nHAL_JPEG_SetUserQuantTables3() or \nHAL_JPEG_SetUserQuantTables4() user<--JPEG : (hal_jpeg_encode_config_state_t = HAL_JPEG_ENCODE_CONFIG_STATE_CONFIGURED) user<--JPEG : (hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) @enduml$

Called functions:

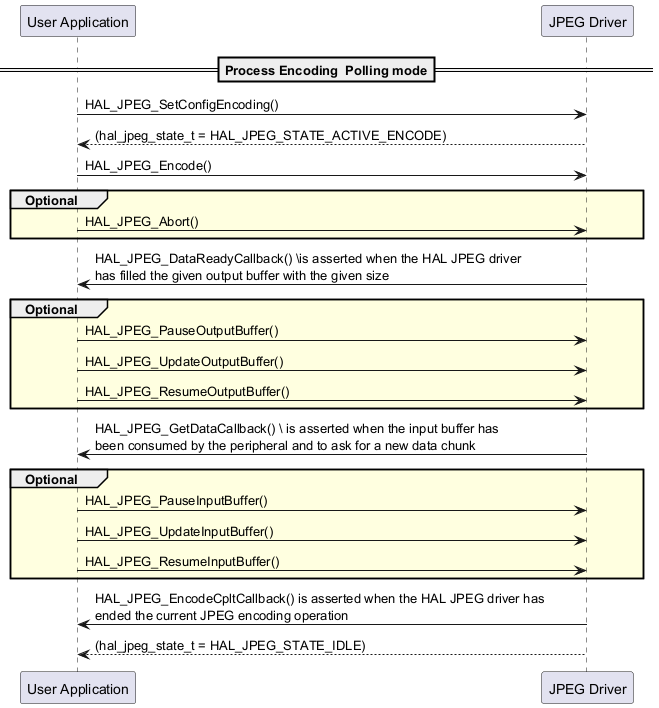

JPEG Encoding - Polling Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG == Process Encoding Polling mode== user->JPEG : HAL_JPEG_SetConfigEncoding() user<--JPEG : (hal_jpeg_state_t = HAL_JPEG_STATE_ACTIVE_ENCODE) user->JPEG : HAL_JPEG_Encode() group #LightYellow Optional user->JPEG : HAL_JPEG_Abort() end user<-JPEG : HAL_JPEG_DataReadyCallback() \is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size group #LightYellow Optional user->JPEG : HAL_JPEG_PauseOutputBuffer() user->JPEG : HAL_JPEG_UpdateOutputBuffer() user->JPEG : HAL_JPEG_ResumeOutputBuffer() end user<-JPEG : HAL_JPEG_GetDataCallback() \ is asserted when the input buffer has \ \nbeen consumed by the peripheral and to ask for a new data chunk group #LightYellow Optional user->JPEG : HAL_JPEG_PauseInputBuffer() user->JPEG : HAL_JPEG_UpdateInputBuffer() user->JPEG : HAL_JPEG_ResumeInputBuffer() end user<-JPEG : HAL_JPEG_EncodeCpltCallback() is asserted when the HAL JPEG driver has \ \nended the current JPEG encoding operation user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) @enduml$

Called functions:

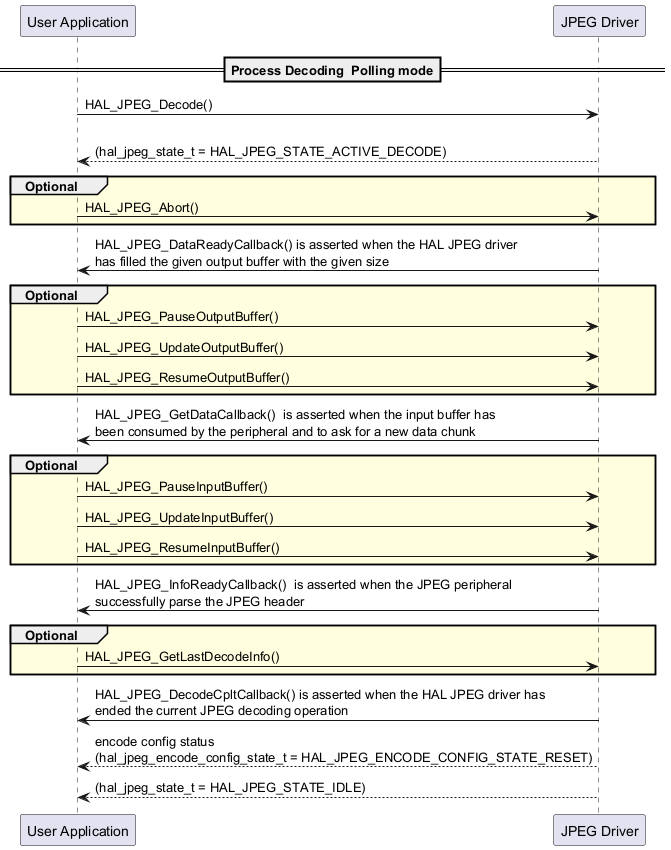

JPEG Decoding - Polling Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG == Process Decoding Polling mode== user->JPEG : HAL_JPEG_Decode() user<--JPEG : \n(hal_jpeg_state_t = HAL_JPEG_STATE_ACTIVE_DECODE) group #LightYellow Optional user->JPEG : HAL_JPEG_Abort() end user<-JPEG : HAL_JPEG_DataReadyCallback() is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size group #LightYellow Optional user->JPEG : HAL_JPEG_PauseOutputBuffer() user->JPEG : HAL_JPEG_UpdateOutputBuffer() user->JPEG : HAL_JPEG_ResumeOutputBuffer() end user<-JPEG : HAL_JPEG_GetDataCallback() is asserted when the input buffer has \ \nbeen consumed by the peripheral and to ask for a new data chunk group #LightYellow Optional user->JPEG : HAL_JPEG_PauseInputBuffer() user->JPEG : HAL_JPEG_UpdateInputBuffer() user->JPEG : HAL_JPEG_ResumeInputBuffer() end user<-JPEG : HAL_JPEG_InfoReadyCallback() is asserted when the JPEG peripheral \ \nsuccessfully parse the JPEG header group #LightYellow Optional user->JPEG : HAL_JPEG_GetLastDecodeInfo() end user<-JPEG : HAL_JPEG_DecodeCpltCallback() is asserted when the HAL JPEG driver has \ \nended the current JPEG decoding operation user<--JPEG : encode config status \n(hal_jpeg_encode_config_state_t = HAL_JPEG_ENCODE_CONFIG_STATE_RESET) user<--JPEG : (hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) @enduml$

Called functions:

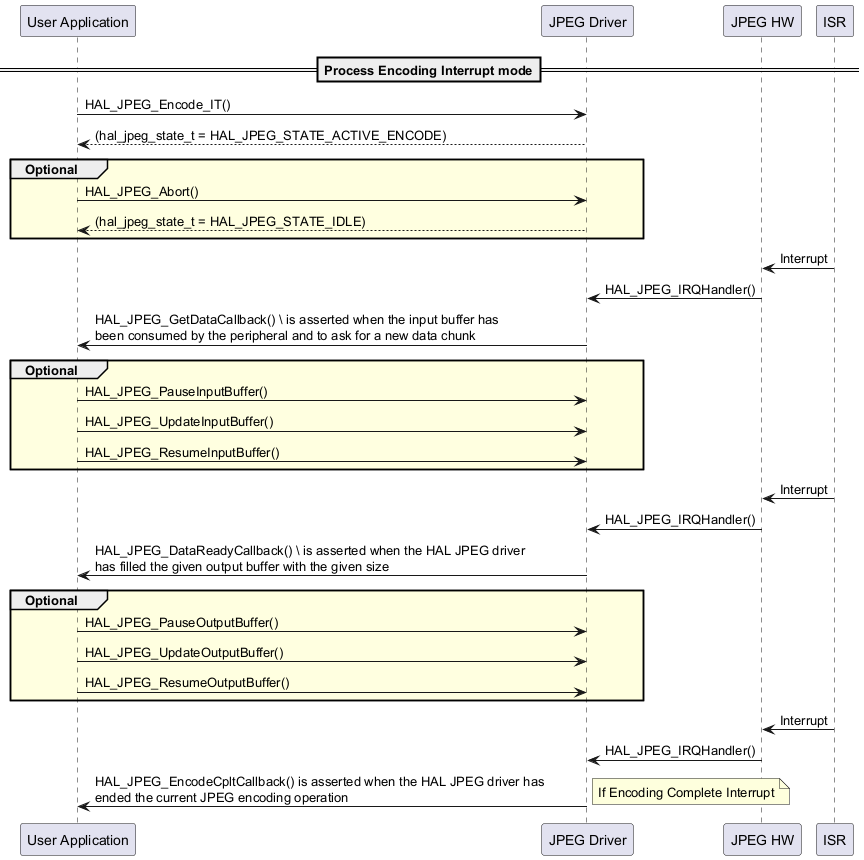

JPEG Encoding - Interrupt Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG participant "JPEG HW" as hw participant "ISR" as isr == Process Encoding Interrupt mode== user->JPEG : HAL_JPEG_Encode_IT() user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_ACTIVE_ENCODE) group #LightYellow Optional user->JPEG : HAL_JPEG_Abort() user<--JPEG : (hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) end isr->hw : Interrupt hw->JPEG : HAL_JPEG_IRQHandler() user<-JPEG : HAL_JPEG_GetDataCallback() \ is asserted when the input buffer has \ \nbeen consumed by the peripheral and to ask for a new data chunk group #LightYellow Optional user->JPEG : HAL_JPEG_PauseInputBuffer() user->JPEG : HAL_JPEG_UpdateInputBuffer() user->JPEG : HAL_JPEG_ResumeInputBuffer() end isr->hw : Interrupt hw->JPEG : HAL_JPEG_IRQHandler() user<-JPEG : HAL_JPEG_DataReadyCallback() \ is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size group #LightYellow Optional user->JPEG : HAL_JPEG_PauseOutputBuffer() user->JPEG : HAL_JPEG_UpdateOutputBuffer() user->JPEG : HAL_JPEG_ResumeOutputBuffer() end isr->hw : Interrupt hw->JPEG : HAL_JPEG_IRQHandler() user<-JPEG : HAL_JPEG_EncodeCpltCallback() is asserted when the HAL JPEG driver has \ \nended the current JPEG encoding operation note right : If Encoding Complete Interrupt @enduml$

Called functions:

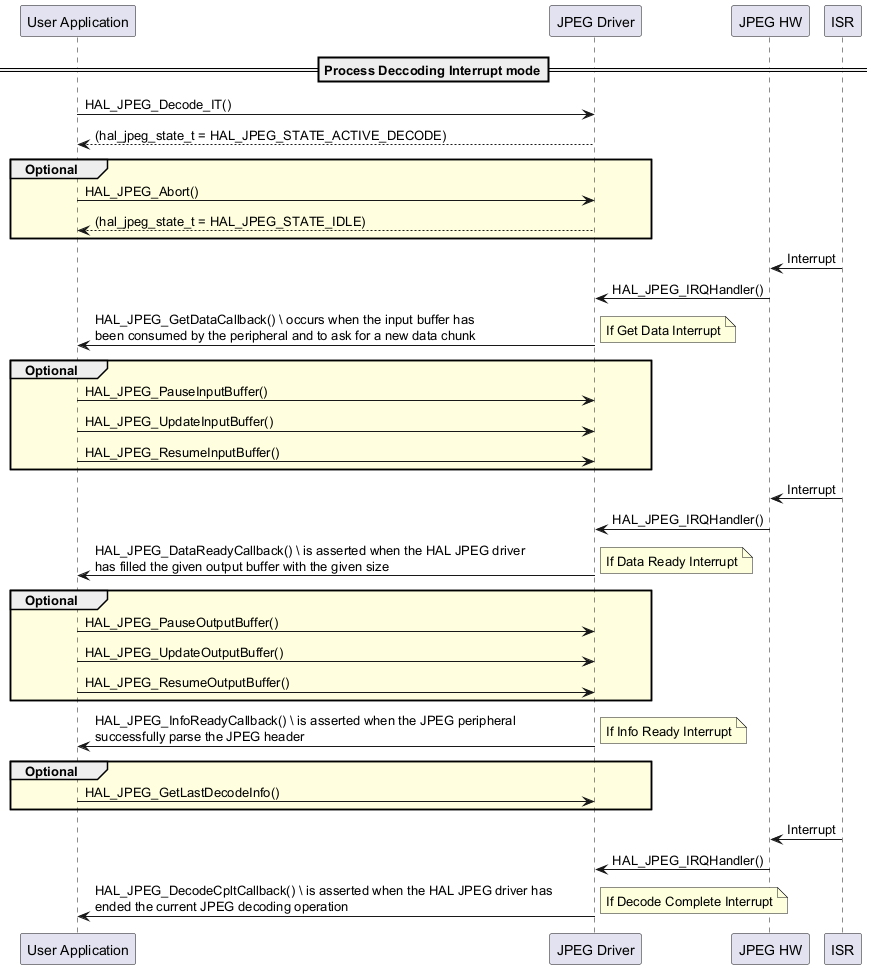

JPEG Decoding - Interrupt Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG participant "JPEG HW" as hw participant "ISR" as isr == Process Deccoding Interrupt mode== user->JPEG : HAL_JPEG_Decode_IT() user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_ACTIVE_DECODE) group #LightYellow Optional user->JPEG : HAL_JPEG_Abort() user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) end isr->hw : Interrupt hw->JPEG : HAL_JPEG_IRQHandler() user<-JPEG : HAL_JPEG_GetDataCallback() \ occurs when the input buffer has \ \nbeen consumed by the peripheral and to ask for a new data chunk note right : If Get Data Interrupt group #LightYellow Optional user->JPEG : HAL_JPEG_PauseInputBuffer() user->JPEG : HAL_JPEG_UpdateInputBuffer() user->JPEG : HAL_JPEG_ResumeInputBuffer() end isr->hw : Interrupt hw->JPEG : HAL_JPEG_IRQHandler() user<-JPEG : HAL_JPEG_DataReadyCallback() \ is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size note right : If Data Ready Interrupt group #LightYellow Optional user->JPEG : HAL_JPEG_PauseOutputBuffer() user->JPEG : HAL_JPEG_UpdateOutputBuffer() user->JPEG : HAL_JPEG_ResumeOutputBuffer() end user<-JPEG : HAL_JPEG_InfoReadyCallback() \ is asserted when the JPEG peripheral \ \nsuccessfully parse the JPEG header note right : If Info Ready Interrupt group #LightYellow Optional user->JPEG : HAL_JPEG_GetLastDecodeInfo() end isr->hw : Interrupt hw->JPEG : HAL_JPEG_IRQHandler() user<-JPEG : HAL_JPEG_DecodeCpltCallback() \ is asserted when the HAL JPEG driver has \ \nended the current JPEG decoding operation note right : If Decode Complete Interrupt @enduml$

Called functions:

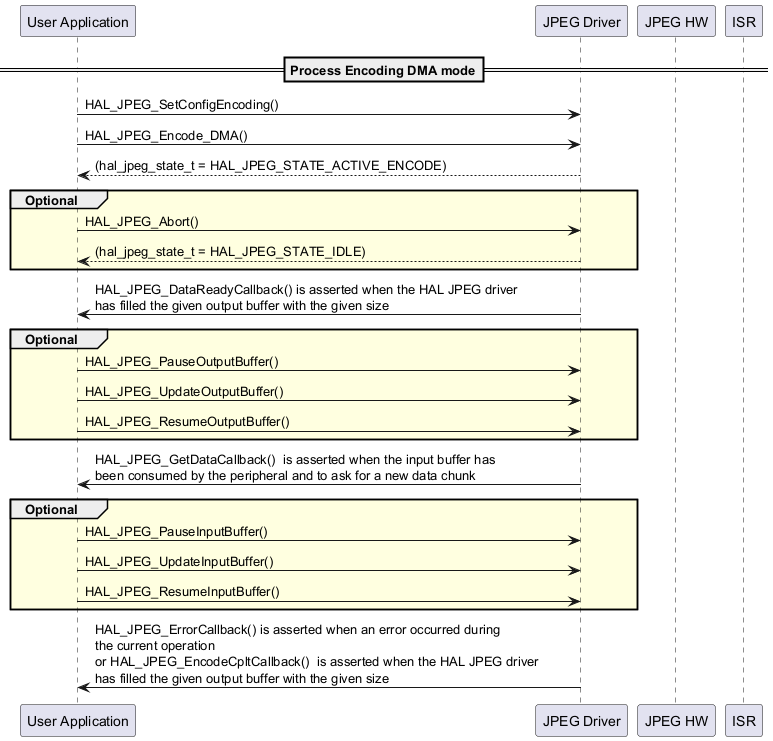

JPEG Encoding - DMA Mode ¶

$@startuml ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG participant "JPEG HW" as hw participant "ISR" as isr == Process Encoding DMA mode== user->JPEG : HAL_JPEG_SetConfigEncoding() user->JPEG : HAL_JPEG_Encode_DMA() user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_ACTIVE_ENCODE) group #LightYellow Optional user->JPEG : HAL_JPEG_Abort() user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) end user<-JPEG : HAL_JPEG_DataReadyCallback() is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size group #LightYellow Optional user->JPEG : HAL_JPEG_PauseOutputBuffer() user->JPEG : HAL_JPEG_UpdateOutputBuffer() user->JPEG : HAL_JPEG_ResumeOutputBuffer() end user<-JPEG : HAL_JPEG_GetDataCallback() is asserted when the input buffer has \ \nbeen consumed by the peripheral and to ask for a new data chunk group #LightYellow Optional user->JPEG : HAL_JPEG_PauseInputBuffer() user->JPEG : HAL_JPEG_UpdateInputBuffer() user->JPEG : HAL_JPEG_ResumeInputBuffer() end user<-JPEG : HAL_JPEG_ErrorCallback() is asserted when an error occurred during \ \nthe current operation \nor HAL_JPEG_EncodeCpltCallback() is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size @enduml$

Called functions:

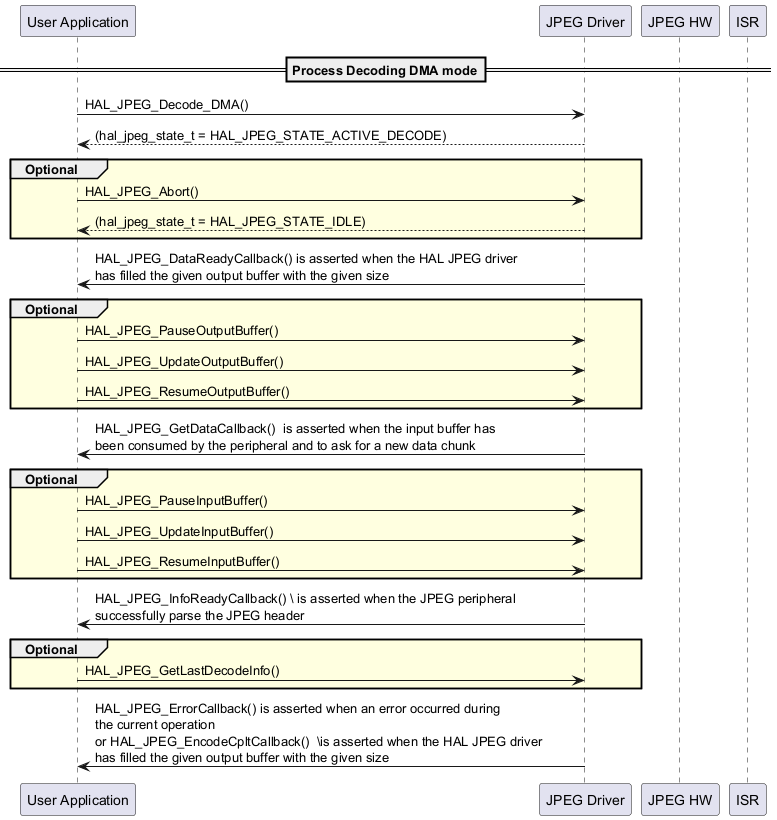

JPEG Decoding - DMA Mode ¶

$@startuml '' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as user participant "JPEG Driver" as JPEG participant "JPEG HW" as hw participant "ISR" as isr == Process Decoding DMA mode== user->JPEG : HAL_JPEG_Decode_DMA() user<--JPEG : (hal_jpeg_state_t = HAL_JPEG_STATE_ACTIVE_DECODE) group #LightYellow Optional user->JPEG : HAL_JPEG_Abort() user<--JPEG :(hal_jpeg_state_t = HAL_JPEG_STATE_IDLE) end user<-JPEG : HAL_JPEG_DataReadyCallback() is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size group #LightYellow Optional user->JPEG : HAL_JPEG_PauseOutputBuffer() user->JPEG : HAL_JPEG_UpdateOutputBuffer() user->JPEG : HAL_JPEG_ResumeOutputBuffer() end user<-JPEG : HAL_JPEG_GetDataCallback() is asserted when the input buffer has \ \nbeen consumed by the peripheral and to ask for a new data chunk group #LightYellow Optional user->JPEG : HAL_JPEG_PauseInputBuffer() user->JPEG : HAL_JPEG_UpdateInputBuffer() user->JPEG : HAL_JPEG_ResumeInputBuffer() end user<-JPEG : HAL_JPEG_InfoReadyCallback() \ is asserted when the JPEG peripheral \ \nsuccessfully parse the JPEG header group #LightYellow Optional user->JPEG : HAL_JPEG_GetLastDecodeInfo() end user<-JPEG : HAL_JPEG_ErrorCallback() is asserted when an error occurred during \ \nthe current operation \nor HAL_JPEG_EncodeCpltCallback() \is asserted when the HAL JPEG driver \ \nhas filled the given output buffer with the given size @enduml$

Called functions:

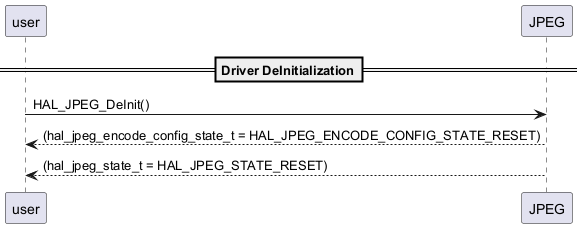

JPEG Driver DeInitialization ¶

@startuml

== Driver DeInitialization==

user->JPEG : HAL_JPEG_DeInit()

user<--JPEG : (hal_jpeg_encode_config_state_t = HAL_JPEG_ENCODE_CONFIG_STATE_RESET)

user<--JPEG : (hal_jpeg_state_t = HAL_JPEG_STATE_RESET)

@enduml

Called functions:

HAL_JPEG_DeInit()
