HAL MDF Use Cases ¶

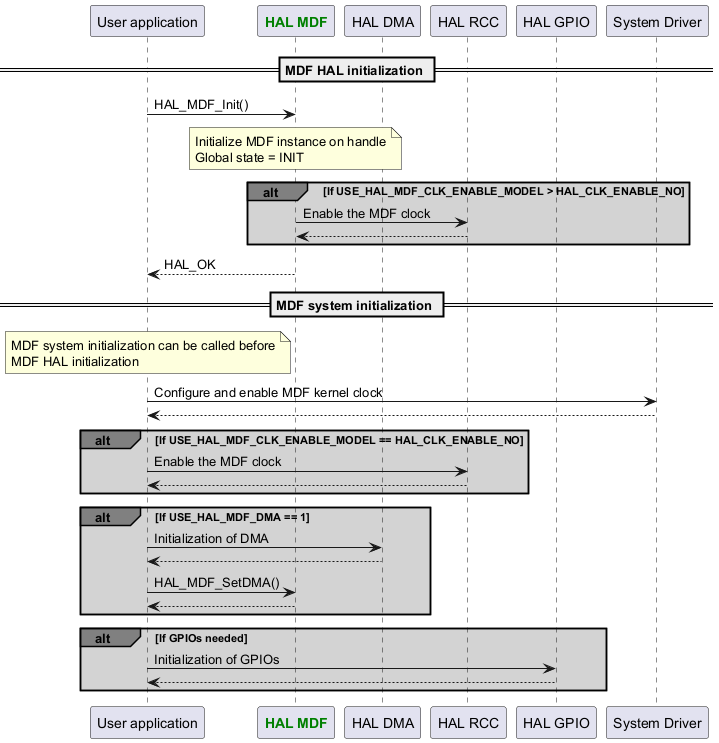

Global MDF initialization ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "HAL DMA" as DMA participant "HAL RCC" as RCC participant "HAL GPIO" as GPIO participant "System Driver" as SYSTEM == MDF HAL initialization == App -> MDF : HAL_MDF_Init() Note over MDF : Initialize MDF instance on handle\nGlobal state = INIT alt#grey #lightgrey If USE_HAL_MDF_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO MDF->RCC : Enable the MDF clock RCC-->MDF end App <-- MDF : HAL_OK == MDF system initialization == Note over App : MDF system initialization can be called before\nMDF HAL initialization App->SYSTEM : Configure and enable MDF kernel clock SYSTEM --> App alt#grey #lightgrey If USE_HAL_MDF_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO App->RCC : Enable the MDF clock RCC --> App end alt#grey #lightgrey If USE_HAL_MDF_DMA == 1 App->DMA : Initialization of DMA DMA-->App App->MDF : HAL_MDF_SetDMA() MDF-->App end alt#grey #lightgrey If GPIOs needed App->GPIO : Initialization of GPIOs GPIO-->App end @enduml$

Called functions:

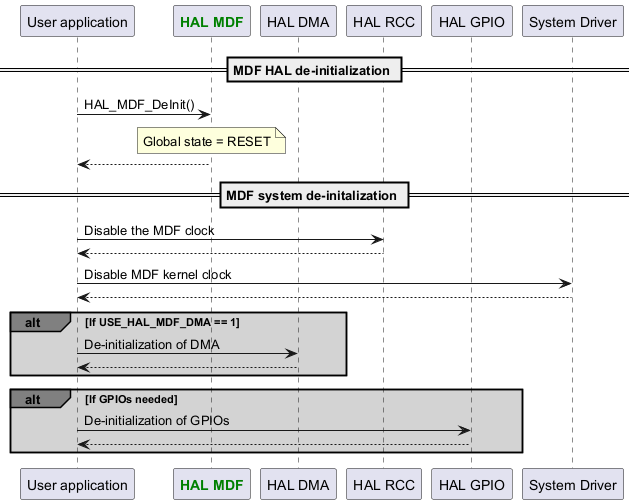

Global MDF de-initialization ¶

Called functions:

HAL_MDF_DeInit()

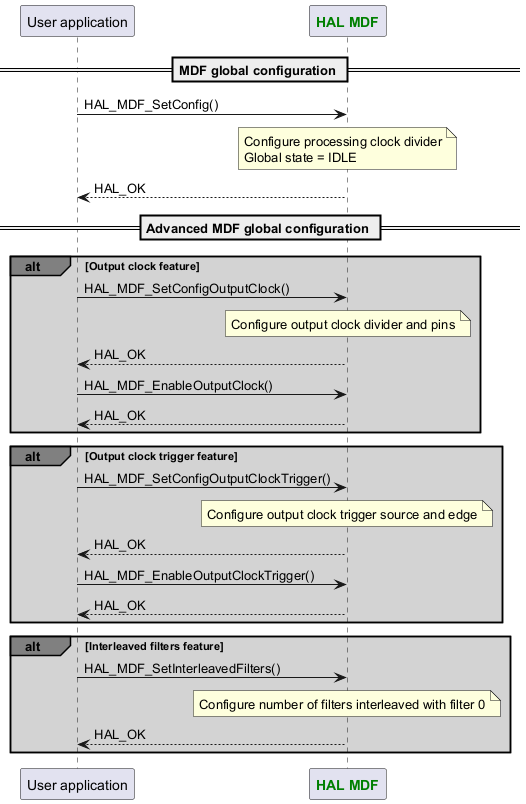

Global MDF configuration ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == MDF global configuration == App -> MDF : HAL_MDF_SetConfig() Note over MDF : Configure processing clock divider\nGlobal state = IDLE App <-- MDF :HAL_OK == Advanced MDF global configuration == alt#grey #lightgrey Output clock feature App -> MDF : HAL_MDF_SetConfigOutputClock() Note over MDF : Configure output clock divider and pins App <-- MDF :HAL_OK App -> MDF : HAL_MDF_EnableOutputClock() App <-- MDF :HAL_OK end alt#grey #lightgrey Output clock trigger feature App -> MDF : HAL_MDF_SetConfigOutputClockTrigger() Note over MDF : Configure output clock trigger source and edge App <-- MDF :HAL_OK App -> MDF : HAL_MDF_EnableOutputClockTrigger() App <-- MDF :HAL_OK end alt#grey #lightgrey Interleaved filters feature App -> MDF : HAL_MDF_SetInterleavedFilters() Note over MDF : Configure number of filters interleaved with filter 0 App <-- MDF :HAL_OK end @enduml$

Called functions:

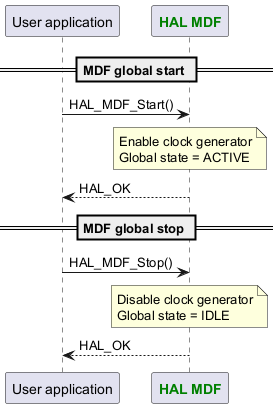

Global MDF start/stop ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == MDF global start == App -> MDF : HAL_MDF_Start() Note over MDF : Enable clock generator\nGlobal state = ACTIVE App <-- MDF :HAL_OK == MDF global stop == App -> MDF : HAL_MDF_Stop() Note over MDF : Disable clock generator\nGlobal state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

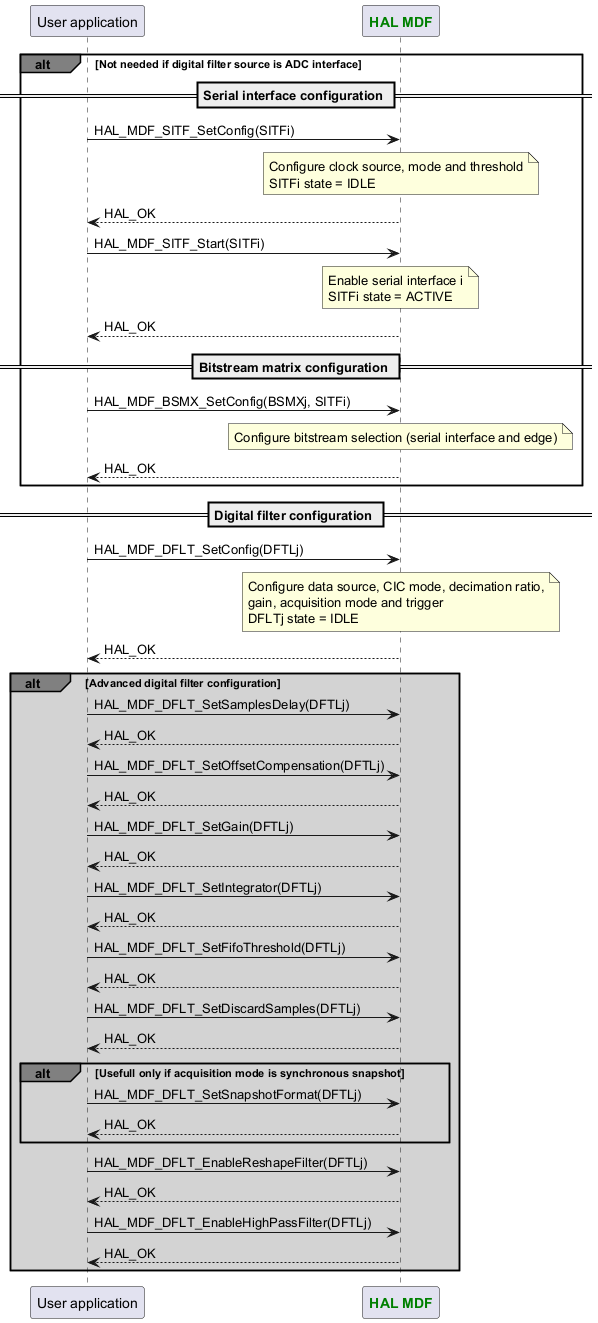

MDF acquisition configuration ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF alt#grey Not needed if digital filter source is ADC interface == Serial interface configuration == App -> MDF : HAL_MDF_SITF_SetConfig(SITFi) Note over MDF : Configure clock source, mode and threshold\nSITFi state = IDLE App <-- MDF :HAL_OK App -> MDF : HAL_MDF_SITF_Start(SITFi) Note over MDF : Enable serial interface i\nSITFi state = ACTIVE App <-- MDF :HAL_OK == Bitstream matrix configuration == App -> MDF : HAL_MDF_BSMX_SetConfig(BSMXj, SITFi) Note over MDF : Configure bitstream selection (serial interface and edge) App <-- MDF :HAL_OK end == Digital filter configuration == App -> MDF : HAL_MDF_DFLT_SetConfig(DFTLj) Note over MDF : Configure data source, CIC mode, decimation ratio,\ngain, acquisition mode and trigger\nDFLTj state = IDLE App <-- MDF :HAL_OK alt#grey #lightgrey Advanced digital filter configuration App -> MDF : HAL_MDF_DFLT_SetSamplesDelay(DFTLj) App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_SetOffsetCompensation(DFTLj) App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_SetGain(DFTLj) App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_SetIntegrator(DFTLj) App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_SetFifoThreshold(DFTLj) App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_SetDiscardSamples(DFTLj) App <-- MDF :HAL_OK alt#grey #lightgrey Usefull only if acquisition mode is synchronous snapshot App -> MDF : HAL_MDF_DFLT_SetSnapshotFormat(DFTLj) App <-- MDF :HAL_OK end App -> MDF : HAL_MDF_DFLT_EnableReshapeFilter(DFTLj) App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_EnableHighPassFilter(DFTLj) App <-- MDF :HAL_OK end @enduml$

Called functions:

MDF acquisition in asynchronous continuous mode ¶

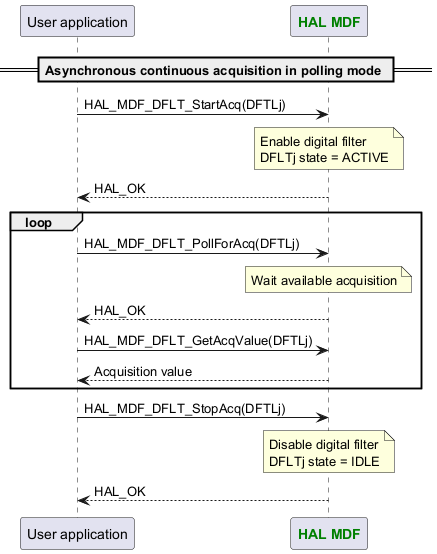

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Asynchronous continuous acquisition in polling mode == App -> MDF : HAL_MDF_DFLT_StartAcq(DFTLj) Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop App -> MDF : HAL_MDF_DFLT_PollForAcq(DFTLj) Note over MDF : Wait available acquisition App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value end App -> MDF : HAL_MDF_DFLT_StopAcq(DFTLj) Note over MDF : Disable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

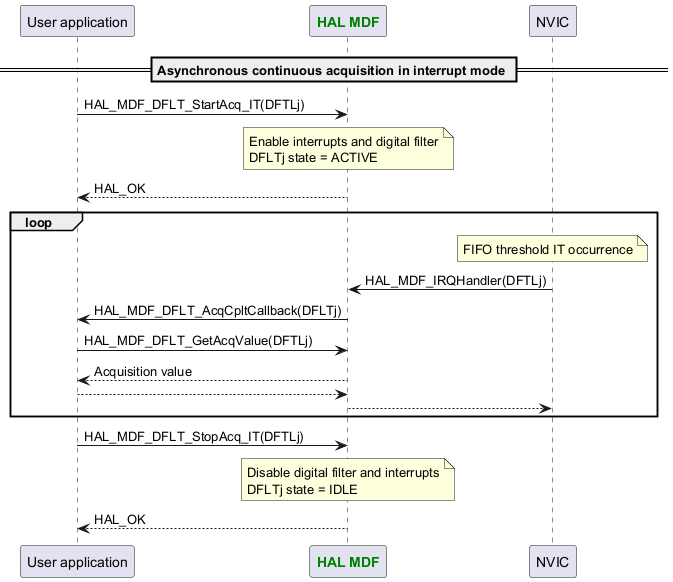

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Asynchronous continuous acquisition in interrupt mode == App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop Note over NVIC : FIFO threshold IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value MDF <-- App NVIC <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "DMA" as DMA == Asynchronous continuous acquisition in DMA mode == loop If not circular DMA App -> MDF : HAL_MDF_DFLT_StartAcq_DMA(DFTLj) Note over MDF : Enable DMA and interrupts MDF -> DMA : HAL_DMA_StartPeriphXfer_IT_Opt() MDF <-- DMA : HAL_OK Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF : HAL_OK loop If circular DMA Note over DMA : Transfer half complete IT occurrence DMA -> MDF : MDF_DMA_HalfCpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqHalfCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF Note over DMA : Transfer complete IT occurrence DMA -> MDF : MDF_DMA_CpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) Note over App : User implementation MDF <-- App alt#grey If not circular DMA Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE end DMA <-- MDF end end App -> MDF : HAL_MDF_DFLT_StopAcq_DMA(DFTLj) MDF -> DMA : HAL_DMA_Abort_IT() alt#grey If DMA transfer in progress MDF <-- DMA : HAL_OK App <-- MDF :HAL_OK DMA -> MDF : MDF_DMA_AbortCallback() Note over MDF : Retrieve DFLT index from DMA handle\nDisable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF else If no DMA transfer in progress MDF <-- DMA : HAL_ERROR Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App App <-- MDF :HAL_OK end @enduml$

Called functions:

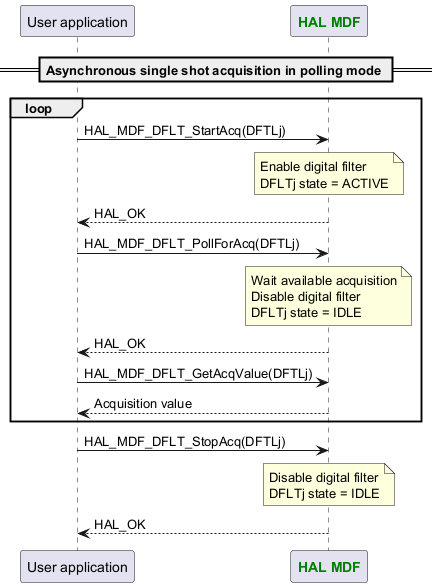

MDF acquisition in asynchronous single shot mode ¶

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Asynchronous single shot acquisition in polling mode == loop App -> MDF : HAL_MDF_DFLT_StartAcq(DFTLj) Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_PollForAcq(DFTLj) Note over MDF : Wait available acquisition\nDisable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value end App -> MDF : HAL_MDF_DFLT_StopAcq(DFTLj) Note over MDF : Disable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Asynchronous single shot acquisition in interrupt mode == loop App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK Note over NVIC : FIFO threshold IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value MDF <-- App NVIC <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "DMA" as DMA == Asynchronous single shot acquisition in DMA mode == loop App -> MDF : HAL_MDF_DFLT_StartAcq_DMA(DFTLj) Note over MDF : Enable DMA and interrupts MDF -> DMA : HAL_DMA_StartPeriphXfer_IT_Opt() MDF <-- DMA : HAL_OK Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF : HAL_OK Note over DMA : Transfer complete IT occurrence DMA -> MDF : MDF_DMA_CpltCallback() Note over MDF : Retrieve DFLT index from DMA handle,\ndisable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq_DMA(DFTLj) MDF -> DMA : HAL_DMA_Abort_IT() alt#grey If DMA transfer in progress MDF <-- DMA : HAL_OK App <-- MDF :HAL_OK DMA -> MDF : MDF_DMA_AbortCallback() Note over MDF : Retrieve DFLT index from DMA handle\nDisable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF else If no DMA transfer in progress MDF <-- DMA : HAL_ERROR Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App App <-- MDF :HAL_OK end @enduml$

Called functions:

MDF acquisition in synchronous continuous mode ¶

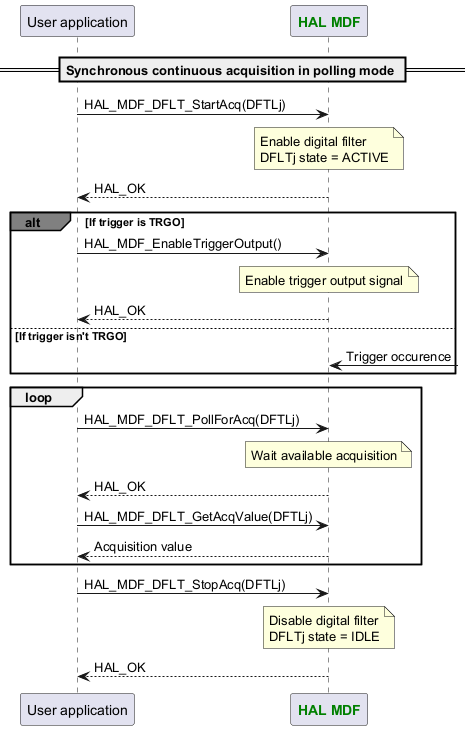

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Synchronous continuous acquisition in polling mode == App -> MDF : HAL_MDF_DFLT_StartAcq(DFTLj) Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end loop App -> MDF : HAL_MDF_DFLT_PollForAcq(DFTLj) Note over MDF : Wait available acquisition App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value end App -> MDF : HAL_MDF_DFLT_StopAcq(DFTLj) Note over MDF : Disable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Synchronous continuous acquisition in interrupt mode == App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end loop Note over NVIC : FIFO threshold IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value MDF <-- App NVIC <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

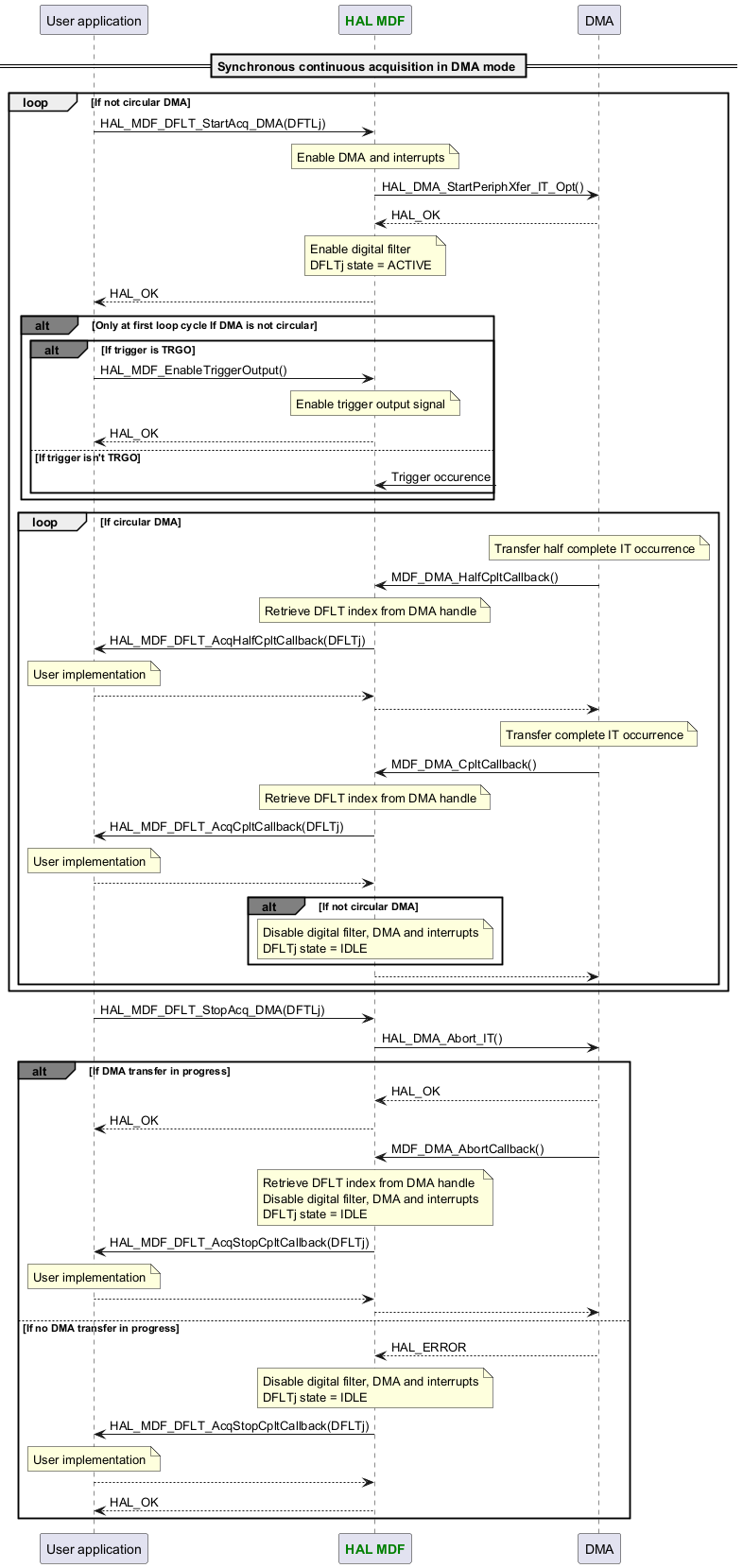

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "DMA" as DMA == Synchronous continuous acquisition in DMA mode == loop If not circular DMA App -> MDF : HAL_MDF_DFLT_StartAcq_DMA(DFTLj) Note over MDF : Enable DMA and interrupts MDF -> DMA : HAL_DMA_StartPeriphXfer_IT_Opt() MDF <-- DMA : HAL_OK Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF : HAL_OK alt#grey Only at first loop cycle If DMA is not circular alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end end loop If circular DMA Note over DMA : Transfer half complete IT occurrence DMA -> MDF : MDF_DMA_HalfCpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqHalfCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF Note over DMA : Transfer complete IT occurrence DMA -> MDF : MDF_DMA_CpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) Note over App : User implementation MDF <-- App alt#grey If not circular DMA Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE end DMA <-- MDF end end App -> MDF : HAL_MDF_DFLT_StopAcq_DMA(DFTLj) MDF -> DMA : HAL_DMA_Abort_IT() alt#grey If DMA transfer in progress MDF <-- DMA : HAL_OK App <-- MDF :HAL_OK DMA -> MDF : MDF_DMA_AbortCallback() Note over MDF : Retrieve DFLT index from DMA handle\nDisable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF else If no DMA transfer in progress MDF <-- DMA : HAL_ERROR Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App App <-- MDF :HAL_OK end @enduml$

Called functions:

MDF acquisition in synchronous single shot mode ¶

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Synchronous single shot acquisition in polling mode == App -> MDF : HAL_MDF_DFLT_StartAcq(DFTLj) Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end App -> MDF : HAL_MDF_DFLT_PollForAcq(DFTLj) Note over MDF : Wait available acquisition App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value end App -> MDF : HAL_MDF_DFLT_StopAcq(DFTLj) Note over MDF : Disable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

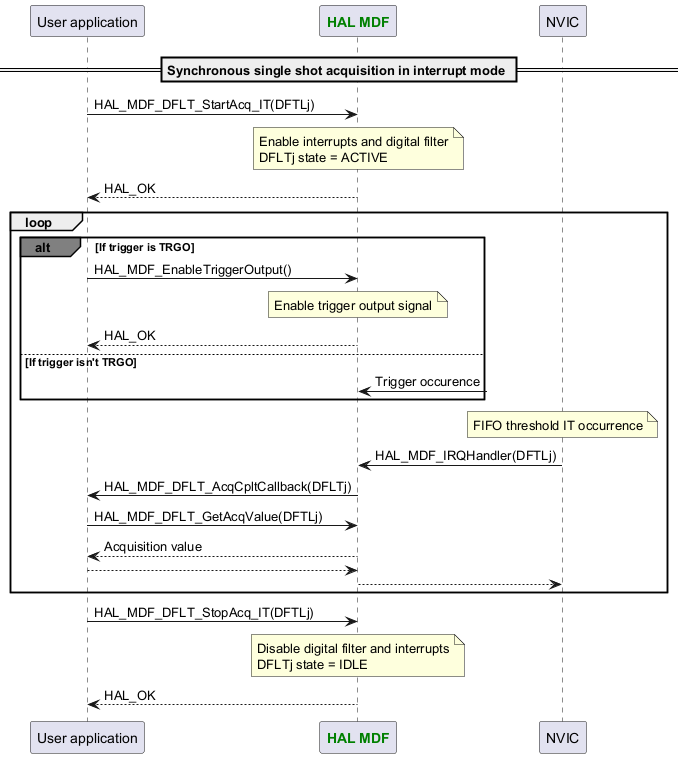

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Synchronous single shot acquisition in interrupt mode == App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end Note over NVIC : FIFO threshold IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value MDF <-- App NVIC <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

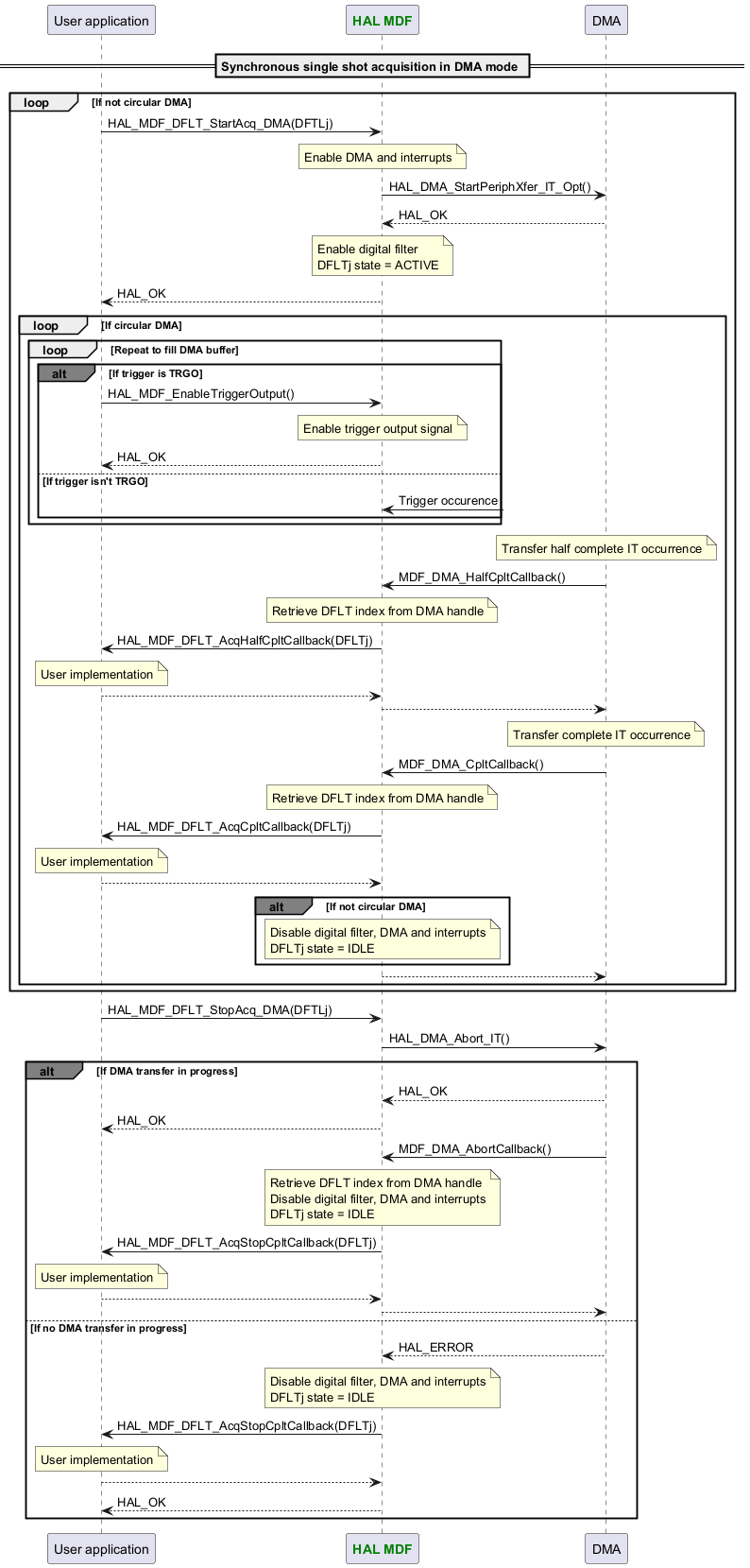

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "DMA" as DMA == Synchronous single shot acquisition in DMA mode == loop If not circular DMA App -> MDF : HAL_MDF_DFLT_StartAcq_DMA(DFTLj) Note over MDF : Enable DMA and interrupts MDF -> DMA : HAL_DMA_StartPeriphXfer_IT_Opt() MDF <-- DMA : HAL_OK Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF : HAL_OK loop If circular DMA loop Repeat to fill DMA buffer alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end end Note over DMA : Transfer half complete IT occurrence DMA -> MDF : MDF_DMA_HalfCpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqHalfCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF Note over DMA : Transfer complete IT occurrence DMA -> MDF : MDF_DMA_CpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) Note over App : User implementation MDF <-- App alt#grey If not circular DMA Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE end DMA <-- MDF end end App -> MDF : HAL_MDF_DFLT_StopAcq_DMA(DFTLj) MDF -> DMA : HAL_DMA_Abort_IT() alt#grey If DMA transfer in progress MDF <-- DMA : HAL_OK App <-- MDF :HAL_OK DMA -> MDF : MDF_DMA_AbortCallback() Note over MDF : Retrieve DFLT index from DMA handle\nDisable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF else If no DMA transfer in progress MDF <-- DMA : HAL_ERROR Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App App <-- MDF :HAL_OK end @enduml$

Called functions:

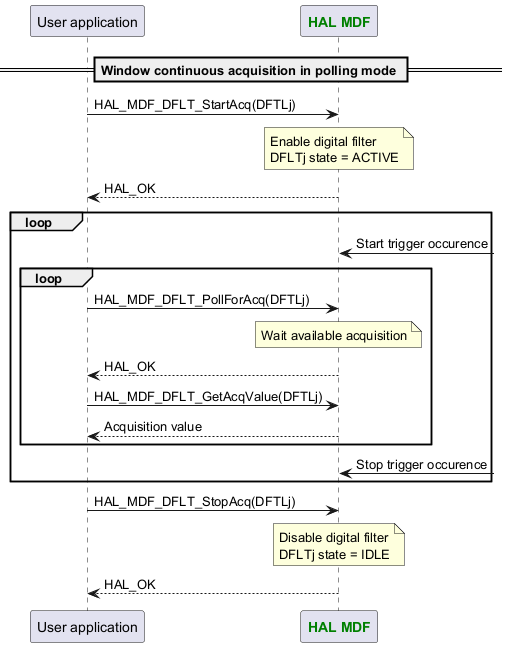

MDF acquisition in window continuous mode ¶

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Window continuous acquisition in polling mode == App -> MDF : HAL_MDF_DFLT_StartAcq(DFTLj) Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop MDF <-? :Start trigger occurence loop App -> MDF : HAL_MDF_DFLT_PollForAcq(DFTLj) Note over MDF : Wait available acquisition App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value end MDF <-? :Stop trigger occurence end App -> MDF : HAL_MDF_DFLT_StopAcq(DFTLj) Note over MDF : Disable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

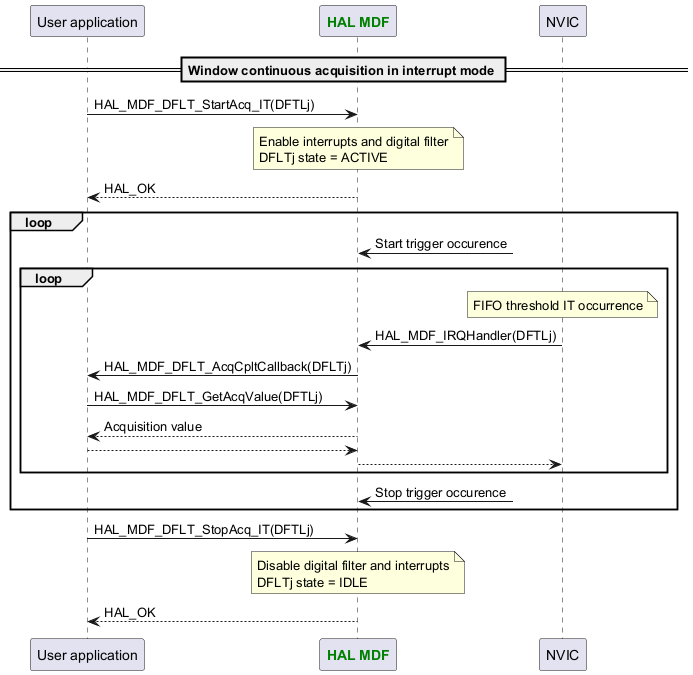

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Window continuous acquisition in interrupt mode == App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop MDF <-? :Start trigger occurence loop Note over NVIC : FIFO threshold IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF :Acquisition value MDF <-- App NVIC <-- MDF end MDF <-? :Stop trigger occurence end App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

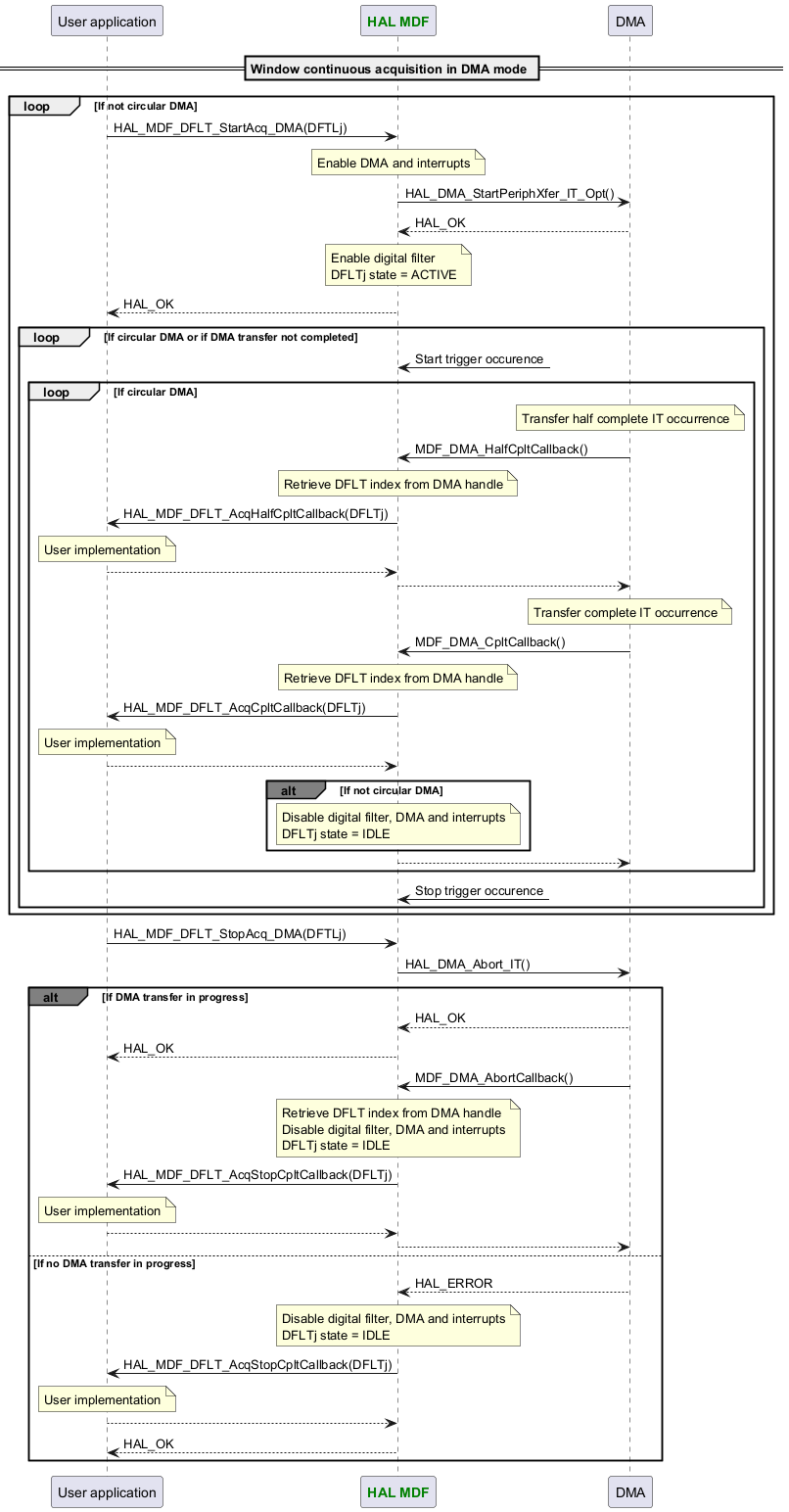

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "DMA" as DMA == Window continuous acquisition in DMA mode == loop If not circular DMA App -> MDF : HAL_MDF_DFLT_StartAcq_DMA(DFTLj) Note over MDF : Enable DMA and interrupts MDF -> DMA : HAL_DMA_StartPeriphXfer_IT_Opt() MDF <-- DMA : HAL_OK Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF : HAL_OK loop If circular DMA or if DMA transfer not completed MDF <-? :Start trigger occurence loop If circular DMA Note over DMA : Transfer half complete IT occurrence DMA -> MDF : MDF_DMA_HalfCpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqHalfCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF Note over DMA : Transfer complete IT occurrence DMA -> MDF : MDF_DMA_CpltCallback() Note over MDF : Retrieve DFLT index from DMA handle MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) Note over App : User implementation MDF <-- App alt#grey If not circular DMA Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE end DMA <-- MDF end MDF <-? :Stop trigger occurence end end App -> MDF : HAL_MDF_DFLT_StopAcq_DMA(DFTLj) MDF -> DMA : HAL_DMA_Abort_IT() alt#grey If DMA transfer in progress MDF <-- DMA : HAL_OK App <-- MDF :HAL_OK DMA -> MDF : MDF_DMA_AbortCallback() Note over MDF : Retrieve DFLT index from DMA handle\nDisable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF else If no DMA transfer in progress MDF <-- DMA : HAL_ERROR Note over MDF : Disable digital filter, DMA and interrupts\nDFLTj state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLTj) Note over App : User implementation MDF <-- App App <-- MDF :HAL_OK end @enduml$

Called functions:

MDF acquisition in synchronous snapshot mode ¶

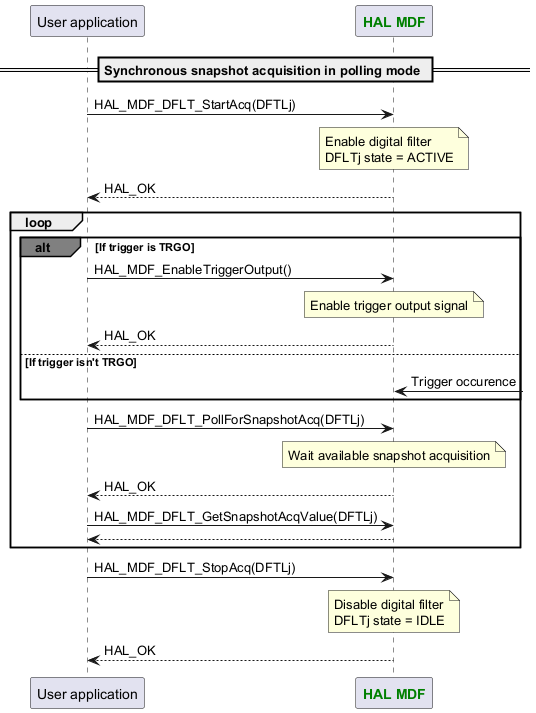

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Synchronous snapshot acquisition in polling mode == App -> MDF : HAL_MDF_DFLT_StartAcq(DFTLj) Note over MDF : Enable digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end App -> MDF : HAL_MDF_DFLT_PollForSnapshotAcq(DFTLj) Note over MDF : Wait available snapshot acquisition App <-- MDF :HAL_OK App -> MDF : HAL_MDF_DFLT_GetSnapshotAcqValue(DFTLj) App <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq(DFTLj) Note over MDF : Disable digital filter\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

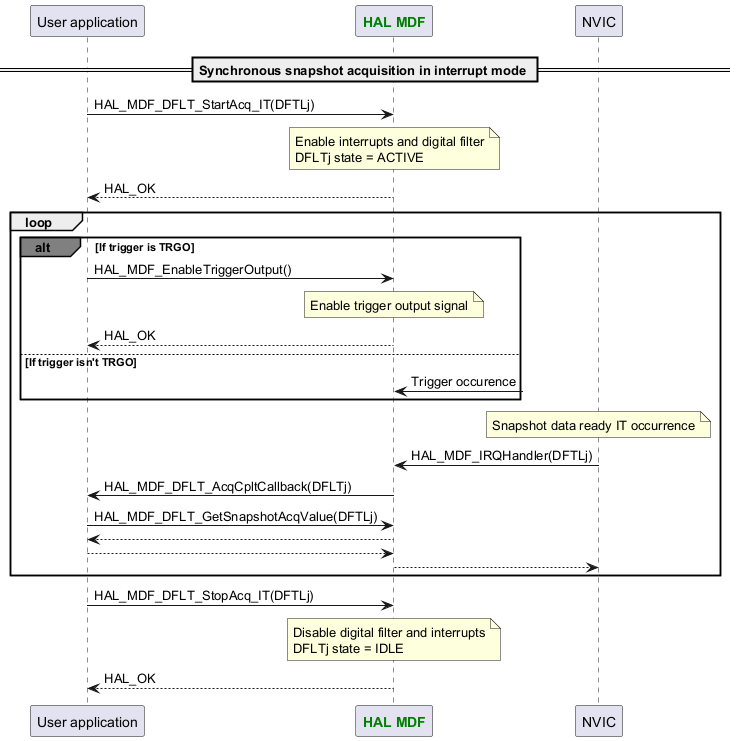

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Synchronous snapshot acquisition in interrupt mode == App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK loop alt#grey If trigger is TRGO App -> MDF : HAL_MDF_EnableTriggerOutput() Note over MDF : Enable trigger output signal App <-- MDF :HAL_OK else If trigger isn't TRGO MDF <-? :Trigger occurence end Note over NVIC : Snapshot data ready IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLTj) App -> MDF : HAL_MDF_DFLT_GetSnapshotAcqValue(DFTLj) App <-- MDF MDF <-- App NVIC <-- MDF end App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK @enduml$

Called functions:

MDF interleaved filters mode ¶

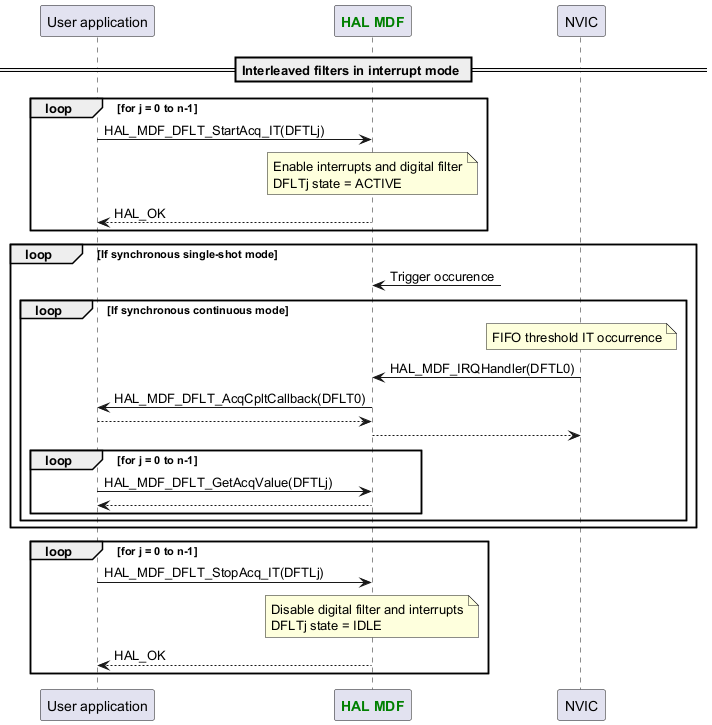

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Interleaved filters in interrupt mode == loop for j = 0 to n-1 App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK end loop If synchronous single-shot mode MDF <-? :Trigger occurence loop If synchronous continuous mode Note over NVIC : FIFO threshold IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTL0) MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLT0) MDF <-- App NVIC <-- MDF loop for j = 0 to n-1 App -> MDF : HAL_MDF_DFLT_GetAcqValue(DFTLj) App <-- MDF end end end loop for j = 0 to n-1 App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK end @enduml$

Called functions:

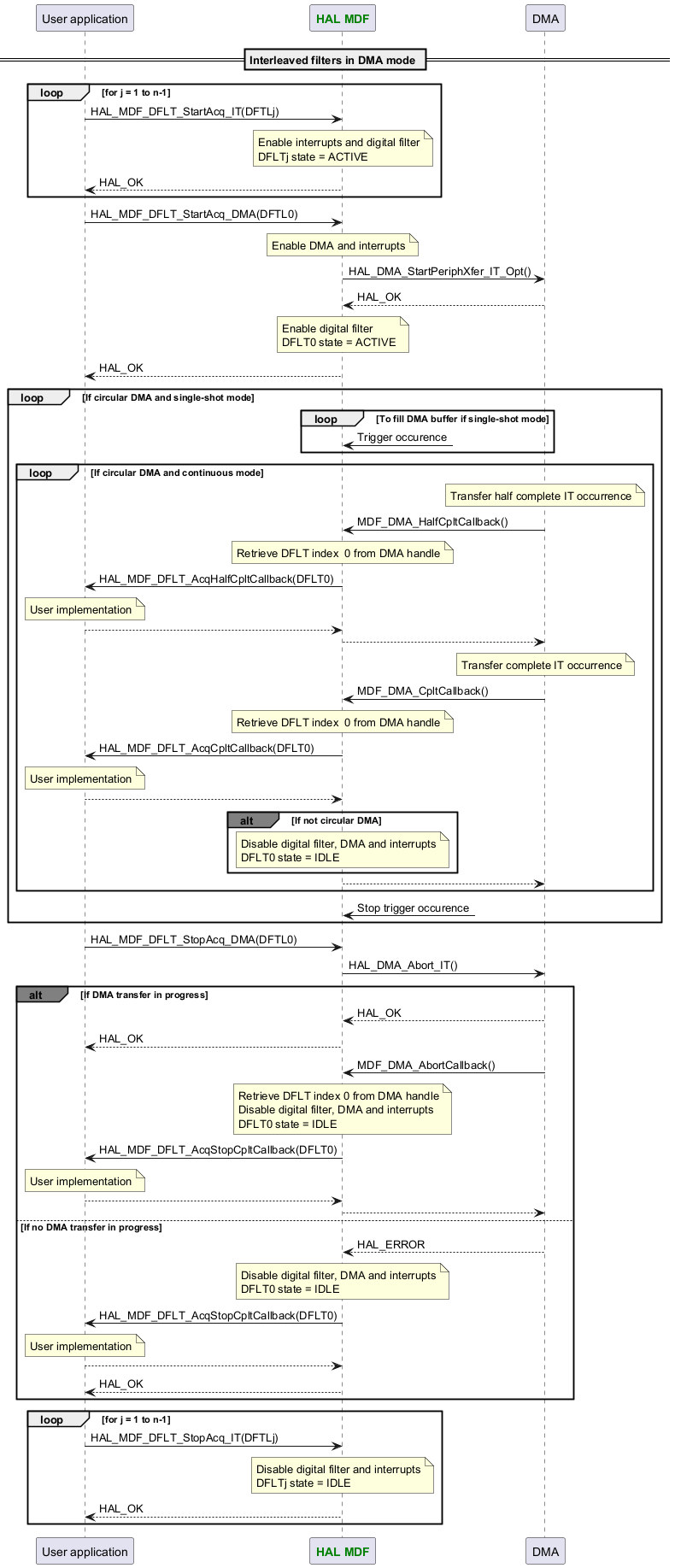

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "DMA" as DMA == Interleaved filters in DMA mode == loop for j = 1 to n-1 App -> MDF : HAL_MDF_DFLT_StartAcq_IT(DFTLj) Note over MDF : Enable interrupts and digital filter\nDFLTj state = ACTIVE App <-- MDF :HAL_OK end App -> MDF : HAL_MDF_DFLT_StartAcq_DMA(DFTL0) Note over MDF : Enable DMA and interrupts MDF -> DMA : HAL_DMA_StartPeriphXfer_IT_Opt() MDF <-- DMA : HAL_OK Note over MDF : Enable digital filter\nDFLT0 state = ACTIVE App <-- MDF : HAL_OK loop If circular DMA and single-shot mode loop To fill DMA buffer if single-shot mode MDF <-? :Trigger occurence end loop If circular DMA and continuous mode Note over DMA : Transfer half complete IT occurrence DMA -> MDF : MDF_DMA_HalfCpltCallback() Note over MDF : Retrieve DFLT index 0 from DMA handle MDF -> App : HAL_MDF_DFLT_AcqHalfCpltCallback(DFLT0) Note over App : User implementation MDF <-- App DMA <-- MDF Note over DMA : Transfer complete IT occurrence DMA -> MDF : MDF_DMA_CpltCallback() Note over MDF : Retrieve DFLT index 0 from DMA handle MDF -> App : HAL_MDF_DFLT_AcqCpltCallback(DFLT0) Note over App : User implementation MDF <-- App alt#grey If not circular DMA Note over MDF : Disable digital filter, DMA and interrupts\nDFLT0 state = IDLE end DMA <-- MDF end MDF <-? :Stop trigger occurence end App -> MDF : HAL_MDF_DFLT_StopAcq_DMA(DFTL0) MDF -> DMA : HAL_DMA_Abort_IT() alt#grey If DMA transfer in progress MDF <-- DMA : HAL_OK App <-- MDF :HAL_OK DMA -> MDF : MDF_DMA_AbortCallback() Note over MDF : Retrieve DFLT index 0 from DMA handle\nDisable digital filter, DMA and interrupts\nDFLT0 state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLT0) Note over App : User implementation MDF <-- App DMA <-- MDF else If no DMA transfer in progress MDF <-- DMA : HAL_ERROR Note over MDF : Disable digital filter, DMA and interrupts\nDFLT0 state = IDLE MDF -> App : HAL_MDF_DFLT_AcqStopCpltCallback(DFLT0) Note over App : User implementation MDF <-- App App <-- MDF :HAL_OK end loop for j = 1 to n-1 App -> MDF : HAL_MDF_DFLT_StopAcq_IT(DFTLj) Note over MDF : Disable digital filter and interrupts\nDFLTj state = IDLE App <-- MDF :HAL_OK end @enduml$

Called functions:

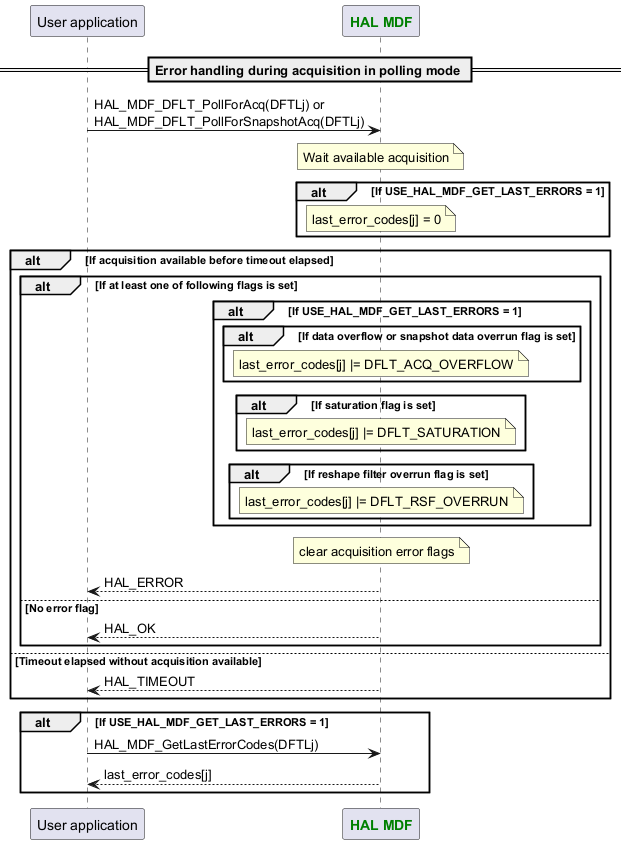

MDF error handling during acquisition ¶

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Error handling during acquisition in polling mode == App -> MDF : HAL_MDF_DFLT_PollForAcq(DFTLj) or\nHAL_MDF_DFLT_PollForSnapshotAcq(DFTLj) Note over MDF : Wait available acquisition alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 Note over MDF : last_error_codes[j] = 0 end alt If acquisition available before timeout elapsed alt If at least one of following flags is set alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 alt If data overflow or snapshot data overrun flag is set Note over MDF : last_error_codes[j] |= DFLT_ACQ_OVERFLOW end alt If saturation flag is set Note over MDF : last_error_codes[j] |= DFLT_SATURATION end alt If reshape filter overrun flag is set Note over MDF : last_error_codes[j] |= DFLT_RSF_OVERRUN end end Note over MDF : clear acquisition error flags App <-- MDF : HAL_ERROR else No error flag App <-- MDF :HAL_OK end else Timeout elapsed without acquisition available App <-- MDF :HAL_TIMEOUT end alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 App -> MDF : HAL_MDF_GetLastErrorCodes(DFTLj) App <-- MDF :last_error_codes[j] end @enduml$

Called functions:

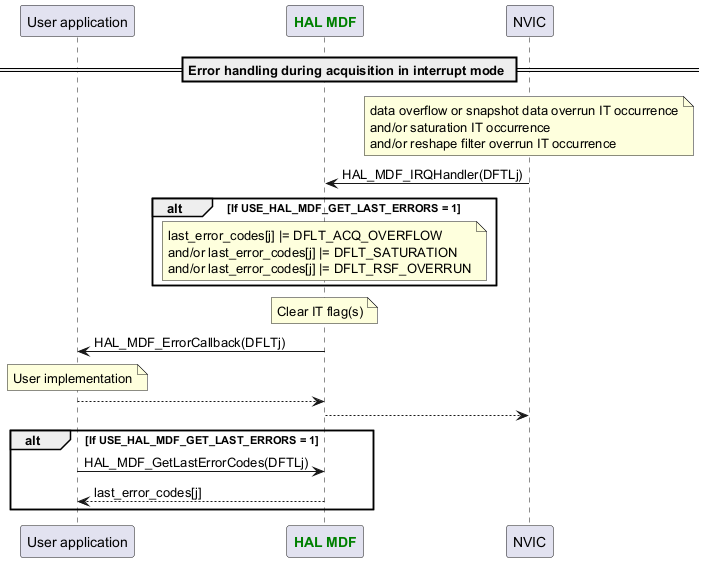

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC == Error handling during acquisition in interrupt mode == Note over NVIC : data overflow or snapshot data overrun IT occurrence\nand/or saturation IT occurrence\nand/or reshape filter overrun IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 Note over MDF : last_error_codes[j] |= DFLT_ACQ_OVERFLOW\nand/or last_error_codes[j] |= DFLT_SATURATION\nand/or last_error_codes[j] |= DFLT_RSF_OVERRUN end Note over MDF : Clear IT flag(s) MDF -> App : HAL_MDF_ErrorCallback(DFLTj) Note over App : User implementation MDF <-- App NVIC <-- MDF alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 App -> MDF : HAL_MDF_GetLastErrorCodes(DFTLj) App <-- MDF :last_error_codes[j] end @enduml$

Called functions:

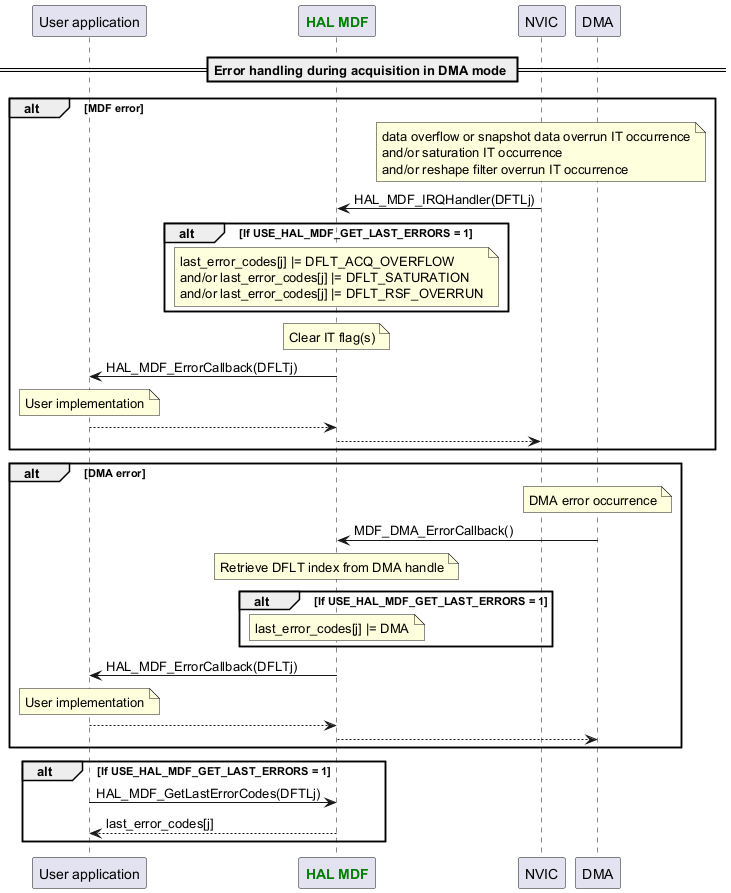

DMA mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF participant "NVIC" as NVIC participant "DMA" as DMA == Error handling during acquisition in DMA mode == alt MDF error Note over NVIC : data overflow or snapshot data overrun IT occurrence\nand/or saturation IT occurrence\nand/or reshape filter overrun IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(DFTLj) alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 Note over MDF : last_error_codes[j] |= DFLT_ACQ_OVERFLOW\nand/or last_error_codes[j] |= DFLT_SATURATION\nand/or last_error_codes[j] |= DFLT_RSF_OVERRUN end Note over MDF : Clear IT flag(s) MDF -> App : HAL_MDF_ErrorCallback(DFLTj) Note over App : User implementation MDF <-- App NVIC <-- MDF end alt DMA error Note over DMA : DMA error occurrence DMA -> MDF : MDF_DMA_ErrorCallback() Note over MDF : Retrieve DFLT index from DMA handle alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 Note over MDF : last_error_codes[j] |= DMA end MDF -> App : HAL_MDF_ErrorCallback(DFLTj) Note over App : User implementation MDF <-- App DMA <-- MDF end alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 App -> MDF : HAL_MDF_GetLastErrorCodes(DFTLj) App <-- MDF :last_error_codes[j] end @enduml$

Called functions:

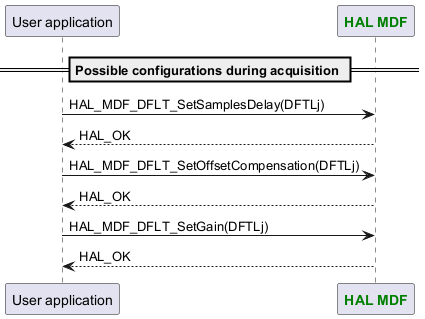

MDF possible configurations during acquisition ¶

@startuml

participant App as "User application"

participant "HAL MDF" as MDF

== Possible configurations during acquisition ==

App -> MDF : HAL_MDF_DFLT_SetSamplesDelay(DFTLj)

App <-- MDF :HAL_OK

App -> MDF : HAL_MDF_DFLT_SetOffsetCompensation(DFTLj)

App <-- MDF :HAL_OK

App -> MDF : HAL_MDF_DFLT_SetGain(DFTLj)

App <-- MDF :HAL_OK

@enduml

Called functions:

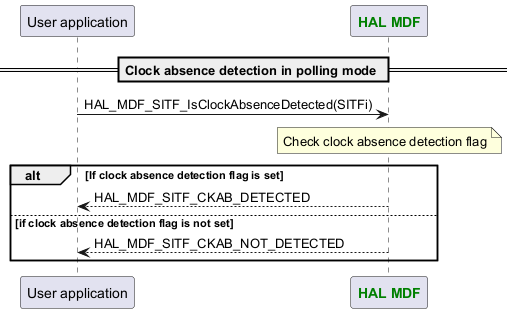

Clock absence detection ¶

Polling mode ¶

Called functions:

HAL_MDF_SITF_IsClockAbsenceDetected()

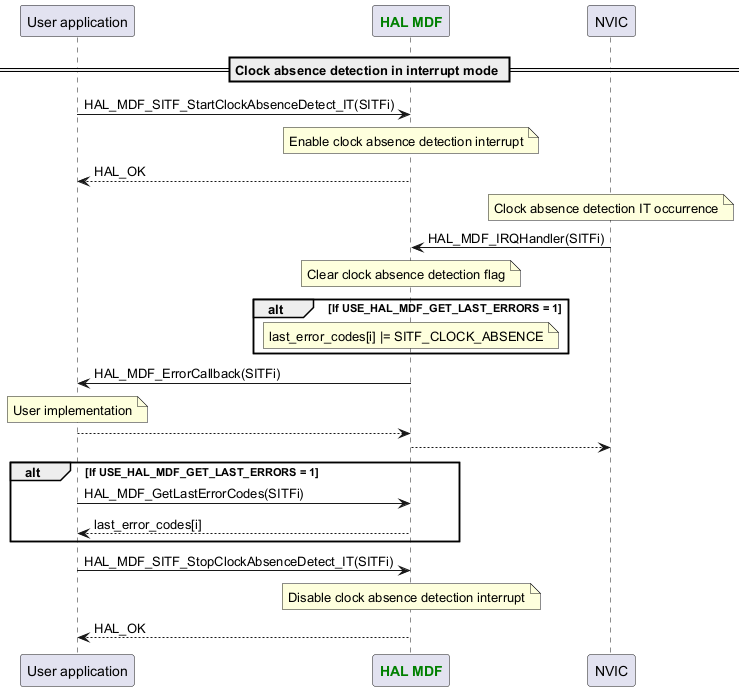

Interrupt mode ¶

Called functions:

Short-circuit detection ¶

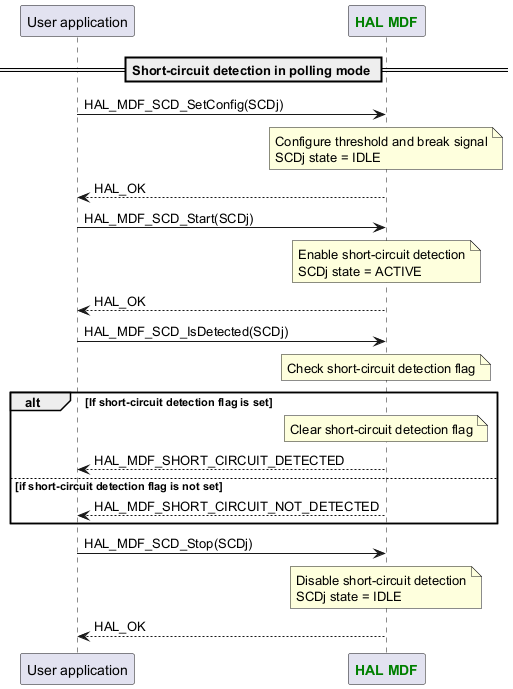

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Short-circuit detection in polling mode == App -> MDF : HAL_MDF_SCD_SetConfig(SCDj) Note over MDF : Configure threshold and break signal\nSCDj state = IDLE App <-- MDF : HAL_OK App -> MDF : HAL_MDF_SCD_Start(SCDj) Note over MDF : Enable short-circuit detection\nSCDj state = ACTIVE App <-- MDF : HAL_OK App -> MDF : HAL_MDF_SCD_IsDetected(SCDj) Note over MDF : Check short-circuit detection flag alt If short-circuit detection flag is set Note over MDF : Clear short-circuit detection flag App <-- MDF : HAL_MDF_SHORT_CIRCUIT_DETECTED else if short-circuit detection flag is not set App <-- MDF : HAL_MDF_SHORT_CIRCUIT_NOT_DETECTED end App -> MDF : HAL_MDF_SCD_Stop(SCDj) Note over MDF : Disable short-circuit detection\nSCDj state = IDLE App <-- MDF : HAL_OK @enduml$

Called functions:

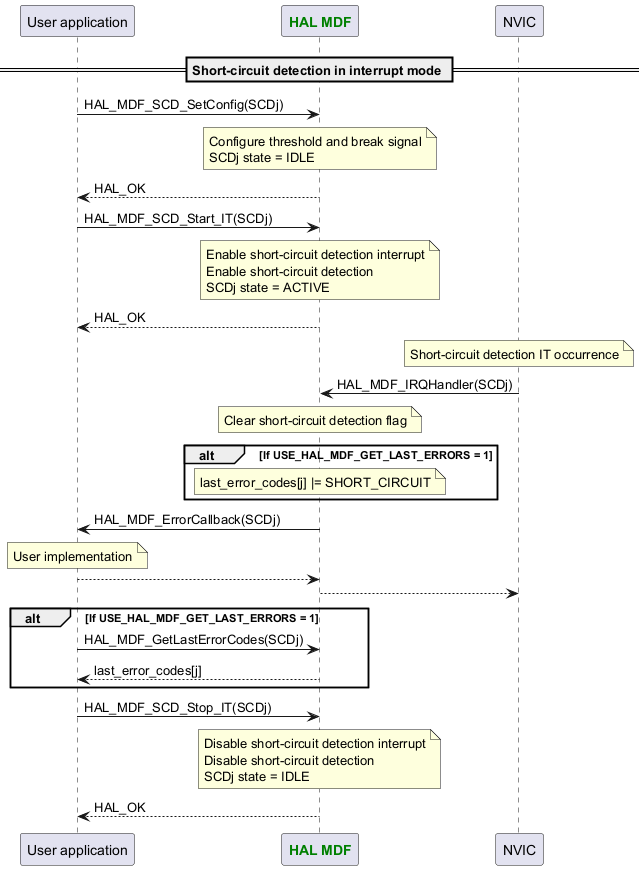

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Short-circuit detection in interrupt mode == App -> MDF : HAL_MDF_SCD_SetConfig(SCDj) Note over MDF : Configure threshold and break signal\nSCDj state = IDLE App <-- MDF : HAL_OK App -> MDF : HAL_MDF_SCD_Start_IT(SCDj) Note over MDF : Enable short-circuit detection interrupt\nEnable short-circuit detection\nSCDj state = ACTIVE App <-- MDF : HAL_OK Note over NVIC : Short-circuit detection IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(SCDj) Note over MDF : Clear short-circuit detection flag alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 Note over MDF : last_error_codes[j] |= SHORT_CIRCUIT end MDF -> App : HAL_MDF_ErrorCallback(SCDj) Note over App : User implementation MDF <-- App NVIC <-- MDF alt If USE_HAL_MDF_GET_LAST_ERRORS = 1 App -> MDF : HAL_MDF_GetLastErrorCodes(SCDj) App <-- MDF :last_error_codes[j] end App -> MDF : HAL_MDF_SCD_Stop_IT(SCDj) Note over MDF : Disable short-circuit detection interrupt\nDisable short-circuit detection\nSCDj state = IDLE App <-- MDF : HAL_OK @enduml$

Called functions:

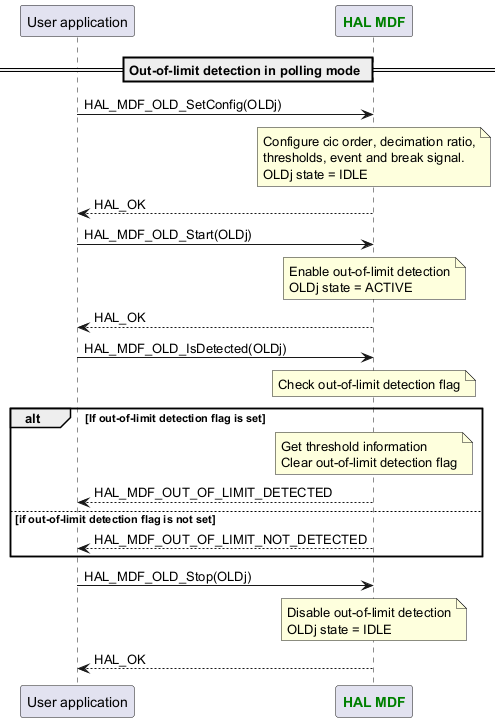

Out-of-limit detection ¶

Polling mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Out-of-limit detection in polling mode == App -> MDF : HAL_MDF_OLD_SetConfig(OLDj) Note over MDF : Configure cic order, decimation ratio,\nthresholds, event and break signal.\nOLDj state = IDLE App <-- MDF : HAL_OK App -> MDF : HAL_MDF_OLD_Start(OLDj) Note over MDF : Enable out-of-limit detection\nOLDj state = ACTIVE App <-- MDF : HAL_OK App -> MDF : HAL_MDF_OLD_IsDetected(OLDj) Note over MDF : Check out-of-limit detection flag alt If out-of-limit detection flag is set Note over MDF : Get threshold information\nClear out-of-limit detection flag App <-- MDF : HAL_MDF_OUT_OF_LIMIT_DETECTED else if out-of-limit detection flag is not set App <-- MDF : HAL_MDF_OUT_OF_LIMIT_NOT_DETECTED end App -> MDF : HAL_MDF_OLD_Stop(OLDj) Note over MDF : Disable out-of-limit detection\nOLDj state = IDLE App <-- MDF : HAL_OK @enduml$

Called functions:

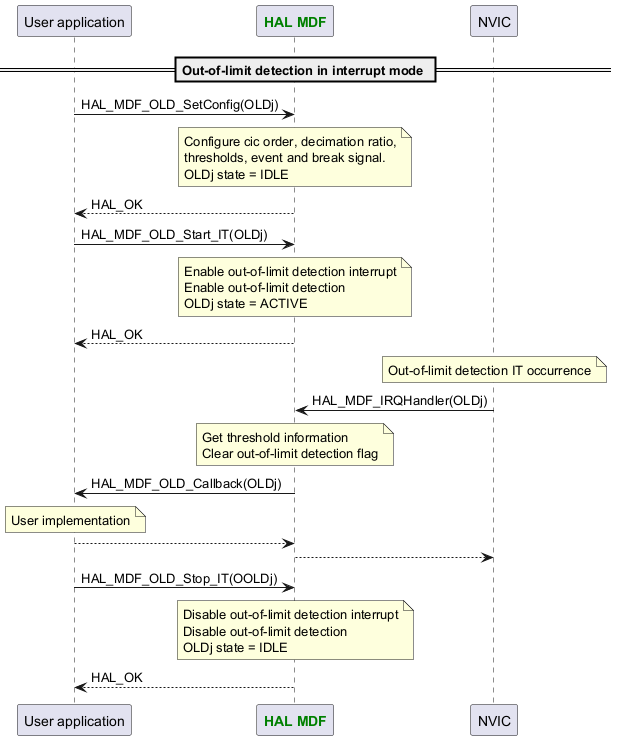

Interrupt mode ¶

$@startuml participant App as "User application" participant "HAL MDF" as MDF == Out-of-limit detection in interrupt mode == App -> MDF : HAL_MDF_OLD_SetConfig(OLDj) Note over MDF : Configure cic order, decimation ratio,\nthresholds, event and break signal.\nOLDj state = IDLE App <-- MDF : HAL_OK App -> MDF : HAL_MDF_OLD_Start_IT(OLDj) Note over MDF : Enable out-of-limit detection interrupt\nEnable out-of-limit detection\nOLDj state = ACTIVE App <-- MDF : HAL_OK Note over NVIC : Out-of-limit detection IT occurrence NVIC -> MDF : HAL_MDF_IRQHandler(OLDj) Note over MDF : Get threshold information\nClear out-of-limit detection flag MDF -> App : HAL_MDF_OLD_Callback(OLDj) Note over App : User implementation MDF <-- App NVIC <-- MDF App -> MDF : HAL_MDF_OLD_Stop_IT(OOLDj) Note over MDF : Disable out-of-limit detection interrupt\nDisable out-of-limit detection\nOLDj state = IDLE App <-- MDF : HAL_OK @enduml$

Called functions:
