HAL NOR Use Cases

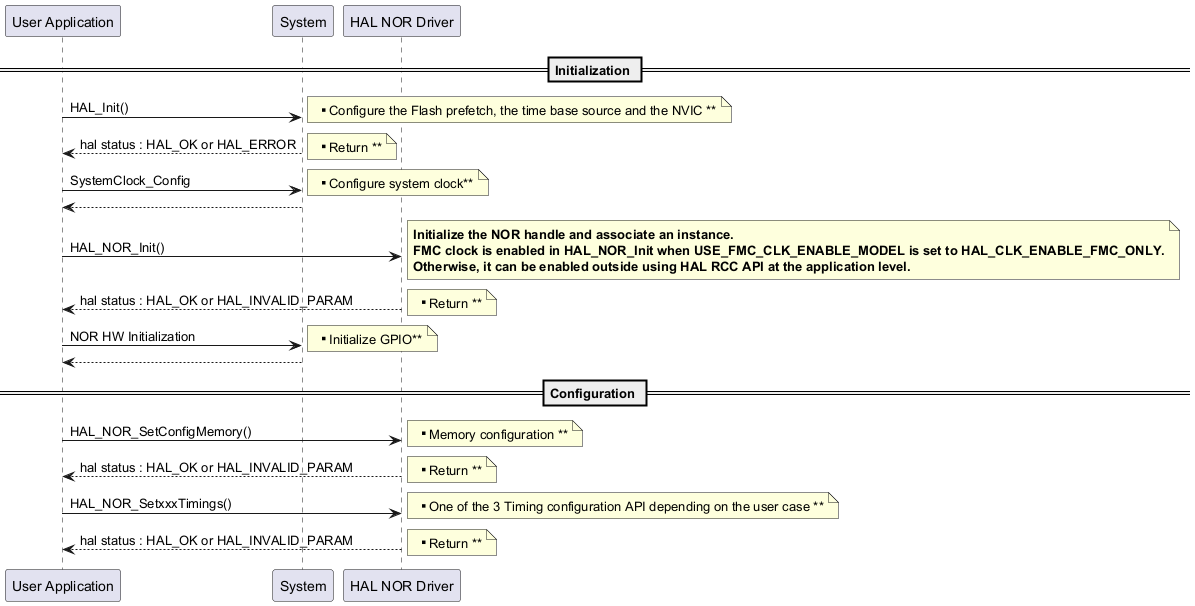

Initialization and Configuration

@startuml == Initialization == "User Application"->"System" : HAL_Init() note right: ** Configure the Flash prefetch, the time base source and the NVIC ** "System" --> "User Application": hal status : HAL_OK or HAL_ERROR note right: ** Return ** "User Application"->"System" : SystemClock_Config note right: ** Configure system clock** "System" --> "User Application" "User Application"->"HAL NOR Driver" : HAL_NOR_Init() note right <b>Initialize the NOR handle and associate an instance. <b>FMC clock is enabled in HAL_NOR_Init when USE_FMC_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_FMC_ONLY. <b>Otherwise, it can be enabled outside using HAL RCC API at the application level. end note "HAL NOR Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: ** Return ** "User Application"->"System" : NOR HW Initialization note right: ** Initialize GPIO** "System" --> "User Application" == Configuration == "User Application"->"HAL NOR Driver" : HAL_NOR_SetConfigMemory() note right: ** Memory configuration ** "HAL NOR Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: ** Return ** "User Application"->"HAL NOR Driver" : HAL_NOR_SetxxxTimings() note right: ** One of the 3 Timing configuration API depending on the user case ** "HAL NOR Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: ** Return ** @enduml

Called functions:

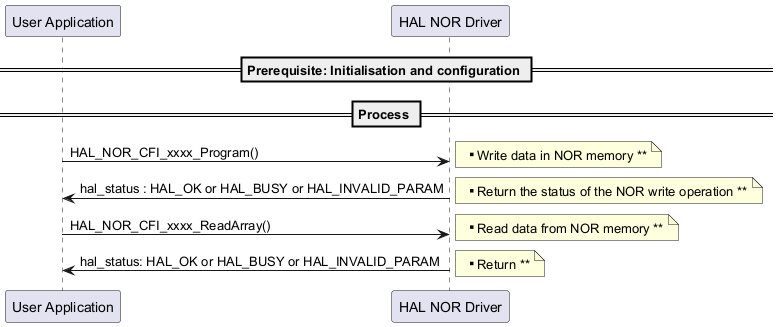

Valid Write and Read Operations in NOR Memory

@startuml == Prerequisite: Initialisation and configuration == == Process == "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Program() note right: ** Write data in NOR memory ** "HAL NOR Driver"->"User Application": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return the status of the NOR write operation ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_ReadArray() note right: ** Read data from NOR memory ** "HAL NOR Driver"->"User Application" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** @enduml

Called functions:

  • HAL_NOR_CFI_xxxx_Program()

  • HAL_NOR_CFI_xxxx_ReadArray()

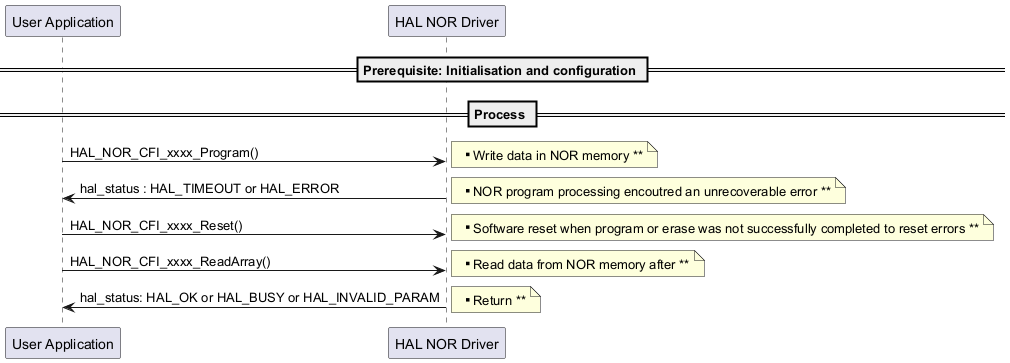

Invalid Write and Read Operations in NOR Memory

@startuml == Prerequisite: Initialisation and configuration == == Process == "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Program() note right: ** Write data in NOR memory ** "HAL NOR Driver"->"User Application": hal_status : HAL_TIMEOUT or HAL_ERROR note right: ** NOR program processing encoutred an unrecoverable error ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Reset() note right: ** Software reset when program or erase was not successfully completed to reset errors ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_ReadArray() note right: ** Read data from NOR memory after ** "HAL NOR Driver"->"User Application" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** @enduml

Called functions:

  • HAL_NOR_CFI_xxxx_Program()

  • HAL_NOR_CFI_xxxx_Reset()

  • HAL_NOR_CFI_xxxx_ReadArray()

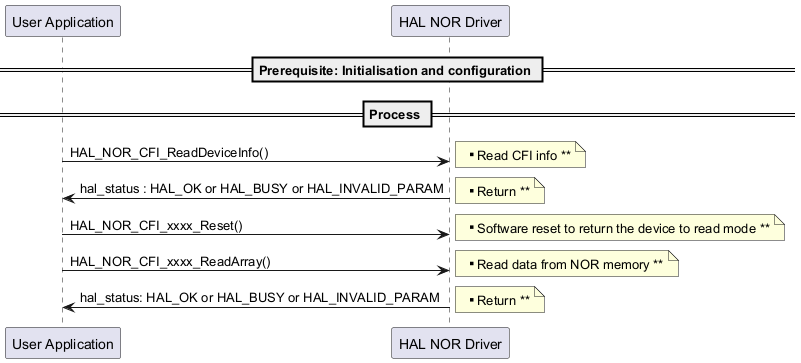

Read CFI Information from NOR Flash Memory

@startuml == Prerequisite: Initialisation and configuration == == Process == "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_ReadDeviceInfo() note right: ** Read CFI info ** "HAL NOR Driver"->"User Application": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Reset() note right: ** Software reset to return the device to read mode ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_ReadArray() note right: ** Read data from NOR memory ** "HAL NOR Driver"->"User Application" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** @enduml

Called functions:

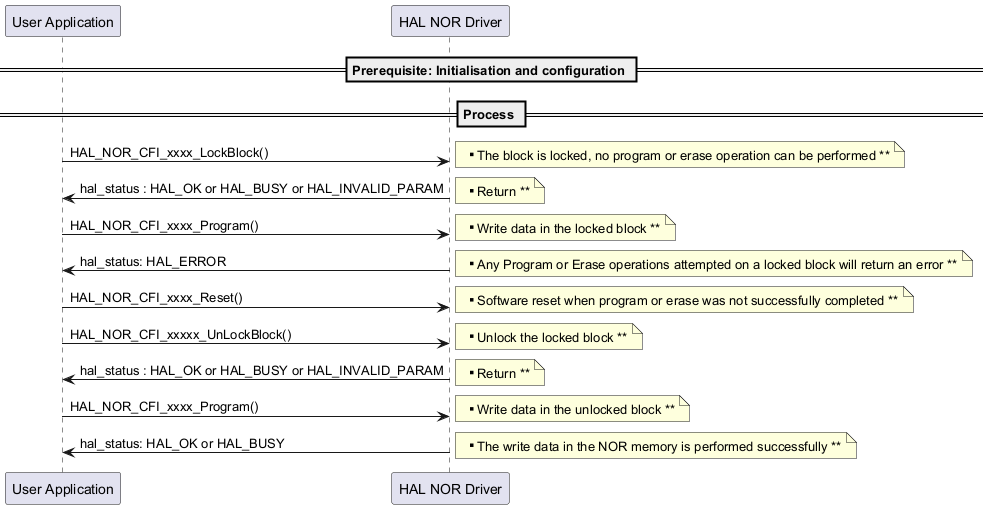

Write in a Locked Block

@startuml == Prerequisite: Initialisation and configuration == == Process == "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_LockBlock() note right: ** The block is locked, no program or erase operation can be performed ** "HAL NOR Driver"->"User Application": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Program() note right: ** Write data in the locked block ** "HAL NOR Driver"->"User Application" : hal_status: HAL_ERROR note right: ** Any Program or Erase operations attempted on a locked block will return an error ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Reset() note right: ** Software reset when program or erase was not successfully completed ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxxx_UnLockBlock() note right: ** Unlock the locked block ** "HAL NOR Driver"->"User Application": hal_status : HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** "User Application"->"HAL NOR Driver" : HAL_NOR_CFI_xxxx_Program() note right: ** Write data in the unlocked block ** "HAL NOR Driver"->"User Application" : hal_status: HAL_OK or HAL_BUSY note right: ** The write data in the NOR memory is performed successfully ** @enduml

Called functions:

  • HAL_NOR_CFI_xxxx_LockBlock()

  • HAL_NOR_CFI_xxxx_Program()

  • HAL_NOR_CFI_xxxx_Reset()

  • HAL_NOR_CFI_xxxxx_UnLockBlock()

  • HAL_NOR_CFI_xxxx_Program()

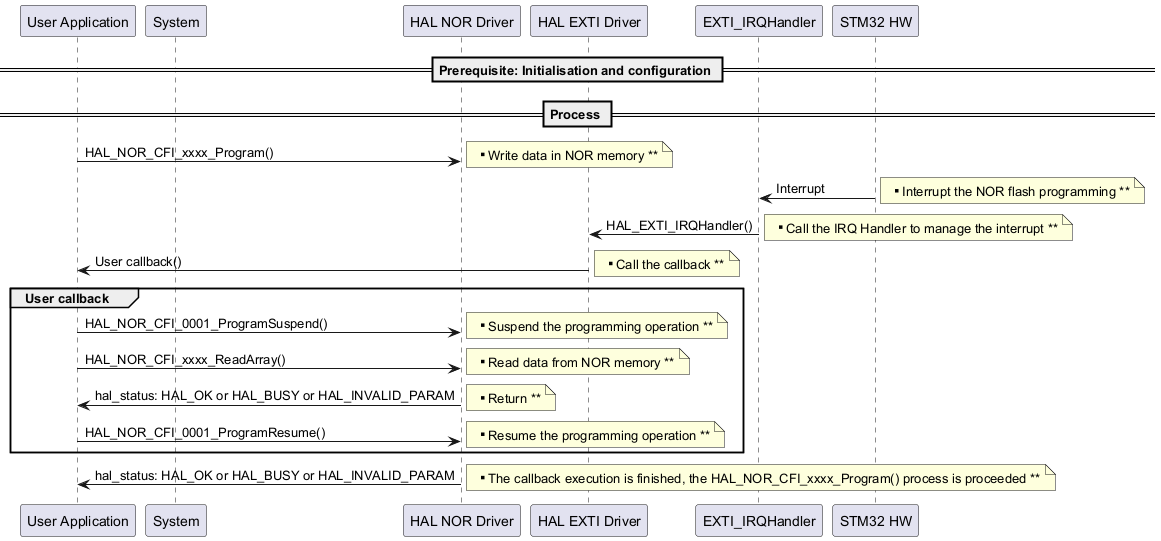

Suspend a Program Operation

@startuml participant "User Application" as part1 participant "System" as part2 participant "HAL NOR Driver" as part3 participant "HAL EXTI Driver" as part4 participant "EXTI_IRQHandler" as part5 participant "STM32 HW" as part6 == Prerequisite: Initialisation and configuration == == Process == "part1"->"part3" : HAL_NOR_CFI_xxxx_Program() note right: ** Write data in NOR memory ** "part6" -> "part5" : Interrupt note right: ** Interrupt the NOR flash programming ** "part5" -> "part4" : HAL_EXTI_IRQHandler() note right: ** Call the IRQ Handler to manage the interrupt ** "part4" -> "part1" : User callback() note right: ** Call the callback ** group User callback "part1"->"part3" : HAL_NOR_CFI_0001_ProgramSuspend() note right: ** Suspend the programming operation ** "part1"->"part3" : HAL_NOR_CFI_xxxx_ReadArray() note right: ** Read data from NOR memory ** "part3"->"part1" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** "part1"->"part3" : HAL_NOR_CFI_0001_ProgramResume() note right: ** Resume the programming operation ** end "part3"->"part1" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** The callback execution is finished, the HAL_NOR_CFI_xxxx_Program() process is proceeded ** @enduml

Called functions:

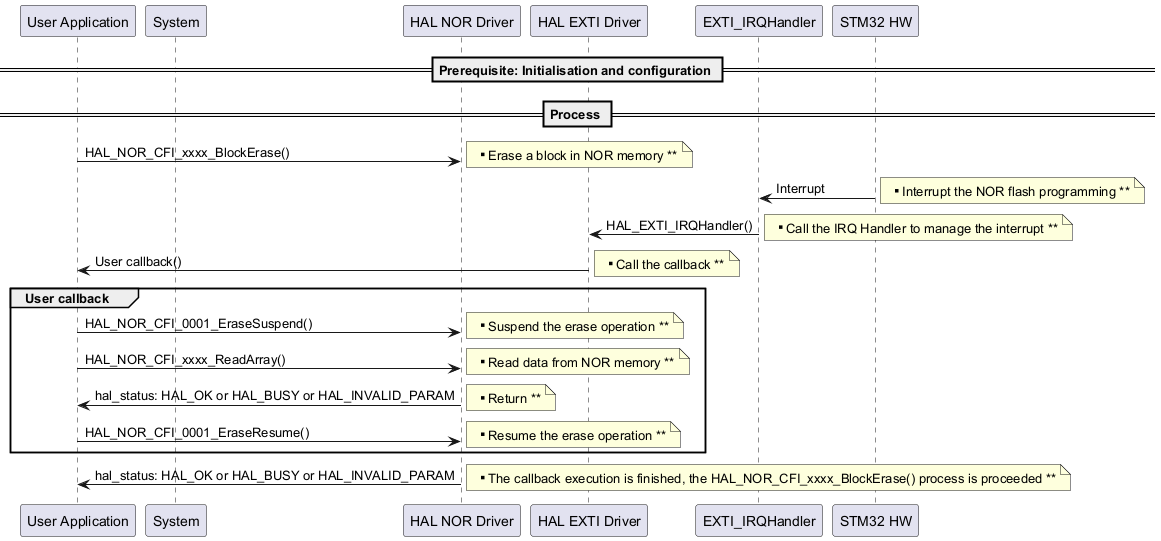

Suspend an Erase Operation

@startuml participant "User Application" as part1 participant "System" as part2 participant "HAL NOR Driver" as part3 participant "HAL EXTI Driver" as part4 participant "EXTI_IRQHandler" as part5 participant "STM32 HW" as part6 == Prerequisite: Initialisation and configuration == == Process == "part1"->"part3" : HAL_NOR_CFI_xxxx_BlockErase() note right: ** Erase a block in NOR memory ** "part6" -> "part5" : Interrupt note right: ** Interrupt the NOR flash programming ** "part5" -> "part4" : HAL_EXTI_IRQHandler() note right: ** Call the IRQ Handler to manage the interrupt ** "part4" -> "part1" : User callback() note right: ** Call the callback ** group User callback "part1"->"part3" : HAL_NOR_CFI_0001_EraseSuspend() note right: ** Suspend the erase operation ** "part1"->"part3" : HAL_NOR_CFI_xxxx_ReadArray() note right: ** Read data from NOR memory ** "part3"->"part1" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** Return ** "part1"->"part3" : HAL_NOR_CFI_0001_EraseResume() note right: ** Resume the erase operation ** end "part3"->"part1" : hal_status: HAL_OK or HAL_BUSY or HAL_INVALID_PARAM note right: ** The callback execution is finished, the HAL_NOR_CFI_xxxx_BlockErase() process is proceeded ** @enduml

Called functions:
