HAL PSSI Overview ¶
Introducing PSSI ¶
- group PSSI_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the PSSI module and its associated files.

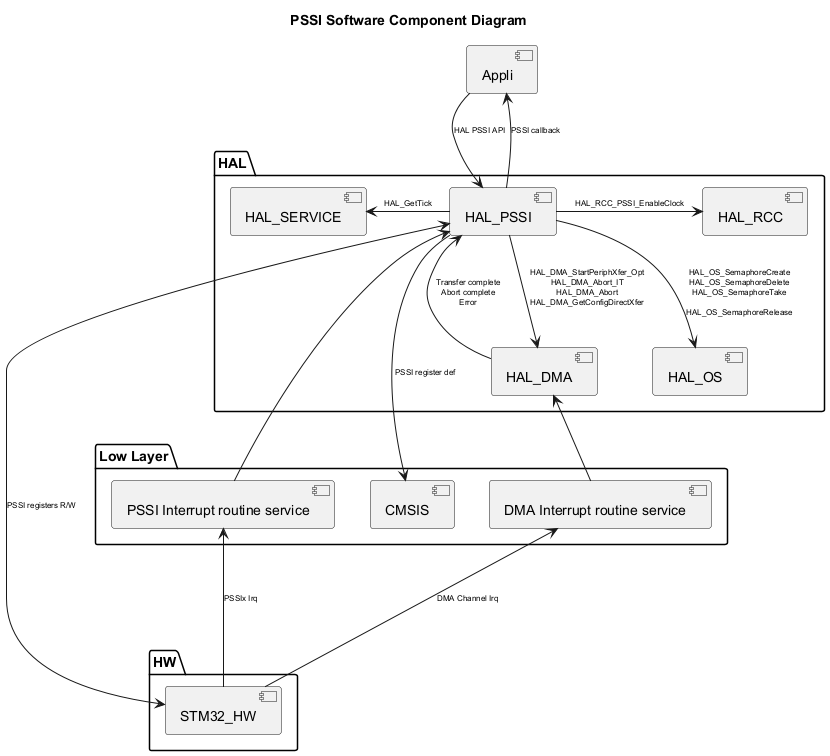

Component diagram ¶
The following diagram illustrates the software components involved in the PSSI module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title PSSI Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_PSSI]
[HAL_DMA]
[HAL_RCC]
[HAL_OS]
}
package "Low Layer" {
[CMSIS]
[PSSI Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_PSSI] : HAL PSSI API
[Appli] <-- [HAL_PSSI] : PSSI callback
[HAL_PSSI] -r-> [HAL_RCC] : HAL_RCC_PSSI_EnableClock
[HAL_PSSI] -d-> [HAL_DMA] : HAL_DMA_StartPeriphXfer_Opt\nHAL_DMA_Abort_IT\nHAL_DMA_Abort\nHAL_DMA_GetConfigDirectXfer\n
[HAL_PSSI] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_PSSI] -d-> [HAL_OS] : HAL_OS_SemaphoreCreate\nHAL_OS_SemaphoreDelete\nHAL_OS_SemaphoreTake\n\nHAL_OS_SemaphoreRelease
[HAL_PSSI] <-- [PSSI Interrupt routine service]
[HAL_PSSI] <-r- [HAL_DMA]:Transfer complete\nAbort complete\nError
[HAL_PSSI] --> [CMSIS]:PSSI register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [PSSI Interrupt routine service]: PSSIx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-l--> [HAL_PSSI] : PSSI registers R/W
@enduml](../../../../_images/plantuml-db0386b2ca2a394772260e069905162a4e381abb.png)
Configuration table ¶
The following table lists the configuration defines for the HAL PSSI module, specifying their locations, default values, and descriptions:
- group PSSI_Configuration_Table
-
-
Configuration inside the PSSI driver
Config defines
Description
Default value
Note
USE_HAL_PSSI_CLK_ENABLE_MODEL
stm32u5xx_hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the periph clk
USE_HAL_PSSI_MODULE
stm32u5xx_hal_conf.h
1
When set, HAL PSSI module is enabled
USE_HAL_PSSI_DMA
stm32u5xx_hal_conf.h
1
Enable DMA code inside PSSI
USE_HAL_PSSI_GET_LAST_ERRORS
stm32u5xx_hal_conf.h
0
Enable the get last process error
USE_HAL_PSSI_USER_DATA
stm32u5xx_hal_conf.h
0
Enable the set/get user data
USE_HAL_PSSI_REGISTER_CALLBACKS
stm32u5xx_hal_conf.h
0
Enable the register callbacks assert
USE_HAL_CHECK_PARAM
stm32u5xx_hal_conf.h
0
Parameters are checked in runtime
USE_HAL_CHECK_PROCESS_STATE
stm32u5xx_hal_conf.h
0
Check/Update the HAL PSSI state
USE_HAL_MUTEX
stm32u5xx_hal_conf.h
0
Enable the acquire/release bus services
USE_ASSERT_DBG_PARAM
from PreProcessor env
NA
Enable the params assert
USE_ASSERT_DBG_STATE
from PreProcessor env
NA
Enable the state assert
-
