HAL PSSI Use Cases

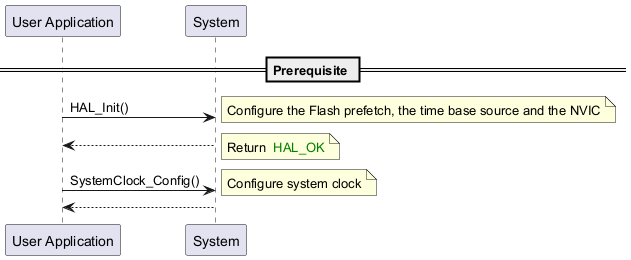

Prerequisite

@startuml skinparam backgroundColor #FFFFFF ' To add a number by line 'autonumber ' Fix order of each column participant "User Application" as User participant System == Prerequisite == User -> System:HAL_Init() note right Configure the Flash prefetch, the time base source and the NVIC end note System --> User: note right Return <color green> HAL_OK</color> end note User -> System:SystemClock_Config() note right Configure system clock end note User <-- System: @enduml

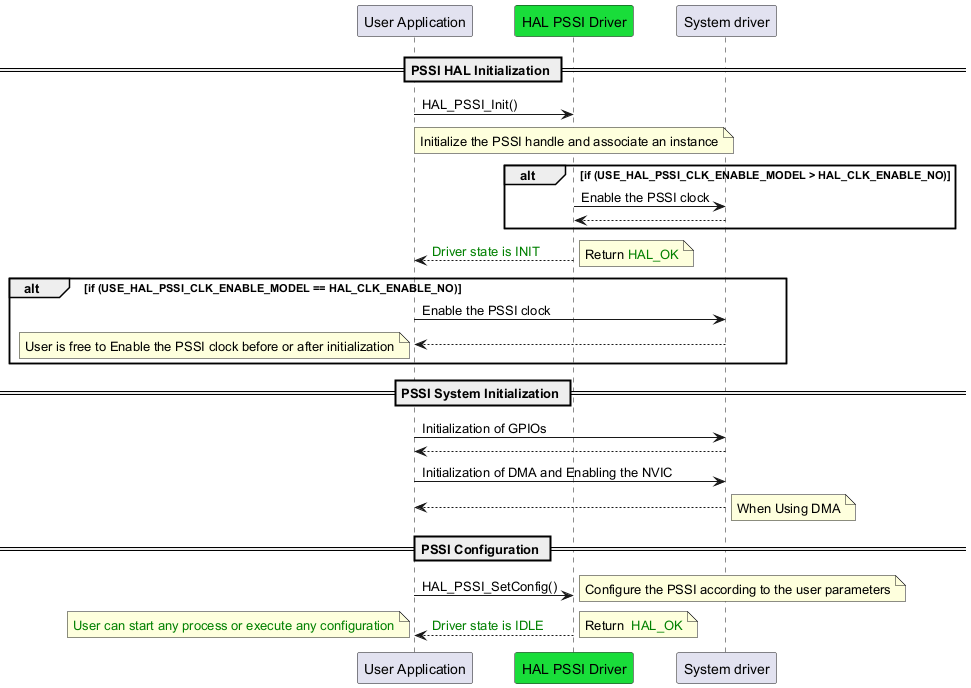

Initialization

@startuml skinparam backgroundColor #FFFFFF participant "User Application" as User participant "HAL PSSI Driver" as PSSI #19DD3A participant "System driver" as System == PSSI HAL Initialization == User -> PSSI:HAL_PSSI_Init() note over PSSI Initialize the PSSI handle and associate an instance end note alt if (USE_HAL_PSSI_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO) PSSI -> System:Enable the PSSI clock PSSI <-- System: end User <-- PSSI:<font color=green>Driver state is INIT note right Return<color green> HAL_OK</color> end note alt if (USE_HAL_PSSI_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO) User -> System:Enable the PSSI clock User <-- System: note left User is free to Enable the PSSI clock before or after initialization end note end == PSSI System Initialization == User -> System:Initialization of GPIOs User <-- System: User -> System:Initialization of DMA and Enabling the NVIC User <-- System: note right When Using DMA end note == PSSI Configuration == User -> PSSI:HAL_PSSI_SetConfig() note right Configure the PSSI according to the user parameters end note User <-- PSSI:<font color=green>Driver state is IDLE note right Return <color green> HAL_OK</color> end note note left <font color=green>User can start any process or execute any configuration end note @enduml

Called functions:

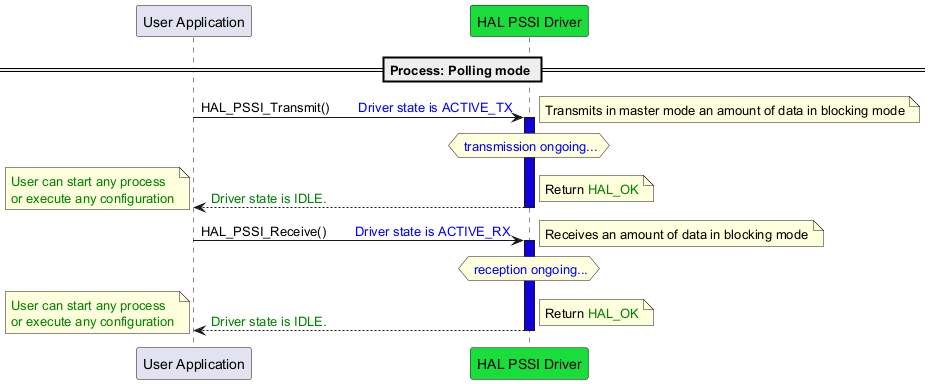

Polling Transfer

@startuml skinparam backgroundColor #FFFFFF participant "User Application" as User participant "HAL PSSI Driver" as PSSI #19DD3A == Process: Polling mode == User -> PSSI:HAL_PSSI_Transmit() <font color=blue>Driver state is ACTIVE_TX activate PSSI #1000DA hnote over PSSI <font color=blue> transmission ongoing... end note note right Transmits in master mode an amount of data in blocking mode end note User <-- PSSI:<font color=green>Driver state is IDLE. deactivate PSSI note right Return<color green> HAL_OK</color> end note note left <font color=green>User can start any process <font color=green>or execute any configuration end note User -> PSSI:HAL_PSSI_Receive() <font color=blue>Driver state is ACTIVE_RX activate PSSI #1000DA hnote over PSSI <font color=blue> reception ongoing... end note note right Receives an amount of data in blocking mode end note User <-- PSSI:<font color=green>Driver state is IDLE. deactivate PSSI note right Return<color green> HAL_OK</color> end note note left <font color=green>User can start any process <font color=green>or execute any configuration end note @enduml

Called functions:

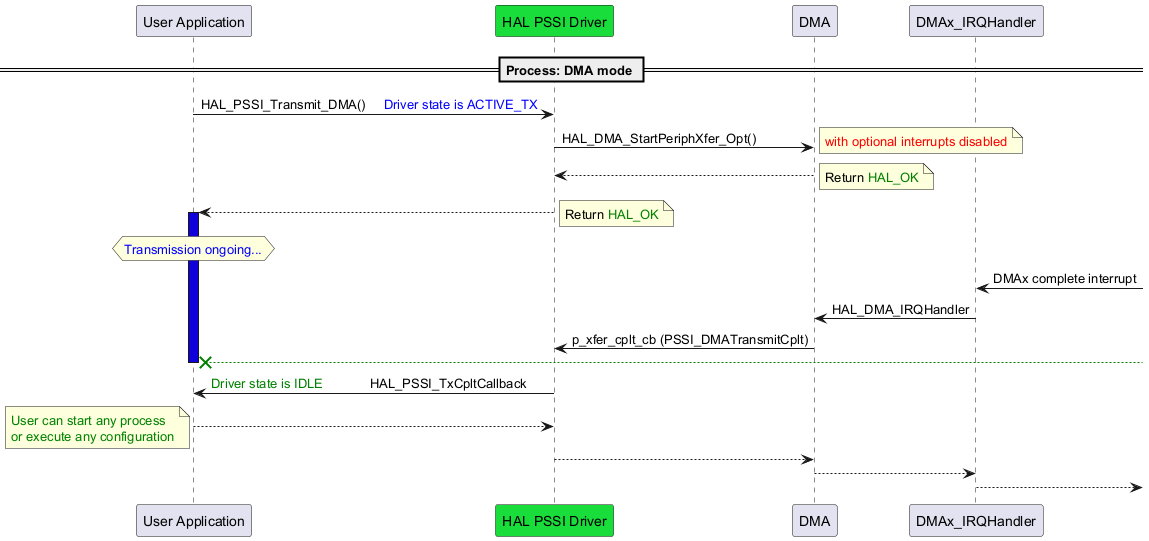

DMA Transmission

@startuml skinparam backgroundColor #FFFFFF participant "User Application" as User participant "HAL PSSI Driver" as PSSI #19DD3A participant DMA participant DMAx_IRQHandler == Process: DMA mode == User -> PSSI:HAL_PSSI_Transmit_DMA() <font color=blue>Driver state is ACTIVE_TX PSSI -> DMA:HAL_DMA_StartPeriphXfer_Opt() note right <font color=Red>with optional interrupts disabled end note PSSI <-- DMA: note right Return <font color=green>HAL_OK end note User <-- PSSI: activate User #1000DA note right Return <font color=green>HAL_OK end note hnote over User <font color=blue>Transmission ongoing... end note DMAx_IRQHandler <-:DMAx complete interrupt DMA <-DMAx_IRQHandler:HAL_DMA_IRQHandler PSSI <-DMA:p_xfer_cplt_cb (PSSI_DMATransmitCplt) User x<[#green]--: deactivate User User <-PSSI:<font color=green>Driver state is IDLE <font color=BLACK>HAL_PSSI_TxCpltCallback User -->PSSI note left <font color=green>User can start any process <font color=green>or execute any configuration end note PSSI -->DMA DMA -->DMAx_IRQHandler DMAx_IRQHandler --> @enduml

Called functions:

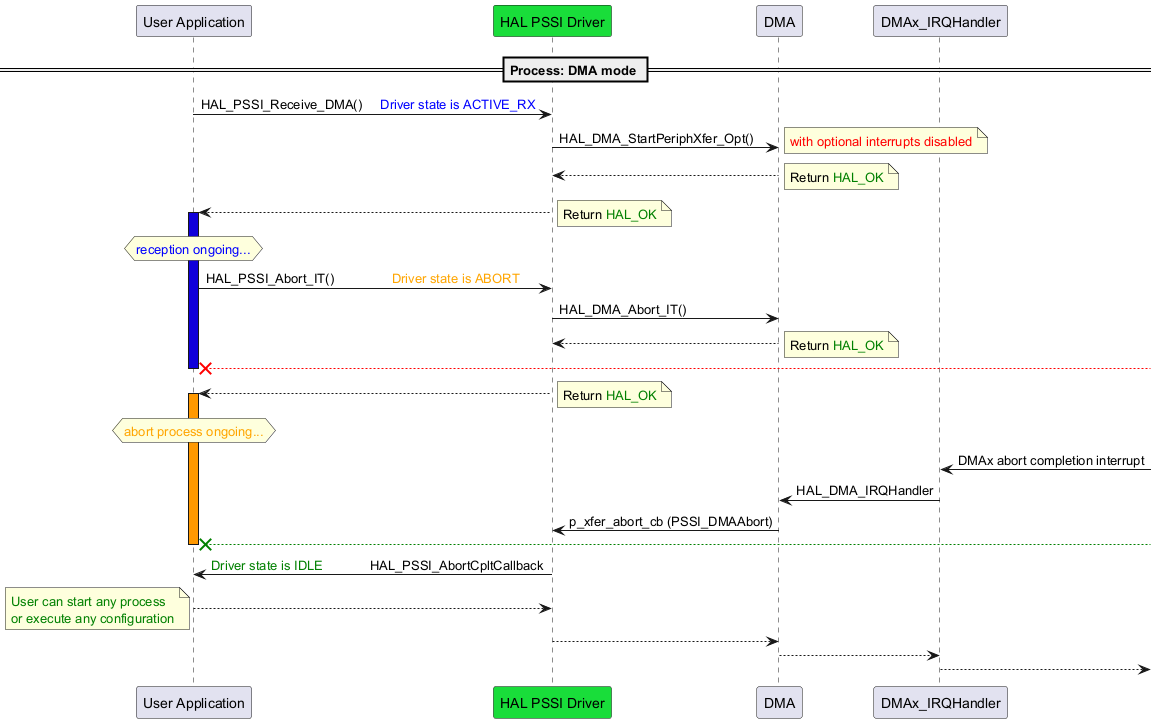

DMA Reception Abort

@startuml skinparam backgroundColor #FFFFFF participant "User Application" as User participant "HAL PSSI Driver" as PSSI #19DD3A participant DMA participant DMAx_IRQHandler == Process: DMA mode == User -> PSSI:HAL_PSSI_Receive_DMA() <font color=blue>Driver state is ACTIVE_RX PSSI -> DMA:HAL_DMA_StartPeriphXfer_Opt() note right <font color=Red>with optional interrupts disabled end note PSSI <-- DMA: note right Return <font color=green>HAL_OK end note User <-- PSSI: note right Return <font color=green>HAL_OK end note activate User #1000DA hnote over User <font color=blue>reception ongoing... end note User -> PSSI:HAL_PSSI_Abort_IT() <font color=orange>Driver state is ABORT PSSI -> DMA:HAL_DMA_Abort_IT() PSSI <-- DMA: note right Return <font color=green>HAL_OK end note User x<[#red]--: deactivate User User <-- PSSI: activate User #FF9900 hnote over User <font color=orange>abort process ongoing... end note note right Return <font color=green>HAL_OK end note DMAx_IRQHandler <-:DMAx abort completion interrupt DMA <-DMAx_IRQHandler:HAL_DMA_IRQHandler PSSI <-DMA:p_xfer_abort_cb (PSSI_DMAAbort) User x<[#green]--: deactivate User User <-PSSI:<font color=green>Driver state is IDLE <font color=BLACK>HAL_PSSI_AbortCpltCallback User -->PSSI note left <font color=green>User can start any process <font color=green>or execute any configuration end note PSSI -->DMA DMA -->DMAx_IRQHandler DMAx_IRQHandler --> @enduml

Called functions:

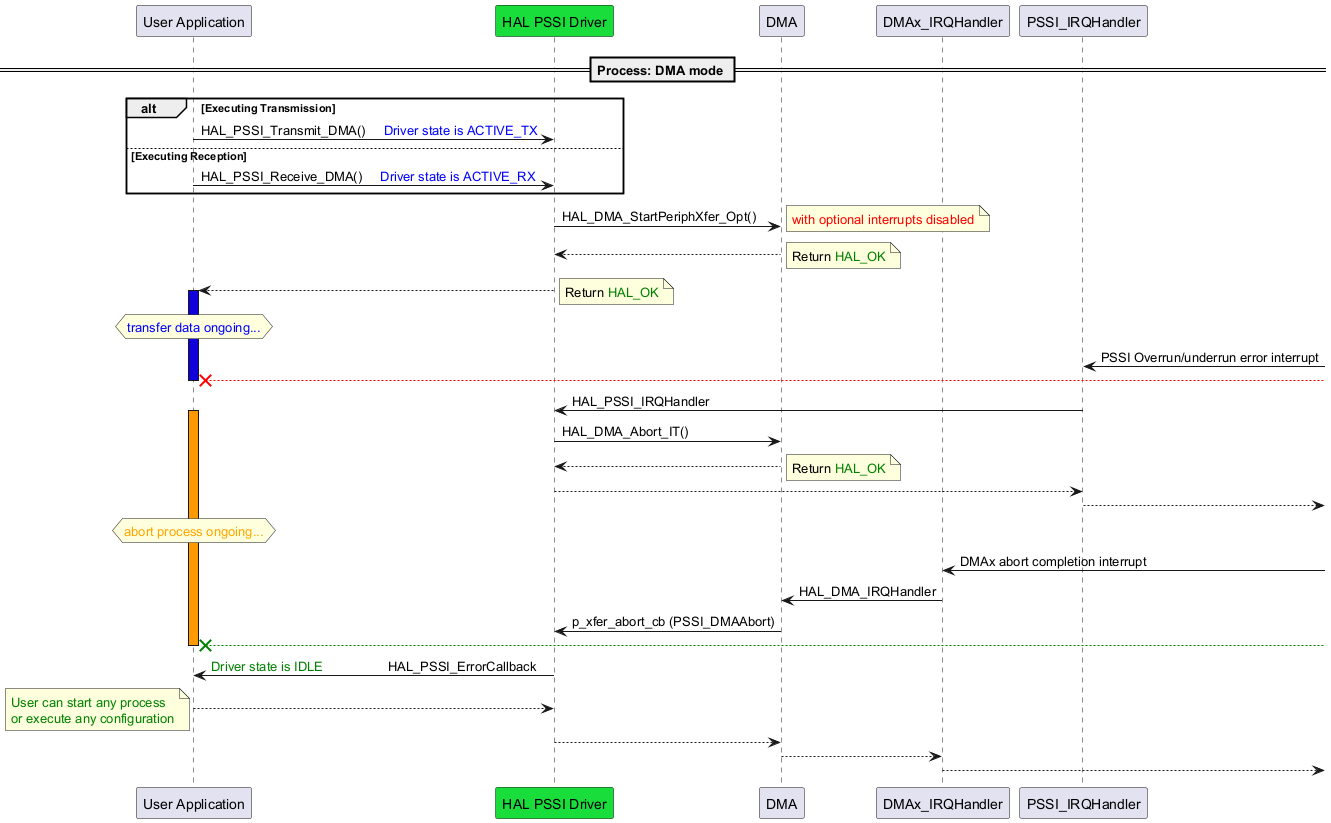

Overrun/Underrun Error

@startuml participant "User Application" as User participant "HAL PSSI Driver" as PSSI #19DD3A participant "PSSI_IRQHandler" as PSSI #19DD3A_IRQHandler participant DMA participant DMAx_IRQHandler == Process: DMA mode == alt Executing Transmission User -> PSSI:HAL_PSSI_Transmit_DMA() <font color=blue>Driver state is ACTIVE_TX else Executing Reception User -> PSSI:HAL_PSSI_Receive_DMA() <font color=blue>Driver state is ACTIVE_RX end PSSI -> DMA:HAL_DMA_StartPeriphXfer_Opt() note right <font color=Red>with optional interrupts disabled end note PSSI <-- DMA: note right Return <font color=green>HAL_OK end note User <-- PSSI: note right Return <font color=green>HAL_OK end note activate User #1000DA hnote over User <font color=blue>transfer data ongoing... end note PSSI_IRQHandler <-:PSSI Overrun/underrun error interrupt User x<[#red]--: deactivate User PSSI <-PSSI_IRQHandler:HAL_PSSI_IRQHandler activate User #FF9900 PSSI -> DMA:HAL_DMA_Abort_IT() PSSI <-- DMA: note right Return <font color=green>HAL_OK end note PSSI -->PSSI_IRQHandler PSSI_IRQHandler --> hnote over User <font color=orange>abort process ongoing... end note DMAx_IRQHandler <-:DMAx abort completion interrupt DMA <-DMAx_IRQHandler:HAL_DMA_IRQHandler PSSI <-DMA:p_xfer_abort_cb (PSSI_DMAAbort) User x<[#green]--: deactivate User User <-PSSI:<font color=green>Driver state is IDLE <font color=BLACK>HAL_PSSI_ErrorCallback User -->PSSI note left <font color=green>User can start any process <font color=green>or execute any configuration end note PSSI -->DMA DMA -->DMAx_IRQHandler DMAx_IRQHandler --> @enduml

Called functions:

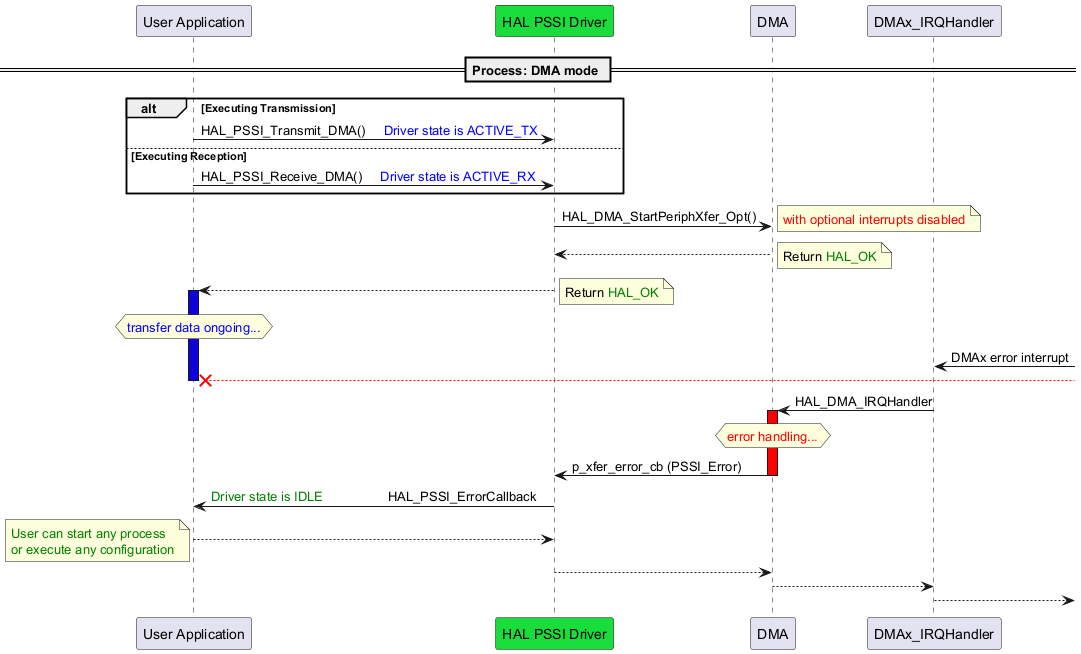

DMA Error Occurrence

@startuml skinparam backgroundColor #FFFFFF participant "User Application" as User participant "HAL PSSI Driver" as PSSI #19DD3A participant DMA participant DMAx_IRQHandler == Process: DMA mode == alt Executing Transmission User -> PSSI:HAL_PSSI_Transmit_DMA() <font color=blue>Driver state is ACTIVE_TX else Executing Reception User -> PSSI:HAL_PSSI_Receive_DMA() <font color=blue>Driver state is ACTIVE_RX end PSSI -> DMA:HAL_DMA_StartPeriphXfer_Opt() note right <font color=Red>with optional interrupts disabled end note PSSI <-- DMA: note right Return <font color=green>HAL_OK end note User <-- PSSI: note right Return <font color=green>HAL_OK end note activate User #1000DA hnote over User <font color=blue>transfer data ongoing... end note DMAx_IRQHandler <-:DMAx error interrupt User x<[#red]--: deactivate User DMA <-DMAx_IRQHandler:HAL_DMA_IRQHandler activate DMA #FF0000 hnote over DMA <font color=red>error handling... end note PSSI <-DMA:p_xfer_error_cb (PSSI_Error) deactivate DMA User <-PSSI:<font color=green>Driver state is IDLE <font color=BLACK>HAL_PSSI_ErrorCallback User -->PSSI note left <font color=green>User can start any process <font color=green>or execute any configuration end note PSSI -->DMA DMA -->DMAx_IRQHandler DMAx_IRQHandler --> @enduml

Called functions:
