HAL SRAM Overview ¶
Introducing SRAM ¶
- group SRAM_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the SRAM module and its associated files.

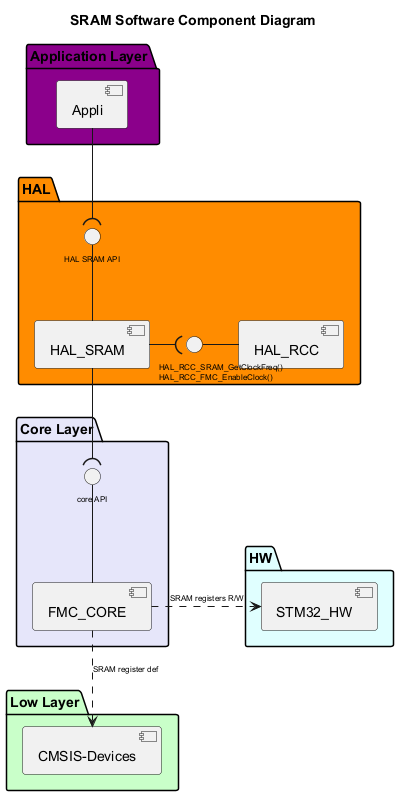

Component diagram ¶
The following diagram illustrates the software components involved in the SRAM module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
!$use_sram_core = 1
!$use_hal_service = 1
!$use_hal_rcc = 1
!$use_hal_dma = 0
!$use_ll_rcc = 0
!$core = "FMC" + "_CORE"
!$sram = "SRAM"
!$SRAM = "FMC"
!$hal_api_itf = "HAL " + $sram + " API"
!$sram_name = "HAL_"+$sram
!$ll_sram = "LL_"+$sram
!$hal_dma_itf = "HAL_DMA_StartDirectXfer_IT_Opt()\nHAL_DMA_Abort_IT"
!$hal_rcc_itf = "\t\t\tHAL_RCC_"+$sram+"_GetClockFreq()\n\t\t\tHAL_RCC_"+$SRAM+"_EnableClock()"
!$hal_sram_itf = "Half transfer complete\nTransfer complete\nError callback\nAbort callback"
!$ll_sram_itf = "LL " + $sram +" API"
<style>
componentDiagram {
arrow {
FontSize 8
}
interface {
FontSize 8
}
}
</style>
title $sram Software Component Diagram
Package "Application Layer" #DarkMagenta {
component [Appli]
}
package "HAL" #DarkOrange {
[$sram_name]
!if ($use_hal_dma == 1)
interface "$hal_sram_itf" as HAL_SRAM_Interface
[$sram_name] -d- HAL_SRAM_Interface
!endif
interface "$hal_api_itf" as HAL_SRAM_APPLI_Interface
[$sram_name] -u- HAL_SRAM_APPLI_Interface
!if ($use_hal_dma == 1)
[HAL_DMA]
interface "$hal_dma_itf" as HAL_DMA_Interface
[HAL_DMA] -u- HAL_DMA_Interface
[HAL_DMA] -u-( HAL_SRAM_Interface
[$sram_name] --( HAL_DMA_Interface
!endif
!if ($use_hal_rcc == 1)
[HAL_RCC]
interface "$hal_rcc_itf" as HAL_RCC_Interface
[HAL_RCC] -l- HAL_RCC_Interface
[$sram_name] -r-( HAL_RCC_Interface
!endif
}
[Appli] -d-( HAL_SRAM_APPLI_Interface
!if ($use_sram_core ==1)
Package "Core Layer" #Lavender{
[$core]
interface "core API" as Core_api_itf
[$core] -u- Core_api_itf
}
[$sram_name] -d-( Core_api_itf
!endif
package "Low Layer" #Technology {
!if ($use_sram_ll == 1)
[$ll_sram]
interface "$ll_sram_itf" as LL_SRAM_Interface
[$ll_sram] -u- LL_SRAM_Interface
!endif
[CMSIS-Devices]
!if ($use_ll_rcc == 1)
[LL_RCC]
interface "LL RCC API" as LL_RCC_API
[LL_RCC] -u- LL_RCC_API
[HAL_RCC] -d-(LL_RCC_API
!endif
!if ($use_hal_dma == 1)
[DMA ISR]
interface "DMA ISR" as DMA_ISR
[DMA ISR] -u- DMA_ISR
!endif
}
package "HW" #LightCyan {
[STM32_HW]
!if ($use_hal_dma == 1)
interface "DMAx_IRQ_Ch" as DMA_IRQ_CH
[STM32_HW] -u- DMA_IRQ_CH
[DMA ISR] -d-( DMA_IRQ_CH
[HAL_DMA] --( DMA_ISR
!endif
}
!if ($use_sram_ll == 1)
[$sram_name] -d-( LL_SRAM_Interface
[$ll_sram] .r.> [CMSIS-Devices]: $sram register def
[STM32_HW] <.u. [$ll_sram] : $sram registers R/W
!else
!if ($use_sram_core == 1)
[$core] .d.> [CMSIS-Devices]: $sram register def
[STM32_HW] <.l. [$core] : $sram registers R/W
!else
[$sram_name] .d.> [CMSIS-Devices]: $sram register def
[STM32_HW] <.l. [$sram_name] : $sram registers R/W
!endif
!endif
!if ($use_ll_rcc == 1)
[STM32_HW] <.u. [LL_RCC] : RCC registers R/W
!endif
@enduml](../../../../_images/plantuml-c942aeb59f0003c4e708d6ade6e1ecfe5585f659.png)
Configuration table ¶
The following table lists the configuration defines for the HAL SRAM module, specifying their locations, default values, and descriptions:
- group SRAM_Configuration_Table
-
¶
Configuration inside the SRAM driver ¶
Config defines
Description
Default value
Note
USE_ASSERT_DBG_PARAM
from IDE
NA
Allows to use the assert check parameters.
USE_ASSERT_DBG_STATE
from IDE
NA
Allows to use the assert check states.
USE_HAL_CHECK_PARAM
from hal_conf.h
0U
Allows to use the run-time check parameters.
USE_HAL_SRAM_MODULE
from hal_conf.h
1U
Allows to use the HAL SRAM module.
USE_FMC_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Allows to enable the FMC clock.
USE_HAL_SRAM_USER_DATA
from hal_conf.h
0U
Allows to use user data.
