HAL SRAM Use Cases ¶

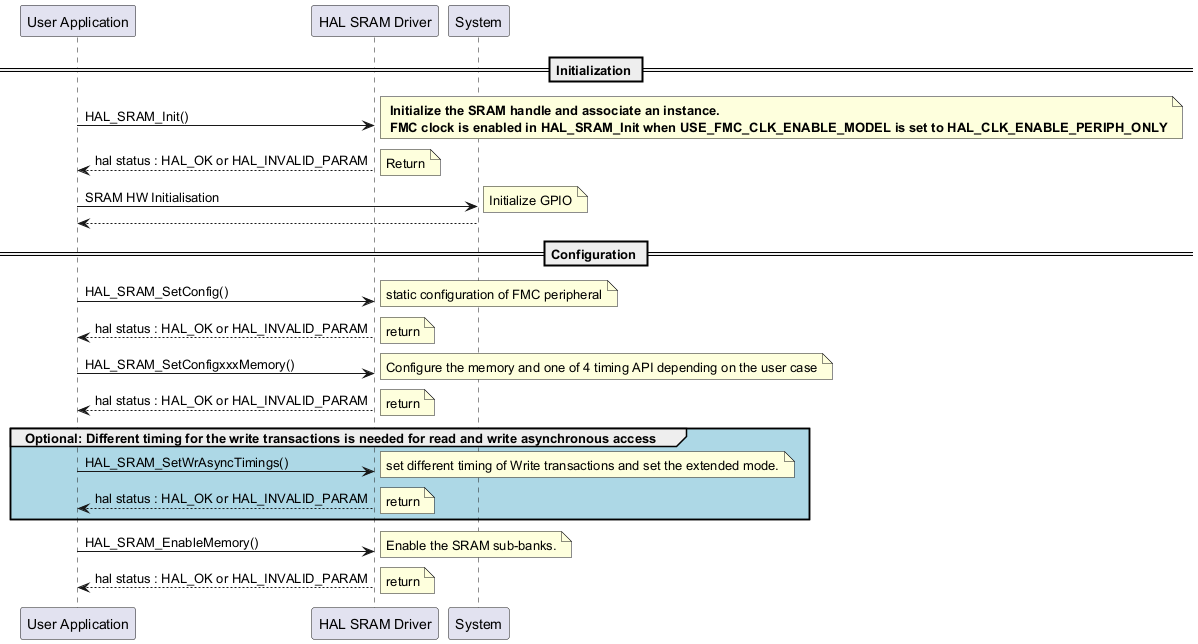

Initialization and Configuration ¶

$@startuml == Initialization == "User Application"->"HAL SRAM Driver" : HAL_SRAM_Init() note right: <b> Initialize the SRAM handle and associate an instance.\n <b>FMC clock is enabled in HAL_SRAM_Init when USE_FMC_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PERIPH_ONLY "HAL SRAM Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: Return "User Application"->"System" : SRAM HW Initialisation note right: Initialize GPIO "System" --> "User Application" == Configuration == "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfig() note right: static configuration of FMC peripheral "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfigxxxMemory() note right: Configure the memory and one of 4 timing API depending on the user case "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return group #LightBlue Optional: Different timing for the write transactions is needed for read and write asynchronous access "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetWrAsyncTimings() note right: set different timing of Write transactions and set the extended mode. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableMemory() note right: Enable the SRAM sub-banks. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return @enduml$

Called functions:

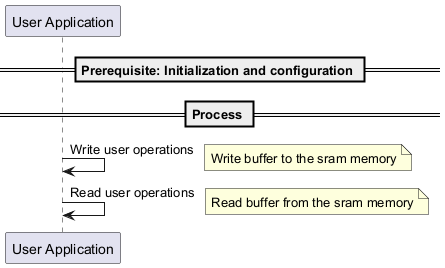

Read/Write Operation ¶

@startuml

==Prerequisite: Initialization and configuration ==

== Process ==

"User Application"->"User Application" : Write user operations

note right: Write buffer to the sram memory

"User Application"->"User Application" : Read user operations

note right: Read buffer from the sram memory

@enduml

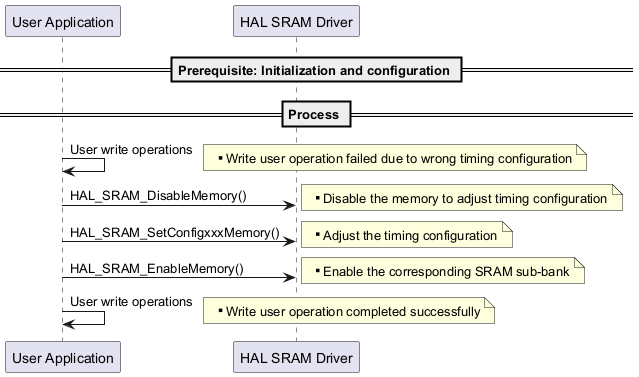

Timing Configuration Adjustment ¶

Called functions:

HAL_SRAM_DisableMemory()
HAL_SRAM_SetConfigxxxMemory()
HAL_SRAM_EnableMemory()

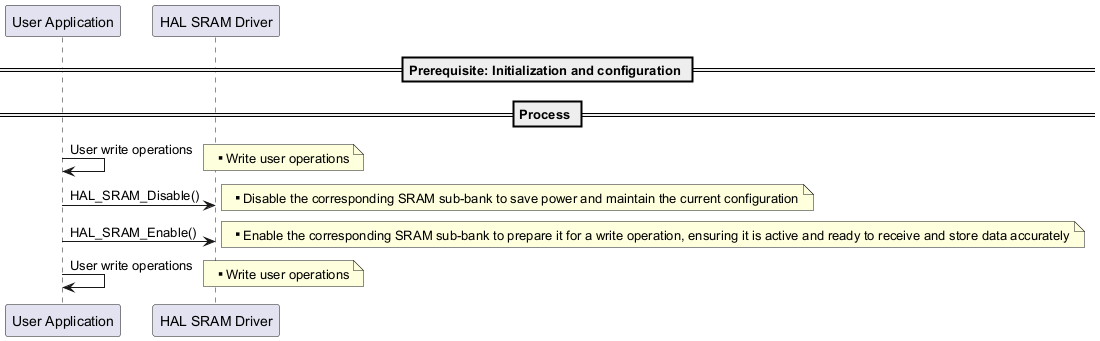

Disable Unused Memory ¶

Called functions:

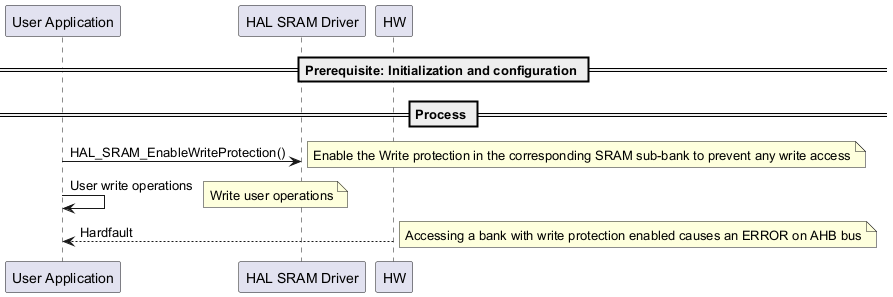

Starting a Write Operation with Write Protection Enabled ¶

Called functions:

HAL_SRAM_EnableWriteProtection()

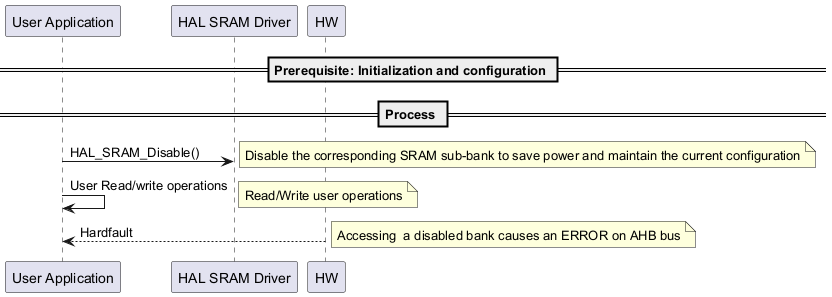

Starting a Read/Write Operation within a Disabled Bank ¶

Called functions:

HAL_SRAM_Disable()

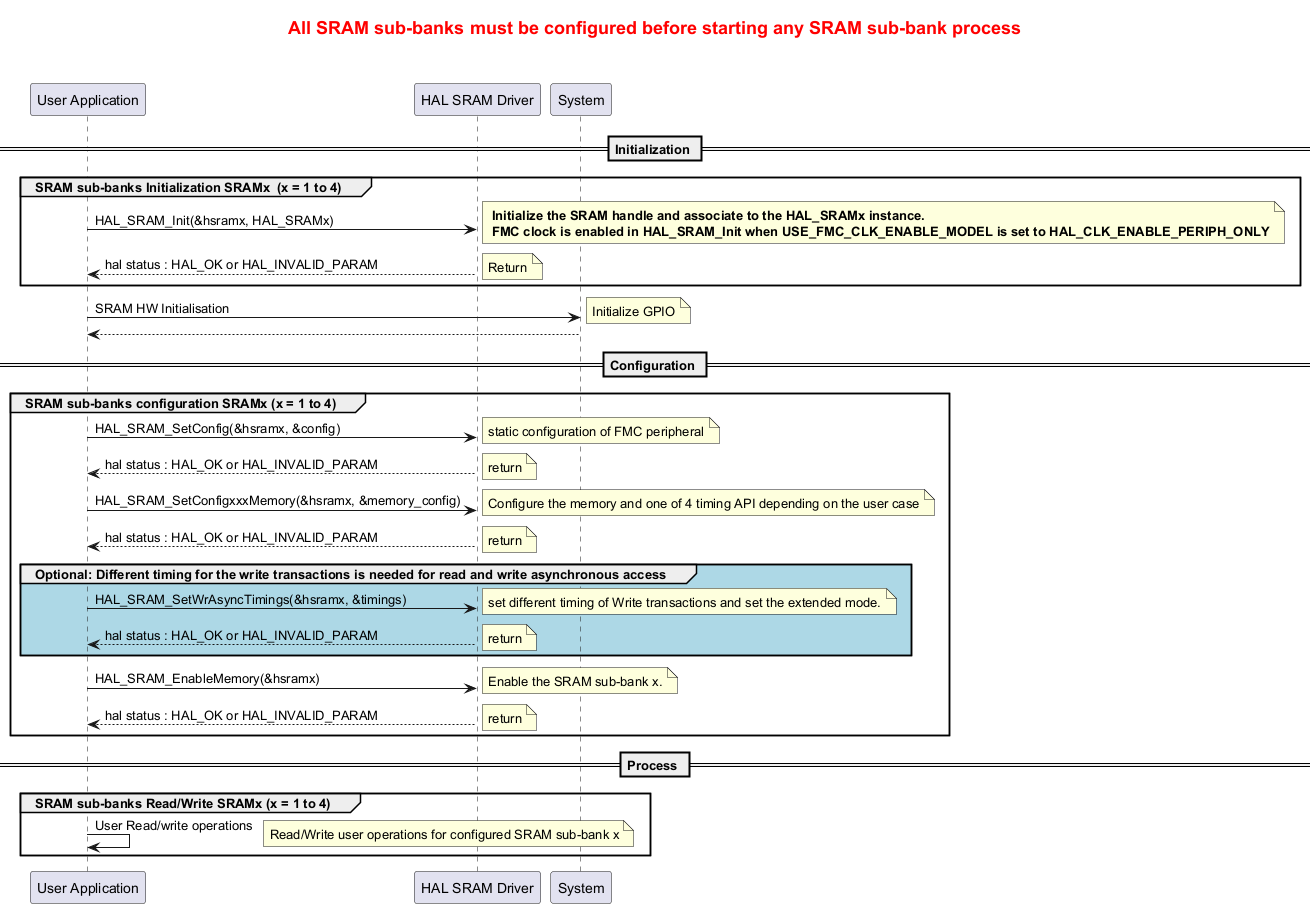

Starting Read/Write Operations in All SRAM Sub-banks ¶

$@startuml title <size:18><color:Red> All SRAM sub-banks must be configured before starting any SRAM sub-bank process \n\n == Initialization == group SRAM sub-banks Initialization SRAMx (x = 1 to 4) "User Application"->"HAL SRAM Driver" : HAL_SRAM_Init(&hsramx, HAL_SRAMx) note right: <b> Initialize the SRAM handle and associate to the HAL_SRAMx instance.\n <b>FMC clock is enabled in HAL_SRAM_Init when USE_FMC_CLK_ENABLE_MODEL is set to HAL_CLK_ENABLE_PERIPH_ONLY "HAL SRAM Driver" --> "User Application" : hal status : HAL_OK or HAL_INVALID_PARAM note right: Return end "User Application"->"System" : SRAM HW Initialisation note right: Initialize GPIO "System" --> "User Application" == Configuration == group SRAM sub-banks configuration SRAMx (x = 1 to 4) "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfig(&hsramx, &config) note right: static configuration of FMC peripheral "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetConfigxxxMemory(&hsramx, &memory_config) note right: Configure the memory and one of 4 timing API depending on the user case "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return group #LightBlue Optional: Different timing for the write transactions is needed for read and write asynchronous access "User Application"->"HAL SRAM Driver" : HAL_SRAM_SetWrAsyncTimings(&hsramx, &timings) note right: set different timing of Write transactions and set the extended mode. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end "User Application"->"HAL SRAM Driver" : HAL_SRAM_EnableMemory(&hsramx) note right: Enable the SRAM sub-bank x. "HAL SRAM Driver" --> "User Application": hal status : HAL_OK or HAL_INVALID_PARAM note right: return end == Process == group SRAM sub-banks Read/Write SRAMx (x = 1 to 4) "User Application"->"User Application" : User Read/write operations note right: Read/Write user operations for configured SRAM sub-bank x end @enduml$

Called functions:
