HAL UART Overview ¶
Introducing UART ¶
- group UART_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the UART module and its associated files.

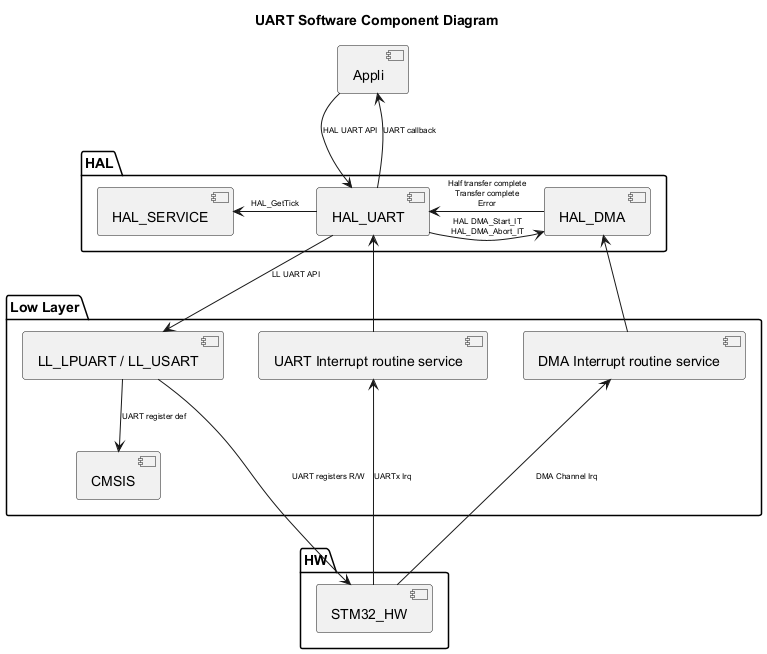

Component diagram ¶
The following diagram illustrates the software components involved in the UART module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title UART Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_UART]
[HAL_DMA]
}
package "Low Layer" {
[LL_LPUART / LL_USART]
[CMSIS]
[UART Interrupt routine service]
[DMA Interrupt routine service]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_UART] : HAL UART API
[Appli] <-- [HAL_UART] : UART callback
[HAL_UART] --> [LL_LPUART / LL_USART] : LL UART API
[HAL_UART] -r-> [HAL_DMA] : HAL DMA_Start_IT\nHAL_DMA_Abort_IT
[HAL_UART] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_UART] <-- [UART Interrupt routine service]
[HAL_UART] <-r- [HAL_DMA]:Half transfer complete\nTransfer complete\nError
[LL_LPUART / LL_USART] --> [CMSIS]:UART register def
[HAL_DMA] <-d- [DMA Interrupt routine service]
[STM32_HW] -u--> [UART Interrupt routine service]: UARTx Irq
[STM32_HW] -u--> [DMA Interrupt routine service] : DMA Channel Irq
[STM32_HW] <-u-- [LL_LPUART / LL_USART] : UART registers R/W
@enduml](../../../../_images/plantuml-53b02f568ff8a26398aa08f8307fd1effef453ac.png)
Configuration table ¶
The following table lists the configuration defines for the HAL UART module, specifying their locations, default values, and descriptions:
- group UART_Configuration_Table
-
¶
Configuration inside the UART driver: ¶
Config defines
Where
Default value
Note
USE_HAL_UART_MODULE
hal_conf.h
1
Enable the HAL UART module.
USE_HAL_UART_REGISTER_CALLBACKS
hal_conf.h
0
Enable the register callbacks
USE_HAL_UART_CLK_ENABLE_MODEL
hal_conf.h
HAL_CLK_ENABLE_NO
Enable peripheral clock in the HAL_UART_Init
USE_HAL_UART_USER_DATA
hal_conf.h
0
Add a user data inside HAL UART handle
USE_HAL_UART_GET_LAST_ERRORS
hal_conf.h
0
Add error member inside HAL UART handle
USE_HAL_UART_DMA
hal_conf.h
1
Enable DMA code inside HAL UART
USE_HAL_CHECK_PARAM
hal_conf.h
0
Enable checking of vital parameters at runtime
USE_HAL_MUTEX
hal_conf.h
0
Enable the use of semaphore in the HAL driver
USE_HAL_CHECK_PROCESS_STATE
hal_conf.h
0
Enable atomic access to process state check
USE_ASSERT_DBG_PARAM
PreProcessor env
NA
Enable the params assert
USE_ASSERT_DBG_STATE
PreProcessor env
NA
Enable the state assert
