HAL UART Use Cases

Prerequisite

This diagram illustrates the prerequisite steps for initializing the system

@startuml participant "User Application" as p1 participant "System Driver" as p2 == Prerequisite == p1->p2: HAL_Init p2-->p1 p1->p2: Configure system clock p2-->p1 @enduml

Full Initialization sequence

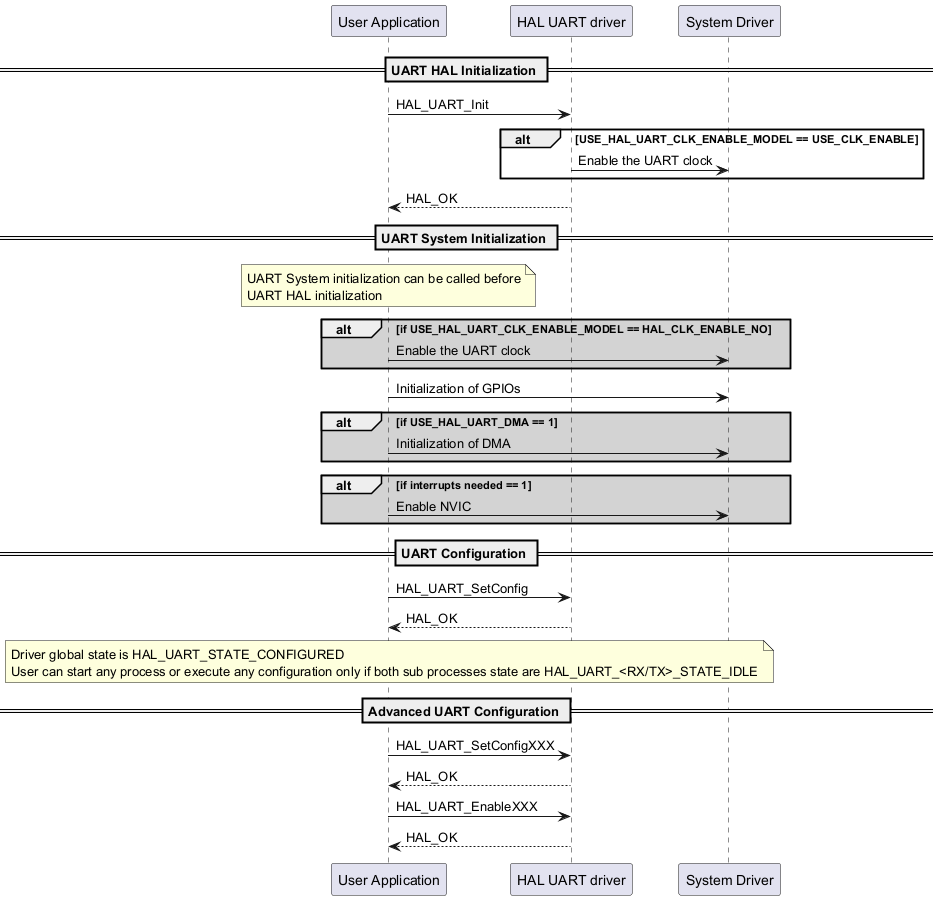

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "System Driver" as p3 == UART HAL Initialization == p1->p2: HAL_UART_Init alt USE_HAL_UART_CLK_ENABLE_MODEL == USE_CLK_ENABLE p2->p3: Enable the UART clock end p2-->p1: HAL_OK == UART System Initialization == note over p1 UART System initialization can be called before UART HAL initialization end note alt #lightgrey if USE_HAL_UART_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO p1->p3: Enable the UART clock end p1->p3: Initialization of GPIOs alt #lightgrey if USE_HAL_UART_DMA == 1 p1->p3: Initialization of DMA end alt #lightgrey if interrupts needed == 1 p1->p3: Enable NVIC end == UART Configuration == p1->p2: HAL_UART_SetConfig p2-->p1:HAL_OK note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note == Advanced UART Configuration == p1->p2: HAL_UART_SetConfigXXX p2-->p1:HAL_OK p1->p2: HAL_UART_EnableXXX p2-->p1:HAL_OK @enduml

Called functions:

Full Deinitialization sequence

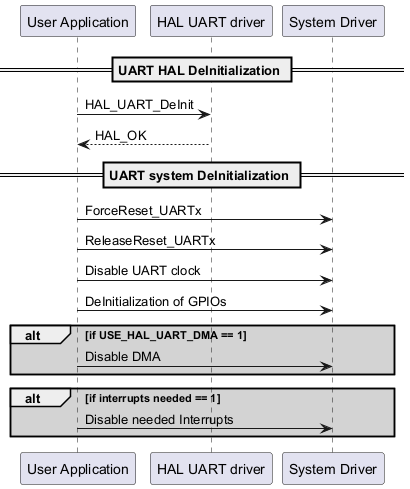

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "System Driver" as p3 == UART HAL DeInitialization == p1->p2: HAL_UART_DeInit p2-->p1: HAL_OK == UART system DeInitialization == p1->p3: ForceReset_UARTx p1->p3: ReleaseReset_UARTx p1->p3: Disable UART clock p1->p3: DeInitialization of GPIOs alt #lightgrey if USE_HAL_UART_DMA == 1 p1->p3: Disable DMA end alt #lightgrey if interrupts needed == 1 p1->p3: Disable needed Interrupts end @enduml

Called functions:

Modes user sequences

LIN Mode

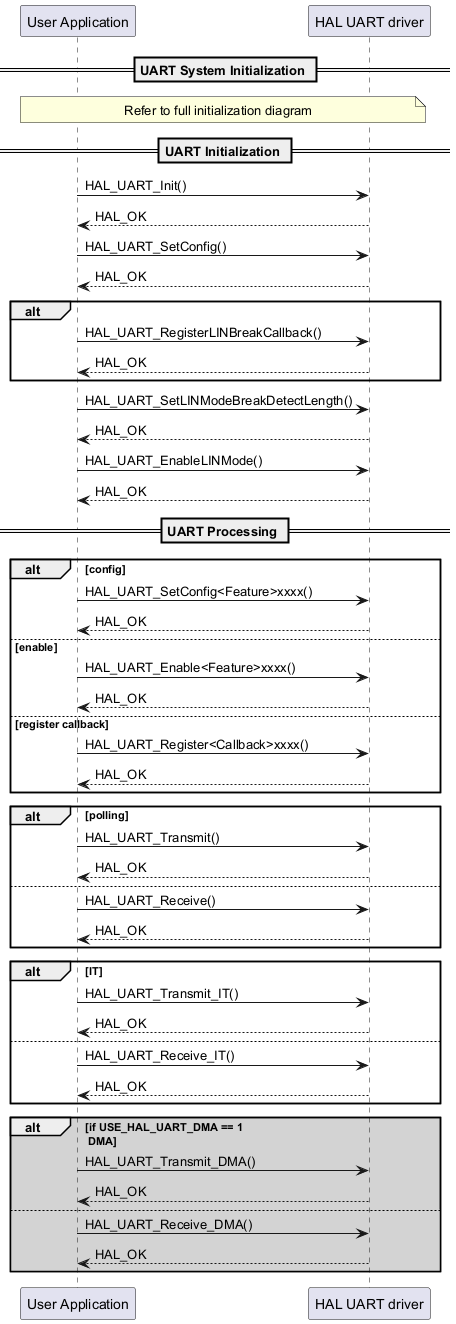

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 == UART System Initialization == note over p1, p2 Refer to full initialization diagram end note == UART Initialization == p1->p2: HAL_UART_Init() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfig() p2-->p1: HAL_OK alt p1->p2: HAL_UART_RegisterLINBreakCallback() p2-->p1: HAL_OK end p1->p2: HAL_UART_SetLINModeBreakDetectLength() p2-->p1: HAL_OK p1->p2: HAL_UART_EnableLINMode() p2-->p1: HAL_OK == UART Processing == alt config p1->p2: HAL_UART_SetConfig<Feature>xxxx() p2-->p1: HAL_OK else enable p1->p2: HAL_UART_Enable<Feature>xxxx() p2-->p1: HAL_OK else register callback p1->p2: HAL_UART_Register<Callback>xxxx() p2-->p1: HAL_OK end alt polling p1->p2: HAL_UART_Transmit() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive() p2-->p1: HAL_OK end alt IT p1->p2: HAL_UART_Transmit_IT() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive_IT() p2-->p1: HAL_OK end alt #lightgrey if USE_HAL_UART_DMA == 1 \n DMA p1->p2: HAL_UART_Transmit_DMA() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive_DMA() p2-->p1: HAL_OK end @enduml

Called functions:

RS485 Mode

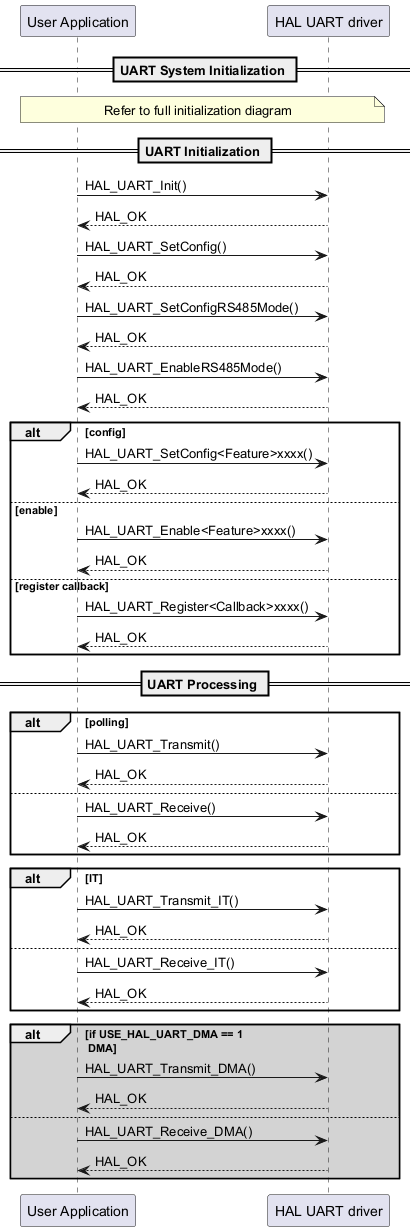

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 == UART System Initialization == note over p1, p2 Refer to full initialization diagram end note == UART Initialization == p1->p2: HAL_UART_Init() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfig() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfigRS485Mode() p2-->p1: HAL_OK p1->p2: HAL_UART_EnableRS485Mode() p2-->p1: HAL_OK alt config p1->p2: HAL_UART_SetConfig<Feature>xxxx() p2-->p1: HAL_OK else enable p1->p2: HAL_UART_Enable<Feature>xxxx() p2-->p1: HAL_OK else register callback p1->p2: HAL_UART_Register<Callback>xxxx() p2-->p1: HAL_OK end == UART Processing == alt polling p1->p2: HAL_UART_Transmit() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive() p2-->p1: HAL_OK end alt IT p1->p2: HAL_UART_Transmit_IT() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive_IT() p2-->p1: HAL_OK end alt #lightgrey if USE_HAL_UART_DMA == 1 \n DMA p1->p2: HAL_UART_Transmit_DMA() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive_DMA() p2-->p1: HAL_OK end @enduml

Called functions:

Multiprocessor Mode

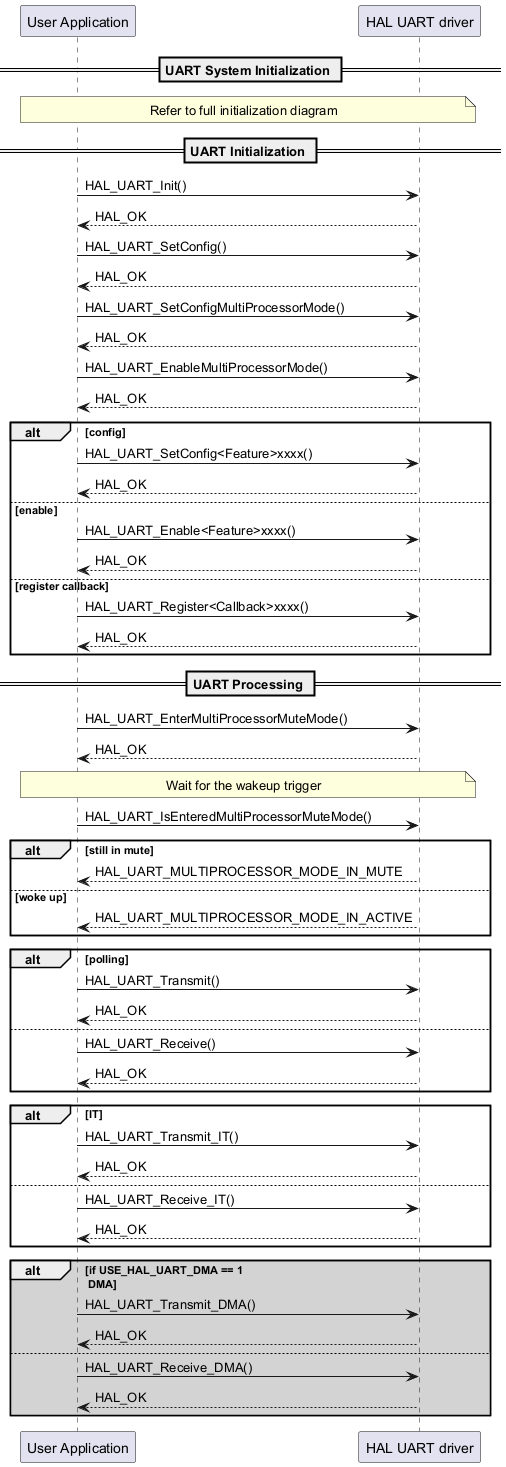

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 == UART System Initialization == note over p1, p2 Refer to full initialization diagram end note == UART Initialization == p1->p2: HAL_UART_Init() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfig() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfigMultiProcessorMode() p2-->p1: HAL_OK p1->p2: HAL_UART_EnableMultiProcessorMode() p2-->p1: HAL_OK alt config p1->p2: HAL_UART_SetConfig<Feature>xxxx() p2-->p1: HAL_OK else enable p1->p2: HAL_UART_Enable<Feature>xxxx() p2-->p1: HAL_OK else register callback p1->p2: HAL_UART_Register<Callback>xxxx() p2-->p1: HAL_OK end == UART Processing == p1->p2: HAL_UART_EnterMultiProcessorMuteMode() p2-->p1: HAL_OK note over p1, p2 Wait for the wakeup trigger end note p1->p2: HAL_UART_IsEnteredMultiProcessorMuteMode() alt still in mute p2-->p1: HAL_UART_MULTIPROCESSOR_MODE_IN_MUTE else woke up p2-->p1: HAL_UART_MULTIPROCESSOR_MODE_IN_ACTIVE end alt polling p1->p2: HAL_UART_Transmit() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive() p2-->p1: HAL_OK end alt IT p1->p2: HAL_UART_Transmit_IT() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive_IT() p2-->p1: HAL_OK end alt #lightgrey if USE_HAL_UART_DMA == 1 \n DMA p1->p2: HAL_UART_Transmit_DMA() p2-->p1: HAL_OK else p1->p2: HAL_UART_Receive_DMA() p2-->p1: HAL_OK end @enduml

Called functions:

Half Duplex Mode

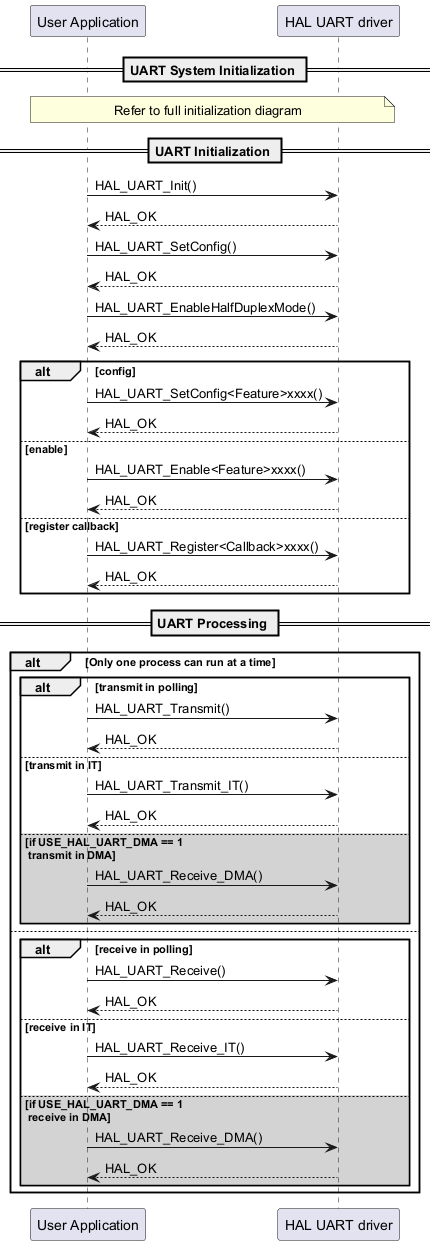

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 == UART System Initialization == note over p1, p2 Refer to full initialization diagram end note == UART Initialization == p1->p2: HAL_UART_Init() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfig() p2-->p1: HAL_OK p1->p2: HAL_UART_EnableHalfDuplexMode() p2-->p1: HAL_OK alt config p1->p2: HAL_UART_SetConfig<Feature>xxxx() p2-->p1: HAL_OK else enable p1->p2: HAL_UART_Enable<Feature>xxxx() p2-->p1: HAL_OK else register callback p1->p2: HAL_UART_Register<Callback>xxxx() p2-->p1: HAL_OK end == UART Processing == alt Only one process can run at a time alt transmit in polling p1->p2: HAL_UART_Transmit() p2-->p1: HAL_OK else transmit in IT p1->p2: HAL_UART_Transmit_IT() p2-->p1: HAL_OK else #lightgrey if USE_HAL_UART_DMA == 1 \n transmit in DMA p1->p2: HAL_UART_Receive_DMA() p2-->p1: HAL_OK end else alt receive in polling p1->p2: HAL_UART_Receive() p2-->p1: HAL_OK else receive in IT p1->p2: HAL_UART_Receive_IT() p2-->p1: HAL_OK else #lightgrey if USE_HAL_UART_DMA == 1 \n receive in DMA p1->p2: HAL_UART_Receive_DMA() p2-->p1: HAL_OK end end @enduml

Called functions:

Process

Process Transmit/Receive Polling

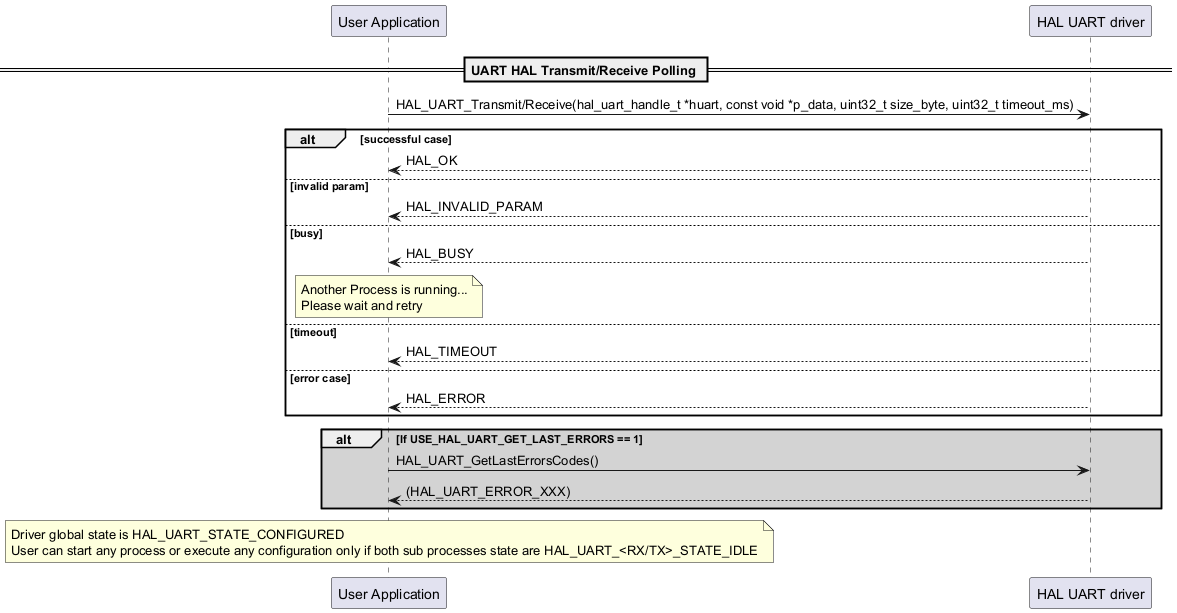

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 == UART HAL Transmit/Receive Polling == p1->p2: HAL_UART_Transmit/Receive(hal_uart_handle_t *huart, const void *p_data, uint32_t size_byte, uint32_t timeout_ms) alt successful case p2-->p1: HAL_OK else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

Process Receive IT

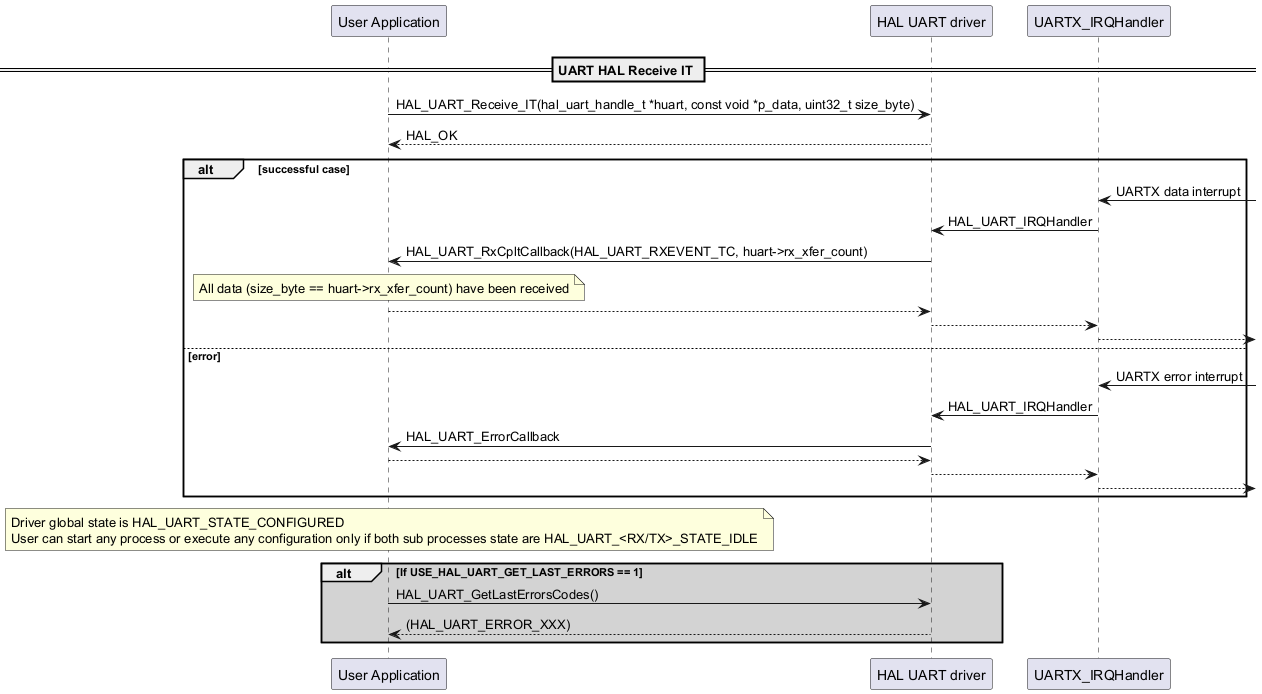

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "UARTX_IRQHandler" as p3 == UART HAL Receive IT == p1->p2: HAL_UART_Receive_IT(hal_uart_handle_t *huart, const void *p_data, uint32_t size_byte) p2-->p1: HAL_OK alt successful case p3<-: UARTX data interrupt p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3--> else error p3<-: UARTX error interrupt p3->p2:HAL_UART_IRQHandler p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3--> end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Transmit IT

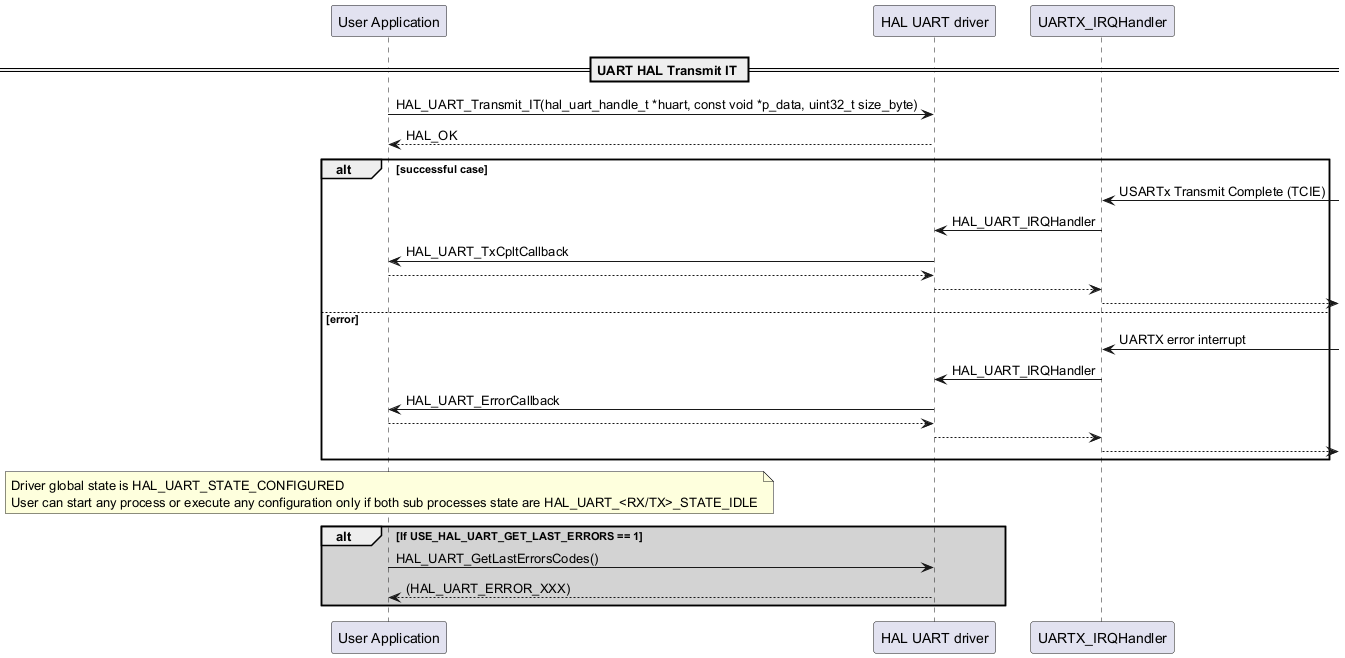

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "UARTX_IRQHandler" as p3 == UART HAL Transmit IT == p1->p2: HAL_UART_Transmit_IT(hal_uart_handle_t *huart, const void *p_data, uint32_t size_byte) p2-->p1: HAL_OK alt successful case p3<-: USARTx Transmit Complete (TCIE) p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_TxCpltCallback p1-->p2 p2-->p3 p3--> else error p3<-: UARTX error interrupt p3->p2:HAL_UART_IRQHandler p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3--> end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Receive DMA

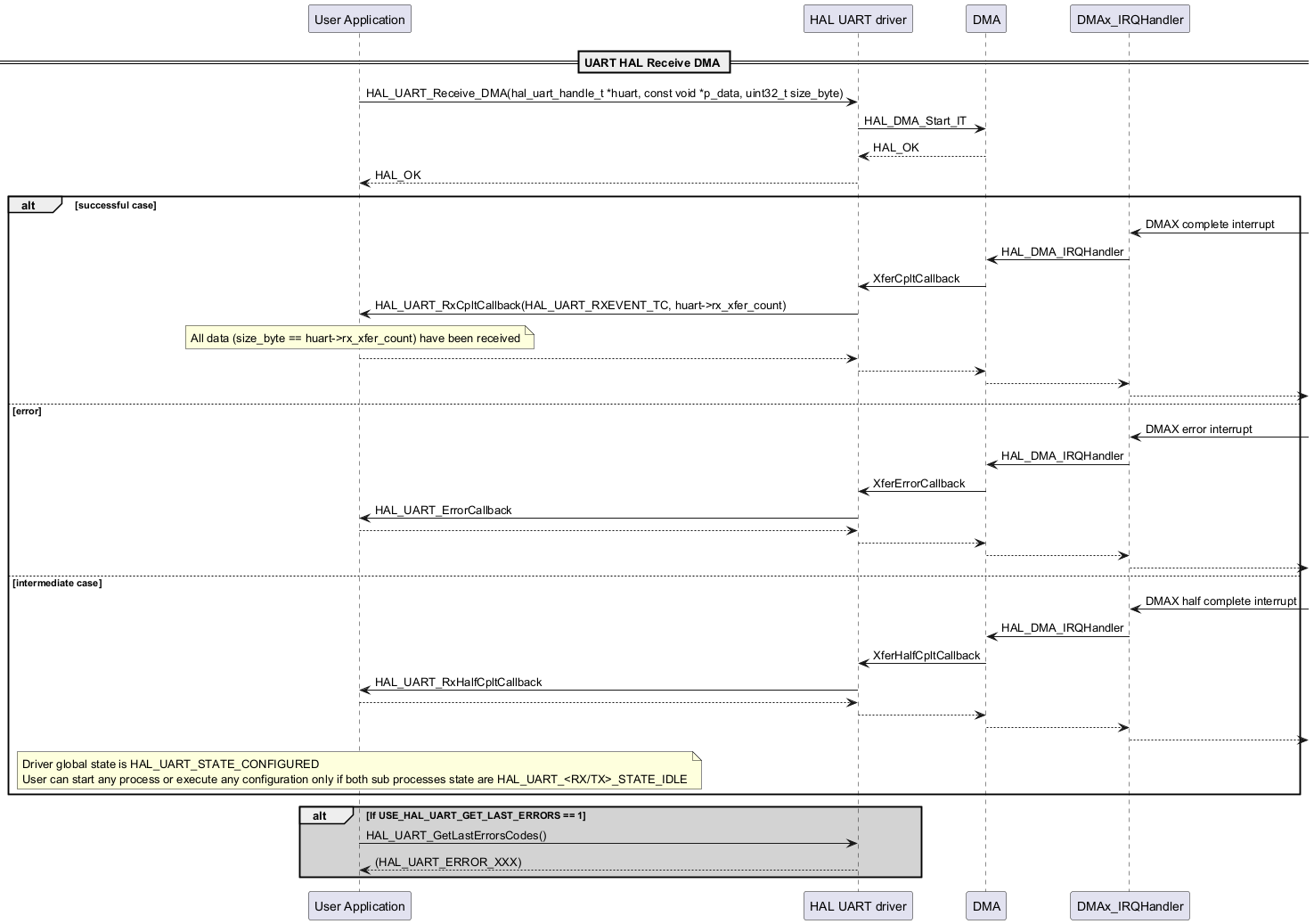

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 == UART HAL Receive DMA == p1->p2: HAL_UART_Receive_DMA(hal_uart_handle_t *huart, const void *p_data, uint32_t size_byte) p2->p3: HAL_DMA_Start_IT p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAX complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3-->p4 p4--> else error p4<-: DMAX error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAX half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_UART_RxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Transmit DMA

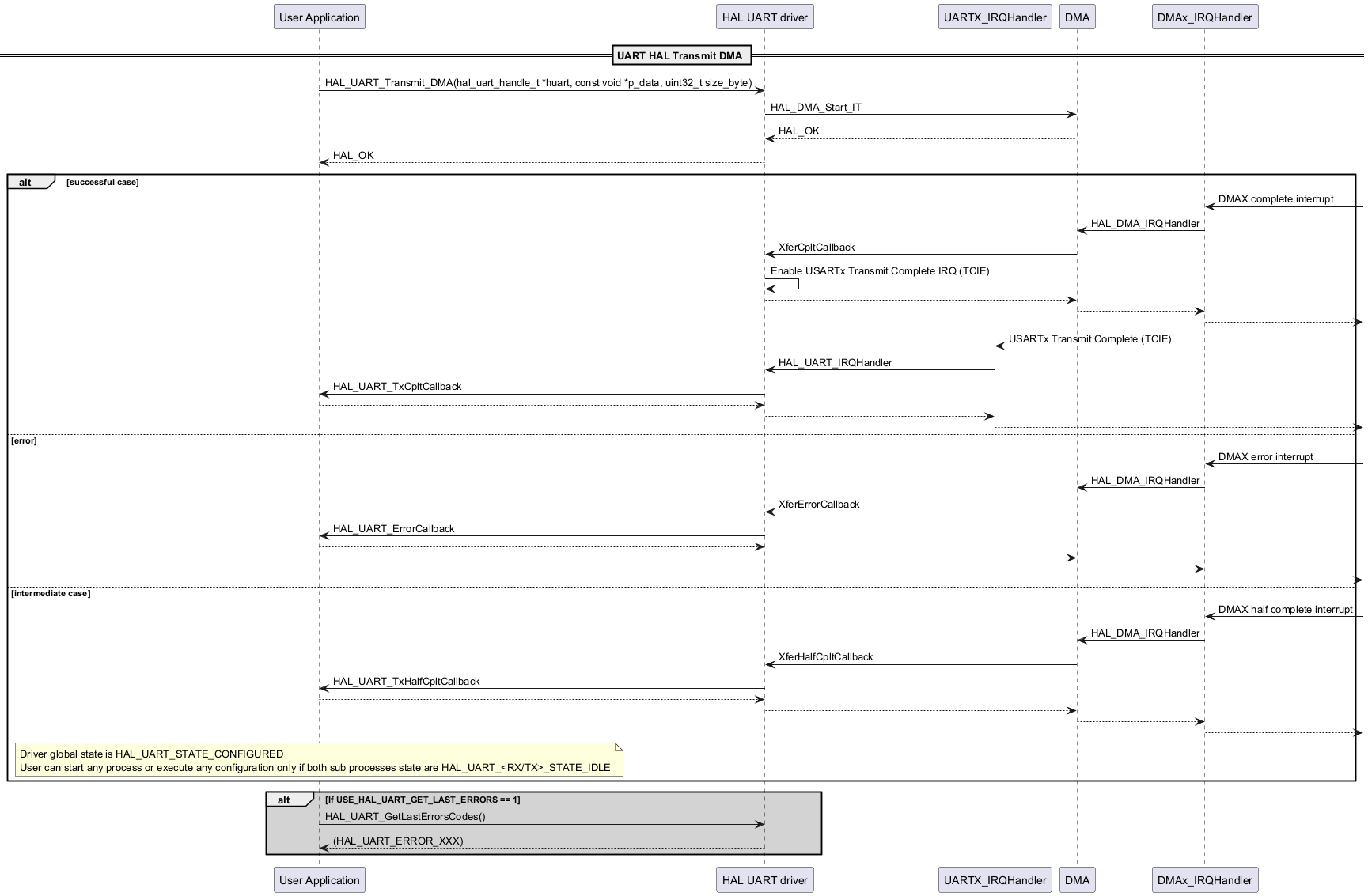

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "UARTX_IRQHandler" as p5 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 == UART HAL Transmit DMA == p1->p2: HAL_UART_Transmit_DMA(hal_uart_handle_t *huart, const void *p_data, uint32_t size_byte) p2->p3: HAL_DMA_Start_IT p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAX complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback p2->p2: Enable USARTx Transmit Complete IRQ (TCIE) p2-->p3 p3-->p4 p4--> p5<-: USARTx Transmit Complete (TCIE) p5->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_TxCpltCallback p1-->p2 p2-->p5 p5--> else error p4<-: DMAX error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAX half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_UART_TxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Receive To Idle Polling

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "HAL UART ISR register" as p3 == UART HAL Receive to IDLE == p1->p2: HAL_UART_ReceiveToIdle(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint32_t *p_rx_size_byte, uint32_t timeout_ms); alt successful case p2->p3: poll IDLE || RXNE p3-->p2 p2-->p1: HAL_OK: IDLE received or Rx_counter == size_byte else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

Process Receive Until Character Match Polling

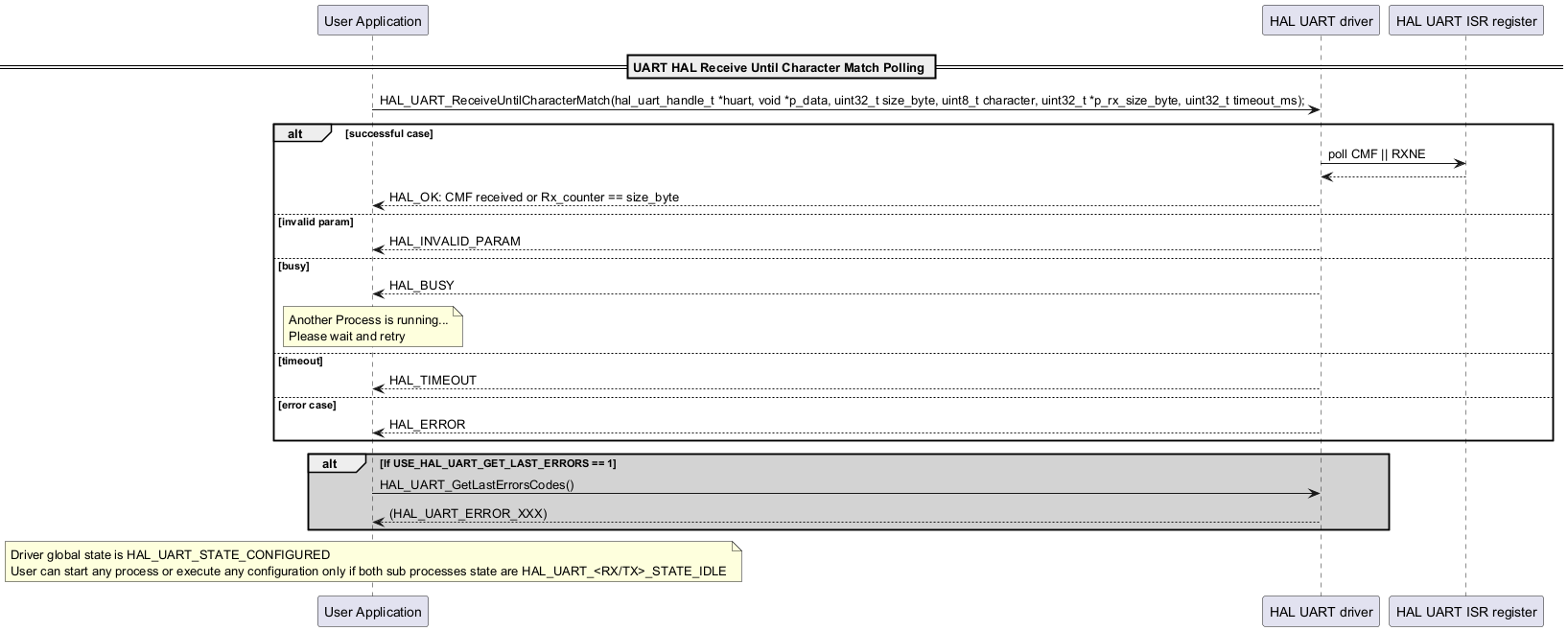

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "HAL UART ISR register" as p3 == UART HAL Receive Until Character Match Polling == p1->p2: HAL_UART_ReceiveUntilCharacterMatch(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint8_t character, uint32_t *p_rx_size_byte, uint32_t timeout_ms); alt successful case p2->p3: poll CMF || RXNE p3-->p2 p2-->p1: HAL_OK: CMF received or Rx_counter == size_byte else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

  • HAL_UART_ReceiveUntilCharacterMatch()

  • HAL_UART_GetLastErrorsCodes()

Process Receive Until Timeout Polling

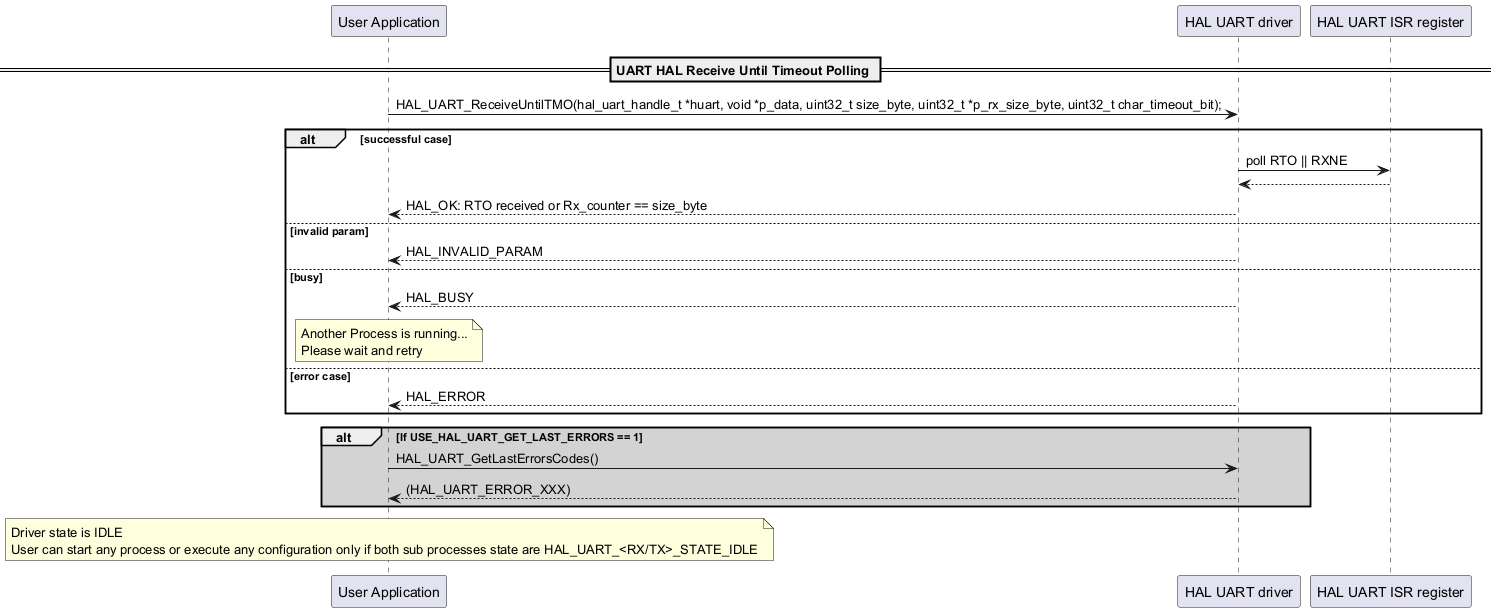

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "HAL UART ISR register" as p3 == UART HAL Receive Until Timeout Polling == p1->p2: HAL_UART_ReceiveUntilTMO(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint32_t *p_rx_size_byte, uint32_t char_timeout_bit); alt successful case p2->p3: poll RTO || RXNE p3-->p2 p2-->p1: HAL_OK: RTO received or Rx_counter == size_byte else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end note over p1 Driver state is IDLE User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

Process Receive To Idle IT

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "HAL UART ISR register" as p3 == UART HAL Receive Until Character Match Polling == p1->p2: HAL_UART_ReceiveUntilCharacterMatch(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint8_t character, uint32_t *p_rx_size_byte, uint32_t timeout_ms); alt successful case p2->p3: poll CMF || RXNE p3-->p2 p2-->p1: HAL_OK: CMF received or Rx_counter == size_byte else invalid param p2-->p1: HAL_INVALID_PARAM else busy p2-->p1: HAL_BUSY note over p1 Another Process is running... Please wait and retry end note else timeout p2-->p1: HAL_TIMEOUT else error case p2-->p1: HAL_ERROR end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

Process Receive Until Character Match IT

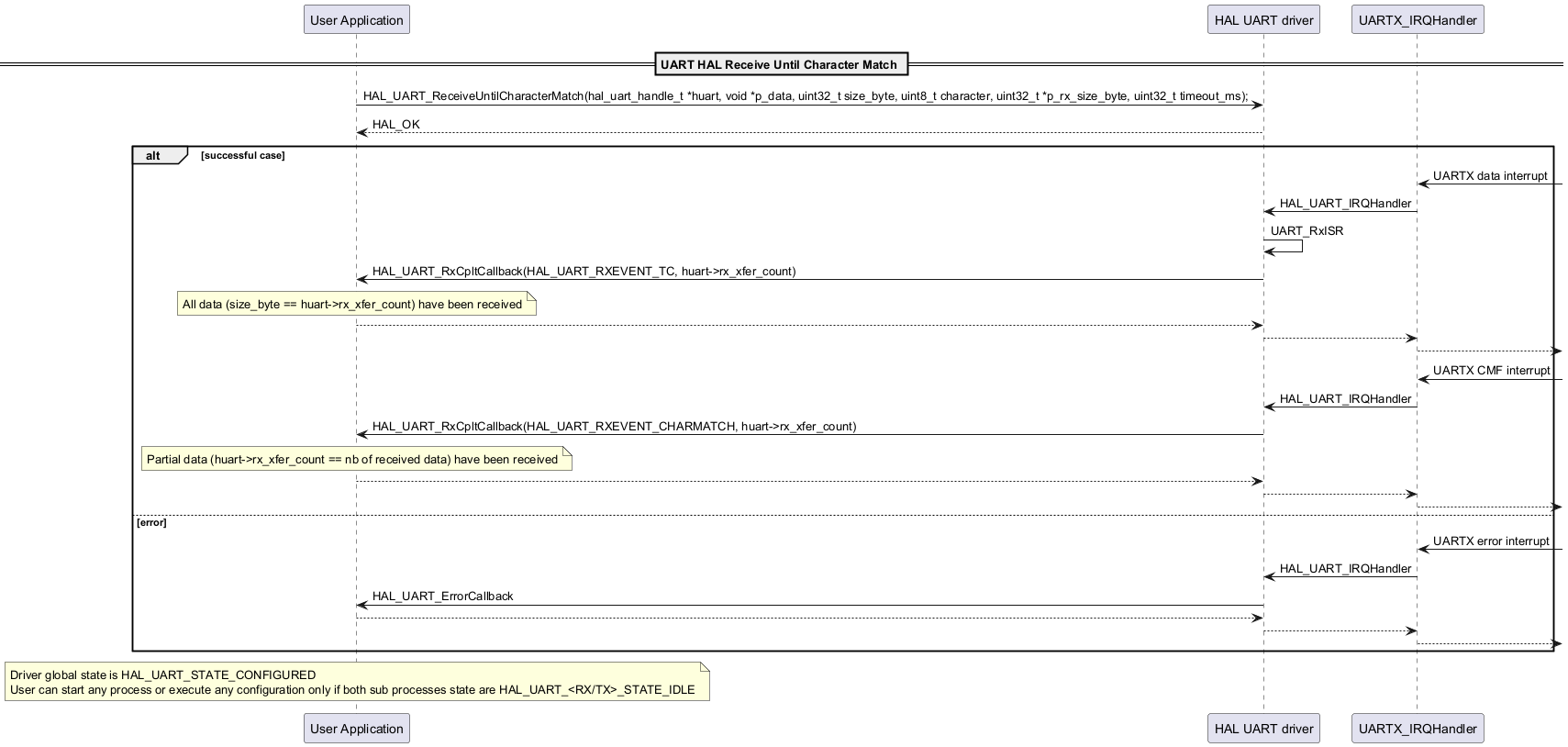

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "UARTX_IRQHandler" as p3 == UART HAL Receive Until Character Match == p1->p2: HAL_UART_ReceiveUntilCharacterMatch(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint8_t character, uint32_t *p_rx_size_byte, uint32_t timeout_ms); p2-->p1: HAL_OK alt successful case p3<-: UARTX data interrupt p3->p2: HAL_UART_IRQHandler p2->p2: UART_RxISR p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3--> p3<-: UARTX CMF interrupt p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_CHARMATCH, huart->rx_xfer_count) note over p1: Partial data (huart->rx_xfer_count == nb of received data) have been received p1-->p2 p2-->p3 p3--> else error p3<-: UARTX error interrupt p3->p2:HAL_UART_IRQHandler p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3--> end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

  • HAL_UART_ReceiveUntilCharacterMatch()

  • HAL_UART_GetLastErrorsCodes()

Process Receive Until Timeout IT

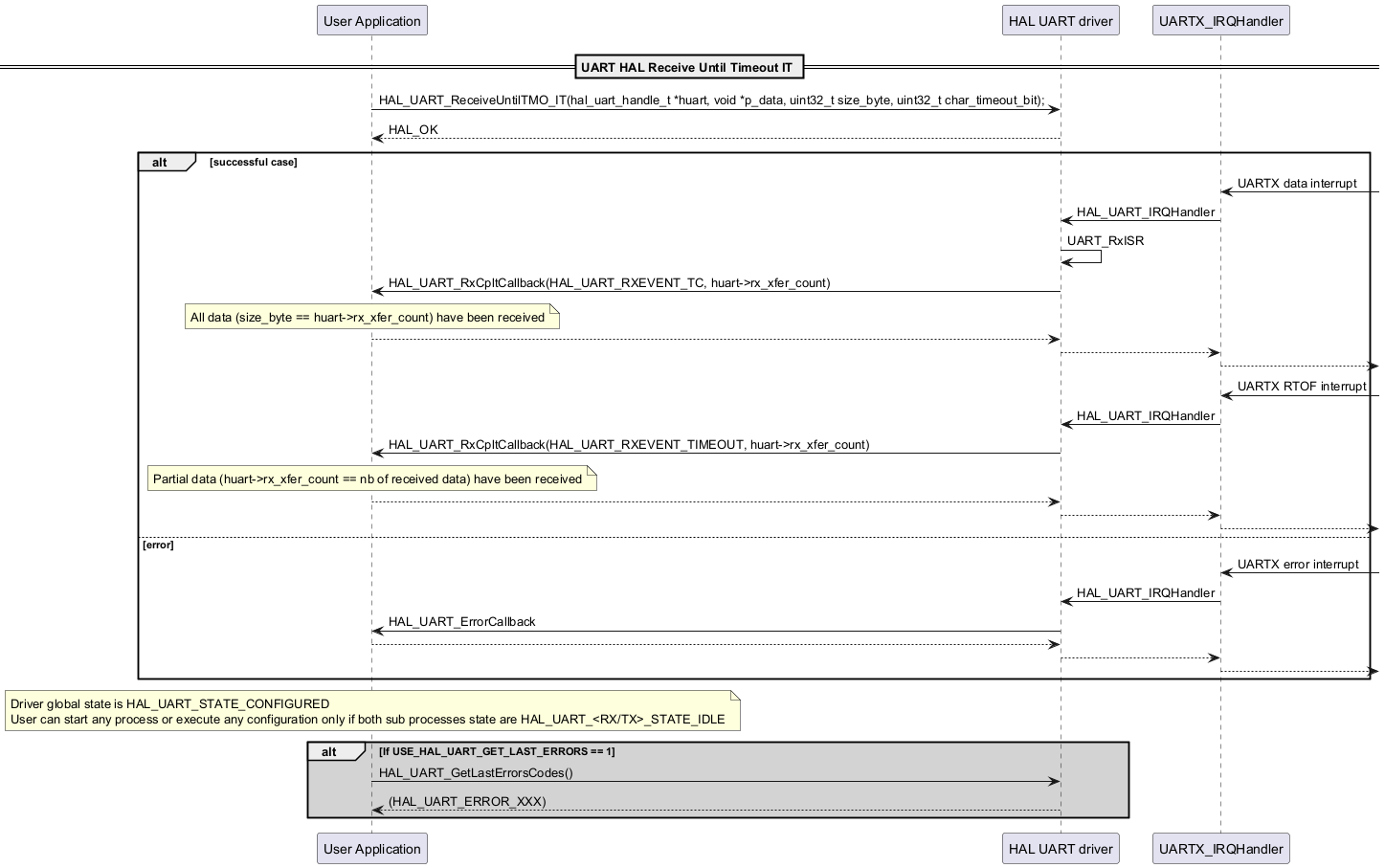

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "UARTX_IRQHandler" as p3 == UART HAL Receive Until Timeout IT == p1->p2: HAL_UART_ReceiveUntilTMO_IT(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint32_t char_timeout_bit); p2-->p1: HAL_OK alt successful case p3<-: UARTX data interrupt p3->p2: HAL_UART_IRQHandler p2->p2: UART_RxISR p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3--> p3<-: UARTX RTOF interrupt p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TIMEOUT, huart->rx_xfer_count) note over p1: Partial data (huart->rx_xfer_count == nb of received data) have been received p1-->p2 p2-->p3 p3--> else error p3<-: UARTX error interrupt p3->p2:HAL_UART_IRQHandler p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3--> end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Receive To Idle DMA

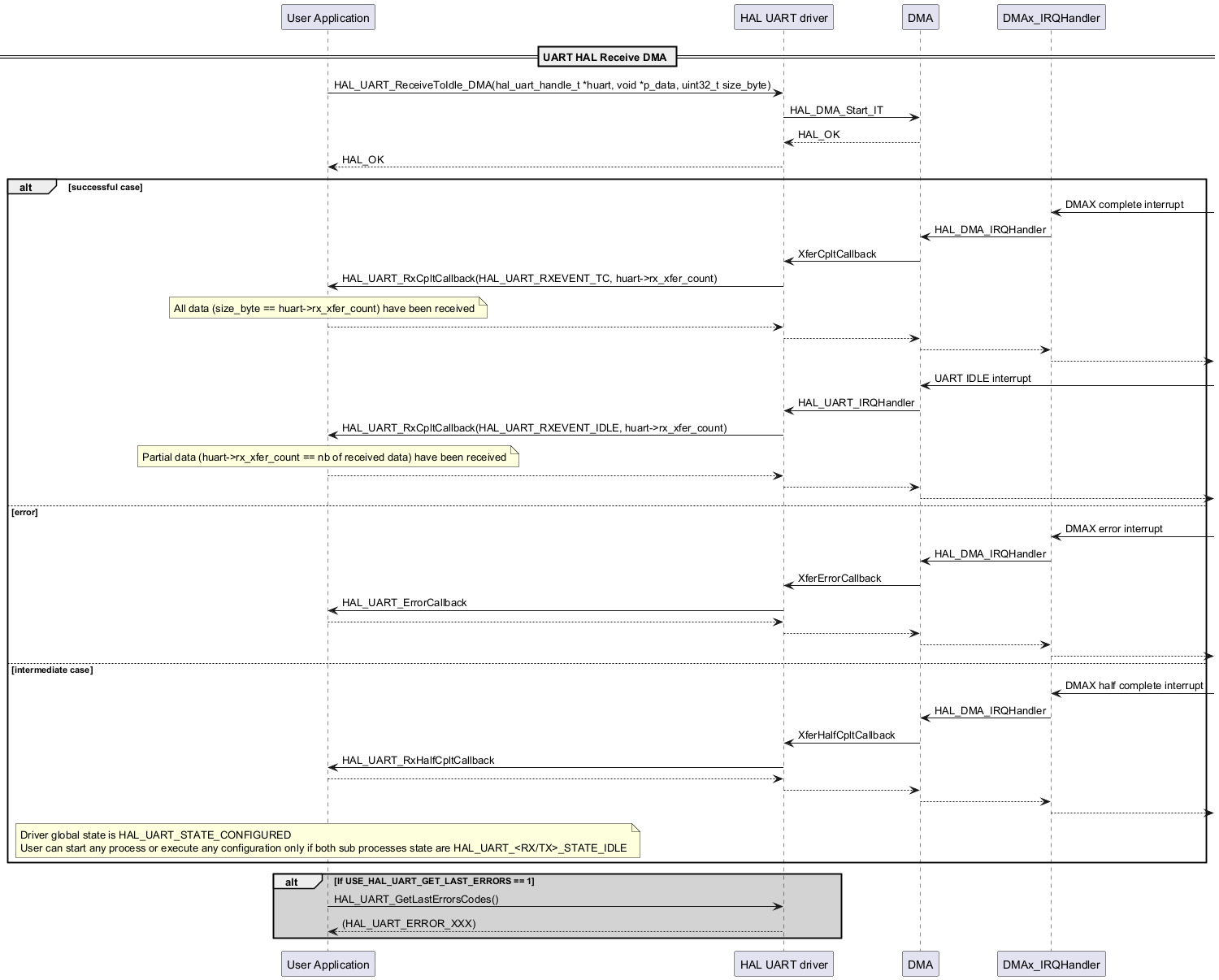

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 == UART HAL Receive DMA == p1->p2: HAL_UART_ReceiveToIdle_DMA(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte) p2->p3: HAL_DMA_Start_IT p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAX complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3-->p4 p4--> p3<-: UART IDLE interrupt p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_IDLE, huart->rx_xfer_count) note over p1: Partial data (huart->rx_xfer_count == nb of received data) have been received p1-->p2 p2-->p3 p3--> else error p4<-: DMAX error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAX half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_UART_RxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Receive Until Character Match DMA

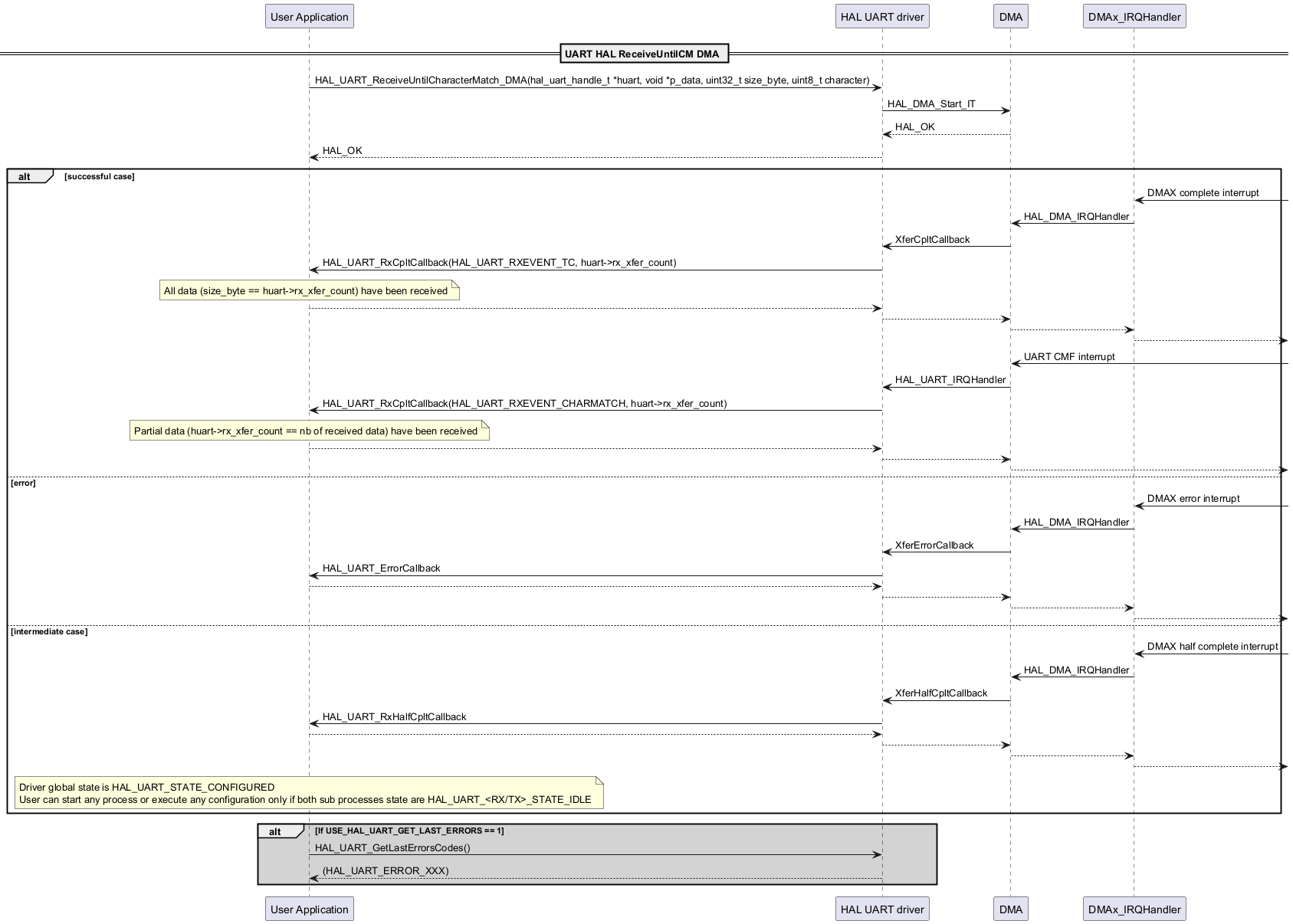

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 == UART HAL ReceiveUntilCM DMA == p1->p2: HAL_UART_ReceiveUntilCharacterMatch_DMA(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint8_t character) p2->p3: HAL_DMA_Start_IT p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAX complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3-->p4 p4--> p3<-: UART CMF interrupt p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_CHARMATCH, huart->rx_xfer_count) note over p1: Partial data (huart->rx_xfer_count == nb of received data) have been received p1-->p2 p2-->p3 p3--> else error p4<-: DMAX error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAX half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_UART_RxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

  • HAL_UART_ReceiveUntilCharacterMatch_DMA()

  • HAL_UART_GetLastErrorsCodes()

Process Receive Until Timeout DMA

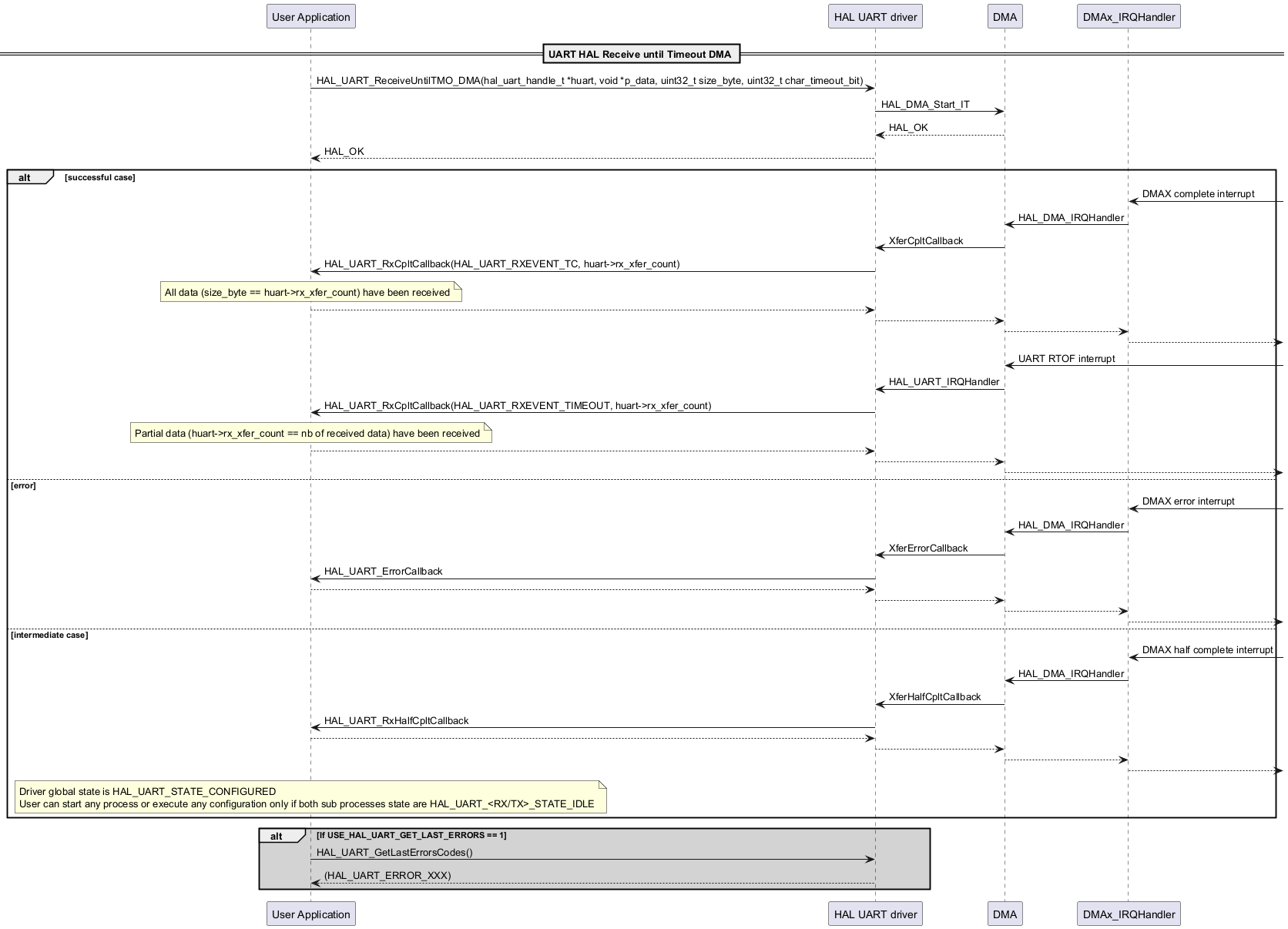

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "DMA" as p3 participant "DMAx_IRQHandler" as p4 == UART HAL Receive until Timeout DMA == p1->p2: HAL_UART_ReceiveUntilTMO_DMA(hal_uart_handle_t *huart, void *p_data, uint32_t size_byte, uint32_t char_timeout_bit) p2->p3: HAL_DMA_Start_IT p3-->p2: HAL_OK p2-->p1: HAL_OK alt successful case p4<-: DMAX complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferCpltCallback p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TC, huart->rx_xfer_count) note over p1: All data (size_byte == huart->rx_xfer_count) have been received p1-->p2 p2-->p3 p3-->p4 p4--> p3<-: UART RTOF interrupt p3->p2: HAL_UART_IRQHandler p2->p1: HAL_UART_RxCpltCallback(HAL_UART_RXEVENT_TIMEOUT, huart->rx_xfer_count) note over p1: Partial data (huart->rx_xfer_count == nb of received data) have been received p1-->p2 p2-->p3 p3--> else error p4<-: DMAX error interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferErrorCallback p2->p1: HAL_UART_ErrorCallback p1-->p2 p2-->p3 p3-->p4 p4--> else intermediate case p4<-: DMAX half complete interrupt p4->p3: HAL_DMA_IRQHandler p3->p2: XferHalfCpltCallback p2->p1: HAL_UART_RxHalfCpltCallback p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note end alt #lightgrey If USE_HAL_UART_GET_LAST_ERRORS == 1 p1->p2: HAL_UART_GetLastErrorsCodes() p2-->p1: (HAL_UART_ERROR_XXX) end @enduml

Called functions:

Process Abort

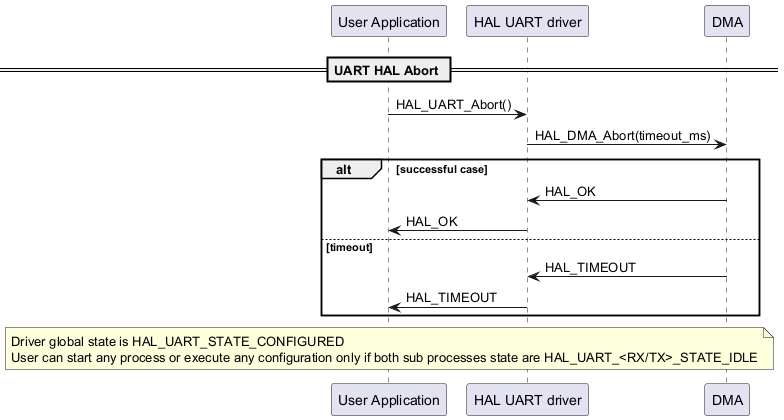

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "DMA" as p3 == UART HAL Abort == p1->p2: HAL_UART_Abort() p2->p3: HAL_DMA_Abort(timeout_ms) alt successful case p3->p2: HAL_OK p2->p1: HAL_OK else timeout p3->p2: HAL_TIMEOUT p2->p1: HAL_TIMEOUT end note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

Process Abort IT

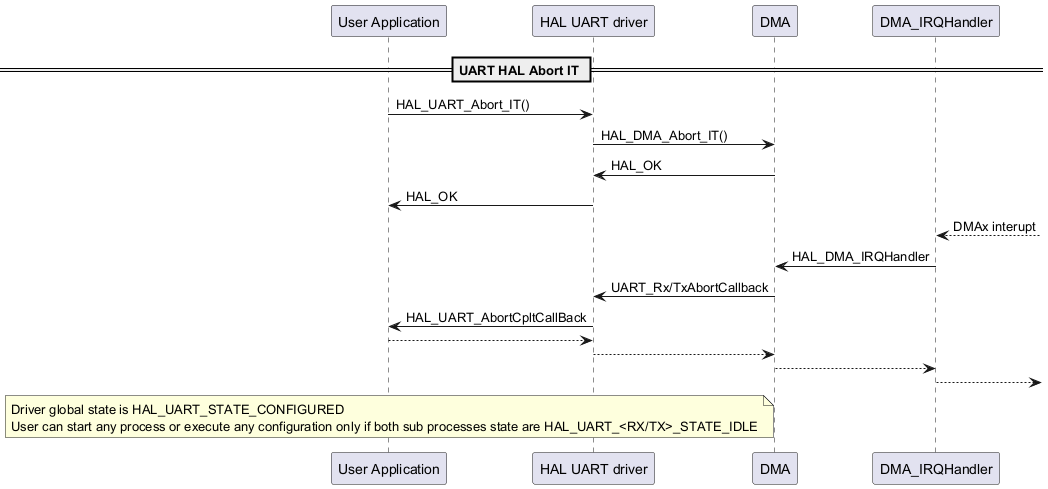

@startuml participant "User Application" as p1 participant "HAL UART driver" as p2 participant "DMA" as p3 participant "DMA_IRQHandler" as p4 == UART HAL Abort IT == p1->p2: HAL_UART_Abort_IT() p2->p3: HAL_DMA_Abort_IT() p3->p2: HAL_OK p2->p1: HAL_OK p4<--: DMAx interupt p4->p3: HAL_DMA_IRQHandler p3->p2: UART_Rx/TxAbortCallback p2->p1: HAL_UART_AbortCpltCallBack p1-->p2 p2-->p3 p3-->p4 p4--> note over p1 Driver global state is HAL_UART_STATE_CONFIGURED User can start any process or execute any configuration only if both sub processes state are HAL_UART_<RX/TX>_STATE_IDLE end note @enduml

Called functions:

Acquire Release BUS

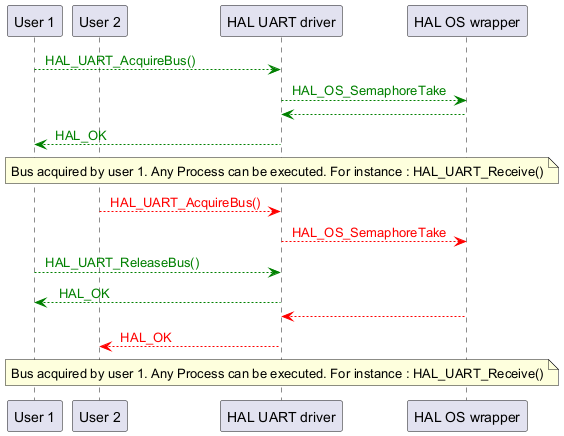

@startuml participant "User 1" as p1 participant "User 2" as p2 participant "HAL UART driver" as p3 participant "HAL OS wrapper" as p4 p1-[#green]->p3 : <color #Green> HAL_UART_AcquireBus() </color> p3-[#green]->p4 : <color #Green> HAL_OS_SemaphoreTake </color> p4-[#green]-->p3 p3-[#green]-->p1: <color #Green> HAL_OK </color> note over p3 Bus acquired by user 1. Any Process can be executed. For instance : HAL_UART_Receive() end note p2-[#red]->p3 : <color #Red> HAL_UART_AcquireBus() </color> p3-[#red]->p4 : <color #Red> HAL_OS_SemaphoreTake </color> p1-[#green]->p3 : <color #Green> HAL_UART_ReleaseBus() </color> p3-[#green]-->p1:<color #Green> HAL_OK </color> p4-[#red]-->p3 p3-[#red]-->p2: <color #Red> HAL_OK </color> note over p3 Bus acquired by user 1. Any Process can be executed. For instance : HAL_UART_Receive() end note @enduml

Called functions:

Auto Baud Rate

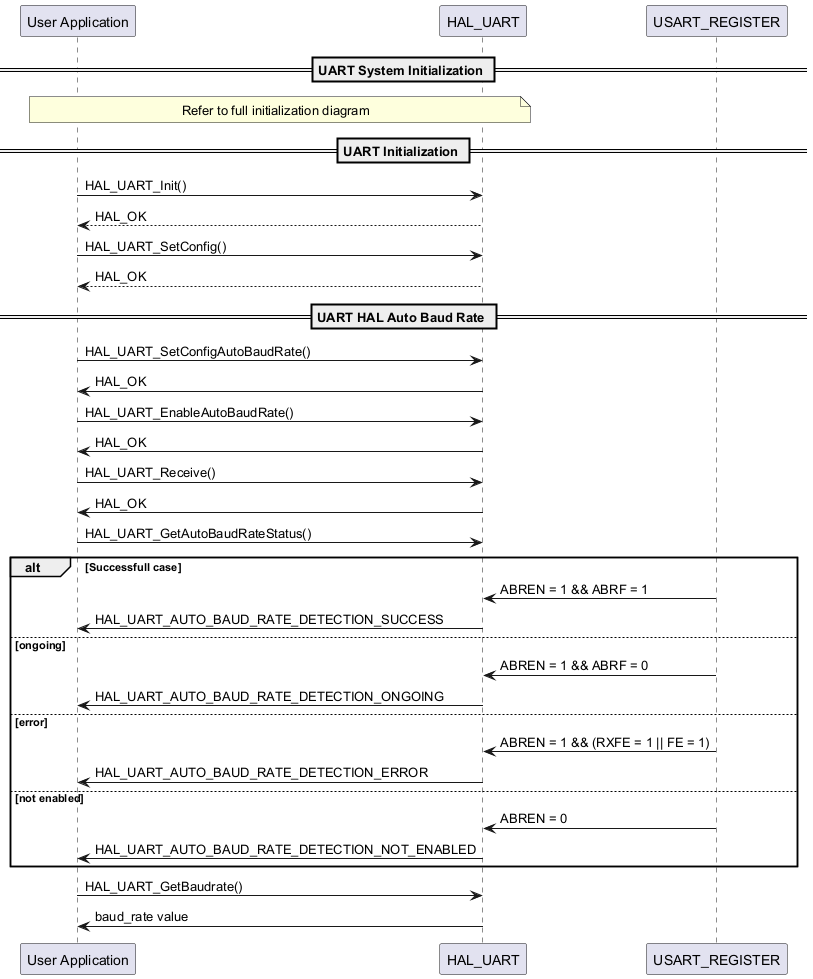

@startuml participant "User Application" as p1 participant HAL_UART as p2 participant USART_REGISTER as p3 == UART System Initialization == note over p1, p2 Refer to full initialization diagram end note == UART Initialization == p1->p2: HAL_UART_Init() p2-->p1: HAL_OK p1->p2: HAL_UART_SetConfig() p2-->p1: HAL_OK == UART HAL Auto Baud Rate == p1->p2: HAL_UART_SetConfigAutoBaudRate() p1<-p2: HAL_OK p1->p2: HAL_UART_EnableAutoBaudRate() p1<-p2: HAL_OK p1->p2: HAL_UART_Receive() p2->p1: HAL_OK p1->p2: HAL_UART_GetAutoBaudRateStatus() alt Successfull case p3->p2: ABREN = 1 && ABRF = 1 p2->p1: HAL_UART_AUTO_BAUD_RATE_DETECTION_SUCCESS else ongoing p3->p2: ABREN = 1 && ABRF = 0 p2->p1: HAL_UART_AUTO_BAUD_RATE_DETECTION_ONGOING else error p3->p2: ABREN = 1 && (RXFE = 1 || FE = 1) p2->p1: HAL_UART_AUTO_BAUD_RATE_DETECTION_ERROR else not enabled p3->p2: ABREN = 0 p2->p1: HAL_UART_AUTO_BAUD_RATE_DETECTION_NOT_ENABLED end p1->p2: HAL_UART_GetBaudrate() p2->p1: baud_rate value @enduml

Called functions:
