HAL UCPD Use Cases ¶

Full UCPD Initialization Sequence ¶

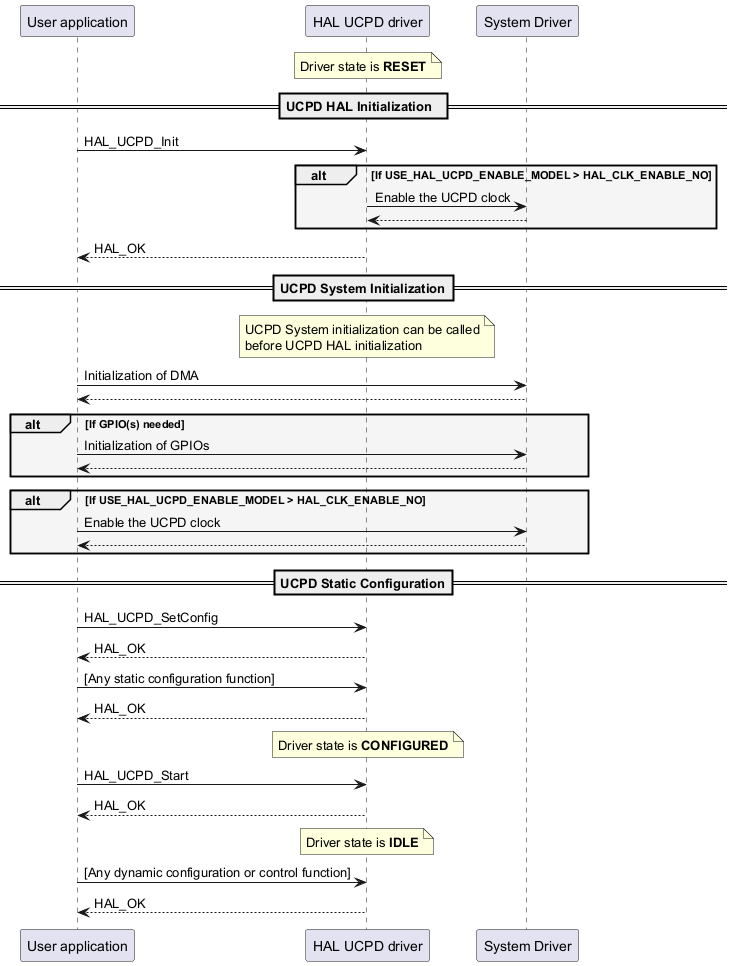

$@startuml participant "User application" as app participant "HAL UCPD driver" as hal participant "System Driver" as sys note over hal : Driver state is **RESET** == UCPD HAL Initialization == app -> hal : HAL_UCPD_Init alt #whitesmoke If USE_HAL_UCPD_ENABLE_MODEL > HAL_CLK_ENABLE_NO hal -> sys : Enable the UCPD clock sys --> hal end app <-- hal : HAL_OK == UCPD System Initialization== note over hal : UCPD System initialization can be called\nbefore UCPD HAL initialization app -> sys : Initialization of DMA sys --> app alt #whitesmoke If GPIO(s) needed app -> sys : Initialization of GPIOs sys --> app end alt #whitesmoke If USE_HAL_UCPD_ENABLE_MODEL > HAL_CLK_ENABLE_NO app -> sys : Enable the UCPD clock sys --> app end == UCPD Static Configuration== app -> hal : HAL_UCPD_SetConfig app <-- hal : HAL_OK app -> hal : [Any static configuration function] app <-- hal : HAL_OK note over hal : Driver state is **CONFIGURED** app -> hal : HAL_UCPD_Start app <-- hal : HAL_OK note over hal : Driver state is **IDLE** app -> hal : [Any dynamic configuration or control function] app <-- hal : HAL_OK @enduml$

Called functions:

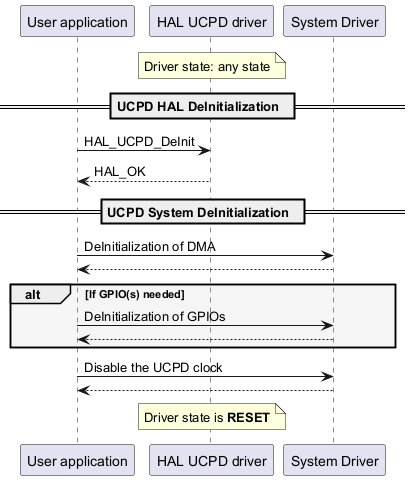

Full UCPD De-initialization Sequence ¶

Called functions:

HAL_UCPD_DeInit()

Simple Receive DMA - Without GoodCRC Transmission ¶

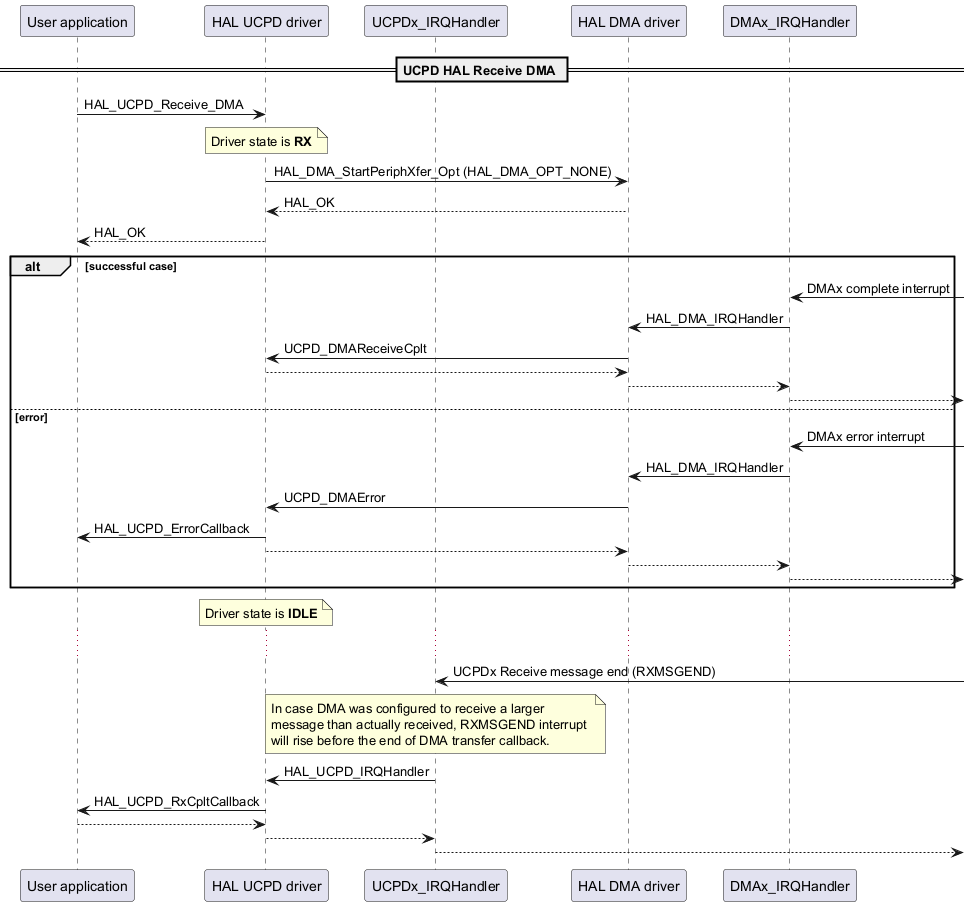

$@startuml participant "User application" as app participant "HAL UCPD driver" as hal participant "UCPDx_IRQHandler" as irqucpd participant "HAL DMA driver" as dma participant "DMAx_IRQHandler" as irq == UCPD HAL Receive DMA == app -> hal : HAL_UCPD_Receive_DMA note over hal : Driver state is **RX** hal -> dma : HAL_DMA_StartPeriphXfer_Opt (HAL_DMA_OPT_NONE) dma --> hal : HAL_OK hal --> app : HAL_OK alt successful case irq <- : DMAx complete interrupt irq -> dma : HAL_DMA_IRQHandler dma -> hal : UCPD_DMAReceiveCplt hal --> dma dma --> irq irq --> else error irq <- : DMAx error interrupt irq -> dma : HAL_DMA_IRQHandler dma -> hal : UCPD_DMAError hal -> app : HAL_UCPD_ErrorCallback hal --> dma dma --> irq irq --> end note over hal : Driver state is **IDLE** ... irqucpd <- : UCPDx Receive message end (RXMSGEND) note over irqucpd : In case DMA was configured to receive a larger \n\ message than actually received, RXMSGEND interrupt \n\ will rise before the end of DMA transfer callback. irqucpd -> hal : HAL_UCPD_IRQHandler hal -> app : HAL_UCPD_RxCpltCallback app --> hal hal --> irqucpd irqucpd --> @enduml$

Called functions:

Receive DMA - Followed by GoodCRC Transmission ¶

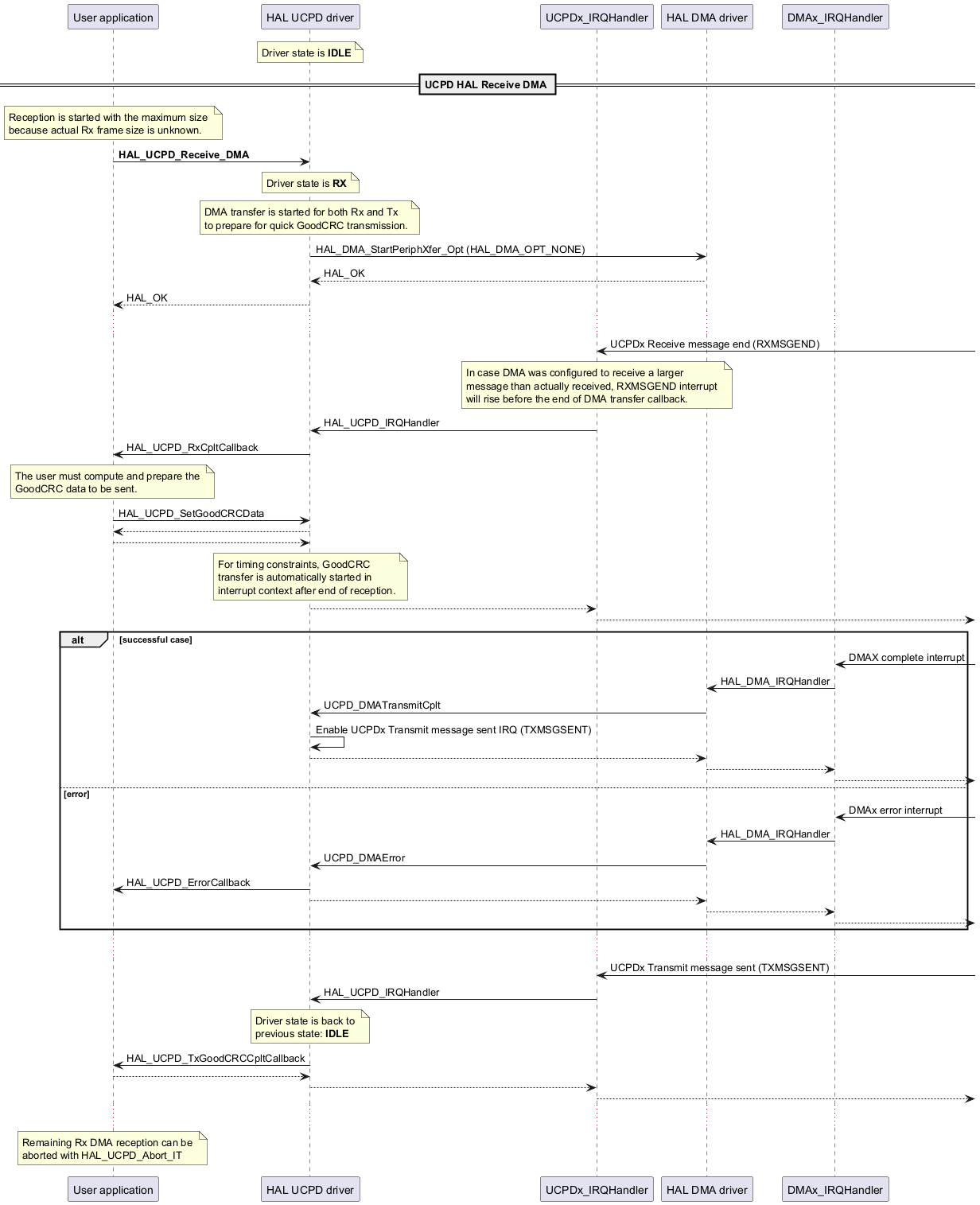

$@startuml participant "User application" as app participant "HAL UCPD driver" as hal participant "UCPDx_IRQHandler" as irqucpd participant "HAL DMA driver" as dma participant "DMAx_IRQHandler" as irq note over hal : Driver state is **IDLE** == UCPD HAL Receive DMA == note over app : Reception is started with the maximum size \n\ because actual Rx frame size is unknown. app -> hal : **HAL_UCPD_Receive_DMA** note over hal : Driver state is **RX** note over hal : DMA transfer is started for both Rx and Tx \n\ to prepare for quick GoodCRC transmission. hal -> dma : HAL_DMA_StartPeriphXfer_Opt (HAL_DMA_OPT_NONE) dma --> hal : HAL_OK hal --> app : HAL_OK ... irqucpd <- : UCPDx Receive message end (RXMSGEND) note over irqucpd : In case DMA was configured to receive a larger \n\ message than actually received, RXMSGEND interrupt \n\ will rise before the end of DMA transfer callback. irqucpd -> hal : HAL_UCPD_IRQHandler hal -> app : HAL_UCPD_RxCpltCallback note over app : The user must compute and prepare the \n\ GoodCRC data to be sent. app -> hal : HAL_UCPD_SetGoodCRCData app <-- hal app --> hal note over hal : For timing constraints, GoodCRC \n\ transfer is automatically started in \n\ interrupt context after end of reception. hal --> irqucpd irqucpd --> alt successful case irq <- : DMAX complete interrupt irq -> dma : HAL_DMA_IRQHandler dma -> hal : UCPD_DMATransmitCplt hal -> hal : Enable UCPDx Transmit message sent IRQ (TXMSGSENT) hal --> dma dma --> irq irq --> else error irq <- : DMAx error interrupt irq -> dma : HAL_DMA_IRQHandler dma -> hal : UCPD_DMAError hal -> app : HAL_UCPD_ErrorCallback hal --> dma dma --> irq irq --> end ... irqucpd <- : UCPDx Transmit message sent (TXMSGSENT) irqucpd -> hal : HAL_UCPD_IRQHandler note over hal : Driver state is back to \nprevious state: **IDLE** hal -> app : HAL_UCPD_TxGoodCRCCpltCallback app --> hal hal --> irqucpd irqucpd --> ... note over app : Remaining Rx DMA reception can be \n\ aborted with HAL_UCPD_Abort_IT @enduml$

Called functions:

Transmit DMA ¶

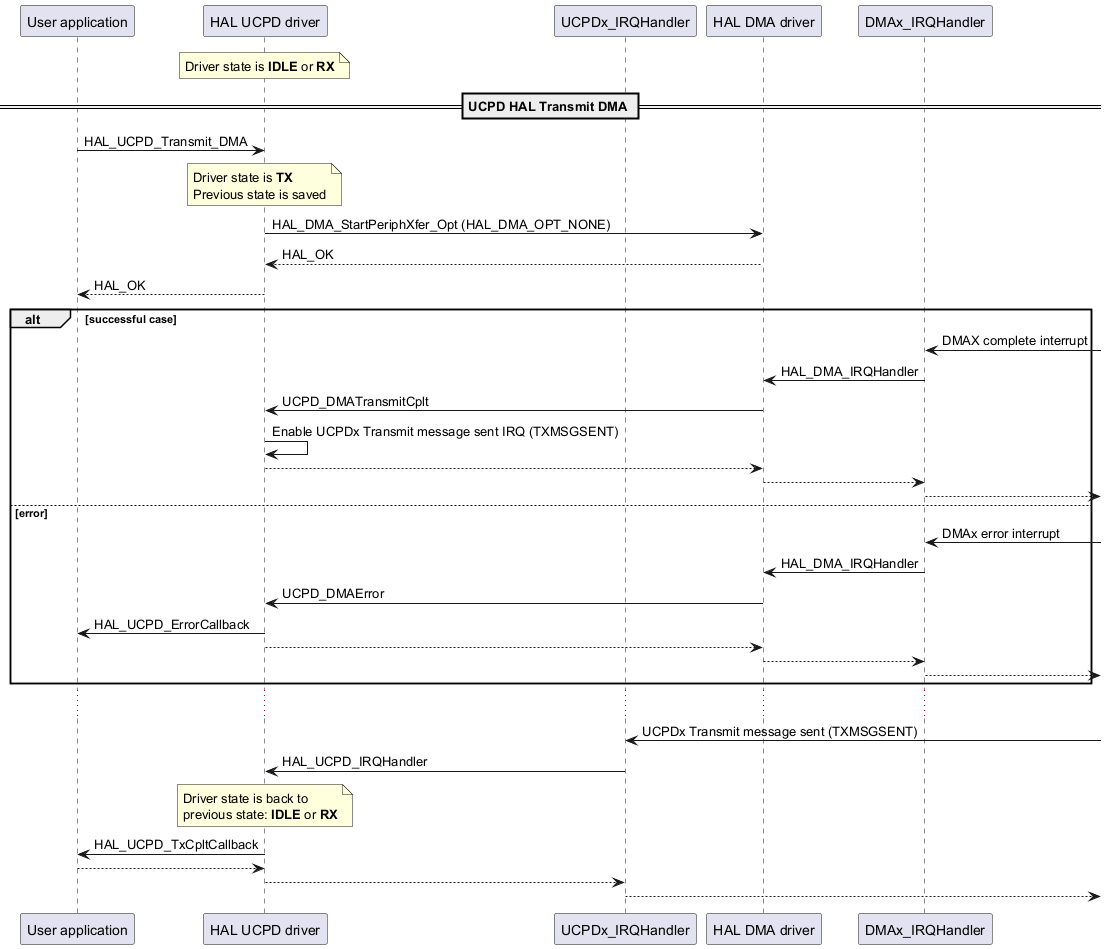

$@startuml participant "User application" as app participant "HAL UCPD driver" as hal participant "UCPDx_IRQHandler" as irqucpd participant "HAL DMA driver" as dma participant "DMAx_IRQHandler" as irq note over hal : Driver state is **IDLE** or **RX** == UCPD HAL Transmit DMA == app -> hal : HAL_UCPD_Transmit_DMA note over hal : Driver state is **TX**\nPrevious state is saved hal -> dma : HAL_DMA_StartPeriphXfer_Opt (HAL_DMA_OPT_NONE) dma --> hal : HAL_OK hal --> app : HAL_OK alt successful case irq <- : DMAX complete interrupt irq -> dma : HAL_DMA_IRQHandler dma -> hal : UCPD_DMATransmitCplt hal -> hal : Enable UCPDx Transmit message sent IRQ (TXMSGSENT) hal --> dma dma --> irq irq --> else error irq <- : DMAx error interrupt irq -> dma : HAL_DMA_IRQHandler dma -> hal : UCPD_DMAError hal -> app : HAL_UCPD_ErrorCallback hal --> dma dma --> irq irq --> end ... irqucpd <- : UCPDx Transmit message sent (TXMSGSENT) irqucpd -> hal : HAL_UCPD_IRQHandler note over hal : Driver state is back to \nprevious state: **IDLE** or **RX** hal -> app : HAL_UCPD_TxCpltCallback app --> hal hal --> irqucpd irqucpd --> @enduml$

Called functions:

Process ABORT IT ¶

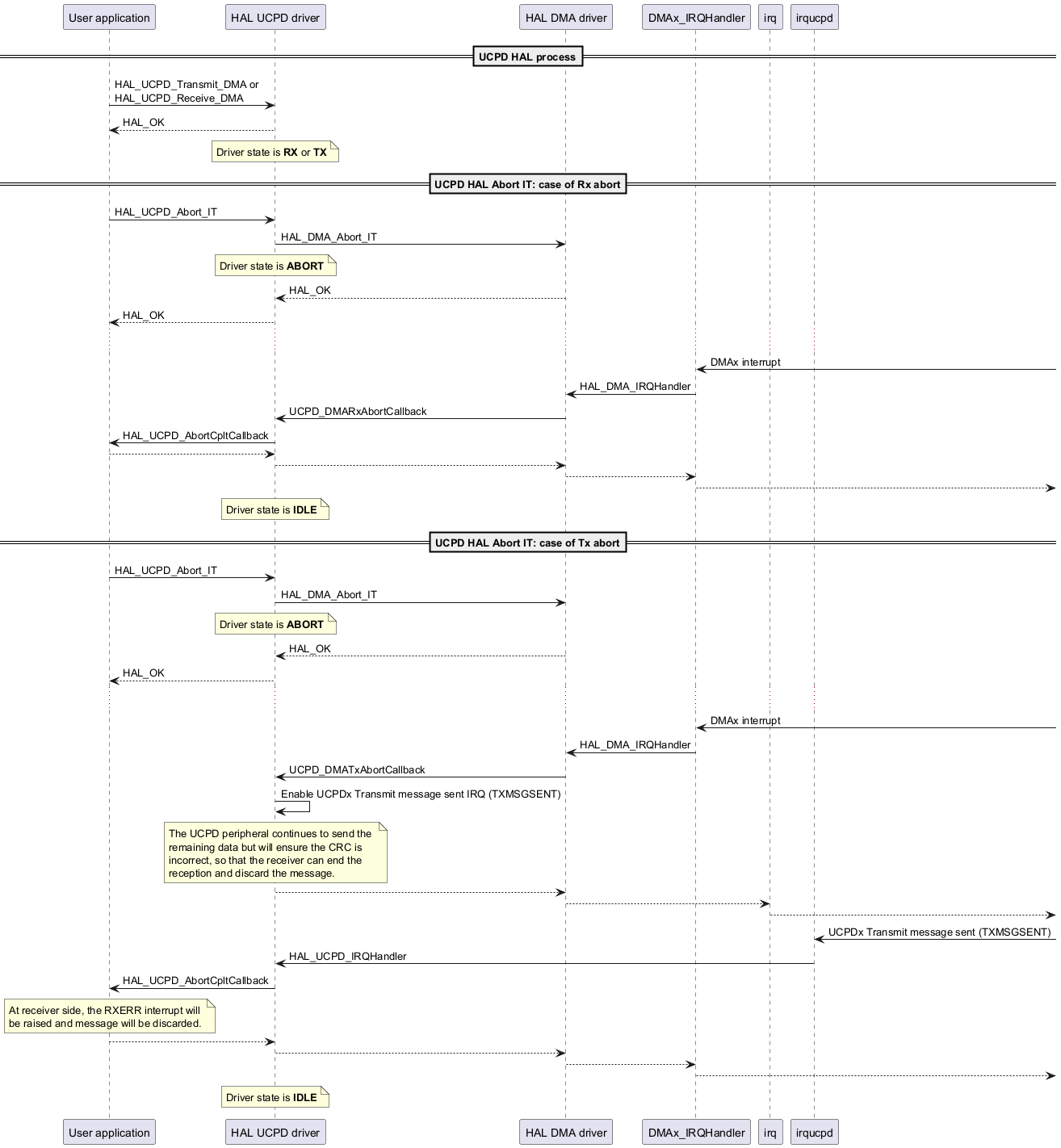

$@startuml participant "User application" as app participant "HAL UCPD driver" as hal participant "HAL DMA driver" as dma participant "DMAx_IRQHandler" as irqdma ==UCPD HAL process== app -> hal : HAL_UCPD_Transmit_DMA or \nHAL_UCPD_Receive_DMA app <-- hal : HAL_OK note over hal : Driver state is **RX** or **TX** ==UCPD HAL Abort IT: case of Rx abort== app -> hal : HAL_UCPD_Abort_IT hal -> dma : HAL_DMA_Abort_IT note over hal : Driver state is **ABORT** hal <-- dma : HAL_OK app <-- hal : HAL_OK ... irqdma <- : DMAx interrupt dma <- irqdma : HAL_DMA_IRQHandler hal <- dma : UCPD_DMARxAbortCallback app <- hal : HAL_UCPD_AbortCpltCallback app --> hal hal --> dma dma --> irqdma irqdma --> note over hal : Driver state is **IDLE** ==UCPD HAL Abort IT: case of Tx abort== app -> hal : HAL_UCPD_Abort_IT hal -> dma : HAL_DMA_Abort_IT note over hal : Driver state is **ABORT** hal <-- dma : HAL_OK app <-- hal : HAL_OK ... irqdma <- : DMAx interrupt dma <- irqdma : HAL_DMA_IRQHandler hal <- dma : UCPD_DMATxAbortCallback hal -> hal : Enable UCPDx Transmit message sent IRQ (TXMSGSENT) note over hal : The UCPD peripheral continues to send the \n\ remaining data but will ensure the CRC is \n\ incorrect, so that the receiver can end the \n\ reception and discard the message. hal --> dma dma --> irq irq --> irqucpd <- : UCPDx Transmit message sent (TXMSGSENT) irqucpd -> hal : HAL_UCPD_IRQHandler app <- hal : HAL_UCPD_AbortCpltCallback note over app : At receiver side, the RXERR interrupt will \n\ be raised and message will be discarded. app --> hal hal --> dma dma --> irqdma irqdma --> note over hal : Driver state is **IDLE** @enduml$

Called functions:

Interrupts ¶

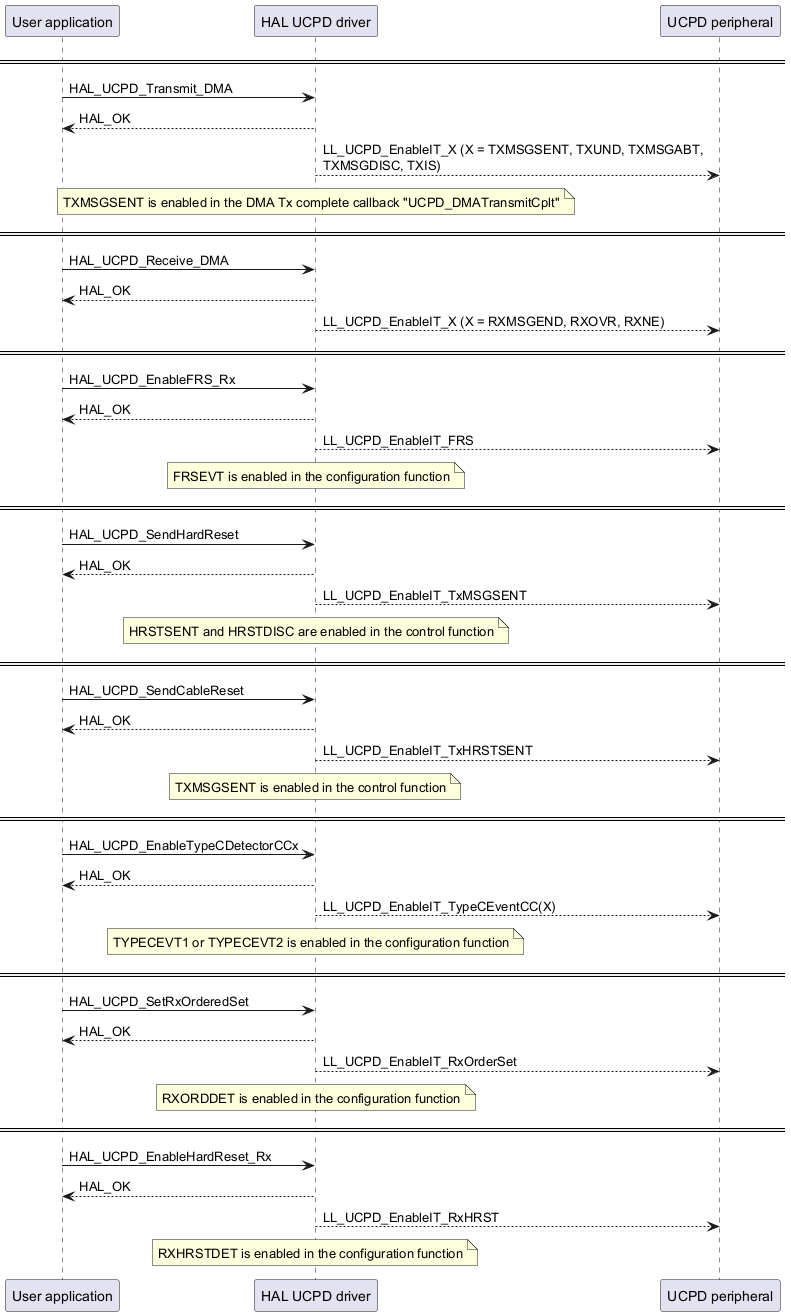

$@startuml participant "User application" as app participant "HAL UCPD driver" as hal participant "UCPD peripheral" as ucpd ==== app -> hal : HAL_UCPD_Transmit_DMA app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_X (X = TXMSGSENT, TXUND, TXMSGABT,\nTXMSGDISC, TXIS) note over hal : TXMSGSENT is enabled in the DMA Tx complete callback "UCPD_DMATransmitCplt" ==== app -> hal : HAL_UCPD_Receive_DMA app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_X (X = RXMSGEND, RXOVR, RXNE) ==== app -> hal : HAL_UCPD_EnableFRS_Rx app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_FRS note over hal : FRSEVT is enabled in the configuration function ==== app -> hal : HAL_UCPD_SendHardReset app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_TxMSGSENT note over hal : HRSTSENT and HRSTDISC are enabled in the control function ==== app -> hal : HAL_UCPD_SendCableReset app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_TxHRSTSENT note over hal : TXMSGSENT is enabled in the control function ==== app -> hal : HAL_UCPD_EnableTypeCDetectorCCx app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_TypeCEventCC(X) note over hal : TYPECEVT1 or TYPECEVT2 is enabled in the configuration function ==== app -> hal : HAL_UCPD_SetRxOrderedSet app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_RxOrderSet note over hal : RXORDDET is enabled in the configuration function ==== app -> hal : HAL_UCPD_EnableHardReset_Rx app <-- hal : HAL_OK hal --> ucpd : LL_UCPD_EnableIT_RxHRST note over hal : RXHRSTDET is enabled in the configuration function @enduml$

Called functions:

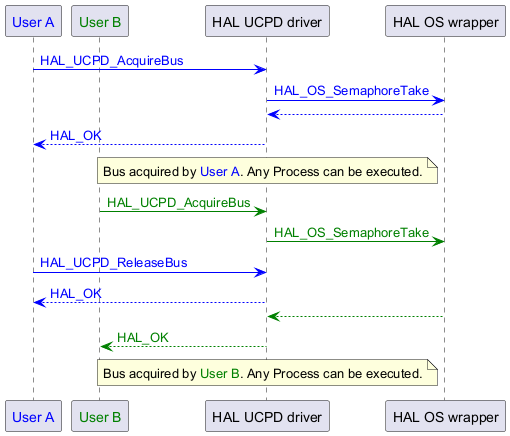

Acquire/Release Bus ¶

Called functions:
