HAL VREFBUF Overview ¶
Introducing VREFBUF ¶
- group VREFBUF_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the VREFBUF module and its associated files.
Component diagram ¶

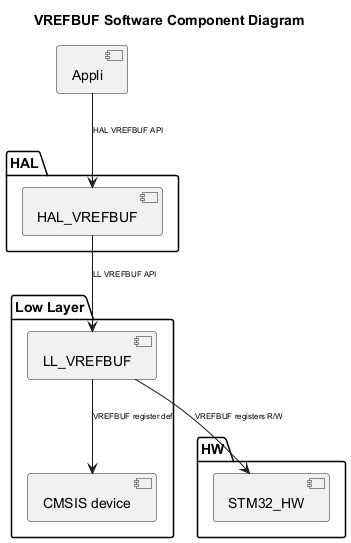

The following diagram illustrates the software components involved in the VREFBUF module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title VREFBUF Software Component Diagram
package "HAL" {
[HAL_VREFBUF]
}
package "Low Layer" {
[LL_VREFBUF]
[CMSIS device]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_VREFBUF] : HAL VREFBUF API
[HAL_VREFBUF] --> [LL_VREFBUF] : LL VREFBUF API
[LL_VREFBUF] --> [CMSIS device]:VREFBUF register def
[LL_VREFBUF] --> [STM32_HW]: VREFBUF registers R/W
@enduml](../../../../_images/plantuml-b80887cd83cb4f3a67d7b55ab7af4c74669b021e.png)
Configuration table ¶
The following table lists the configuration defines for the HAL VREFBUF module, specifying their locations, default values, and descriptions:
- group VREFBUF_Configuration_Table
-
¶
Configuration inside the VREFBUF: ¶
Config defines
Where
Default value
Note
USE_HAL_VREFBUF_MODULE
hal_conf.h
1U
Enable the HAL VREFBUF module.
USE_ASSERT_DBG_PARAM
PreProcessor env
NA
Enable the params assert.
USE_HAL_CHECK_PARAM
hal_conf.h
0U
Enable checking of vital parameters at runtime.
