HAL VREFBUF Use Cases ¶

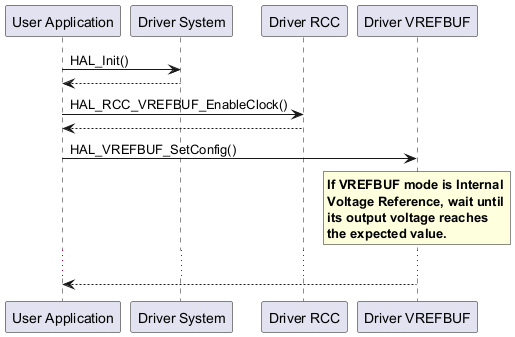

Typical Use Case ¶
Called functions:

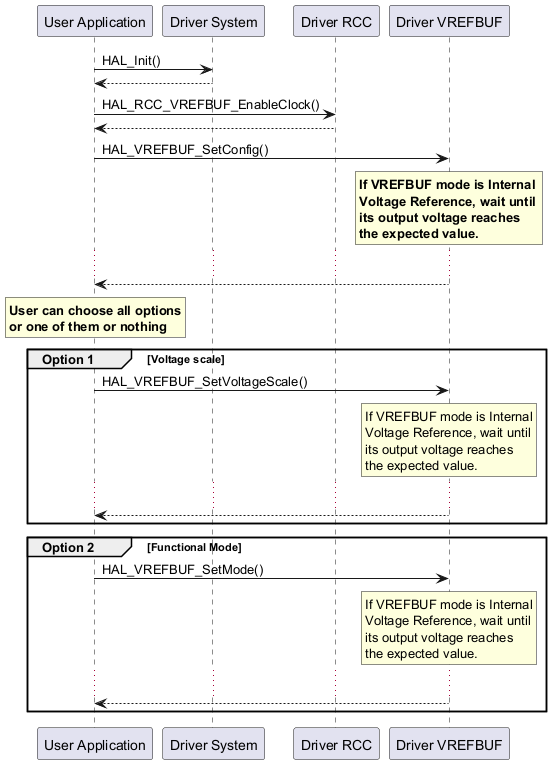

Change Single Parameter During Application Lifetime ¶
![@startuml
"User Application" -> "Driver System" : HAL_Init()
"Driver System" --> "User Application"
"User Application" -> "Driver RCC" : HAL_RCC_VREFBUF_EnableClock()
"Driver RCC" --> "User Application"
"User Application" -> "Driver VREFBUF" : HAL_VREFBUF_SetConfig()
rnote over "Driver VREFBUF"
**If VREFBUF mode is Internal**
**Voltage Reference, wait until**
**its output voltage reaches**
**the expected value.**
endrnote
...
"Driver VREFBUF" --> "User Application"
rnote over "User Application"
**User can choose all options**
**or one of them or nothing**
end rnote
group Option 1 [Voltage scale]
"User Application" -> "Driver VREFBUF" : HAL_VREFBUF_SetVoltageScale()
rnote over "Driver VREFBUF"
If VREFBUF mode is Internal
Voltage Reference, wait until
its output voltage reaches
the expected value.
endrnote
...
"Driver VREFBUF" --> "User Application" :
end
group Option 2 [Functional Mode]
"User Application" -> "Driver VREFBUF" : HAL_VREFBUF_SetMode()
rnote over "Driver VREFBUF"
If VREFBUF mode is Internal
Voltage Reference, wait until
its output voltage reaches
the expected value.
endrnote
...
"Driver VREFBUF" --> "User Application" :
end
@enduml](../../../../_images/plantuml-73a96ec5764685af395cdffd71612810874fa693.png)
Called functions:

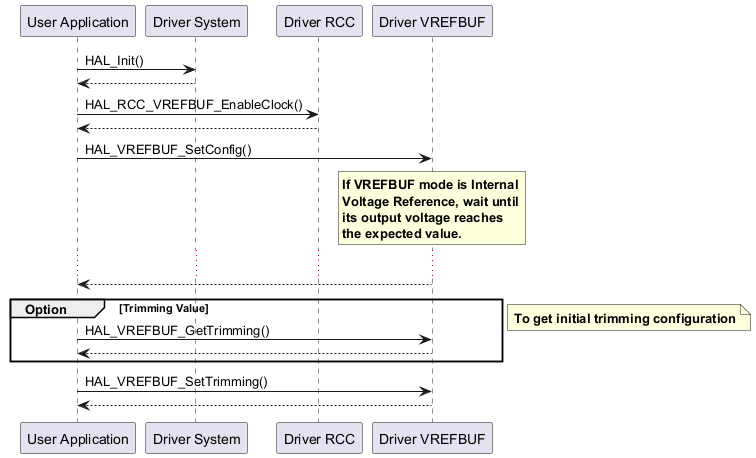

Configure Trimming Value ¶
![@startuml
"User Application" -> "Driver System" : HAL_Init()
"Driver System" --> "User Application"
"User Application" -> "Driver RCC" : HAL_RCC_VREFBUF_EnableClock()
"Driver RCC" --> "User Application"
"User Application" -> "Driver VREFBUF" : HAL_VREFBUF_SetConfig()
rnote over "Driver VREFBUF"
**If VREFBUF mode is Internal**
**Voltage Reference, wait until**
**its output voltage reaches**
**the expected value.**
endrnote
...
"Driver VREFBUF" --> "User Application" :
group Option [Trimming Value]
"User Application" -> "Driver VREFBUF" : HAL_VREFBUF_GetTrimming()
"Driver VREFBUF" --> "User Application" :
end
note right: **To get initial trimming configuration**
"User Application" -> "Driver VREFBUF" : HAL_VREFBUF_SetTrimming()
"Driver VREFBUF" --> "User Application" :
@enduml](../../../../_images/plantuml-8fa224fc42aabc15f1bebe045231a5d19e4d3439.png)
Called functions:
