HAL DCACHE Overview ¶
Introducing DCACHE ¶
- group DCACHE_Introduction
-
-
This introduction is under development.
DCACHE Introduction ¶
The data cache (DCACHE) is introduced on S-AHB system bus of the Cortex-M33 processor to improve the performance of data traffic to/from external memories. Some specific features like hit-under-miss and critical-word-first refill policy allow optimum performance on external memories data accesses.
-
Module and files ¶
The following diagram illustrates the DCACHE module and its associated files.
Component diagram ¶

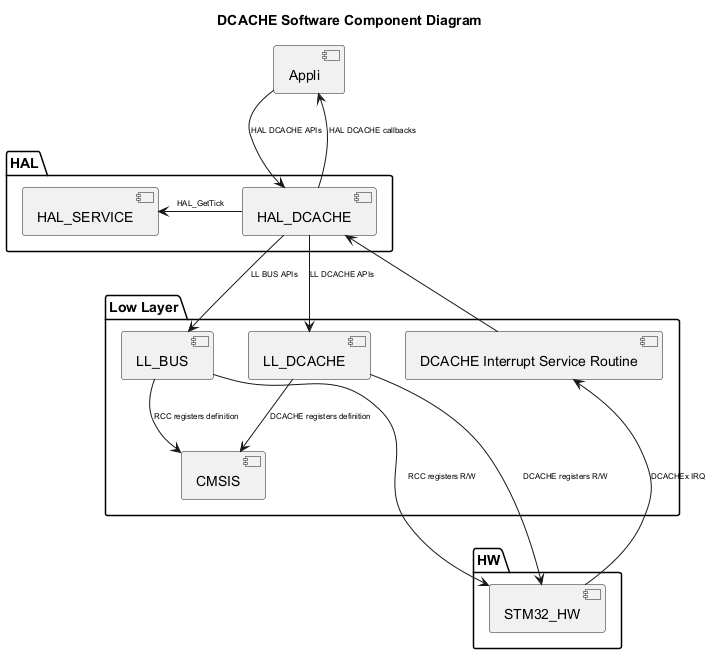

The following diagram illustrates the software components involved in the DCACHE module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title DCACHE Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_DCACHE]
}
package "Low Layer" {
[LL_DCACHE]
[LL_BUS]
[CMSIS]
[DCACHE Interrupt Service Routine]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_DCACHE] : HAL DCACHE APIs
[Appli] <-- [HAL_DCACHE] : HAL DCACHE callbacks
[HAL_DCACHE] --> [LL_DCACHE] : LL DCACHE APIs
[HAL_DCACHE] --> [LL_BUS] : LL BUS APIs
[HAL_DCACHE] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_DCACHE] <-- [DCACHE Interrupt Service Routine]
[LL_DCACHE] --> [CMSIS]:DCACHE registers definition
[LL_BUS] --> [CMSIS]:RCC registers definition
[STM32_HW] -u--> [DCACHE Interrupt Service Routine]: DCACHEx IRQ
[STM32_HW] <-u-- [LL_DCACHE] : DCACHE registers R/W
[STM32_HW] <-u-- [LL_BUS] : RCC registers R/W
@enduml](../../../../_images/plantuml-a3cd3712dbd6470aee29fc54525b3bf10650e8b9.png)
Configuration table ¶
The following table lists the configuration defines for the HAL DCACHE module, specifying their locations, default values, and descriptions:
- group DCACHE_Configuration_Table
-
¶
Configuration inside the DCACHE driver: ¶
Config defines
Description
Default value
Note
USE_HAL_ICACHE_MODULE
From hal_conf.h
1
Allows to use HAL ICACHE module.
USE_HAL_ICACHE_REGISTER_CALLBACKS
From hal_conf.h
0
Allows to use the register callbacks.
USE_HAL_CHECK_PARAM
From hal_conf.h
0
Allows to use the run-time checks parameters.
USE_ASSERT_DBG_PARAM
From IDE
NA
Allows to use the assert check parameters.
USE_ASSERT_DBG_STATE
From IDE
NA
Allows to use the assert check states.
USE_HAL_DCACHE_CLK_ENABLE_MODEL
from hal_conf.h
HAL_CLK_ENABLE_NO
Enable the gating of the peripheral clock.
USE_HAL_ICACHE_GET_LAST_ERRORS
From hal_conf.h
1
Allow to use error code mechanism.
USE_HAL_ICACHE_USER_DATA
From hal_conf.h
0
Allows to use user data.
