HAL DCACHE Use Cases

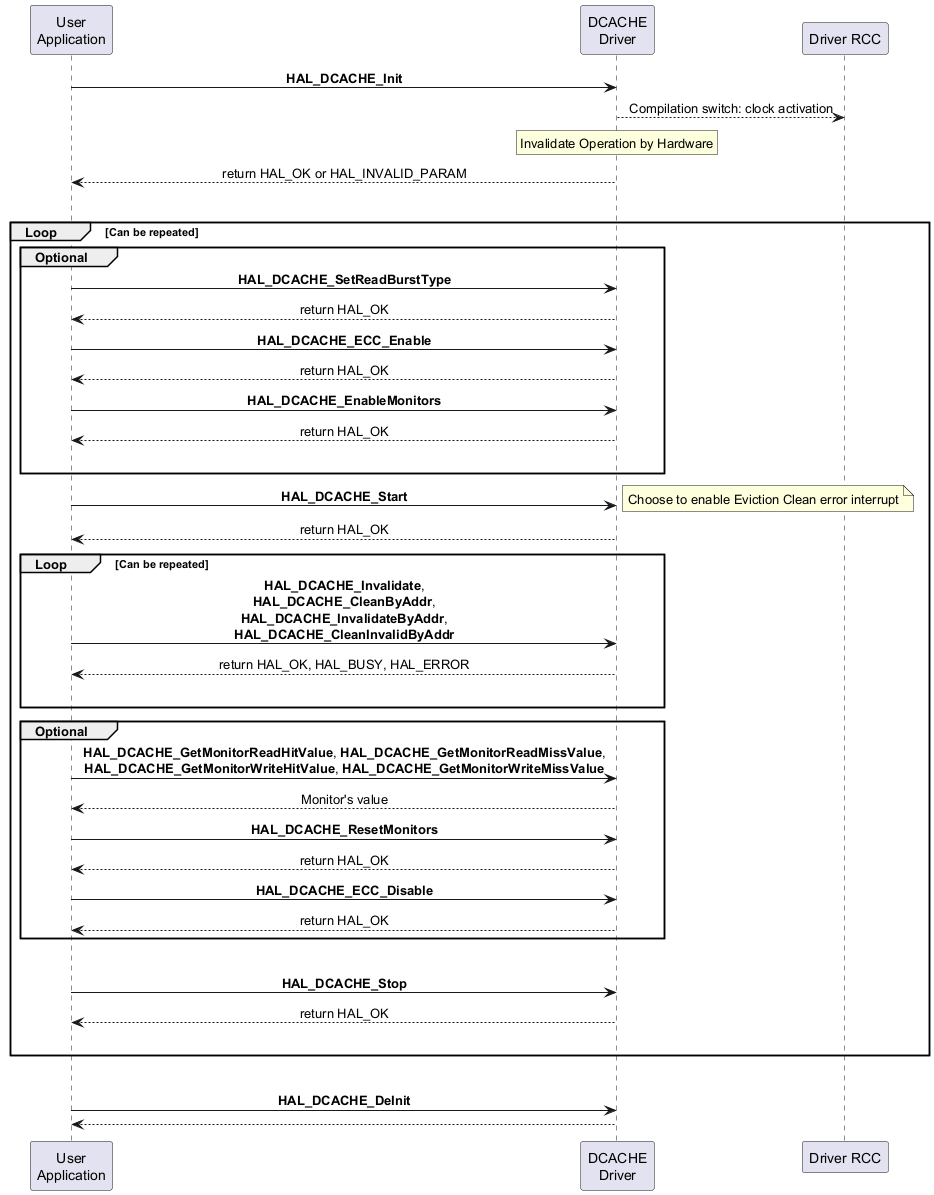

HAL DCACHE Maintenance Operations in Polling mode

@startuml skinparam sequenceMessageAlign center participant "User\nApplication" as UA participant "DCACHE\nDriver" as DD UA->DD : **HAL_DCACHE_Init** DD-->"Driver RCC" : Compilation switch: clock activation rnote over DD Invalidate Operation by Hardware endrnote UA <-- DD : return HAL_OK or HAL_INVALID_PARAM ||| group Loop [Can be repeated] group Optional UA->DD : **HAL_DCACHE_SetReadBurstType** DD --> UA : return HAL_OK UA->DD : **HAL_DCACHE_ECC_Enable** DD --> UA : return HAL_OK UA->DD : **HAL_DCACHE_EnableMonitors** DD --> UA : return HAL_OK ||| end UA->DD : **HAL_DCACHE_Start** note right : Choose to enable Eviction Clean error interrupt DD --> UA : return HAL_OK group Loop [Can be repeated] UA->DD : **HAL_DCACHE_Invalidate**,\n**HAL_DCACHE_CleanByAddr**,\n**HAL_DCACHE_InvalidateByAddr**,\n**HAL_DCACHE_CleanInvalidByAddr** DD --> UA : return HAL_OK, HAL_BUSY, HAL_ERROR ||| end group Optional UA->DD : **HAL_DCACHE_GetMonitorReadHitValue**, **HAL_DCACHE_GetMonitorReadMissValue**,\n**HAL_DCACHE_GetMonitorWriteHitValue**, **HAL_DCACHE_GetMonitorWriteMissValue** DD --> UA : Monitor's value UA->DD : **HAL_DCACHE_ResetMonitors** DD --> UA : return HAL_OK UA->DD : **HAL_DCACHE_ECC_Disable** DD --> UA : return HAL_OK end ||| UA->DD : **HAL_DCACHE_Stop** DD --> UA : return HAL_OK ||| end ||| UA->DD : **HAL_DCACHE_DeInit** DD --> UA @enduml

Called functions:

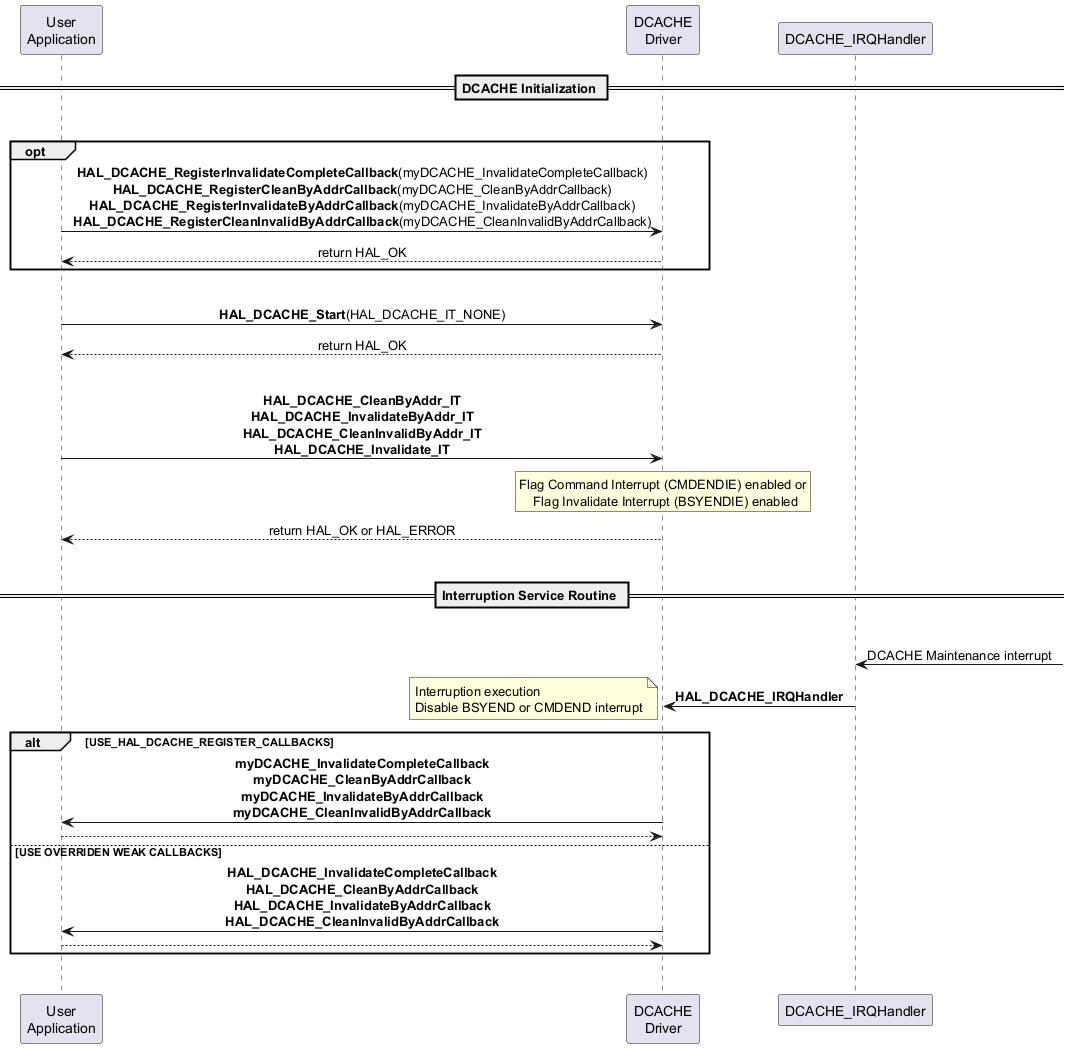

HAL DCACHE Maintenance Operations in Interrupt mode

@startuml participant "User\nApplication" as UA participant "DCACHE\nDriver" as DD participant "DCACHE_IRQHandler" as IRQ skinparam sequenceMessageAlign center == DCACHE Initialization == ||| opt UA -> DD : **HAL_DCACHE_RegisterInvalidateCompleteCallback**(myDCACHE_InvalidateCompleteCallback)\n**HAL_DCACHE_RegisterCleanByAddrCallback**(myDCACHE_CleanByAddrCallback)\n**HAL_DCACHE_RegisterInvalidateByAddrCallback**(myDCACHE_InvalidateByAddrCallback)\n**HAL_DCACHE_RegisterCleanInvalidByAddrCallback**(myDCACHE_CleanInvalidByAddrCallback) DD --> UA : return HAL_OK end ||| UA->DD : **HAL_DCACHE_Start**(HAL_DCACHE_IT_NONE) DD --> UA : return HAL_OK ||| UA -> DD : **HAL_DCACHE_CleanByAddr_IT**\n**HAL_DCACHE_InvalidateByAddr_IT**\n**HAL_DCACHE_CleanInvalidByAddr_IT**\n**HAL_DCACHE_Invalidate_IT** rnote over DD Flag Command Interrupt (CMDENDIE) enabled or Flag Invalidate Interrupt (BSYENDIE) enabled endrnote DD --> UA : return HAL_OK or HAL_ERROR ||| == Interruption Service Routine == ||| IRQ <- : DCACHE Maintenance interrupt IRQ -> DD : **HAL_DCACHE_IRQHandler** note left : Interruption execution\nDisable BSYEND or CMDEND interrupt alt USE_HAL_DCACHE_REGISTER_CALLBACKS DD -> UA : **myDCACHE_InvalidateCompleteCallback**\n**myDCACHE_CleanByAddrCallback**\n**myDCACHE_InvalidateByAddrCallback**\n**myDCACHE_CleanInvalidByAddrCallback** DD <-- UA else USE OVERRIDEN WEAK CALLBACKS DD -> UA : **HAL_DCACHE_InvalidateCompleteCallback**\n**HAL_DCACHE_CleanByAddrCallback**\n**HAL_DCACHE_InvalidateByAddrCallback**\n**HAL_DCACHE_CleanInvalidByAddrCallback** DD <-- UA end ||| @enduml

Called functions:

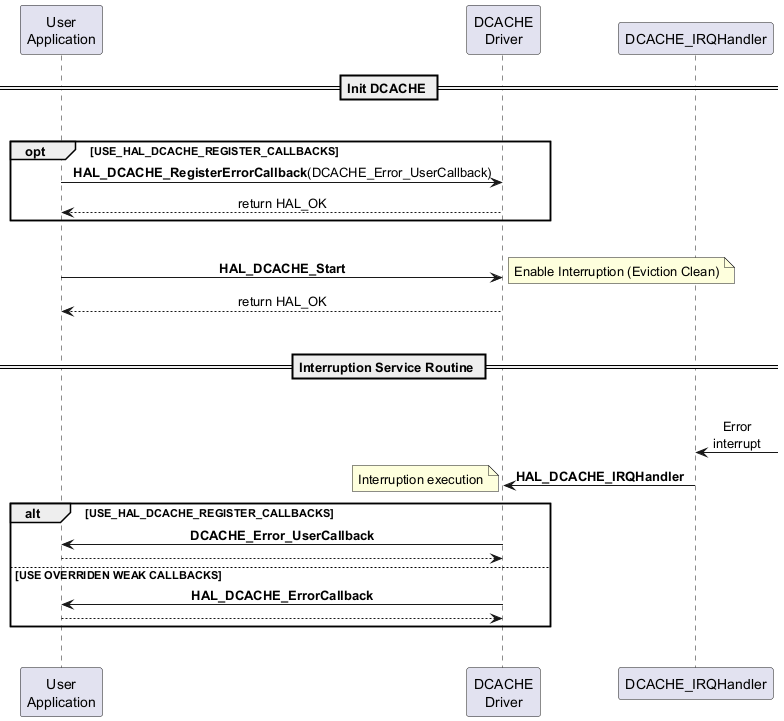

HAL DCACHE ERROR use case

@startuml participant "User\nApplication" as UA participant "DCACHE\nDriver" as DD participant "DCACHE_IRQHandler" as IRQ skinparam sequenceMessageAlign center == Init DCACHE == ||| opt USE_HAL_DCACHE_REGISTER_CALLBACKS UA -> DD: **HAL_DCACHE_RegisterErrorCallback**(DCACHE_Error_UserCallback) DD --> UA : return HAL_OK end ||| UA -> DD : **HAL_DCACHE_Start** note right : Enable Interruption (Eviction Clean) DD --> UA : return HAL_OK ||| == Interruption Service Routine == ||| IRQ <- : Error\ninterrupt IRQ -> DD : **HAL_DCACHE_IRQHandler** note left : Interruption execution alt USE_HAL_DCACHE_REGISTER_CALLBACKS DD -> UA : **DCACHE_Error_UserCallback** DD <-- UA else USE OVERRIDEN WEAK CALLBACKS DD -> UA : **HAL_DCACHE_ErrorCallback** DD <-- UA end ||| @enduml

Called functions:

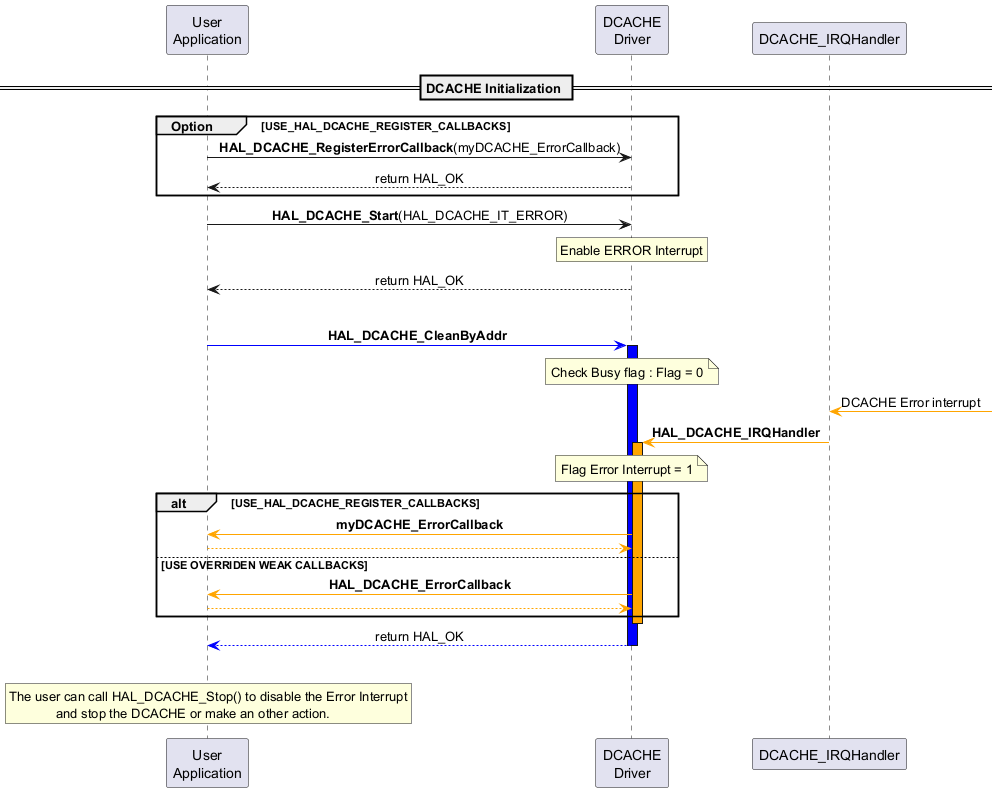

HAL DCACHE Maintenance Operations in Polling mode with Error Interrupt enabled use case

@startuml participant "User\nApplication" as UA order 1 participant "DCACHE\nDriver" as DD order 2 participant "DCACHE_IRQHandler" as IRQ order 3 skinparam sequenceMessageAlign center == DCACHE Initialization == group Option [USE_HAL_DCACHE_REGISTER_CALLBACKS] UA -> DD : **HAL_DCACHE_RegisterErrorCallback**(myDCACHE_ErrorCallback) DD --> UA : return HAL_OK end UA -> DD : **HAL_DCACHE_Start**(HAL_DCACHE_IT_ERROR) rnote over DD Enable ERROR Interrupt endrnote DD --> UA : return HAL_OK ||| UA-[#blue]>DD : **HAL_DCACHE_CleanByAddr** activate DD #blue note over DD : Check Busy flag : Flag = 0 IRQ <[#orange]- : DCACHE Error interrupt IRQ -[#orange]> DD : **HAL_DCACHE_IRQHandler** activate DD #orange note over DD : Flag Error Interrupt = 1 alt USE_HAL_DCACHE_REGISTER_CALLBACKS DD -[#orange]> UA : **myDCACHE_ErrorCallback** UA -[#orange]-> DD else USE OVERRIDEN WEAK CALLBACKS DD -[#orange]> UA : **HAL_DCACHE_ErrorCallback** UA -[#orange]-> DD end deactivate DD DD -[#blue]-> UA : return HAL_OK deactivate DD ||| rnote over UA The user can call HAL_DCACHE_Stop() to disable the Error Interrupt and stop the DCACHE or make an other action. endrnote @enduml

Called functions:
