HAL ICACHE Overview

Introducing ICACHE

group ICACHE_Introduction

The Instruction Cache (ICACHE) hardware abstraction layer provides a set of APIs to interface with the instruction cache peripheral on STM32 microcontrollers. It improves performance by reducing wait states when fetching instructions and data from internal and external memories.

It simplifies the configuration, initialization, and management of the ICACHE by supporting features such as cache associativity modes, memory address remapping, performance monitoring and error detection with interrupt capabilities.

This abstraction layer guarantees portability and ease of use across different STM32 series. The HAL ICACHE driver covers the instruction cache peripheral with support for multiple cache configurations and maintenance operations.

Module and files

The following diagram illustrates the ICACHE module and its associated files.

Component diagram

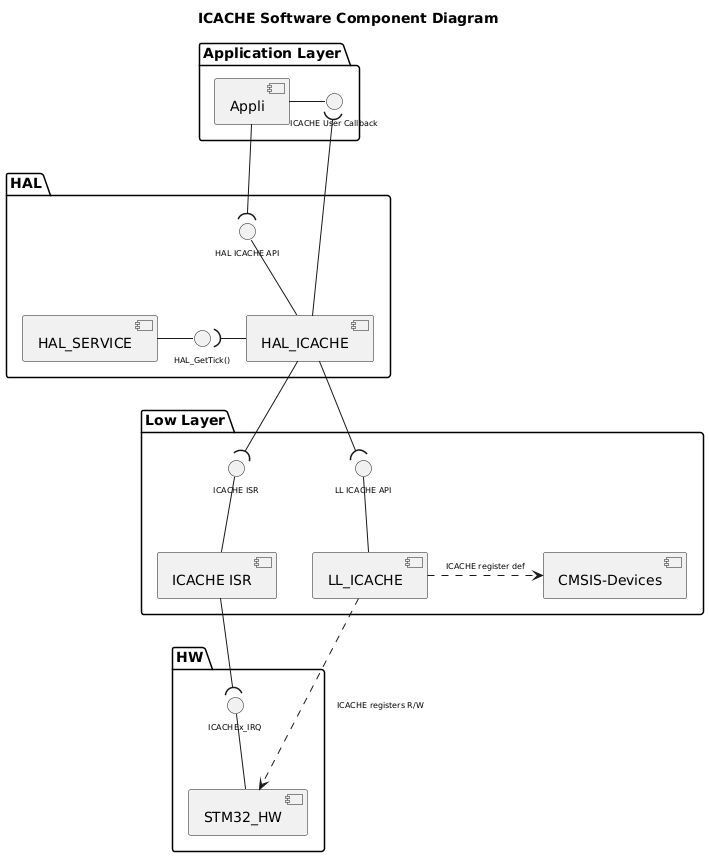

The following diagram illustrates the software components involved in the ICACHE module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.

Configuration table

The following table lists the configuration defines for the HAL ICACHE module, specifying their locations, default values, and descriptions:

group ICACHE_Configuration_Table

Configuration inside the ICACHE driver :

Config defines	Description	Default value	Note
USE_HAL_ICACHE_MODULE	From hal_conf.h	1	Allows the use of the HAL ICACHE module.
USE_HAL_ICACHE_REGISTER_CALLBACKS	From hal_conf.h	0	Allows the use of the register callbacks.
USE_HAL_CHECK_PARAM	From hal_conf.h	0	Allows the use of run-time check parameters.
USE_ASSERT_DBG_PARAM	From IDE	None	Allows the use of assert check parameters.
USE_ASSERT_DBG_STATE	From IDE	None	Allows the use of assert check states.
USE_HAL_ICACHE_GET_LAST_ERRORS	From hal_conf.h	0	Allows the use of the error code mechanism.
USE_HAL_ICACHE_USER_DATA	From hal_conf.h	0	Allows the use of user data.
