HAL FDCAN Use Cases ¶

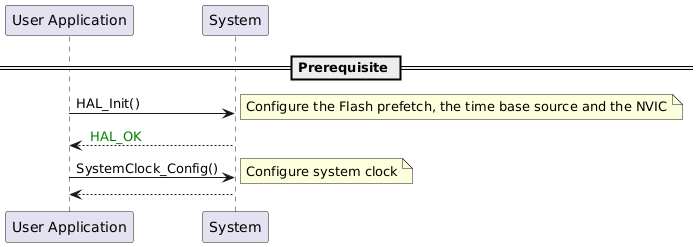

Prerequisite ¶

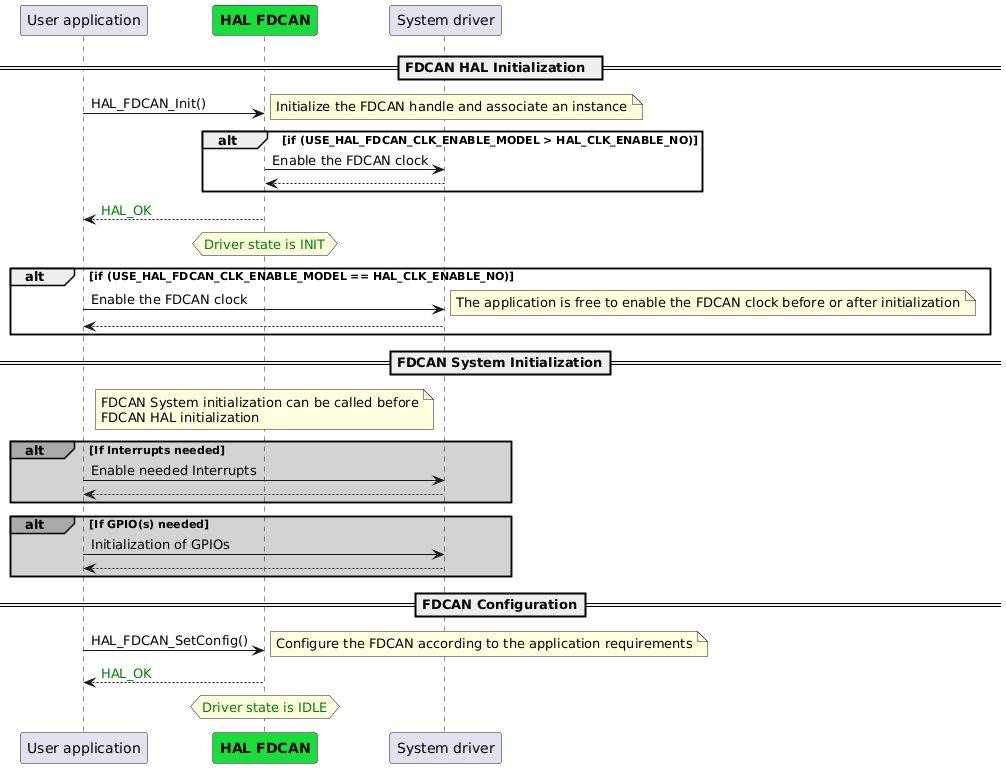

Full FDCAN Initialization Sequence ¶

$@startuml participant "User application" as App participant "HAL FDCAN" as FDCAN #19DD3A participant "System driver" as System == FDCAN HAL Initialization == App -> FDCAN:HAL_FDCAN_Init() note right Initialize the FDCAN handle and associate an instance end note alt if (USE_HAL_FDCAN_CLK_ENABLE_MODEL > HAL_CLK_ENABLE_NO) FDCAN -> System:Enable the FDCAN clock FDCAN <-- System: end App <-- FDCAN:HAL_OK hnote over FDCAN Driver state is INIT end note alt if (USE_HAL_FDCAN_CLK_ENABLE_MODEL == HAL_CLK_ENABLE_NO) App-> System:Enable the FDCAN clock note right The application is free to enable the FDCAN clock before or after initialization end note App <-- System: end == FDCAN System Initialization== Note over FDCAN#lightyellow: FDCAN System initialization can be called before\nFDCAN HAL initialization alt#darkgrey #lightgrey If Interrupts needed App-> System : Enable needed Interrupts System-->App end alt#darkgrey #lightgrey If GPIO(s) needed App-> System : Initialization of GPIOs System-->App end == FDCAN Configuration== App -> FDCAN : HAL_FDCAN_SetConfig() Note right#lightyellow: Configure the FDCAN according to the application requirements App <-- FDCAN:HAL_OK hnote over FDCAN Driver state is IDLE end note @enduml$

Functions called:

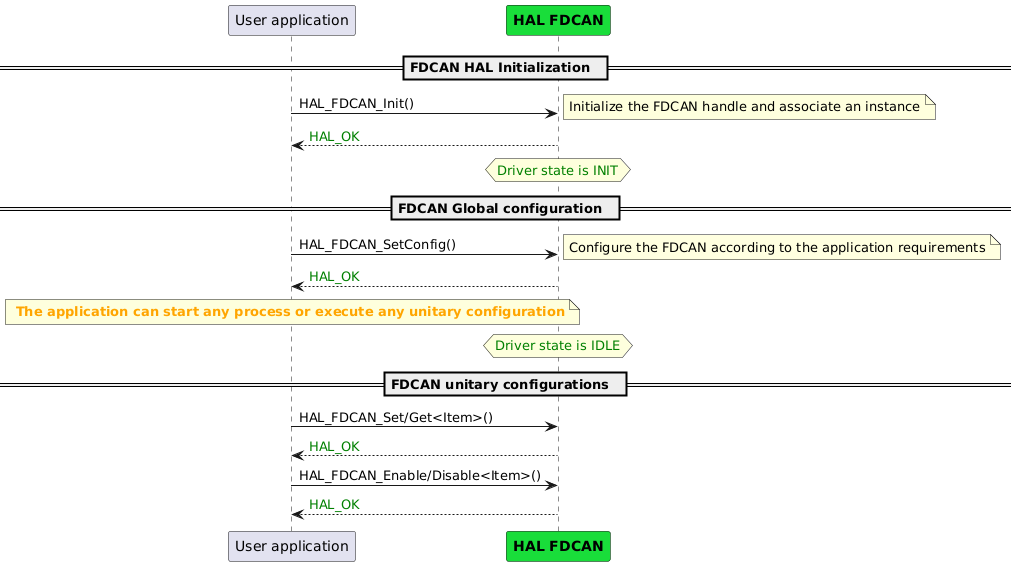

Full FDCAN Initialization and Configuration Sequence ¶

Functions called:

HAL_FDCAN_Init()
HAL_FDCAN_SetConfig()
HAL_FDCAN_Set/Get<Item>()
HAL_FDCAN_Enable/Disable<Item>()

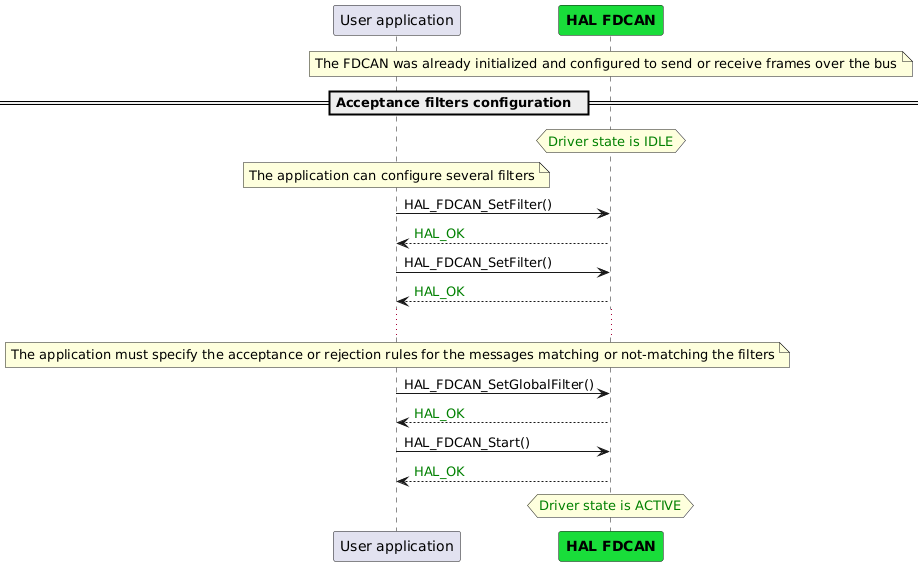

Acceptance Filter Configuration ¶

Functions called:

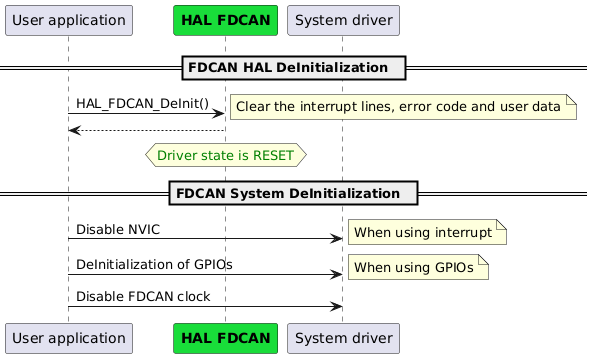

Full FDCAN Deinitialization Sequence ¶

Functions called:

HAL_FDCAN_DeInit()

FDCAN Transmit Message Polling Mode Using HAL_FDCAN_GetTxFifoFreeLevel ¶

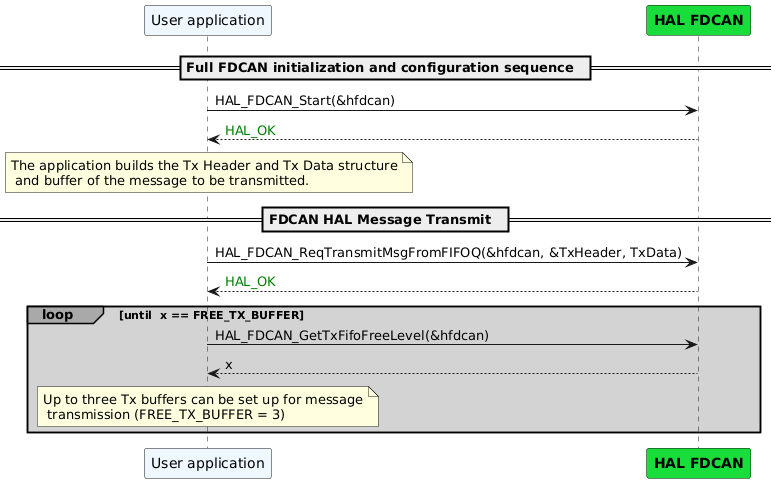

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN #19DD3A == Full FDCAN initialization and configuration sequence == App-> FDCAN: HAL_FDCAN_Start(&hfdcan) FDCAN --> App:<color green>HAL_OK Note over App#lightyellow: The application builds the Tx Header and Tx Data structure\n and buffer of the message to be transmitted. == FDCAN HAL Message Transmit == App-> FDCAN: HAL_FDCAN_ReqTransmitMsgFromFIFOQ(&hfdcan, &TxHeader, TxData) FDCAN --> App:<color green>HAL_OK loop#darkgrey #lightgrey until x == FREE_TX_BUFFER App-> FDCAN: HAL_FDCAN_GetTxFifoFreeLevel(&hfdcan) FDCAN --> App: x Note over App#lightyellow: Up to three Tx buffers can be set up for message\n transmission (FREE_TX_BUFFER = 3) end @enduml$

Functions called:

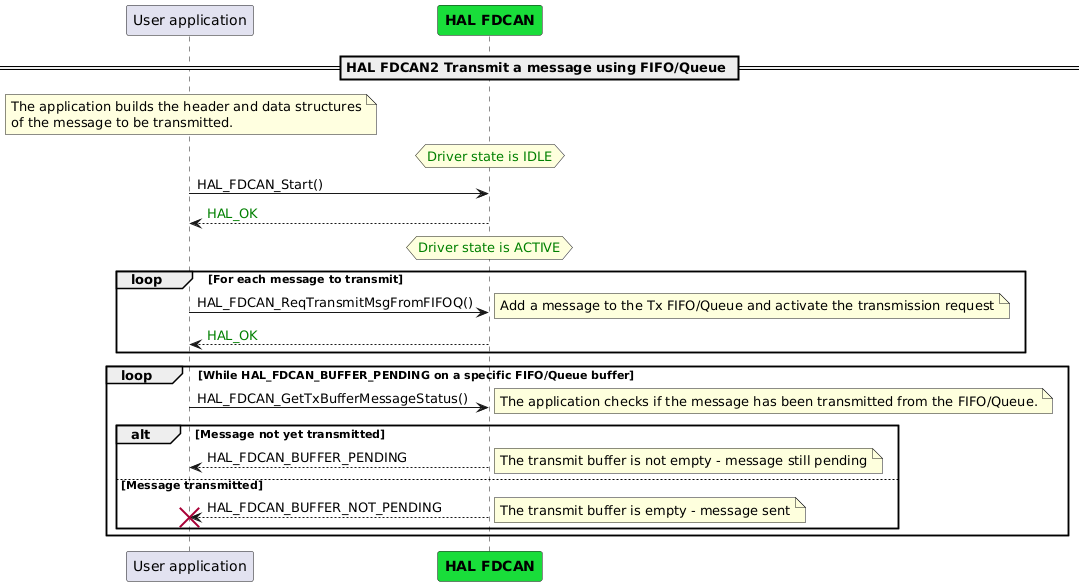

FDCAN Transmit Message Polling Mode Using HAL_FDCAN_GetTxBufferMessageStatus ¶

$@startuml participant "User application" as App participant "HAL FDCAN" as FDCAN #19DD3A == HAL FDCAN2 Transmit a message using FIFO/Queue == Note over App #lightyellow: The application builds the header and data structures\nof the message to be transmitted. hnote over FDCAN Driver state is IDLE end hnote App -> FDCAN: HAL_FDCAN_Start() FDCAN --> App: HAL_OK hnote over FDCAN Driver state is ACTIVE end hnote loop For each message to transmit App -> FDCAN: HAL_FDCAN_ReqTransmitMsgFromFIFOQ() note right Add a message to the Tx FIFO/Queue and activate the transmission request end note FDCAN --> App: HAL_OK end loop While HAL_FDCAN_BUFFER_PENDING on a specific FIFO/Queue buffer App -> FDCAN: HAL_FDCAN_GetTxBufferMessageStatus() note right The application checks if the message has been transmitted from the FIFO/Queue. end note alt Message not yet transmitted FDCAN --> App: HAL_FDCAN_BUFFER_PENDING note right The transmit buffer is not empty - message still pending end note else Message transmitted FDCAN --> App: HAL_FDCAN_BUFFER_NOT_PENDING note right The transmit buffer is empty - message sent end note destroy App end end @enduml$

Functions called:

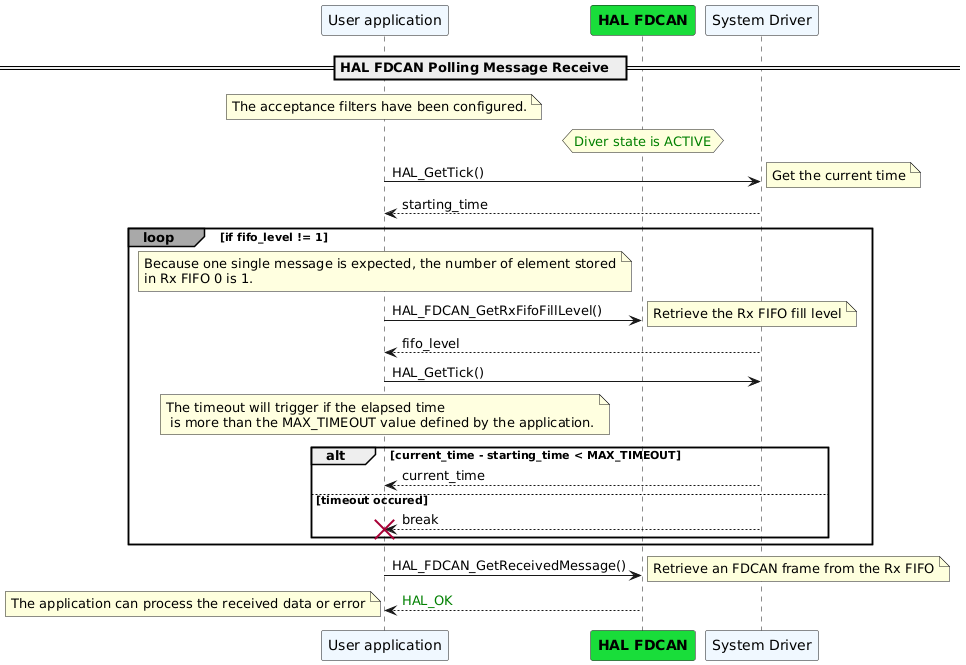

FDCAN Reading Message Polling Mode Using HAL_FDCAN_GetRxFifoFillLevel ¶

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN #19DD3A participant "System Driver" as Driver#AliceBlue == HAL FDCAN Polling Message Receive == Note over App#lightyellow: The acceptance filters have been configured. hnote over FDCAN Diver state is ACTIVE end note App -> Driver: HAL_GetTick() note right Get the current time endnote Driver --> App: starting_time loop#darkgrey if fifo_level != 1 Note over App #lightyellow: Because one single message is expected, the number of element stored\nin Rx FIFO 0 is 1. App -> FDCAN: HAL_FDCAN_GetRxFifoFillLevel() note right Retrieve the Rx FIFO fill level endnote Driver --> App: fifo_level App -> Driver: HAL_GetTick() Note over App#lightyellow: The timeout will trigger if the elapsed time\n is more than the MAX_TIMEOUT value defined by the application. alt current_time - starting_time < MAX_TIMEOUT Driver --> App: current_time else timeout occured Driver-->App: break destroy App end end App -> FDCAN: HAL_FDCAN_GetReceivedMessage() note right Retrieve an FDCAN frame from the Rx FIFO endnote FDCAN --> App:<color green>HAL_OK note left The application can process the received data or error end note @enduml$

Functions called:

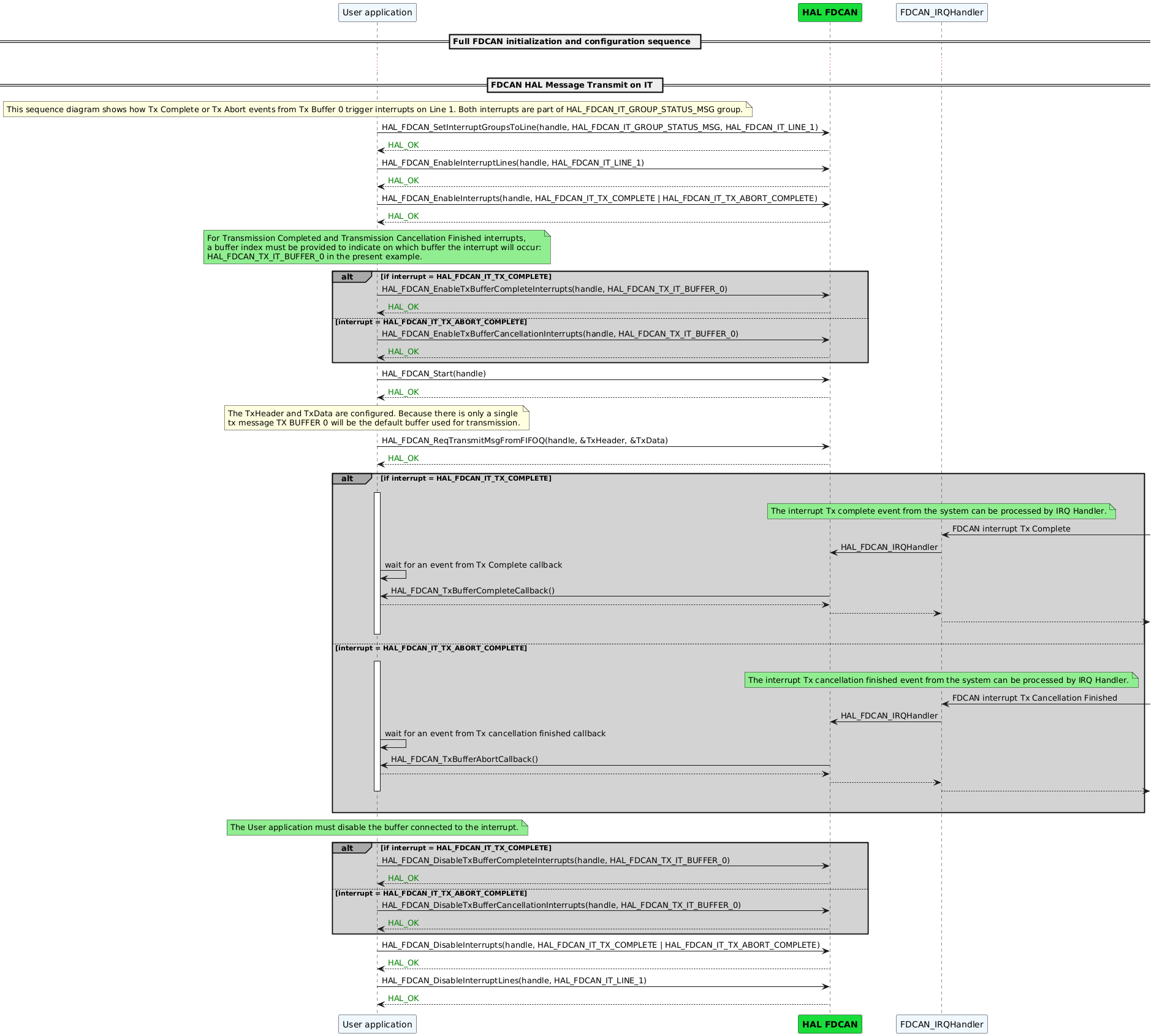

FDCAN Transmission with IT Using Tx Complete/Tx Cancellation Interrupts ¶

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN #19DD3A participant "FDCAN_IRQHandler" as IRQHandler#AliceBlue == Full FDCAN initialization and configuration sequence == ... == FDCAN HAL Message Transmit on IT == Note over App#lightyellow: This sequence diagram shows how Tx Complete or Tx Abort events from Tx Buffer 0 trigger interrupts on Line 1. Both interrupts are part of HAL_FDCAN_IT_GROUP_STATUS_MSG group. App -> FDCAN: HAL_FDCAN_SetInterruptGroupsToLine(handle, HAL_FDCAN_IT_GROUP_STATUS_MSG, HAL_FDCAN_IT_LINE_1) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_EnableInterruptLines(handle, HAL_FDCAN_IT_LINE_1) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_EnableInterrupts(handle, HAL_FDCAN_IT_TX_COMPLETE | HAL_FDCAN_IT_TX_ABORT_COMPLETE) FDCAN --> App:<color green>HAL_OK Note over App#lightgreen: For Transmission Completed and Transmission Cancellation Finished interrupts,\na buffer index must be provided to indicate on which buffer the interrupt will occur:\nHAL_FDCAN_TX_IT_BUFFER_0 in the present example. alt#darkgrey #lightgrey if interrupt = HAL_FDCAN_IT_TX_COMPLETE App -> FDCAN: HAL_FDCAN_EnableTxBufferCompleteInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK else interrupt = HAL_FDCAN_IT_TX_ABORT_COMPLETE App -> FDCAN: HAL_FDCAN_EnableTxBufferCancellationInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK end App -> FDCAN: HAL_FDCAN_Start(handle) FDCAN --> App:<color green>HAL_OK Note over App#lightyellow: The TxHeader and TxData are configured. Because there is only a single\ntx message TX BUFFER 0 will be the default buffer used for transmission. App -> FDCAN: HAL_FDCAN_ReqTransmitMsgFromFIFOQ(handle, &TxHeader, &TxData) FDCAN --> App:<color green>HAL_OK alt#darkgrey #lightgrey if interrupt = HAL_FDCAN_IT_TX_COMPLETE App-[hidden]->App activate App Note over IRQHandler#lightgreen: The interrupt Tx complete event from the system can be processed by IRQ Handler. IRQHandler <- : FDCAN interrupt Tx Complete IRQHandler -> FDCAN: HAL_FDCAN_IRQHandler App -> App: wait for an event from Tx Complete callback FDCAN -> App: HAL_FDCAN_TxBufferCompleteCallback() App --> FDCAN: FDCAN --> IRQHandler: IRQHandler --> : App-[hidden]->App deactivate App else interrupt = HAL_FDCAN_IT_TX_ABORT_COMPLETE App-[hidden]->App activate App Note over IRQHandler#lightgreen: The interrupt Tx cancellation finished event from the system can be processed by IRQ Handler. IRQHandler <- : FDCAN interrupt Tx Cancellation Finished IRQHandler -> FDCAN: HAL_FDCAN_IRQHandler App -> App: wait for an event from Tx cancellation finished callback FDCAN -> App: HAL_FDCAN_TxBufferAbortCallback() App --> FDCAN: FDCAN --> IRQHandler: IRQHandler --> : deactivate App App-[hidden]->App end Note over App#lightgreen: The User application must disable the buffer connected to the interrupt. alt#darkgrey #lightgrey if interrupt = HAL_FDCAN_IT_TX_COMPLETE App -> FDCAN: HAL_FDCAN_DisableTxBufferCompleteInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK else interrupt = HAL_FDCAN_IT_TX_ABORT_COMPLETE App -> FDCAN: HAL_FDCAN_DisableTxBufferCancellationInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK end App -> FDCAN: HAL_FDCAN_DisableInterrupts(handle, HAL_FDCAN_IT_TX_COMPLETE | HAL_FDCAN_IT_TX_ABORT_COMPLETE) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_DisableInterruptLines(handle, HAL_FDCAN_IT_LINE_1) FDCAN --> App:<color green>HAL_OK @enduml$

Functions called:

FDCAN Transmission Complete with IT Using Transmission Completed ¶

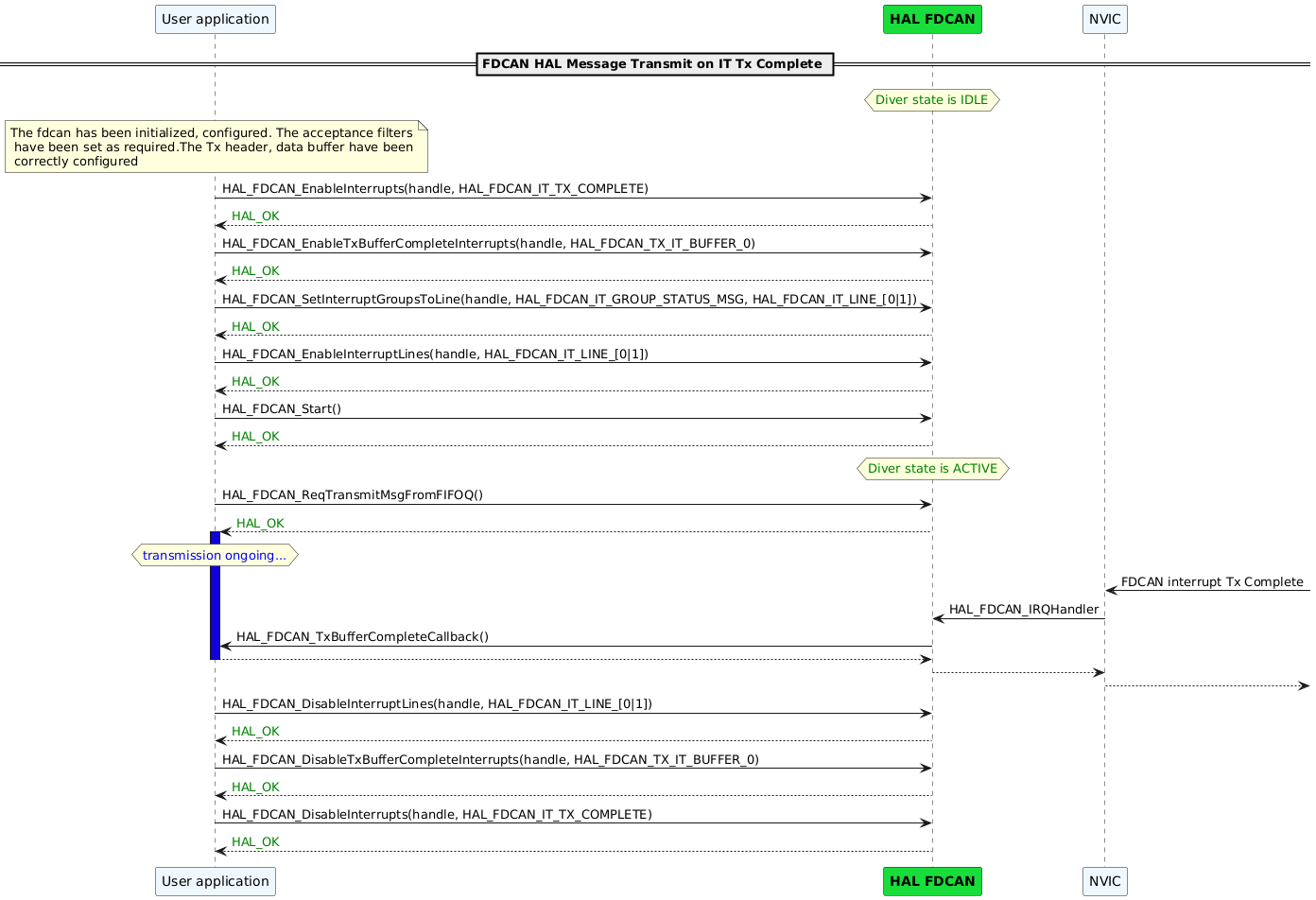

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN #19DD3A participant "NVIC" as NVIC#AliceBlue == FDCAN HAL Message Transmit on IT Tx Complete == hnote over FDCAN Diver state is IDLE end note note over App: The fdcan has been initialized, configured. The acceptance filters\n have been set as required.The Tx header, data buffer have been\n correctly configured App -> FDCAN: HAL_FDCAN_EnableInterrupts(handle, HAL_FDCAN_IT_TX_COMPLETE) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_EnableTxBufferCompleteInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_SetInterruptGroupsToLine(handle, HAL_FDCAN_IT_GROUP_STATUS_MSG, HAL_FDCAN_IT_LINE_[0|1]) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_EnableInterruptLines(handle, HAL_FDCAN_IT_LINE_[0|1]) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_Start() FDCAN --> App:<color green>HAL_OK hnote over FDCAN Diver state is ACTIVE end note App -> FDCAN: HAL_FDCAN_ReqTransmitMsgFromFIFOQ() FDCAN --> App:<color green>HAL_OK activate App #1000DA hnote over App transmission ongoing... end note NVIC <- : FDCAN interrupt Tx Complete NVIC -> FDCAN: HAL_FDCAN_IRQHandler FDCAN -> App: HAL_FDCAN_TxBufferCompleteCallback() App --> FDCAN: deactivate App FDCAN --> NVIC: NVIC --> : deactivate App App -> FDCAN: HAL_FDCAN_DisableInterruptLines(handle, HAL_FDCAN_IT_LINE_[0|1]) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_DisableTxBufferCompleteInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_DisableInterrupts(handle, HAL_FDCAN_IT_TX_COMPLETE) FDCAN --> App:<color green>HAL_OK @enduml$

Functions called:

FDCAN Receiving Message Using the Rx High-Priority Message Interrupt (HPME) ¶

Functions called:

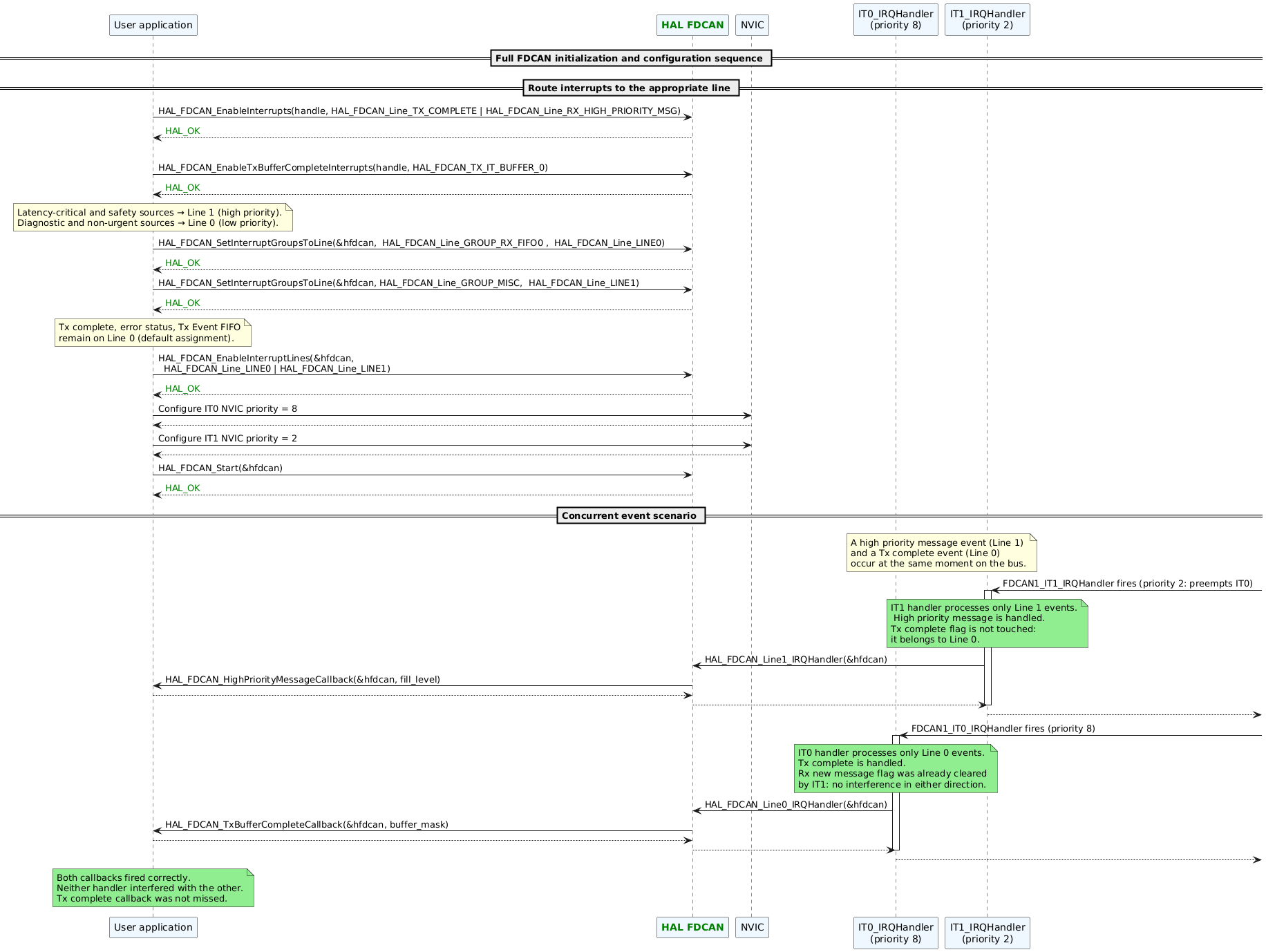

FDCAN Dual Interrupt-Line Configuration ¶

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN#AliceBlue participant "NVIC" as NVIC#AliceBlue participant "IT0_IRQHandler\n(priority 8)" as IT0#AliceBlue participant "IT1_IRQHandler\n(priority 2)" as IT1#AliceBlue == Full FDCAN initialization and configuration sequence == == Route interrupts to the appropriate line == App -> FDCAN: HAL_FDCAN_EnableInterrupts(handle, HAL_FDCAN_Line_TX_COMPLETE | HAL_FDCAN_Line_RX_HIGH_PRIORITY_MSG) FDCAN --> App:<color green>HAL_OK alt#darkgrey #lightgrey if interrupt = HAL_FDCAN_Line_TX_COMPLETE App -> FDCAN: HAL_FDCAN_EnableTxBufferCompleteInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN --> App:<color green>HAL_OK Note over App#lightyellow: Latency-critical and safety sources → Line 1 (high priority).\nDiagnostic and non-urgent sources → Line 0 (low priority). App -> FDCAN: HAL_FDCAN_SetInterruptGroupsToLine(&hfdcan, HAL_FDCAN_Line_GROUP_RX_FIFO0 , HAL_FDCAN_Line_LINE0) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_SetInterruptGroupsToLine(&hfdcan, HAL_FDCAN_Line_GROUP_MISC, HAL_FDCAN_Line_LINE1) FDCAN --> App:<color green>HAL_OK Note over App#lightyellow: Tx complete, error status, Tx Event FIFO\nremain on Line 0 (default assignment). App -> FDCAN: HAL_FDCAN_EnableInterruptLines(&hfdcan,\n HAL_FDCAN_Line_LINE0 | HAL_FDCAN_Line_LINE1) FDCAN --> App:<color green>HAL_OK App -> NVIC: Configure IT0 NVIC priority = 8 NVIC --> App App -> NVIC: Configure IT1 NVIC priority = 2 NVIC --> App App -> FDCAN: HAL_FDCAN_Start(&hfdcan) FDCAN --> App:<color green>HAL_OK == Concurrent event scenario == Note over IT0, IT1#lightyellow: A high priority message event (Line 1)\nand a Tx complete event (Line 0)\noccur at the same moment on the bus. IT1 <-: FDCAN1_IT1_IRQHandler fires (priority 2: preempts IT0) activate IT1 Note over IT1#lightgreen: IT1 handler processes only Line 1 events.\n High priority message is handled.\nTx complete flag is not touched:\nit belongs to Line 0. IT1 -> FDCAN: HAL_FDCAN_Line1_IRQHandler(&hfdcan) FDCAN -> App: HAL_FDCAN_HighPriorityMessageCallback(&hfdcan, fill_level) App --> FDCAN FDCAN --> IT1 deactivate IT1 IT1 -->: IT0 <-: FDCAN1_IT0_IRQHandler fires (priority 8) activate IT0 Note over IT0#lightgreen: IT0 handler processes only Line 0 events.\nTx complete is handled.\nRx new message flag was already cleared\nby IT1: no interference in either direction. IT0 -> FDCAN: HAL_FDCAN_Line0_IRQHandler(&hfdcan) FDCAN -> App: HAL_FDCAN_TxBufferCompleteCallback(&hfdcan, buffer_mask) App --> FDCAN FDCAN --> IT0 deactivate IT0 IT0 -->: Note over App#lightgreen: Both callbacks fired correctly.\nNeither handler interfered with the other.\nTx complete callback was not missed. @enduml$

Functions called:

FDCAN Transmit Abort Using Transmission Cancellation Finished Interrupt ¶

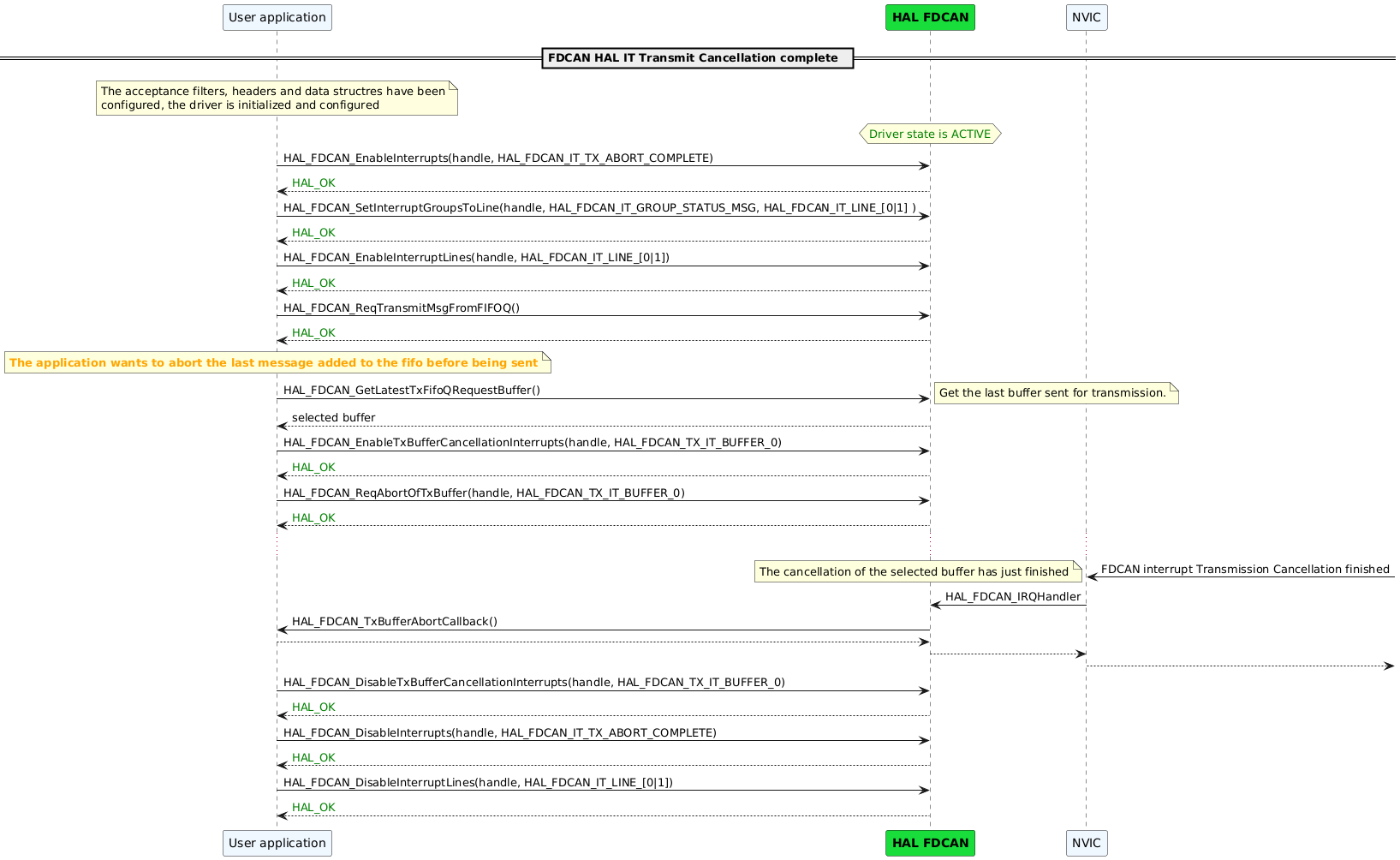

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN #19DD3A participant "NVIC" as NVIC#AliceBlue == FDCAN HAL IT Transmit Cancellation complete == Note over App#lightyellow: The acceptance filters, headers and data structres have been\nconfigured, the driver is initialized and configured hnote over FDCAN Driver state is ACTIVE end note App -> FDCAN: HAL_FDCAN_EnableInterrupts(handle, HAL_FDCAN_IT_TX_ABORT_COMPLETE) FDCAN -->App : <color green>HAL_OK App -> FDCAN: HAL_FDCAN_SetInterruptGroupsToLine(handle, HAL_FDCAN_IT_GROUP_STATUS_MSG, HAL_FDCAN_IT_LINE_[0|1] ) FDCAN -->App : <color green>HAL_OK App -> FDCAN: HAL_FDCAN_EnableInterruptLines(handle, HAL_FDCAN_IT_LINE_[0|1]) FDCAN -->App : <color green>HAL_OK App -> FDCAN: HAL_FDCAN_ReqTransmitMsgFromFIFOQ() FDCAN -->App : <color green>HAL_OK Note over App: <color orange>The application wants to abort the last message added to the fifo before being sent App -> FDCAN: HAL_FDCAN_GetLatestTxFifoQRequestBuffer() note right Get the last buffer sent for transmission. endnote FDCAN --> App: <color black>selected buffer App -> FDCAN: HAL_FDCAN_EnableTxBufferCancellationInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN -->App : <color green>HAL_OK App -> FDCAN : HAL_FDCAN_ReqAbortOfTxBuffer(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN -->App : <color green>HAL_OK ... NVIC <- : FDCAN interrupt Transmission Cancellation finished note left The cancellation of the selected buffer has just finished endnote NVIC -> FDCAN : HAL_FDCAN_IRQHandler FDCAN -> App : HAL_FDCAN_TxBufferAbortCallback() App --> FDCAN : FDCAN --> NVIC: NVIC --> : App -> FDCAN: HAL_FDCAN_DisableTxBufferCancellationInterrupts(handle, HAL_FDCAN_TX_IT_BUFFER_0) FDCAN -->App : <color green>HAL_OK App -> FDCAN: HAL_FDCAN_DisableInterrupts(handle, HAL_FDCAN_IT_TX_ABORT_COMPLETE) FDCAN -->App : <color green>HAL_OK App -> FDCAN: HAL_FDCAN_DisableInterruptLines(handle, HAL_FDCAN_IT_LINE_[0|1]) FDCAN -->App : <color green>HAL_OK @enduml$

Functions called:

Tx Event FIFO Batch Drain ¶

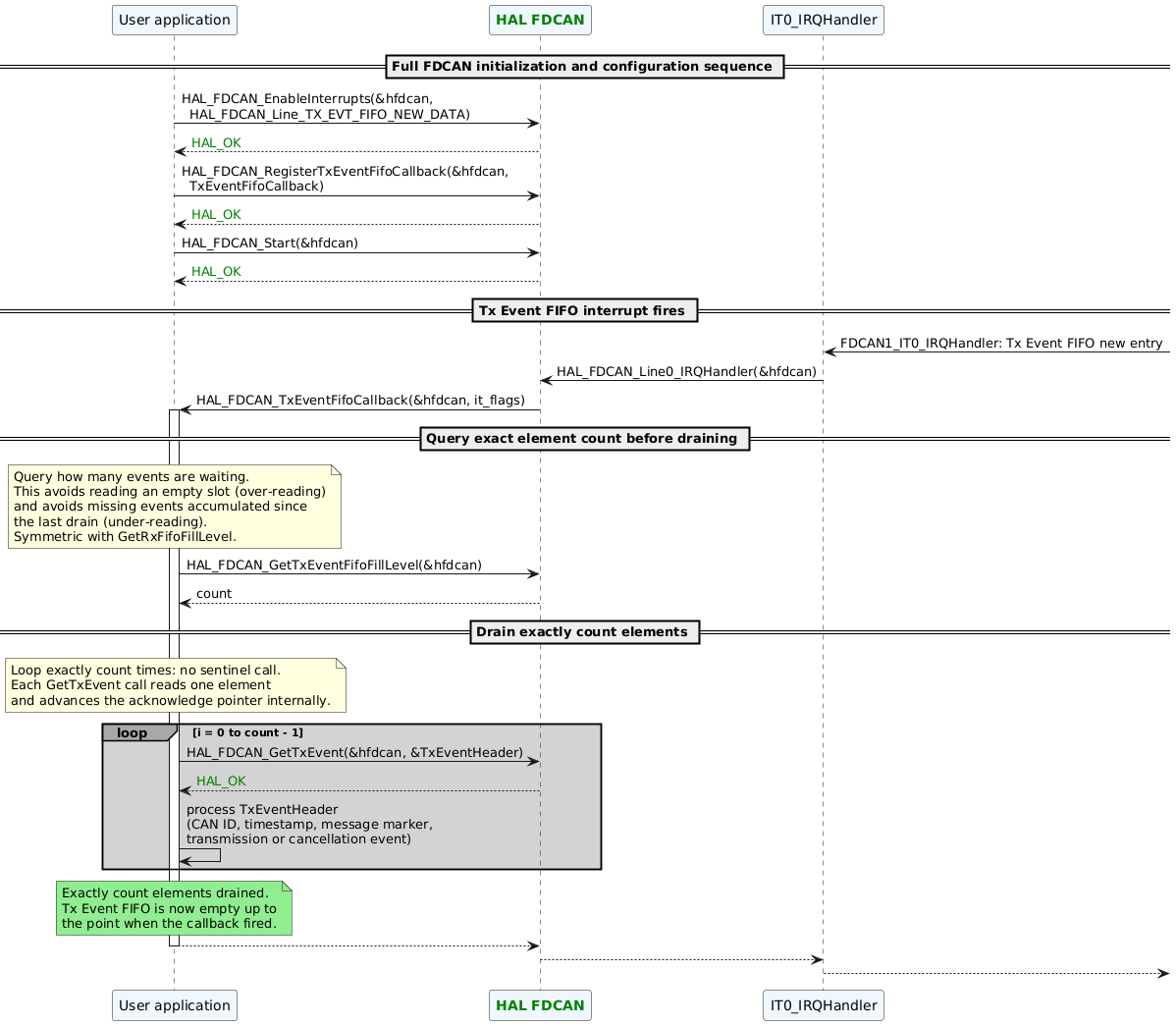

$@startuml participant "User application" as App#AliceBlue participant "HAL FDCAN" as FDCAN#AliceBlue participant "IT0_IRQHandler" as IT0#AliceBlue == Full FDCAN initialization and configuration sequence == App -> FDCAN: HAL_FDCAN_EnableInterrupts(&hfdcan,\n HAL_FDCAN_Line_TX_EVT_FIFO_NEW_DATA) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_RegisterTxEventFifoCallback(&hfdcan,\n TxEventFifoCallback) FDCAN --> App:<color green>HAL_OK App -> FDCAN: HAL_FDCAN_Start(&hfdcan) FDCAN --> App:<color green>HAL_OK == Tx Event FIFO interrupt fires == IT0 <-: FDCAN1_IT0_IRQHandler: Tx Event FIFO new entry IT0 -> FDCAN: HAL_FDCAN_Line0_IRQHandler(&hfdcan) FDCAN -> App: HAL_FDCAN_TxEventFifoCallback(&hfdcan, it_flags) activate App == Query exact element count before draining == Note over App#lightyellow: Query how many events are waiting.\nThis avoids reading an empty slot (over-reading)\nand avoids missing events accumulated since\nthe last drain (under-reading).\nSymmetric with GetRxFifoFillLevel. App -> FDCAN: HAL_FDCAN_GetTxEventFifoFillLevel(&hfdcan) FDCAN --> App: count == Drain exactly count elements == Note over App#lightyellow: Loop exactly count times: no sentinel call.\nEach GetTxEvent call reads one element\nand advances the acknowledge pointer internally. loop#darkgrey #lightgrey i = 0 to count - 1 App -> FDCAN: HAL_FDCAN_GetTxEvent(&hfdcan, &TxEventHeader) FDCAN --> App:<color green>HAL_OK App -> App: process TxEventHeader\n(CAN ID, timestamp, message marker,\ntransmission or cancellation event) end Note over App#lightgreen: Exactly count elements drained.\nTx Event FIFO is now empty up to\nthe point when the callback fired. App --> FDCAN deactivate App FDCAN --> IT0 IT0 -->: @enduml$

Functions called: - HAL_FDCAN_EnableInterrupts() - HAL_FDCAN_RegisterTxEventFifoCallback() - HAL_FDCAN_Start() - HAL_FDCAN_GetTxEventFifoFillLevel() - HAL_FDCAN_GetTxEvent() - HAL_FDCAN_Line0_IRQHandler() - HAL_FDCAN_TxEventFifoCallback()
