HAL ICACHE Overview ¶
Introducing ICACHE ¶
- group ICACHE_Introduction
-
-
This introduction is under development.
-
Module and files ¶
The following diagram illustrates the ICACHE module and its associated files.
Component diagram ¶

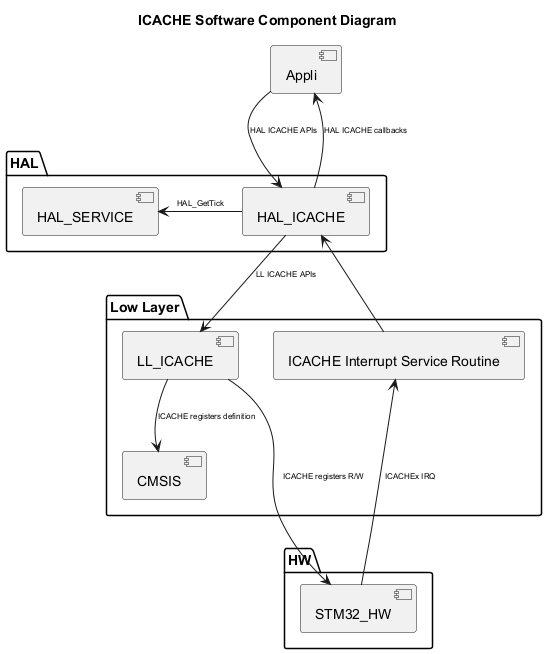

The following diagram illustrates the software components involved in the ICACHE module. It shows the interactions between the user application, HAL drivers, low-level drivers, and the hardware components.
![@startuml
<style>
componentDiagram {
arrow {
FontSize 8
}
}
</style>
title ICACHE Software Component Diagram
package "HAL" {
[HAL_SERVICE]
[HAL_ICACHE]
}
package "Low Layer" {
[LL_ICACHE]
[CMSIS]
[ICACHE Interrupt Service Routine]
}
package "HW" {
[STM32_HW]
}
[Appli] --> [HAL_ICACHE] : HAL ICACHE APIs
[Appli] <-- [HAL_ICACHE] : HAL ICACHE callbacks
[HAL_ICACHE] --> [LL_ICACHE] : LL ICACHE APIs
[HAL_ICACHE] -l-> [HAL_SERVICE] : HAL_GetTick
[HAL_ICACHE] <-- [ICACHE Interrupt Service Routine]
[LL_ICACHE] --> [CMSIS]:ICACHE registers definition
[STM32_HW] -u--> [ICACHE Interrupt Service Routine]: ICACHEx IRQ
[STM32_HW] <-u-- [LL_ICACHE] : ICACHE registers R/W
@enduml](../../../../_images/plantuml-7417b0f1eff01f76d8fb3b710624c9fee1807e23.png)
Configuration table ¶
The following table lists the configuration defines for the HAL ICACHE module, specifying their locations, default values, and descriptions:
- group ICACHE_Configuration_Table
-
¶
Configuration inside the ICACHE driver : ¶
Config defines
Description
Default value
Note
USE_HAL_ICACHE_MODULE
From hal_conf.h
1
Allows to use HAL ICACHE module.
USE_HAL_ICACHE_REGISTER_CALLBACKS
From hal_conf.h
0
Allows to use the register callbacks.
USE_HAL_CHECK_PARAM
From hal_conf.h
0
Allows to use the run-time checks parameters.
USE_ASSERT_DBG_PARAM
From IDE
NA
Allows to use the assert check parameters.
USE_ASSERT_DBG_STATE
From IDE
NA
Allows to use the assert check states.
USE_HAL_ICACHE_GET_LAST_ERRORS
From hal_conf.h
1
Allow to use error code mechanism.
USE_HAL_ICACHE_USER_DATA
From hal_conf.h
0
Allows to use user data.
