HAL ICACHE use cases ¶

HAL ICACHE Maintenance Operations in Polling Mode ¶

$@startuml skinparam sequenceMessageAlign center participant "User\nApplication" as UA participant "ICACHE\nDriver" as ID UA->ID : **HAL_ICACHE_Init** rnote over ID Invalidate Operation by Hardware endrnote UA <-- ID : return HAL_OK or HAL_INVALID_PARAM ||| group Loop [Can be repeated] group Optional UA->ID : **HAL_ICACHE_SetAssociativityMode** ID --> UA : return HAL_OK UA->ID : **HAL_ICACHE_ECC_Enable** ID --> UA : return HAL_OK UA->ID : **HAL_ICACHE_EnableMonitors** ID --> UA : return HAL_OK ||| end UA->ID : **HAL_ICACHE_Start** note right : Choose to enable Write intrusion error interrupt ID --> UA : return HAL_OK group Loop [Can be repeated] UA->ID : **HAL_ICACHE_Invalidate** ID --> UA : return HAL_OK, HAL_BUSY, HAL_ERROR ||| end group Optional UA->ID : **HAL_ICACHE_GetMonitorHitValue**, **HAL_ICACHE_GetMonitorMissValue** ID --> UA : Monitor's value UA->ID : **HAL_ICACHE_ResetMonitors** ID --> UA : return HAL_OK UA->ID : **HAL_ICACHE_ECC_Disable** ID --> UA : return HAL_OK end ||| UA->ID : **HAL_ICACHE_Stop** ID --> UA : return HAL_OK ||| end ||| UA->ID : **HAL_ICACHE_DeInit** ID --> UA @enduml$

Functions called:

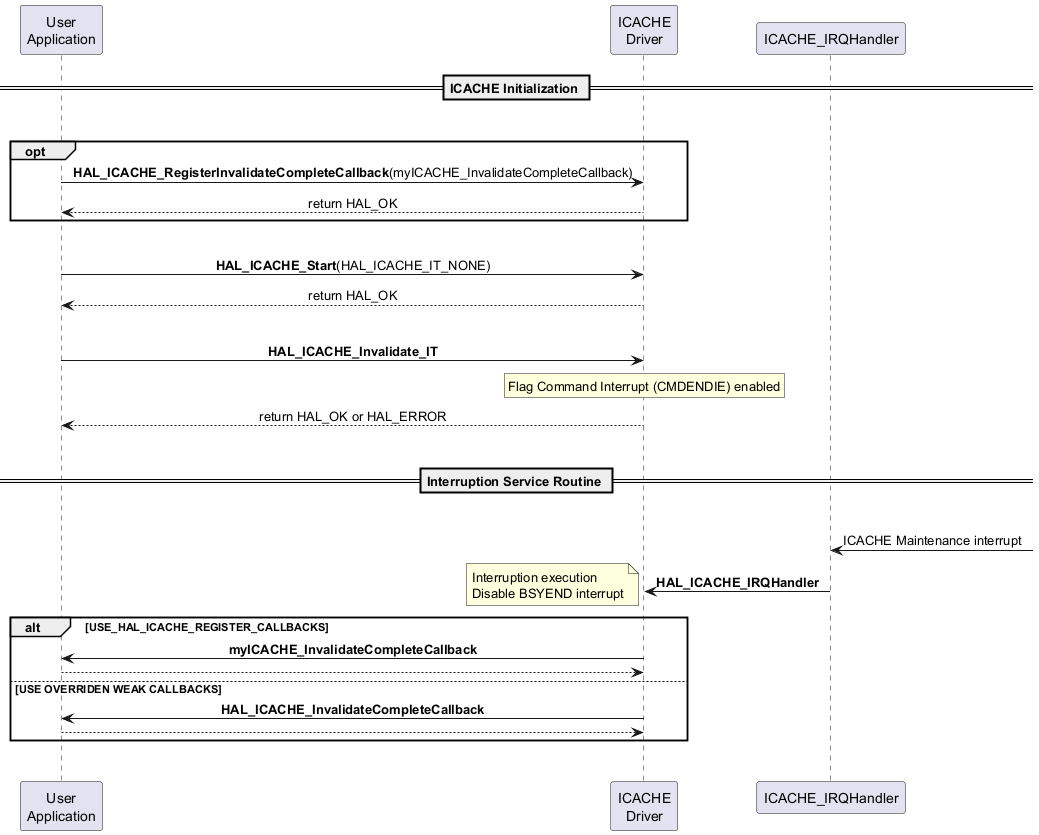

HAL ICACHE Maintenance Operations in Interrupt Mode ¶

$@startuml participant "User\nApplication" as UA participant "ICACHE\nDriver" as ID participant "ICACHE_IRQHandler" as IRQ skinparam sequenceMessageAlign center == ICACHE Initialization == ||| opt UA -> ID: **HAL_ICACHE_RegisterInvalidateCompleteCallback**(myICACHE_InvalidateCompleteCallback) ID --> UA : return HAL_OK end ||| UA->ID : **HAL_ICACHE_Start**(HAL_ICACHE_IT_NONE) ID --> UA : return HAL_OK ||| UA -> ID : **HAL_ICACHE_Invalidate_IT** rnote over ID Flag Command Interrupt (CMDENDIE) enabled endrnote ID --> UA : return HAL_OK or HAL_ERROR ||| == Interruption Service Routine == ||| IRQ <- : ICACHE Maintenance interrupt IRQ -> ID : **HAL_ICACHE_IRQHandler** note left : Interruption execution\nDisable BSYEND interrupt alt USE_HAL_ICACHE_REGISTER_CALLBACKS ID -> UA : **myICACHE_InvalidateCompleteCallback** ID <-- UA else USE OVERRIDEN WEAK CALLBACKS ID -> UA : **HAL_ICACHE_InvalidateCompleteCallback** ID <-- UA end ||| @enduml$

Functions called:

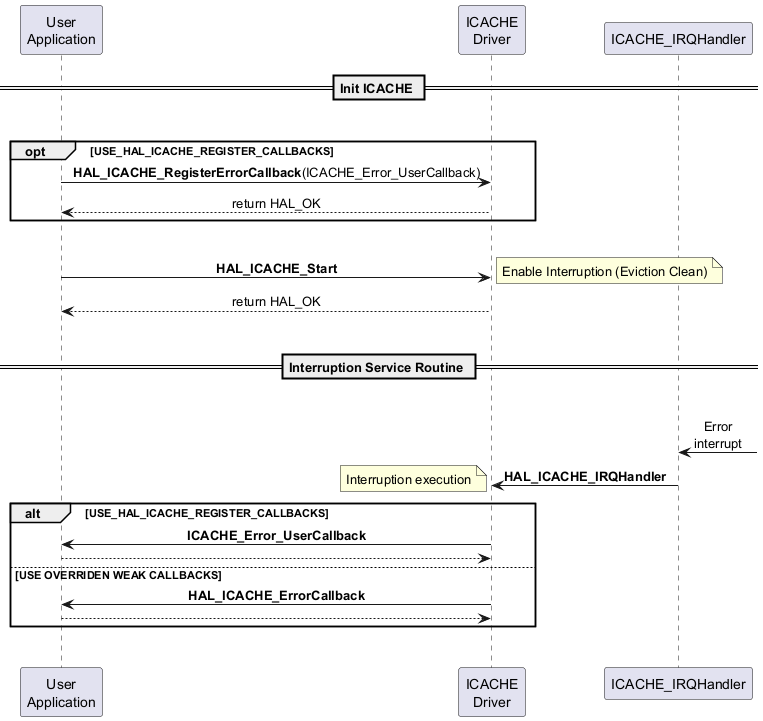

HAL ICACHE Error Use Case ¶

$@startuml participant "User\nApplication" as UA participant "ICACHE\nDriver" as ID participant "ICACHE_IRQHandler" as IRQ skinparam sequenceMessageAlign center == Init ICACHE == ||| opt USE_HAL_ICACHE_REGISTER_CALLBACKS UA -> ID: **HAL_ICACHE_RegisterErrorCallback**(ICACHE_Error_UserCallback) ID --> UA : return HAL_OK end ||| UA -> ID : **HAL_ICACHE_Start** note right : Enable Interruption (Eviction Clean) ID --> UA : return HAL_OK ||| == Interruption Service Routine == ||| IRQ <- : Error\ninterrupt IRQ -> ID : **HAL_ICACHE_IRQHandler** note left : Interruption execution alt USE_HAL_ICACHE_REGISTER_CALLBACKS ID -> UA : **ICACHE_Error_UserCallback** ID <-- UA else USE OVERRIDEN WEAK CALLBACKS ID -> UA : **HAL_ICACHE_ErrorCallback** ID <-- UA end ||| @enduml$

Functions called:

HAL_ICACHE_RegisterErrorCallback()
HAL_ICACHE_RegisterSingleECCErrorCallback()
HAL_ICACHE_RegisterDoubleECCErrorCallback()
HAL_ICACHE_ECC_Enable()
HAL_ICACHE_Start()
HAL_ICACHE_IRQHandler()
HAL_ICACHE_ErrorCallback()
HAL_ICACHE_SingleECCErrorCallback()
HAL_ICACHE_DoubleECCErrorCallback()

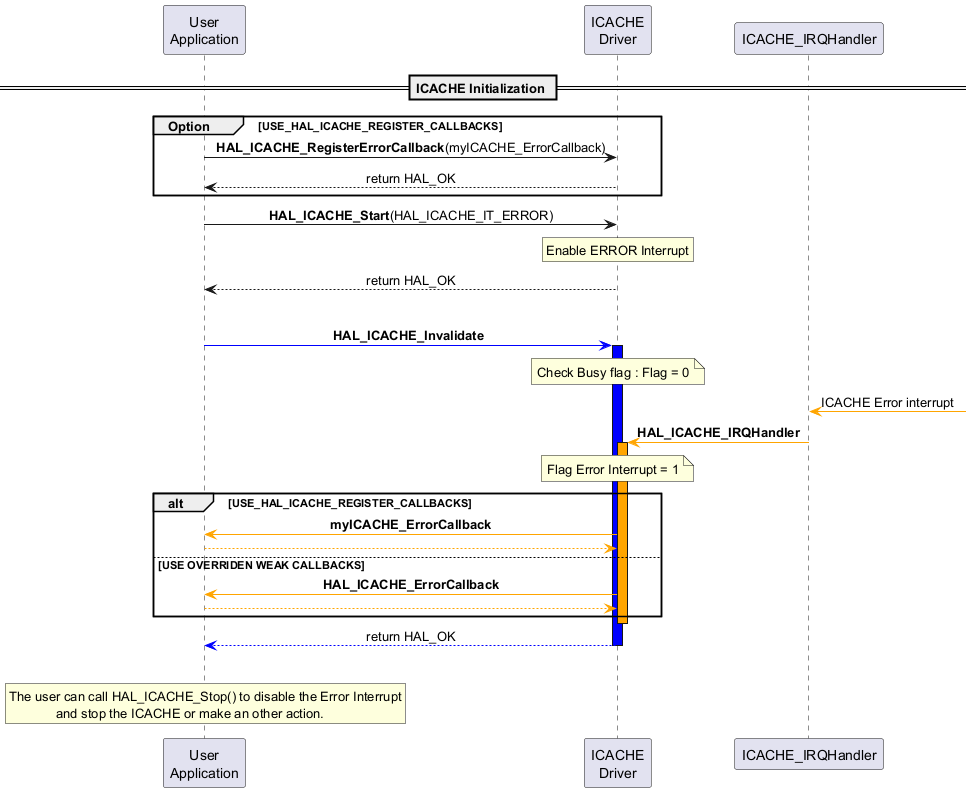

HAL ICACHE Maintenance Operations in Polling Mode with Error Interrupt Enabled Use Case ¶

$@startuml participant "User\nApplication" as UA order 1 participant "ICACHE\nDriver" as ID order 2 participant "ICACHE_IRQHandler" as IRQ order 3 skinparam sequenceMessageAlign center == ICACHE Initialization == group Option [USE_HAL_ICACHE_REGISTER_CALLBACKS] UA -> ID : **HAL_ICACHE_RegisterErrorCallback**(myICACHE_ErrorCallback) ID --> UA : return HAL_OK end UA -> ID : **HAL_ICACHE_Start**(HAL_ICACHE_IT_ERROR) rnote over ID Enable ERROR Interrupt endrnote ID --> UA : return HAL_OK ||| UA [#blue]->ID: **HAL_ICACHE_Invalidate** activate ID #blue note over ID : Check Busy flag : Flag = 0 IRQ <[#orange]- : ICACHE Error interrupt IRQ -[#orange]> ID : **HAL_ICACHE_IRQHandler** activate ID #orange note over ID : Flag Error Interrupt = 1 alt USE_HAL_ICACHE_REGISTER_CALLBACKS ID-[#orange]>UA:**myICACHE_ErrorCallback** UA -[#orange]->ID else USE OVERRIDEN WEAK CALLBACKS ID-[#orange]>UA:**HAL_ICACHE_ErrorCallback** UA -[#orange]->ID end deactivate ID ID-[#blue]-> UA : return HAL_OK deactivate ID ||| rnote over UA The user can call HAL_ICACHE_Stop() to disable the Error Interrupt and stop the ICACHE or make an other action. endrnote @enduml$

Functions called:

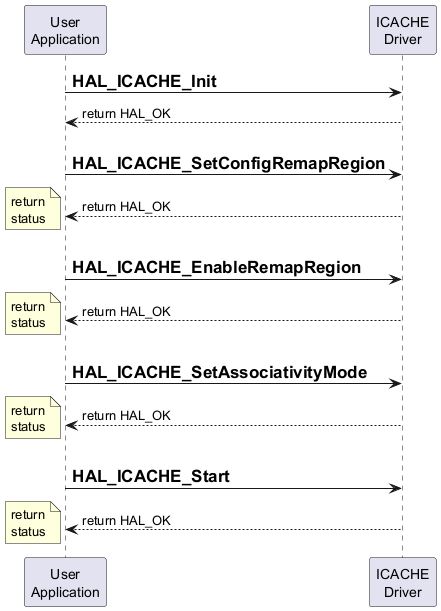

HAL ICACHE Remap Region Successful Use Case ¶

$@startuml participant "User\nApplication" as UA participant "ICACHE\nDriver" as ID UA->ID: =HAL_ICACHE_Init ID-->UA: return HAL_OK UA->ID :\n=HAL_ICACHE_SetConfigRemapRegion ID-->UA: return HAL_OK note left : return\nstatus UA->ID :\n=HAL_ICACHE_EnableRemapRegion ID-->UA: return HAL_OK note left : return\nstatus UA->ID: \n=HAL_ICACHE_SetAssociativityMode ID-->UA: return HAL_OK note left : return\nstatus UA->ID: \n=HAL_ICACHE_Start ID-->UA: return HAL_OK note left : return\nstatus @enduml$

Functions called:
